4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons

Place of Origin Hubei
Brand Name Dongfeng
Certification ccc
Document Product Brochure PDF
Minimum Order Quantity 1
Price 36500
Packaging Details nude with waxing
Delivery Time 30-35 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tank Capacity 6 Cubic Meters Dust Suppression System Yes
Power Source Diesel Operating Weight 5 Tons
Sweeping Width 10-15 Meters Cleaning Speed 5-15 Km/h
Type Mechanical Curb Climbing Ability 30 Cm
Cleaning Spray Rack Width 2.3-3.5 M Spray Rack Deflection Angle 30 °
Clean Water Rated Flow ≥ 150 L/min Spray Flow ≥ 125 L/min
Rated Of Pressure Washing Water 10 Mpa Low Pressure Clean Flow 500-900 L/min
Ow Pressure Clean Width ≥ 16 M Water Gun Range ≥ 35 M
Highlight

4x2 mini sweeper truck

,

4x2 Road Cleaning Truck

,

Road Cleaning Truck 5 tons

Leave a Message
Product Description

High Pressure Cleaning Truck for Effective Cleaning of Hidden Corners of Vehicles



1. Working principle of road washing truck
Equipped with a front spray rack, By compressing water molecules into small water droplets under high pressure, fast and efficient cleaning and cleaning effects can be achieved. This type of vehicle is usually used to remove dirt, grease, mud, and other stains from the surface of road.
2. Applicable environment for road washing truck
In some industrial settings, such as factories, warehouses, etc., high-pressure cleaning vehicles can be used to remove harmful substances from the air to improve the air quality of the working environment. In addition to road cleaning, they are also widely used in building cleaning and other cleaning fields. In terms of vehicle cleaning, high-pressure cleaning vehicles can penetrate into the hidden corners of the vehicle, thoroughly remove various dirt and stubborn oil stains, and also have the effect of sterilization and disinfection, effectively ensuring the safety and hygiene of vehicle use



Main Technical specification

Dongfeng high pressure cleaning truck
Overall dimensions 7435×2500×2780 mm
Tank dimention 2900x2100x1450 mm
Tank volume 7 m3
GVW 11995 kg
Curb weight 5130 kg
Payload 6670 kg
Wheel base 3800 mm
F/R track base 1750/1630 mm
F/R suspension 1130/1960 mm
Approach/departure angle 21/13 °
Max speed 80 km/h
Axle Load 2200/5500 kg
Tire 7.50R16
Number of axles 2
Steering Power
Transmission WLY6
Cab passenger 3
Electric System 24V
Engine model
Manufacturer YUCHAI ENGINE
Type YC4FA120-30
Emission/kw 2982ml/88Kw, 120Hp
Rated power speed 3200RPM
Maximum torque 345Nm at 1400-1800rpm
type Diesel, 4 direct-line, turbocharge and water cooling
Cylinder bore 96mm
Stroke 100mm
Secondary engine model JX493G3, 2771cc/57kw/3600r/min
High pressure clean
Cleaning spray rack width 2.3-3.5 m
Spray rack deflection angle 30 °
Sweeping speed 5-15 Km/h
Rated of pressure washing water 10 Mpa
Clean water rated flow ≥ 150 L/min
Spray flow ≥ 125 L/min
Low pressure clean
Clean width ≥ 16 m
Clean water flow 500-900 L/min
Water gun range ≥ 35 m
Self-priming height ≥ 6 m
Driving performance
Max speed 80 Km/h
Maximum grade 30 °
Braking length 10 m
Minimum turning diameter 19 m
Clutch
Type SACHS
Plate's diameter ¢430mm
Operating system Hydraulic control with air booster, pulling
PTO
Type PTO with gear pump
Maximum output torque 850Nm
Standard configuration

1, Front high pressure road cleaning device(1 set)

2, Front high pressure nozzle(2 sets)

3, Front low pressure spray nozzle(2 set)

4, Middle upper high pressure gun(1 set)

5, Milddle bottom high pressure nozzle(2 set)

6, Rear low pressure shower sprinkler(2 set)

7, Rear high pressure annular sprinkler(2 set)

8, Rear high pressure gun(1 set)

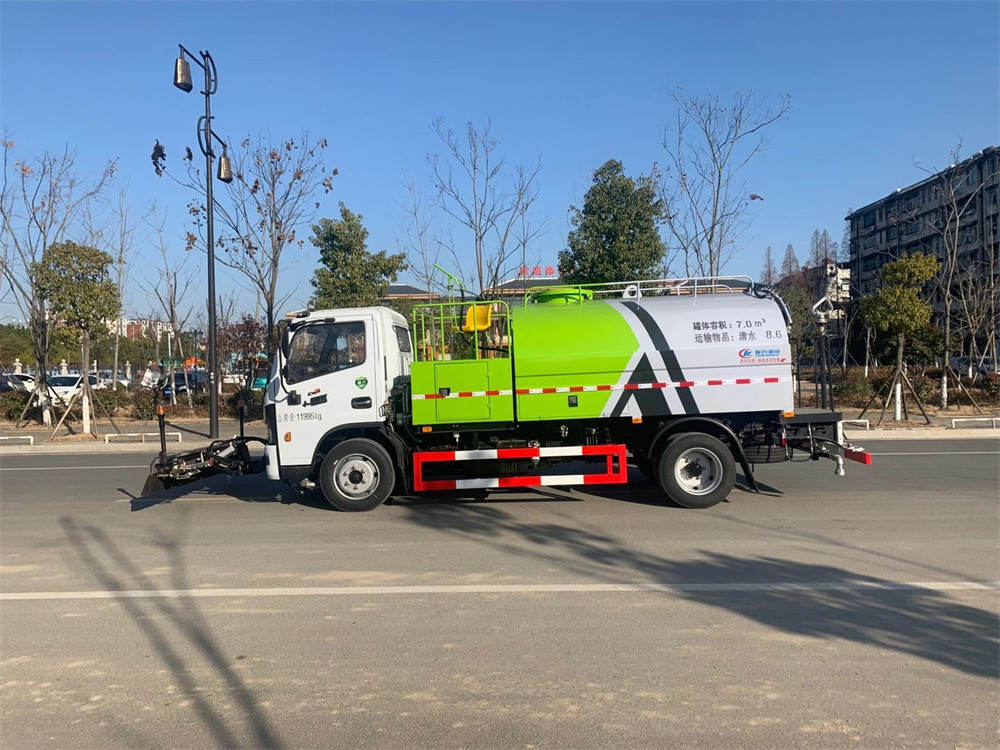

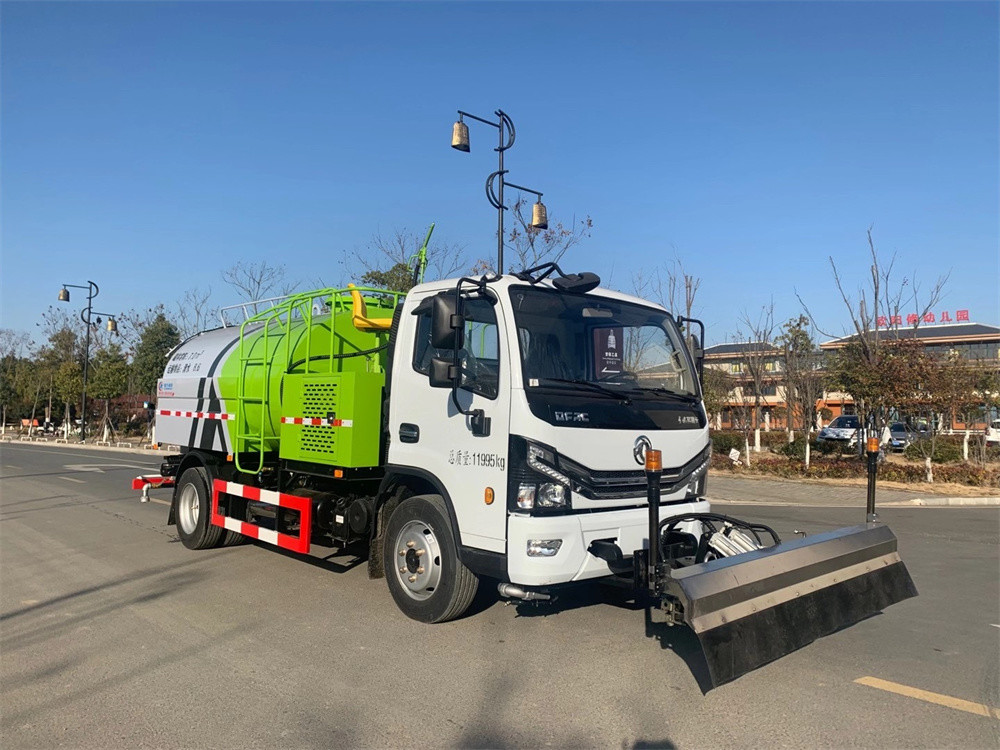

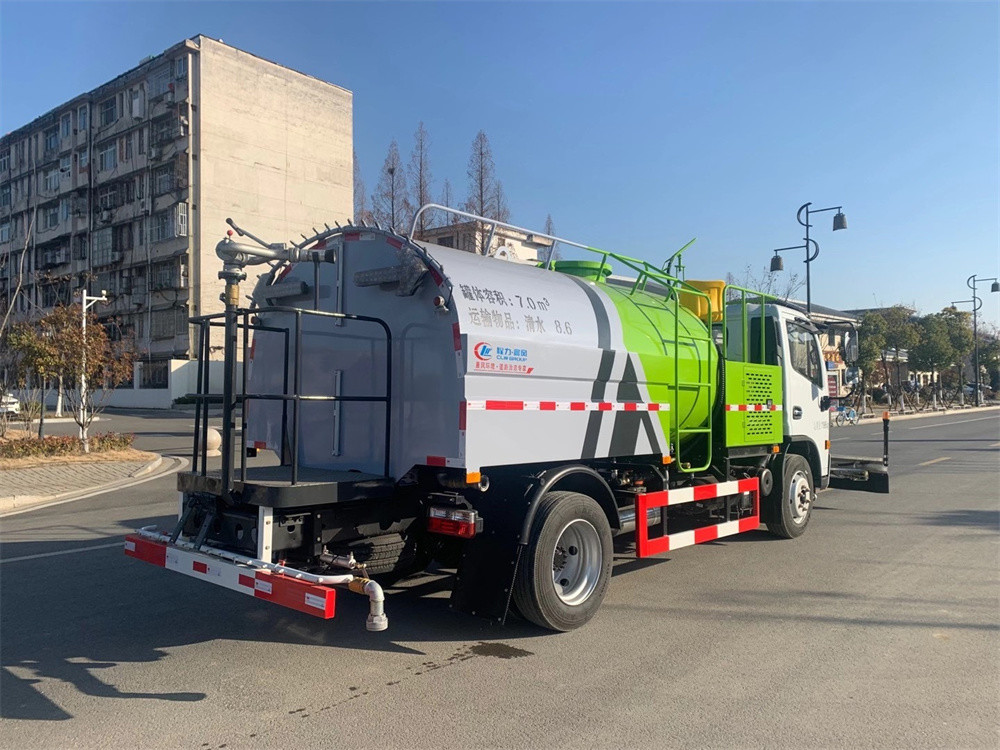

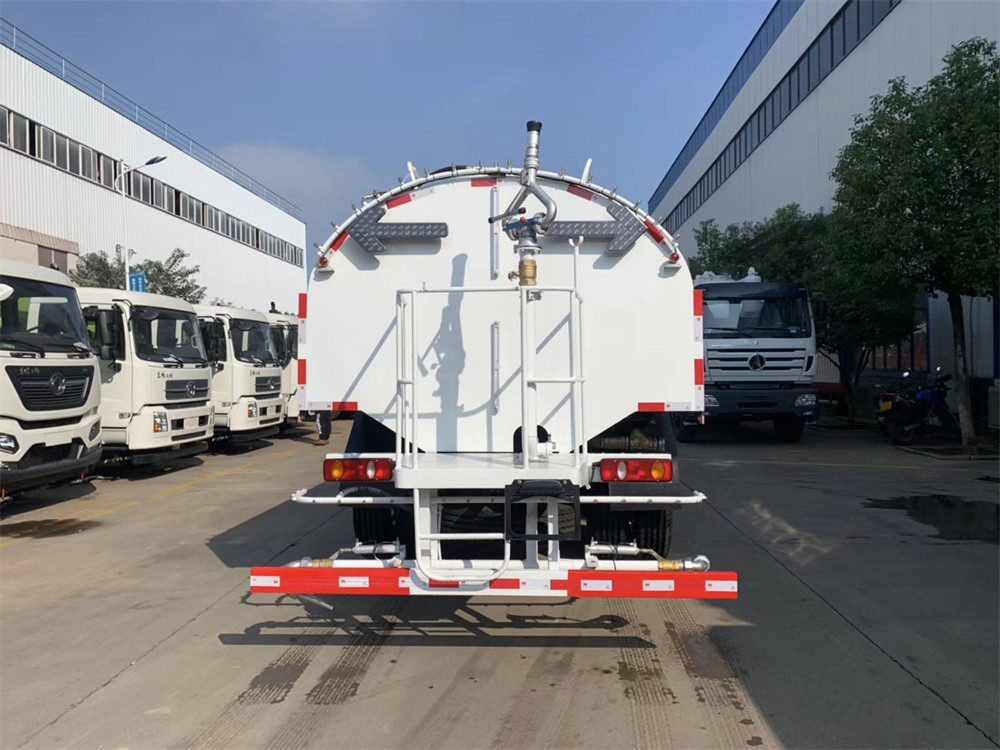

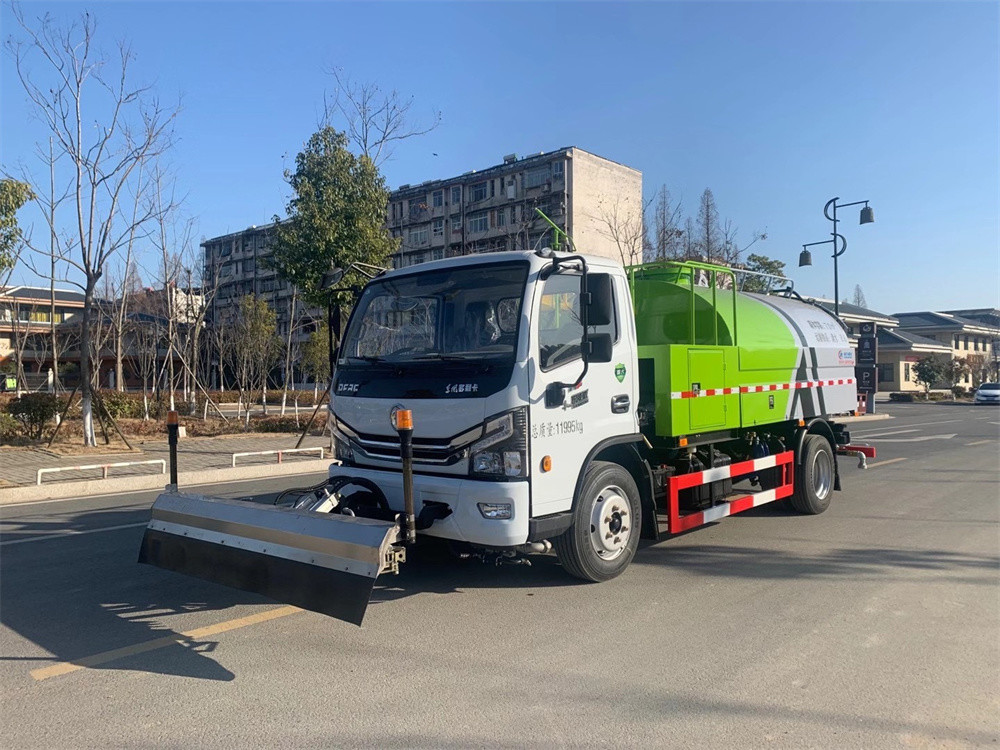

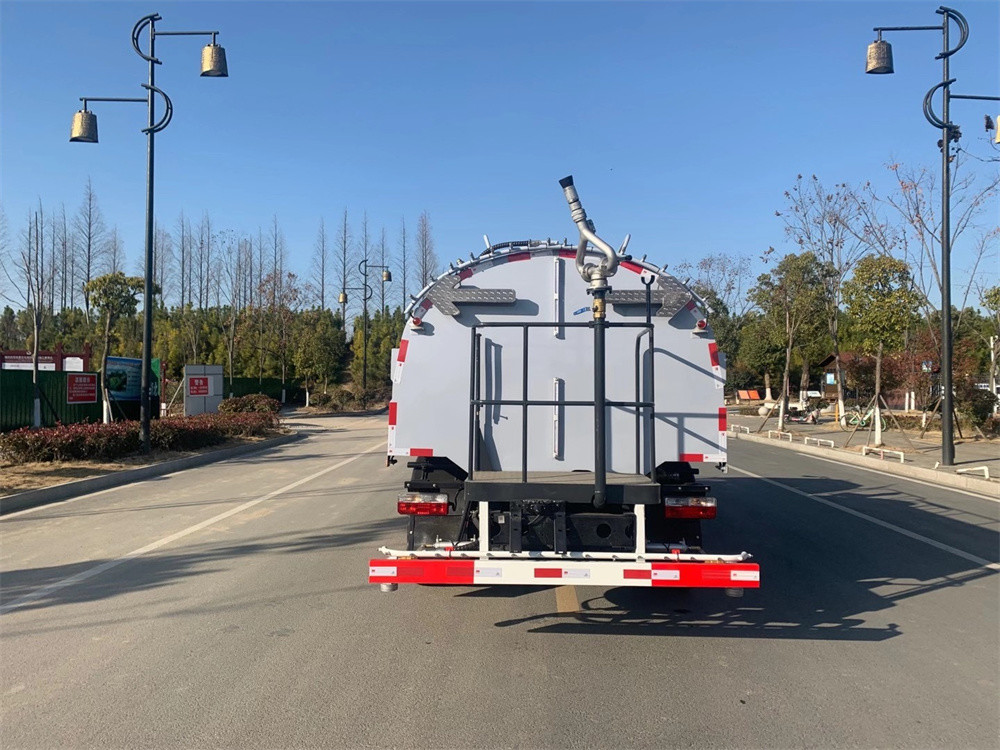

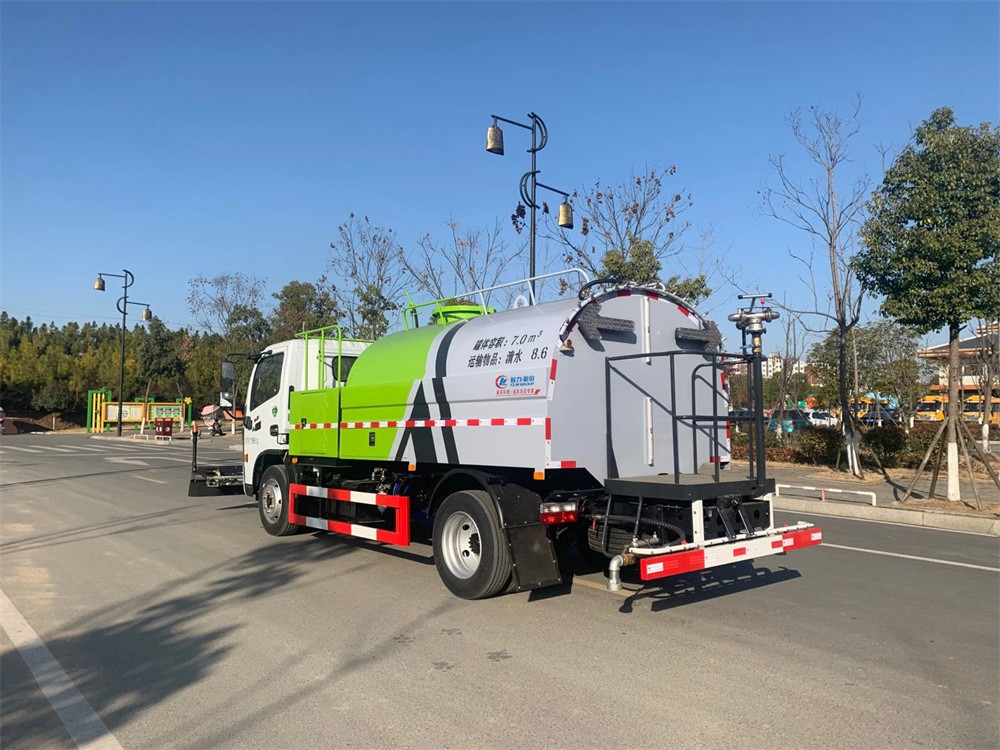

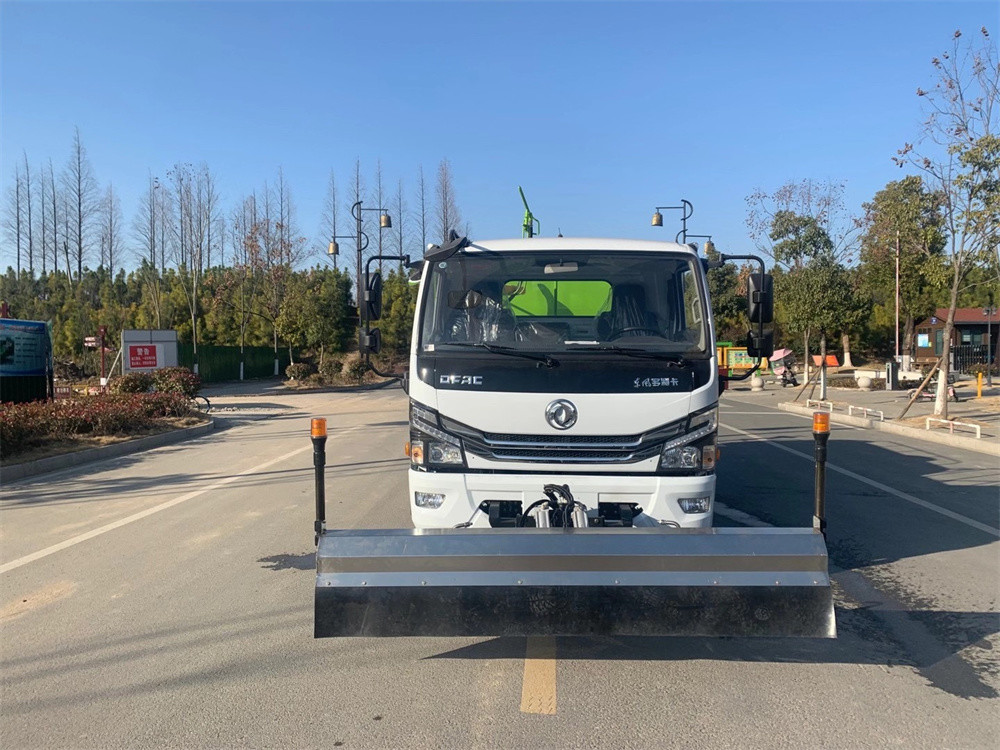

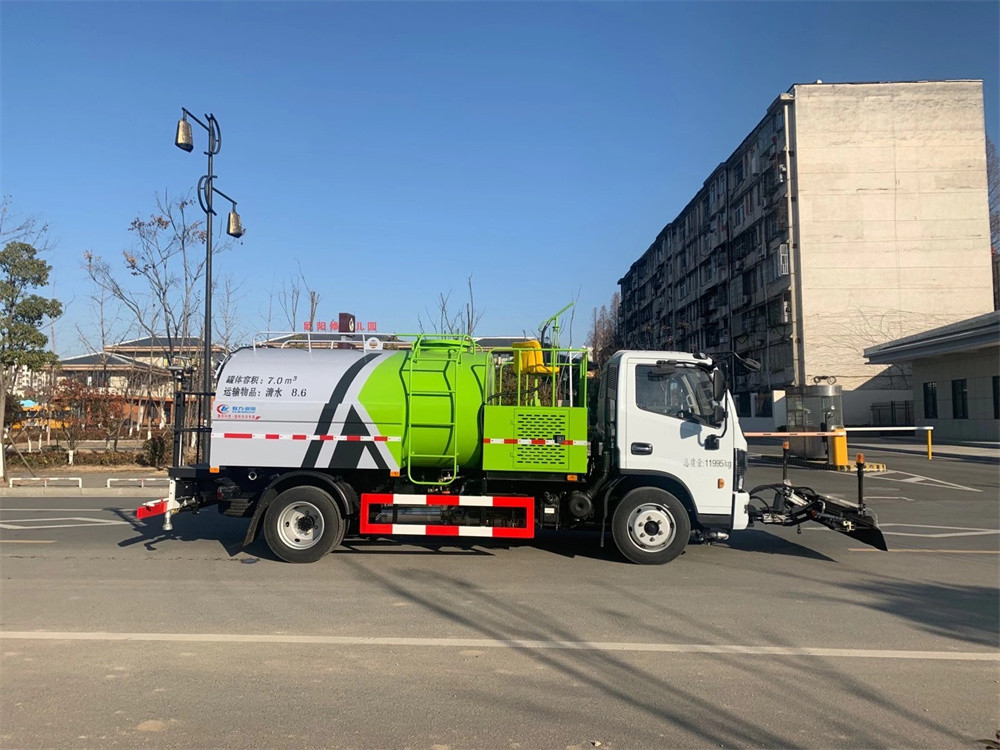

High pressure road washing truck picture

4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons 0

High pressure road washing truck function display

4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons 1

High pressure road sweeper truck bulk order

4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons 2

High pressure road sweeper truck loading

4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons 3
