ISUZU KV600 130hp Engine Trash Compactor Truck 8cbm Tank Waste Removal Truck
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Model Number | QL1070A5KAY |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 27200$ |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | ISUZU Garbage Truck | Volume | 6000 To 8000 Liters |
|---|---|---|---|
| Chassis Model | ISUZU KV600 | Engine | 4KH1CN5HS |
| Wheelbase | 3815 Mm | Contorl | Electric And Hydraulic |
| Drive Model | 4x2 | Tire | 700R16 |
| Transmission | MSB5 | Adblue | Remove |
| Highlight | 30hp Engine trash compactor truck,8cbm Tank waste removal truck,8cbm Tank trash compactor truck |
||
Product Description
ISUZU KV600 130hp Engine Garbage Compactor Truck with 8 cbm Garbage Tank
Garbage trucks are mainly used for collecting, loading, and transporting household waste, and can compress and crush the loaded garbage to increase its density and reduce its volume, greatly improving the efficiency of garbage collection and transportation. The new garbage truck has the characteristics of reliable quality, low failure rate, easy maintenance, and low operating costs.
Garbage trucks can be further classified into various types based on their collection methods, including but not limited to:
Compressed garbage truck: using a mechanical, electrical, hydraulic linkage control system, computer control, and manual operation system, garbage is poured, crushed, or flattened through devices such as fillers and shovels, and garbage is squeezed into the compartment, compacted, and pushed out.
Self dumping garbage truck: equipped with a hydraulic system that can tilt the carriage to a certain angle and dump the garbage on its own.
Swing arm garbage truck: composed of chassis, garbage bin (hopper), swing arm deceleration buffer oil cylinder, etc. Its characteristic is that the garbage bin can be separated from the vehicle body, realizing the joint use of one vehicle and multiple garbage bins.
Sealed garbage truck: widely used for urban street garbage treatment, with sealed self dumping function, hydraulic operation, and convenient dumping of garbage.
Hanging bucket self loading and unloading garbage truck: using a chain and hydraulic cylinder linkage device to achieve semi lifting and flipping of garbage, automatically collecting garbage from multiple garbage bins into the carriage, and self dumping.
These different types of garbage trucks each have their own unique advantages and application scenarios, which can meet the garbage treatment needs in different environments and are important tools for maintaining urban hygiene and appearance
Main Technical specification
| Overview | |
| Name | 8cbm ISUZU KV600 Garbage Compactor Truck |
| Dimension(LxWxH) | 7355x2320x2750 mm |
| Total Mass | 8280 kg |
| Rated Payload | 5950 kg |
| Kerb Weight | 2135 kg |
| Passenger | 3 |
| Approach/Departure Angle | 23°/12 ° |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU KV600 |
| Driving Type | 4x2 |
| Wheel Base | 3815 mm |
| Gearbox | MSB5 |
| Front/Rear Track | 1640/1655 mm |
| Tyre model | 7.00R16 |
| The Number of Tyre | 6+1 (spare tyre) |
| Front/Rear Suspension | 1120/2420 mm |
| Leaf Spring Number | 3 / 3+2 |
| The Paremeters of Engine | |
| Manufacturer/Model | 4KH1CN5HS |
| Rated Power | 96kw/130hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2999 ml |
| Emission Standard | Eu 5 |
| Cylinder | 4 |
| Max. Torque/ speed | 290 N.m/ 1500rpm |
| Velocity | 3400 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Volume of Tank | 8,000 liters |
| Function | Delivery life use waste garbage |
| Compressor and filling cycle time | 25-30 s |
| Loading cycle time | 17-25 s |
| Discharge cycle time | 30-45 s |
| Compressor density | 0.6-0.8 kg/m3 |
| Rear loading device | Flip board/triangulation/swinging arm |
| Others | High strength Q345 manganese steel ,steel plate thickness bottom 5mm, side 4mm, tail bilateral sewage tank, manual control. Electric operation and cab control. Rear loading plastic, hopper and swing arm bucket |

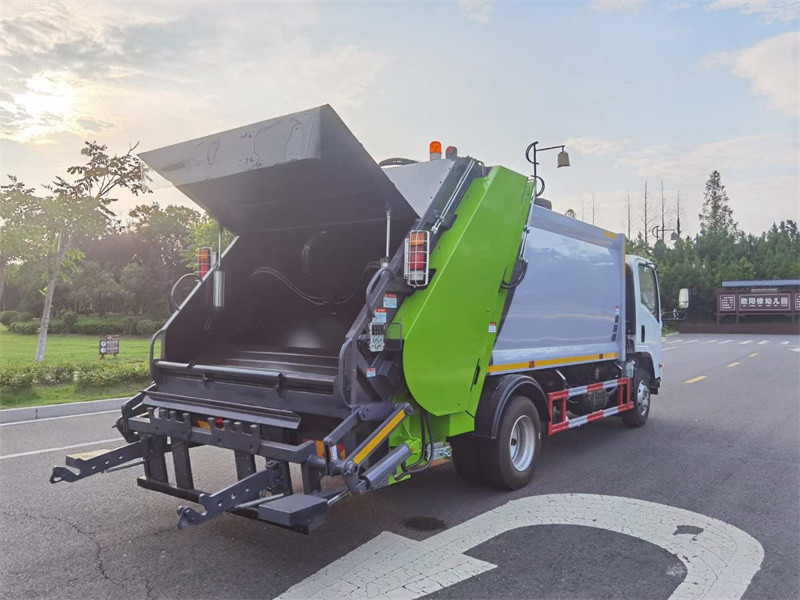

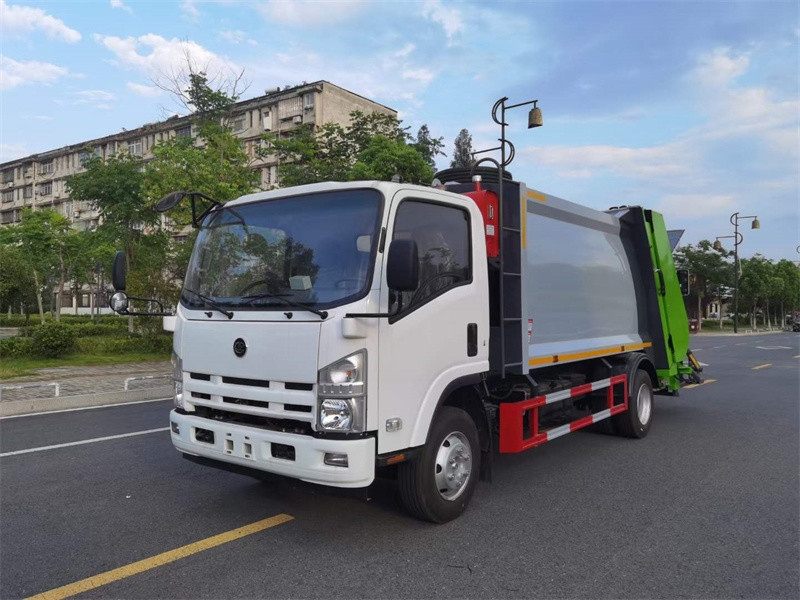

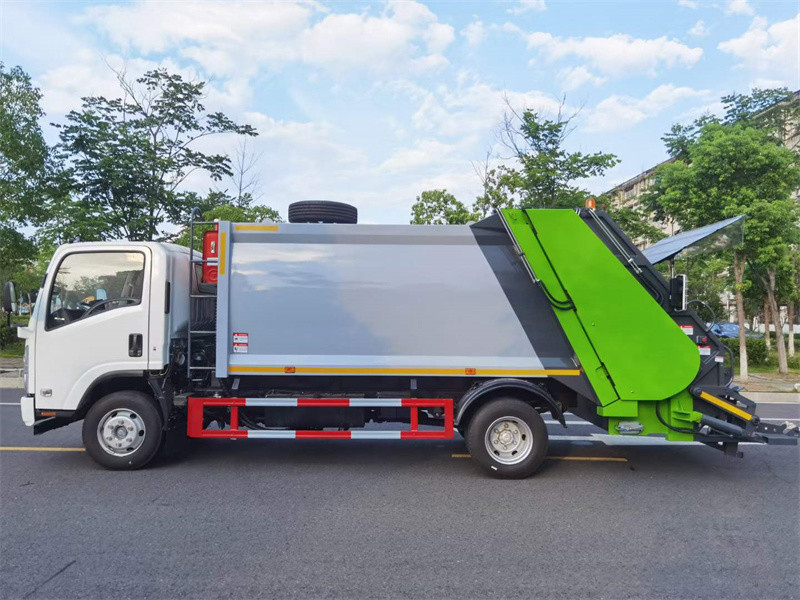

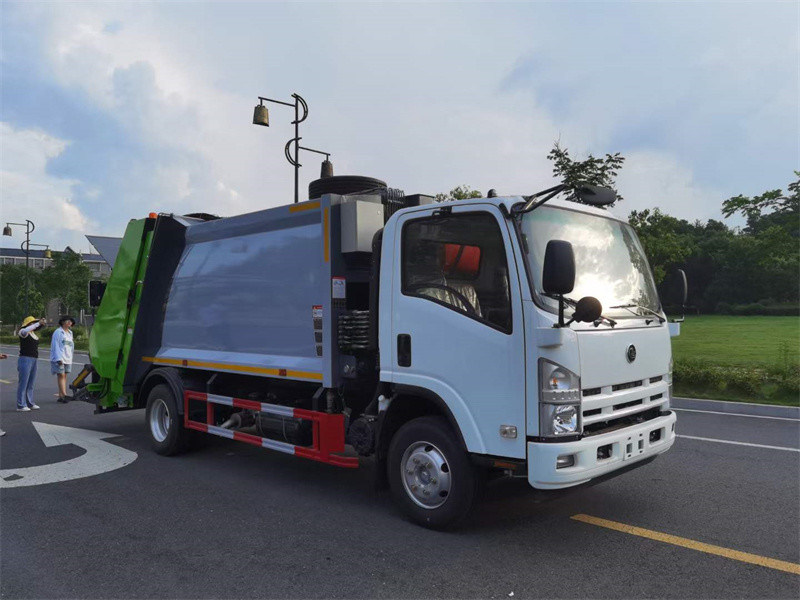

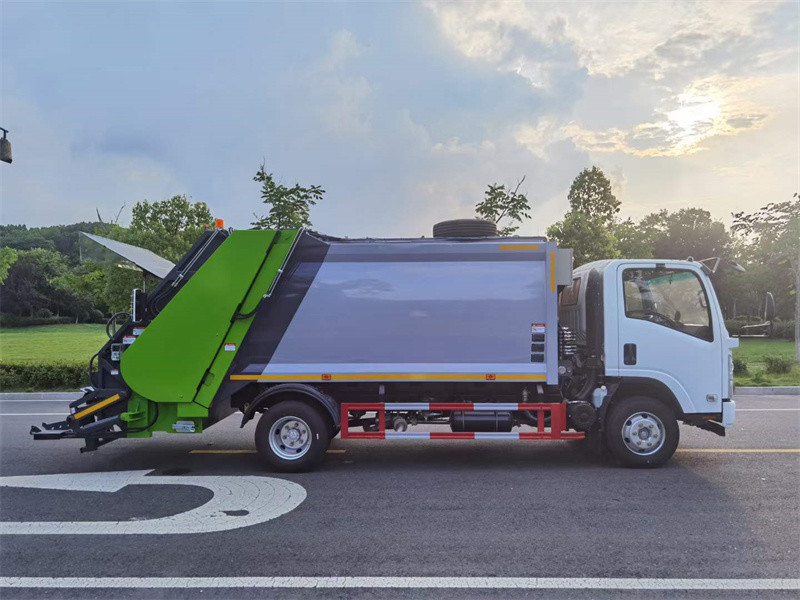

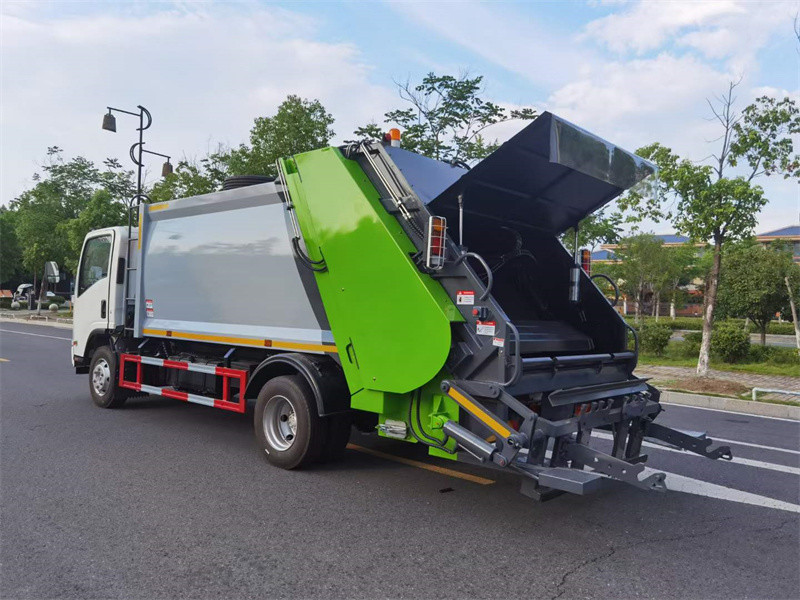

ISUZU KV600 Garbage Compacotr Truck Picture
Garbage Compactor Truck Working Stock
