Diesel Powered Commercial 2 Ton Truck Mounted Crane With Hydraulic Boom
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Model Number | QL1070A6HAY |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 27200 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Crane Truck | Chassis | ISUZU |
|---|---|---|---|
| Crane Loading | 2 Tons | Crane Type | Straight Arm |
| Support Leg | 2 | Wheelbase | 3360 Mm |
| Lifting Height | 9 M | Working Radius | 8 M |
| Crane Model | SQS42 | Crane Brand | XCMG |
| Highlight | Diesel Powered Truck Mounted Crane,Hydraulic Boom Truck Mounted Crane,Diesel Powered 2 ton crane truck |
||
Product Description
ISUZU NPR 100P 98hp Engine 2 tons XCMG Straight arm truck mounted crane
The official name of the truck mounted crane is the truck mounted crane transport vehicle, which is a device that uses hydraulic lifting and telescopic systems to lift, rotate, and hoist goods. It is usually assembled on cargo trucks.
It is widely used for the hoisting and transportation of infrastructure materials and other equipment in municipal construction, coal mining engineering, landscaping, and other fields.
Truck mounted crane is a type of transportation vehicle that combines a truck mounted crane and a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Applicable working conditions: In traditional areas of Dongfeng, high-density goods such as iron powder and iron ore are loaded and transported, suitable for poor road conditions such as mountainous roads and construction site roads.
Main Technical specification
| Overview | |
| Name | 2 tons Isuzu Crane Truck |
| Dimension(LxWxH) | 5990x2200x2750 mm |
| Total Mass | 6350 kg |
| Rated Payload | 3000 kg |
| Kerb Weight | 3350 kg |
| Passenger | 3 |
| Approach/Departure Angle | 23°/13 ° |
| The Parameters of Chassis | |
| Manufacture/Model | QL1070A6HAY |
| Driving Type | 4x2 |
| Wheel Base | 3360 mm |
| Gearbox | MSB5 |
| Front/Rear Track | 1640/1655 mm |
| Tyre model | 7.00R16 |
| The Number of Tyre | 6+1 (spare tyre) |
| Front/Rear Suspension | 1120/2095 mm |
| Axles Loading | Front Man 2 T Rear Man 4 T |
| Oil Tank | 200L Iron |
| The Parameters of Engine | |
| Manufacturer/Model | ISUZU/ 4KH1CN5LS |
| Rated Power | 72kw/98hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2999 ml |
| Emission Standard | Eu 5 |
| Cylinder | 4 |
| Max. Torque/ speed | 220N.m/ 1700rpm |
| Velocity | 3400 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customized |
| Rear bucket | 3500x2000x500 mm |
| Dump function | Yes |
| Crane | Xcmg 2 tons straight arm, SQS42 |
XCMG 2 tons straight arm crane specifications
| Model | SQS42 (2 tons, 3 arms) |
| Max loading weight | 2,000 kg |
| Max torque | 42 kN.m |
| Max outreach | 8 m |
| Max lifting height | 9 m |
| Oil tank capacity | 25 L |
| Max pressure of hydraulic system | 16 mpa |
| Recommended pump capacity | 20 L/min |
| Installation space | 850 mm |
| Slewing angle | 360 ° |
| Crane weight | 950 kg |
| Stabilizer spread | 1874-3024 mm |
XCMG 2 tons straight arm crane specifications

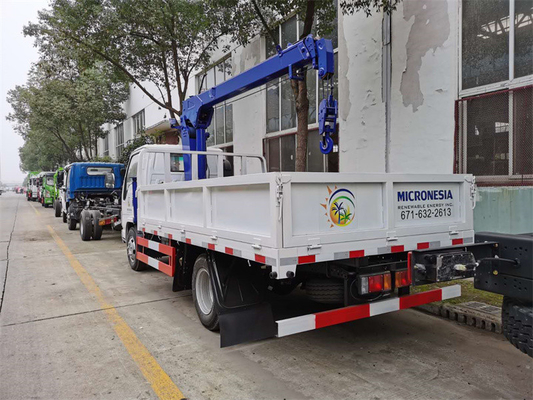

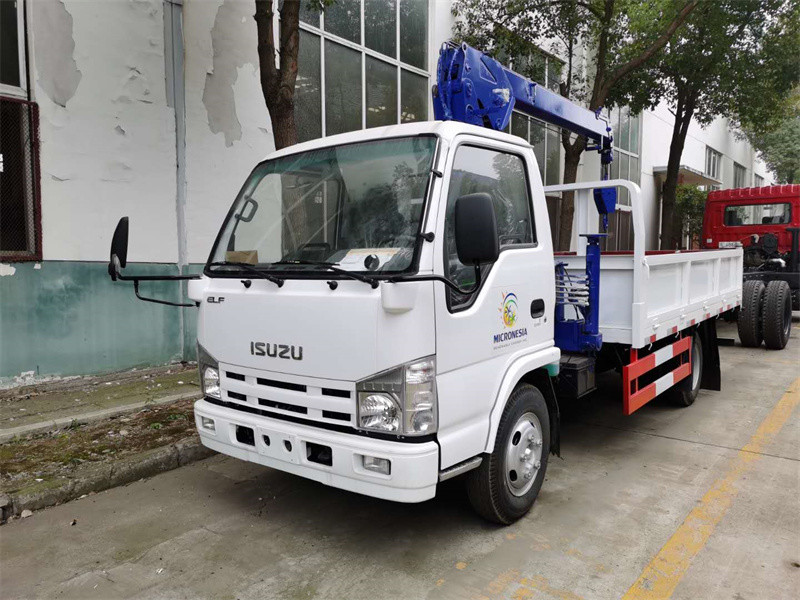

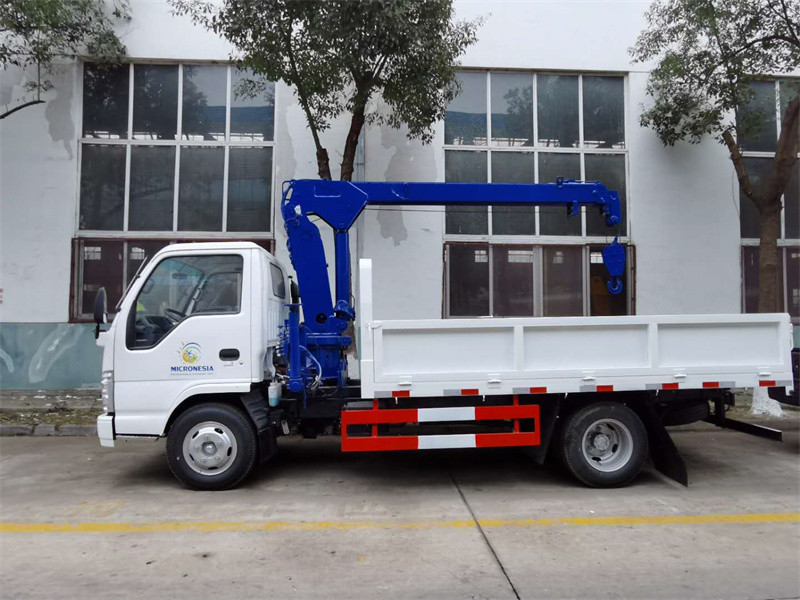

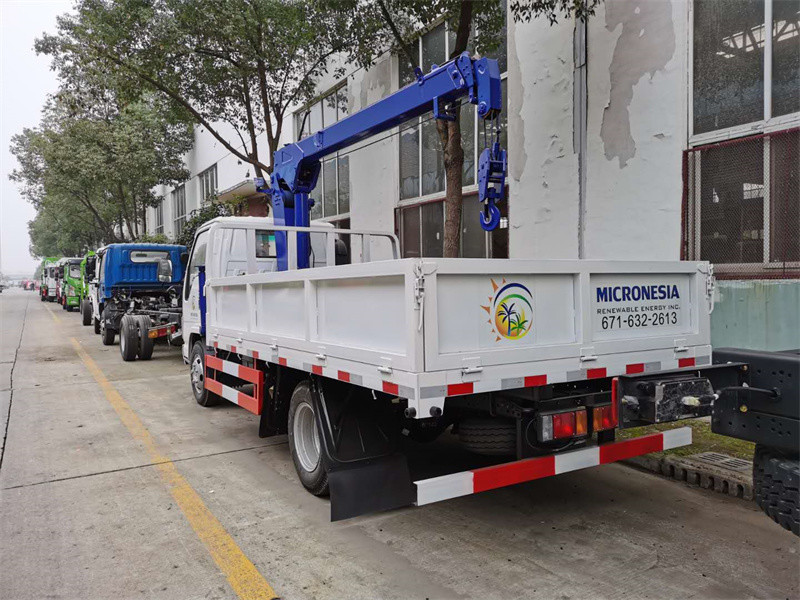

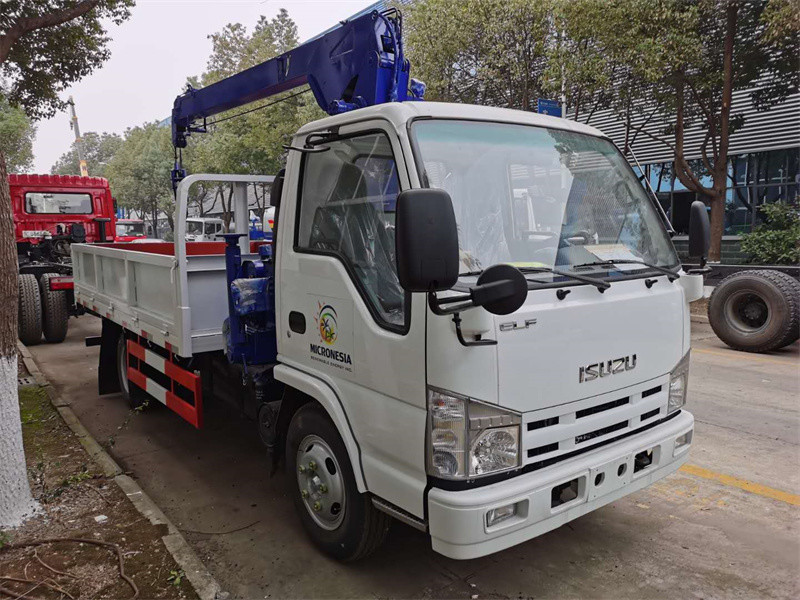

ISUZU 100P Crane Truck Picture
Crane Truck Working Stock
Crane Truck Working Working
