Sinotruck Howo 10 Cbm 12 Cbm Truck Mounted Bitumen Sprayer With Dongfeng Chassis
| Place of Origin | Hubei |
|---|---|
| Brand Name | Sinotruck howo |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 52700$ |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Asphalt Spray Truck | Chassis Brand | Sinotruck Howo |
|---|---|---|---|
| Volume | 10000 Liters | Wheelbase | 4600 Mm |
| Engine | WD615.62 | Tire | 12.00-20 |
| Air Condition | Yes | Spray Width | 4.5 M |
| Spray Nozzles | 36 | Heating | Burner + Heat Transfer Oil Automatic Heating |
| Highlight | 12 Cbm Truck Mounted Bitumen Sprayer,10 Cbm Truck Mounted Bitumen Sprayer,bitumen spraying truck 10 Cbm |
||
Product Description
Sinotruck howo 10,000 liters asphalt spray truck
Asphalt spray truck introduce
Asphalt distributor truck is a type of black road construction machinery, which is the main equipment for the construction of highways, urban roads, airports, and ports. When using asphalt penetration method, asphalt layer surface treatment method to construct asphalt pavement or maintain asphalt or residual oil pavement, asphalt distribution vehicles can be used to transport and distribute liquid asphalt (including hot asphalt, emulsified asphalt, and residual oil). In addition, it can also supply asphalt binder to locally loose soil for the construction of asphalt stabilized soil pavement or pavement base. When constructing the permeable layer, waterproof layer, and bonding layer of the bottom layer of asphalt pavement on high-grade highways, high viscosity modified asphalt, heavy traffic asphalt, modified emulsified asphalt, emulsified asphalt, etc. can be sprayed. It can also be used for asphalt overlay and spraying in highway maintenance, as well as for the construction of asphalt roads at the county and township levels for implementing layered paving technology.
The intelligent asphalt distributor consists of a vehicle chassis, asphalt tank body, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, and operating platform
Asphalt spray truck introducestructure
(1) Asphalt tank
It consists of an inner liner, insulation material, outer shell, partition, combustion chamber, asphalt pipeline inside the tank, thermal oil pipeline, air storage cylinder, fuel filling port, capacity meter, decorative panel, etc. The tank body is an elliptical cylinder, with two layers of steel plates welded together inside and outside, filled with aluminum silicate insulation material between the two layers, with a thickness of 50-100mm, and covered with stainless steel plates. There is a sink groove at the bottom to facilitate the absorption of asphalt inside the tank. There are 5 mounting feet welded to the auxiliary beam at the bottom of the tank, which are then fixed to the frame. The outer layer of the combustion chamber is a heat transfer oil heating chamber, and a row of heat transfer oil heating tubes are installed at the bottom. The capacity meter is used to indicate the height of asphalt inside the tank.
(2) Power transmission system

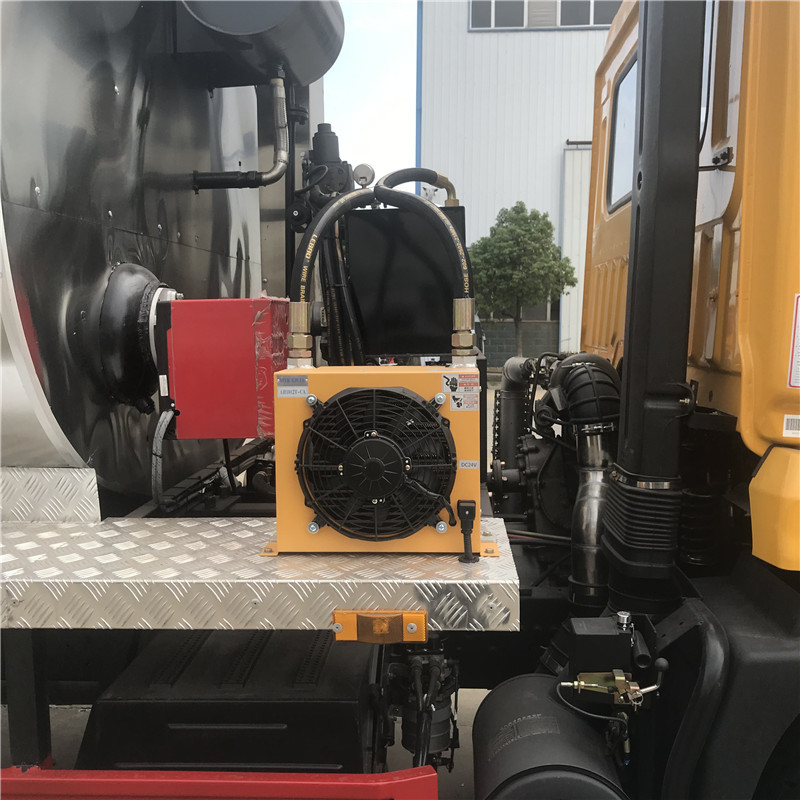

Composed of power take-off, pump transmission device, hydraulic system, etc. Generally, the hydraulic pump is driven by a power take-off installed on the output port of the chassis engine or transmission, providing necessary power for the asphalt spraying device. The hydraulic system consists of a hydraulic pump, relief valve, directional valve, hydraulic motor, hydraulic pipeline, etc.
(3) Asphalt pump and pipeline system

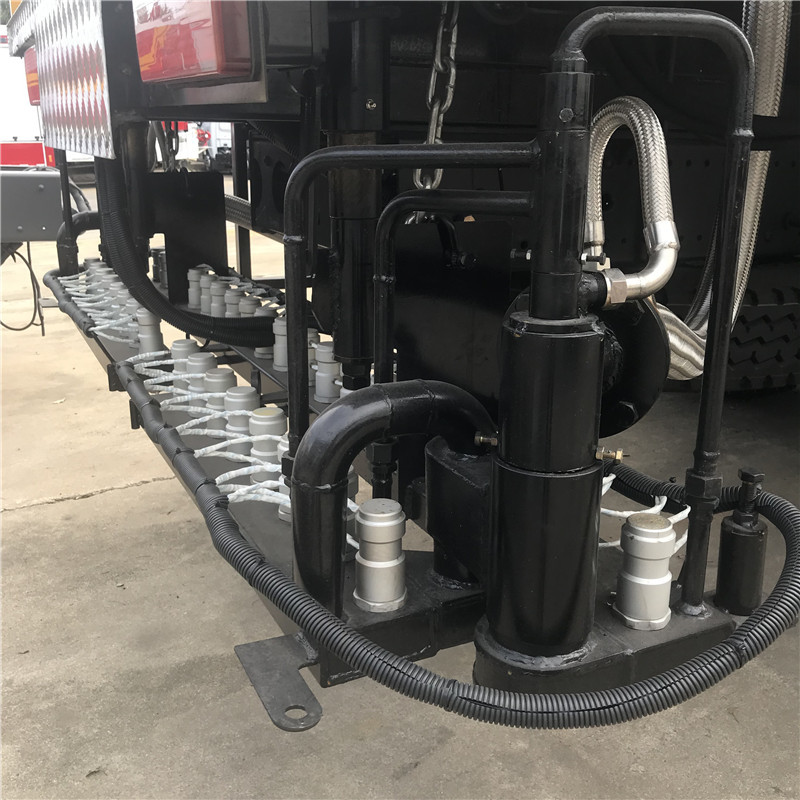

Composed of asphalt pump, filter, valve, spray pipeline, cylinder nozzle assembly, etc. By using different combinations of valves to control the flow direction of liquid asphalt in pipelines, the main functions are as follows: self-priming asphalt injection, rear pipe spraying, handheld nozzle spraying, circulation, suction, cleaning, etc.
(4) Asphalt heating and thermal oil system
It consists of a combustion heating system and a thermal oil circulation heating system.
(5) Asphalt pipeline cleaning system
There are two parts: diesel cleaning and high-pressure air flushing. The diesel cleaning part consists of a diesel tank, an inlet copper ball valve, and pipelines, while the high-pressure air flushing part consists of an air reservoir, a one-way valve, an air valve, etc.
(6) Electrical and control system
The electrical control system is divided into two parts: DC circuit and AC circuit. The DC circuit consists of a power take-off, a reducer, a cooler, a hydraulic directional valve, a rear nozzle lift, a rear work light control circuit, and an automatic control system circuit; The communication circuit consists of a generator, a burner, and a thermal oil motor circuit.
Main Technical specification
| Item | UNIT | PARAMETER | |
| Vehicle | Howo asphalt truck | ||
| Overall dimensions | mm | 8500x2500x3450 | |
| Tank dimension | mm | 3750/2350/1550 /ellipse | |
| GVW | kg | 18570 | |
| Curb weight | 8720 | ||
| Wheel base | mm | 4600 | |
| Suspension | mm | 1430/2405 | |
| Max speed | km/h | 100 | |
| Axle Load | kg | 7000/16000 | |
| Tire specification | 12R22.5/7 units | Number of axles | 2 |
| Engine | Manufacturer | China National Heavy Duty Truck Group Co., Ltd | |
| Model | WD615.62 | ||
| Emission/kw | 9726ml/196Kw, 266Hp | ||
| Rate speed | 2200 rpm | ||
| Max torque / speed | 1100 N.m 1100-1600 rpm | ||
| type | HW15710 gearbox | ||
| Chassis configuration | HW15710 transmission +HW70 flanged force extractor; VGD75 front axle (drum); MCX16ZG Single rear axle (drum); Speed ratio 4.803; Double deck frame (8+5/300); Front and rear standard multi-blade springs (10/9+6); ECO108 steering machine; Standard exhaust system; High bumper (metal); Ordinary wheels; 12R22.5; TFT Meter (English) | ||
Superstructure configuration
| Items | Descriptions | Configuration |
| Bitumen Pump | Model | QGB950(high viscosity, made in China) |
| Displacement(m³/h) | 80 | |
| Hydraulic System | Country of Origin | China |
| Hydraulic Motor Model | 05-130-BD31 | |
| Proportioner Valve Model | EFBG-03-160-HF(Taiwan) | |
| Place of Origin | Yuci, Shanxi | |
| Radiator Brand | Risheng | |
| Others | Automatic reversing valve and relief valve | |
| Pump | CBQ550-L | |
| Sprayer | Spraying Material | Hot asphalt, hot modified asphalt, cutback asphalt, emulsified asphalt, rubber modified asphalt |
| Spraying Width (m) | 4.5 | |
| Spraying Capacity(L/m³) | 0.2~2.0 | |
| No. of Intelligent Spray Nozzles | 36 | |
| Burner | Model | G20(Made in Italy)(200000 kcal/h) |
| Thermal Oil Pump | Model | 40-25-160(Made in China) |
| Gasoline Engine | Power(kw) | 5.5(Made in China) |
| Control Mode | Computer control(Germany's Siemens CLW-36-01), one control one | |
| Heating-up Mode | Self-Heating by Thermal Oil | |

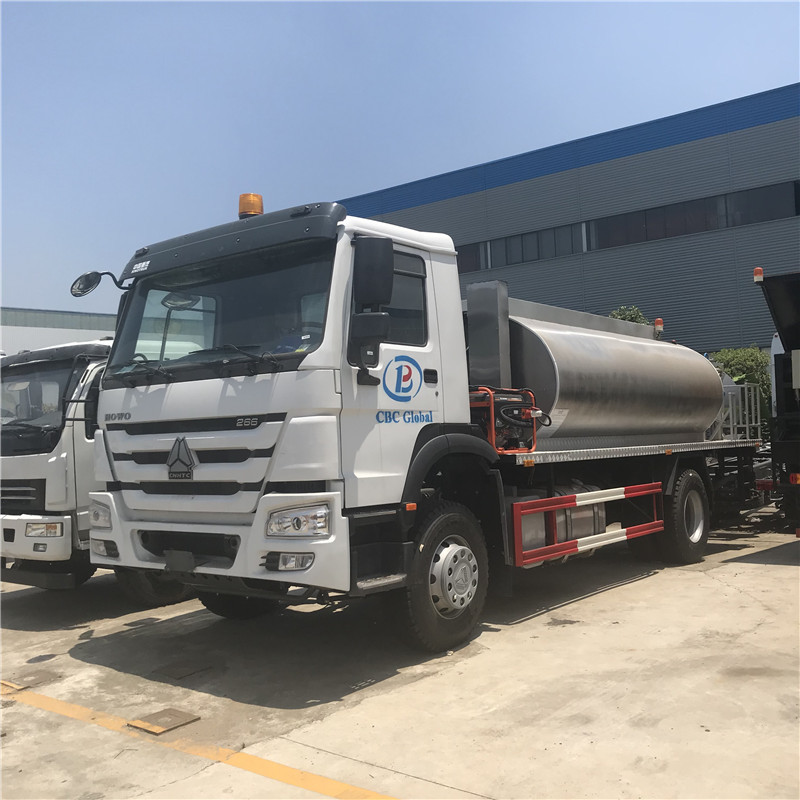

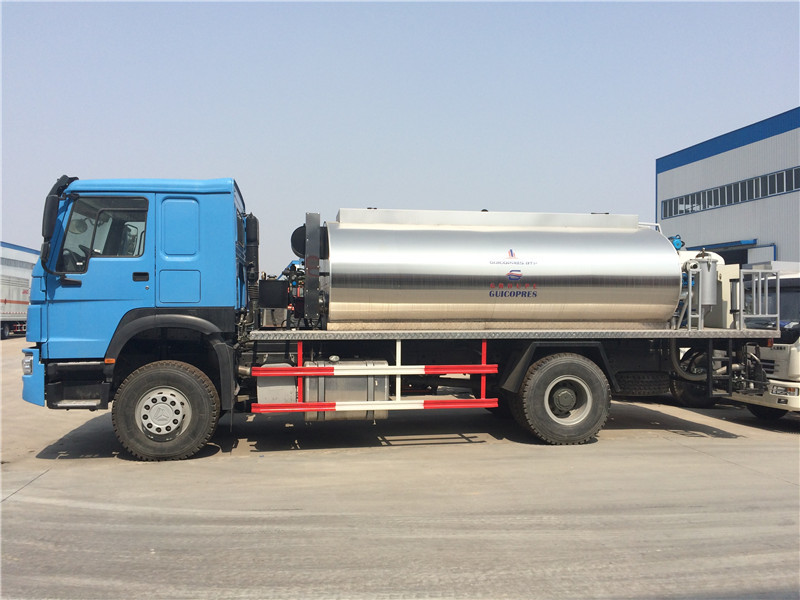

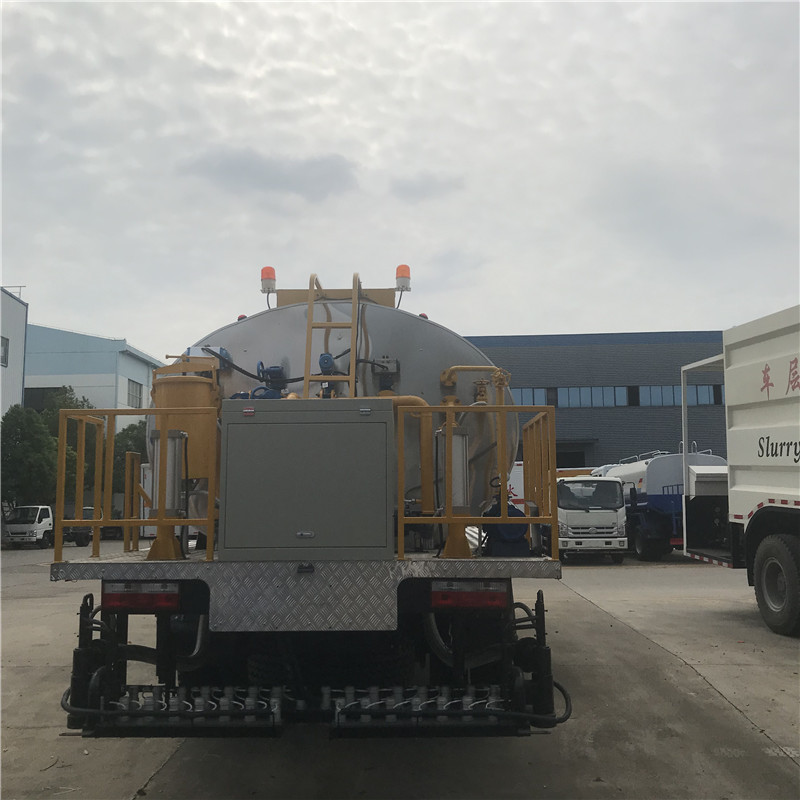

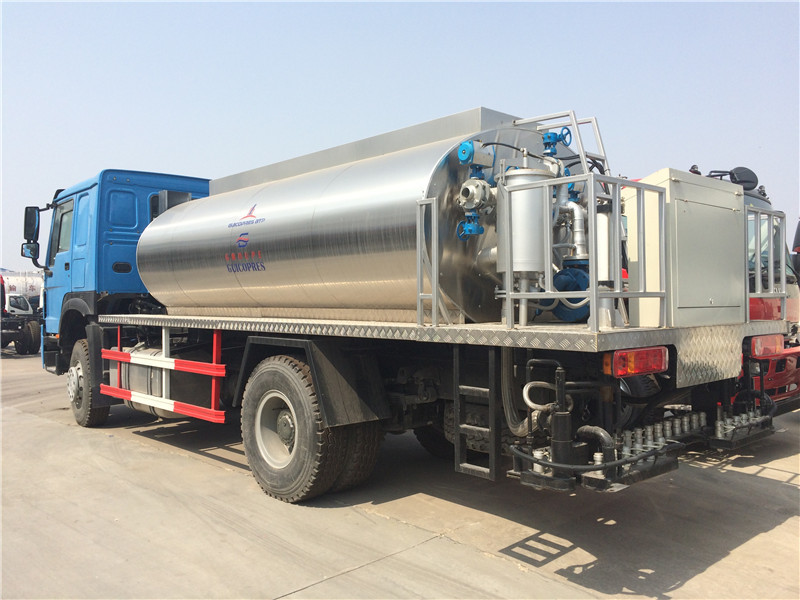

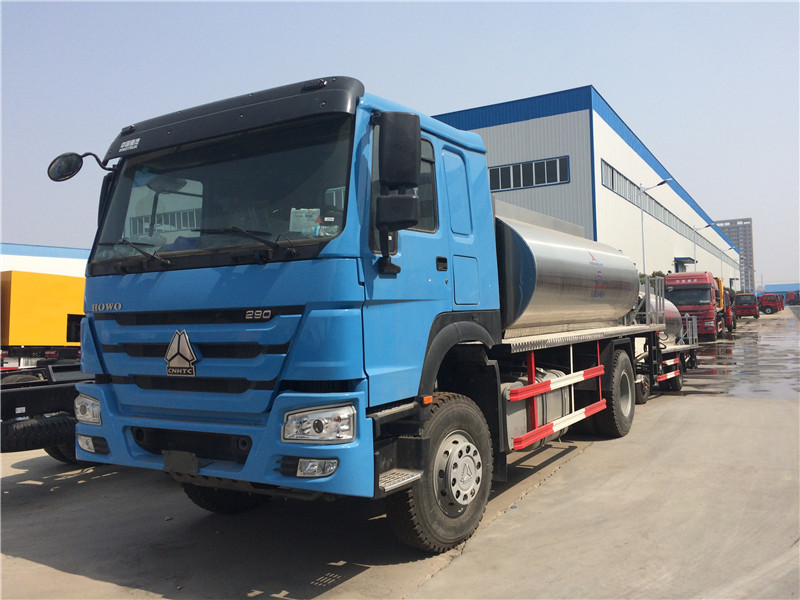

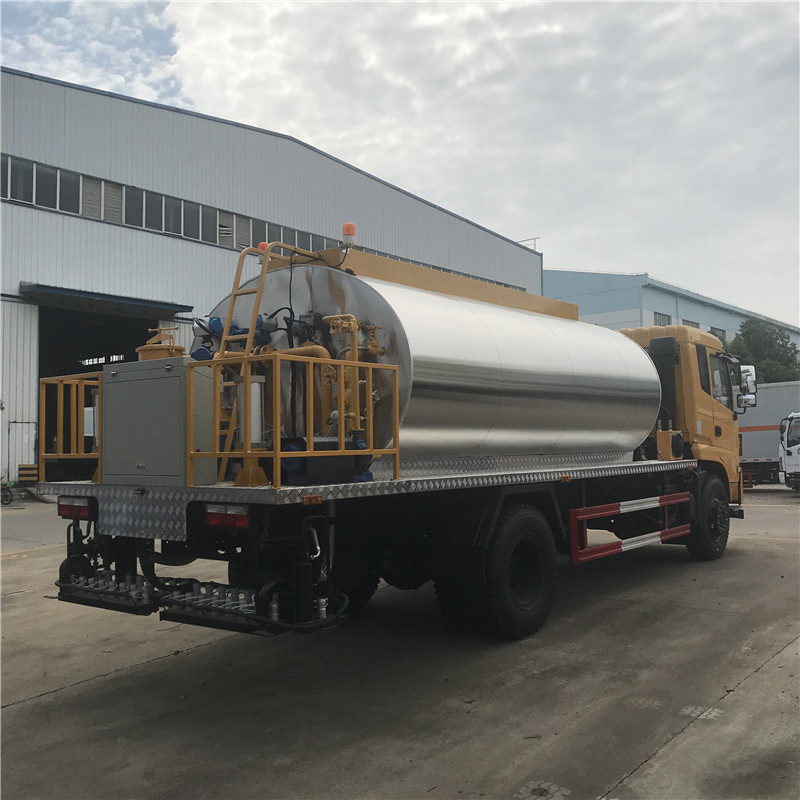

Sinotruck howo 10,000 liters Asphalt Truck Image
Asphalt truck store site
Asphalt truck working at site
