4X2 IVECO 3 SIDES P5 MOBILE LED ADVERTISING TRUCK ADVERTISING TRUCK FOR SALE
| Place of Origin | Hubei |
|---|---|
| Brand Name | Iveco |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, , L/C, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LED Advertising Truck | Wheelbase | 3300 Mm |
|---|---|---|---|
| Cabin | Single Cab | Tire | 7.00R16 |
| Screen Pixel | P5/P4/P3 | Screen Sides | 1/2/3 |
| Generator | 15kW | Computer | Included |
| Amplifier | Included | Speakers | 4 Pcs |
| Floor | Alumunum Checkered Plate | Hydrulic Lift | Optional |
| Hydraulic Stage | Optional | ||
| Highlight | 3 SIDES LED ADVERTISING TRUCK,4X2 IVECO LED ADVERTISING TRUCK,P5 MOBILE LED ADVERTISING TRUCK |
||
Product Description
4X2 IVECO 3 SIDES P5 MOBILE LED ADVERTISING TRUCK ADVERTISING TRUCK FOR SALE
The composition of the LED advertising vehicle:
1. LED advertising truck compartment: The compartment is a rectangular square frame structure, the interior of the compartment is aluminum checkered plate, installed with lighting, and the front face and rear door are equipped with shutters and exhaust fans. The cabin is equipped with: 2-4 speakers, a power amplifier, a brand computer, and a set of control.
2. LED screen: The car adopts P5/P4/P3 high-resolution LED screen; the area of the LED screen can be customized according to the actual requirements of customers, and it can be done on one side to three sides.
3. Lifting system(optional): The LED screen can be lifted by two hydraulic cylinders. The lifting height is 1.5 or 1.2 meters, so that the audience behind can clearly see the LED screen.
4. Power: The car comes with a high-power ultra-quiet diesel generator, which can be used independently without the support of the power grid and is not limited by the power supply. It is also equipped with a switching distribution box, which can directly use the grid power supply when there is a power supply.
5. Hydraulic outrigger: It is a supporting mechanism installed on the vehicle frame or sub-frame. The whole vehicle is supported by four hydraulic outriggers, so that the whole LED advertising vehicle forms a settlement-free one. The LED screen can be used normally even in the case of windy and uneven ground.
6. Advertising light box (optional): The advertising light box is equipped with an intelligent digital computer to switch pictures, 2-6 pictures are automatically switched, and the exterior is equipped with tempered high transparent glass. The top of the light box can be used as a monochrome LED advertising screen.
Billboard Stage Truck Specs
| Iveco LED Truck | |
| Overview | |
| Name | Iveco LED Truck |
| Dimension(LxWxH) | 5995×2100×2950 (mm) |
| Total Mass | 7865 Kg |
| Rated Payload | 4000 Kg |
| Kerb Weight | 2865 Kg |
| Passenger | 3 |
| The Parameters of Chassis | |
| Manufacture/Model | Iveco |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Six speed forward and one reverse, manual |
| Tyre | 195/75R16LT 10PR |
| The Number of Tyre | 6+1(spare tyre) |
| Leaf Spring Number | -/7,-/3,-/1+- |
| AC,Power Steer,ABS, Electrical Windows and Doors,Electrical Rear Mirrors, Rear View Camera, Electrical Central Locking, Remote Key, Fog Lamp, Cruise Control, Tyres Pressure Monitor, Radio, Daylight, etc. | Equipped |
| The Parameters of Engine | |
| Manufacturer/Model | Iveco/F1CE8481K |
| Rated Power | 170hp/125kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2998ml |
| Emission Standard | Euro 6 |
| Cylinder | Straight/4 |
LED Truck Bod Specs
| P5 LED Truck Body | |
| The Parameters of LED Screen | |
| LED Screen Size (L*H) | 3840*1728=6.62 (left/right), 1280*1440 (rear). |
| Type of Screen | Three sides full color screens |
| LED's Pixel Pitch | 5 mm |
| Spare P6 LED Modulas | 5 pcs for free, 320mm x 160mm each pcs |
| LED Modula Brand | TEEHO/ROYAL DISPLAY/GKGD |
| The Parameters of Control System | |
| Displayer | AOC,14 inch |
| Computer |
Pentium dual-core, WIN, 2GB memory card, 120G hard disk, discrete graphics card, Huntkey case |
| Amplifier | 200w, USB for wire and wireless microphone. |
| Speaker | 4pcs, 30w, waterproof |
| Displaying software | Onbon |
| Supporting Format |
Video(avi,wmv,mpg,rmvb,mov,vob,mp4,flv,etc.);audio (mp3,wav,wma,ogg,ape,acc,etc.);picture(bmp,jpg,png,gif,etc); word(txt,rtf,word,excel,etc.) |
| Live Telecast | Optional videoprocessor, camera, box, etc. |
| The Parameters of Power System | |
| Generator Brand | OUMA |
| Type | Diesel |
| Capacity | 15kw |
| Noise Type | Silent low noise generator |
| Alternative Power Supply | External power plug and 30m wire |
| The Parameters of Others | |
| Screen Lift and Stage | Optional |
| Subframe | Equipped and match for crossbeam of customer's truck |
| Interior | Aluminum checkered plate floors, waterproof wooden ceiling |
| Lights | Eqipped |
| Ladder | Eqipped |
| Ventilation fans | Eqipped |
| Skylights | Eqipped |

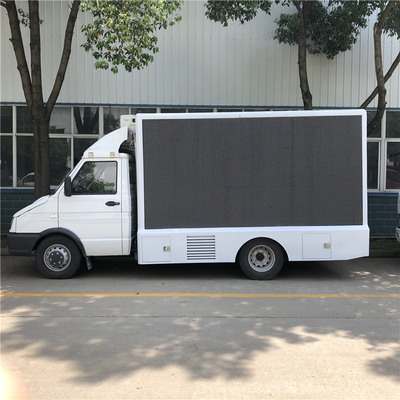

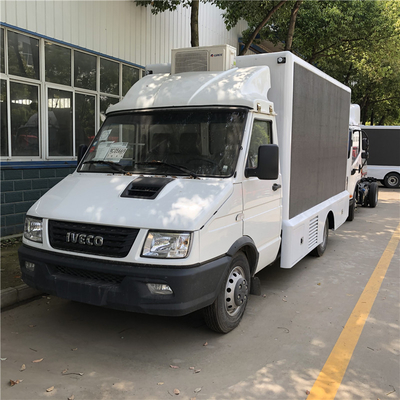

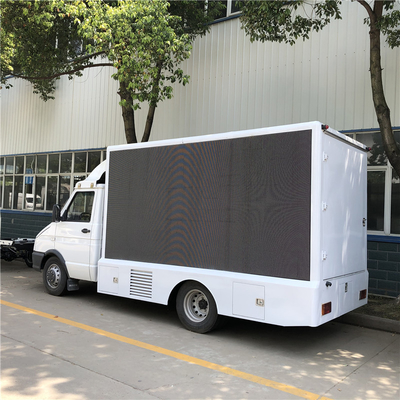

Iveco LED Truck Picture
