GVW 3500kg Japanese Isuzu Tarpaulin Truck KV100 115hp Light Cargo Box Van Truck With 2 Tons 3 Ton Loading Lorry Truck
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Model Number | QL1040BUHAY |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 21500 |
| Packaging Details | nude with waxing |
| Delivery Time | 20-25 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 2 Tons Isuzu Tarpaulin truck,Isuzu Tarpaulin truck 3 Ton,115hp Isuzu Tarpaulin truck |
||
|---|---|---|---|
Product Description
ISUZU KV100 Tarpaulin truck 115hp Engine 2 tons cargo box van fence truck
Freight trucks, generally referred to as cargo trucks or trucks, include dump trucks, tractor trucks, off-road trucks in off highway and roadless areas, and various vehicles specially manufactured for special needs. Refers to vehicles primarily used for transporting goods, and sometimes also refers to vehicles that can tow other vehicles, belonging to the category of commercial vehicles. Generally, vehicles can be classified into two types based on their weight: heavy and light. The vast majority of trucks are powered by diesel engines, but some light trucks use gasoline, petroleum gas, or natural gas.
Main Technical specification
| Overview | |
| Name | 3 tons Isuzu Tarpaulin Truck |
| Dimension(LxWxH) | 5990x2200x2750 mm |
| Total Mass | 6350 kg |
| Rated Payload | 3000 kg |
| Kerb Weight | 3350 kg |
| Passenger | 3 |
| Approach/Departure Angle | 23°/13 ° |
| The Parameters of Chassis | |
| Manufacture/Model | QL1044AMHAY |
| Driving Type | 4x2 |
| Wheel Base | 3360 mm |
| Gearbox | MSB5 |
| Front/Rear Track | 1640/1655 mm |
| Tyre model | 7.00R16 |
| The Number of Tyre | 6+1 (spare tyre) |
| Front/Rear Suspension | 1120/2095 mm |
| Axles Loading | Front Man 2 T Rear Man 4 T |
| Oil Tank | 200L Iron |
| The Parameters of Engine | |
| Manufacturer/Model | ISUZU/ 4KH1CN5MD |
| Rated Power | 85kw/115hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2999 ml |
| Emission Standard | Eu 5 |
| Cylinder | 4 |
| Max. Torque/ speed | 290N.m/ 1500-2900rpm |
| Velocity | 2900 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customized |
| Rear bucket | 4000x2000x2000 mm |
| Dump function | option |

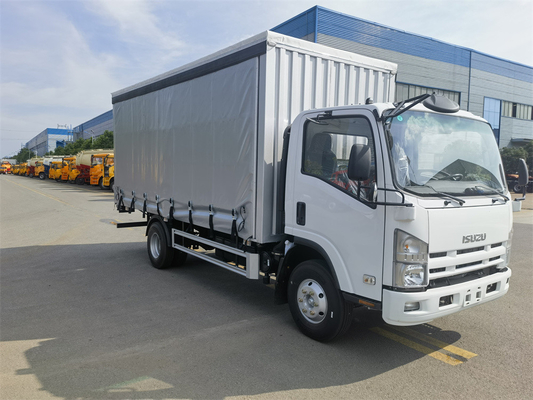

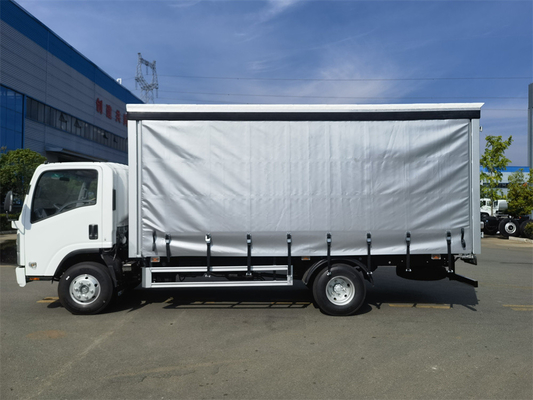

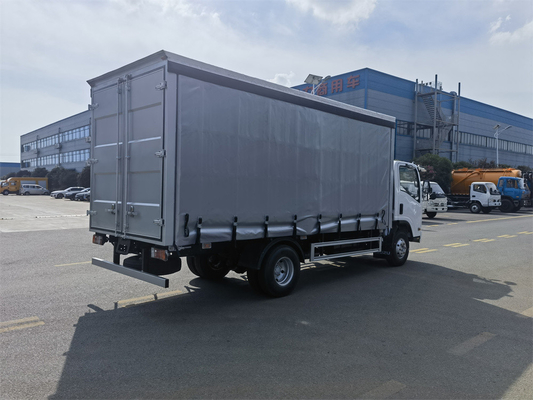

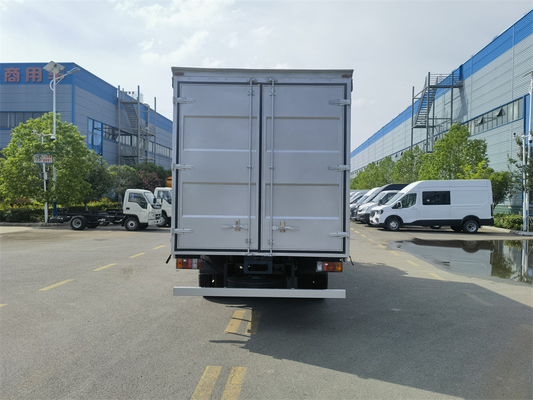

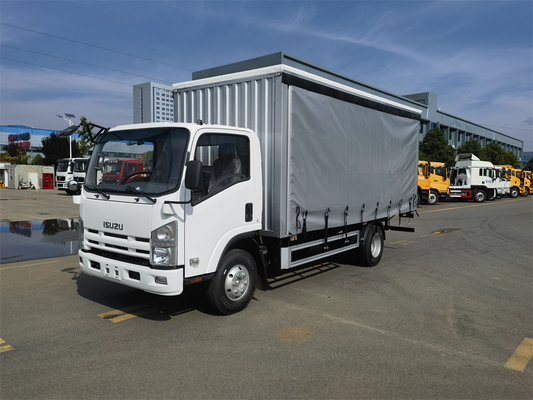

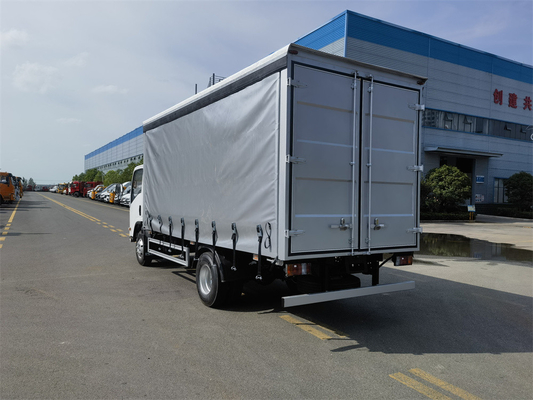

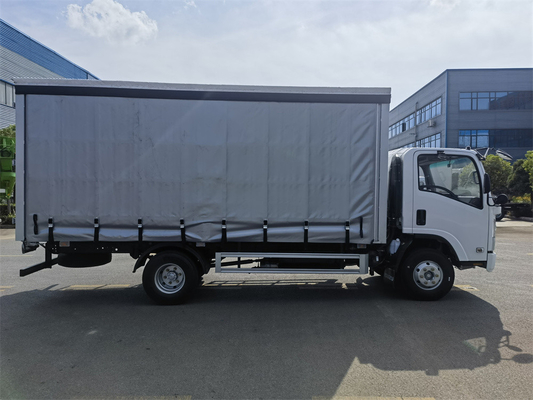

ISUZU KV100 Cargo Tarpaulin Truck Picture
Cargo Truck Working Stock
Cargo Truck with Crane Working
