4x2 SINOTRUK HOWO 3-5 Ton Small Frozen Food Delivery Truck With 4m Freezer Box

Place of Origin Hubei
Brand Name HOWO
Certification CCC
Model Number HANJIANG
Document Product Brochure PDF
Minimum Order Quantity 1
Price USD15900/unit
Packaging Details nude, with waxing
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Refrigerated Truck Drive Model 4x2
Box Dimension 4000x2100x2150 Mm Wheelbase 3360 Mm
Max Loading Capacity 5tons Lowest Temperature -18 Degree
Tire 7.00R16 Transmission 5 Forward, 1 Reverse
Air Condition Yes Cooling Unit CHINA BRAND
Highlight

4m freezer box delivery truck

,

Small Frozen Food Delivery Truck

,

5 Ton Frozen Food Delivery Truck

Leave a Message
Product Description

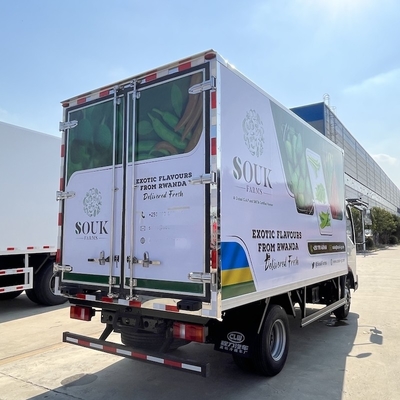

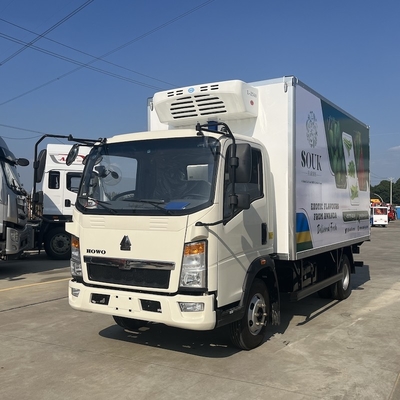

4x2 SINOTRUK HOWO 3-5 ton small frozen food delivery truck with 4m freezer box.



Refrigerated truck
A refrigerated truck is a closed box type transport vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.


structure
A refrigerated truck is composed of the walking part of a dedicated vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder for refrigerated trucks inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, waist guards, aluminum alloy guide rails, ventilation ducts, etc. can be installed.
Manufacturing Technology of Refrigerated Carriage Body
1. The "sandwich" panel adhesive type assembled in pieces is currently used by large refrigerated truck manufacturers in China, and the refrigerated trucks produced using this technology have high thermal insulation performance.
2. Injection foam type assembled in sections.
3. The overall skeleton is injected with foam.
4. Vacuum adsorption adhesive
Classification of refrigeration units:
Refrigeration units are divided into non independent refrigeration units and independent refrigeration units. Domestic and imported units, etc. Most car models use external refrigeration units, while a few micro refrigerated trucks use internal refrigeration units. For refrigerated trucks with lower temperature requirements, a built-in cold plate (equivalent to an evaporator) can be used in the compartment.
Classified by chassis carrying capacity: micro refrigerated truck, small refrigerated truck, medium refrigerated truck, large refrigerated truck
Classified by carriage type: bread refrigerated truck, box refrigerated truck, semi-trailer refrigerated truck
Important equipment


Refrigerated truck refrigeration unit
Refrigerated truck refrigeration unit: an important equipment that provides a continuous supply of "cold" for refrigerated truck containers. It is usually installed at the top of the front of the container and has an air conditioning like appearance, but has stronger cooling capacity than air conditioners of the same volume.
Refrigeration units are generally divided into two types: independent units and non independent units. The difference is that independent units rely entirely on another unit to generate electricity and maintain operation, while non independent units rely entirely on the engine operation of the entire vehicle to drive the cooling work of the unit.
Selection of refrigeration units for refrigerated trucks.
Generally, different power refrigeration units are selected based on the volume of the refrigerated compartment and the temperature requirements of the transported goods.



Main Technical specification

Complete Vehicle Parameter
Vehicle HOWO refrigerated truck
Overall dimension (mm) 5900 × 2100 × 3090
Refrigerator box size (mm) 4000 × 2100 × 2150
Gross vehicle weight (kg) Appro × 8220
Net weight (kg) Appro × 3220
Loading (kg) Appro × 5000
Wheel base (mm) 3360
Max speed (Km/h) 90
HOWO Truck Chassis Parameter

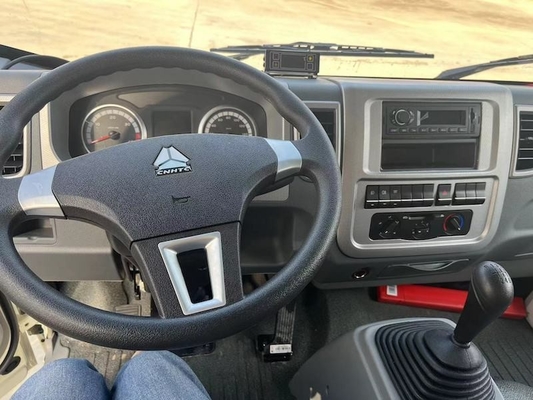

Cabin Single row cabin, power steering, A/C, 2 passengers, left hand drive
Drive form 4×2
Engine

Brand : YUNNEI

Model : YN4100QBZL

Engine power : 110hp

Fuel type : diesel.

Displacement : 3.298L

Emission standard : Euro III

Transmission 6 forward,1 reverse, manual operated
Tire model 7.00R16
No.of tire 6+1pcs
Refrigerated Body Parameter
Standard configuration

1. Van body inside and outside material are fiber glass plastic (FRP).

2. The insulation layer is polyurethane,thickness 80mm.

3. Equipped with China brand refrigeration unit, the lowest temperature -15℃.

4. The door frame and door lock material are stainless steel

5. The box body is aluminum profile hemming.

6. Roof is sealed, rear open double doors.
