10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
| Place of Origin | Hubei |
|---|---|
| Brand Name | DONGFENG |
| Certification | ISO |
| Model Number | D9 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $23800-24800 per unit |
| Packaging Details | nude with waxing |
| Delivery Time | 15-35 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Water Tank Truck | Volume | 10000 Liters |
|---|---|---|---|
| Chassis Model | DONGFENG, Optional HOWO,ISUZU,SHACMAN | Engine | CUMMINS, B170 33 |
| Wheelbase | 3950 Mm | Function | Spraying Water And Delivery Drinking Water |
| Drive Model | 4x2 | Tire | 9.00R20 |
| Transmission | 8-speed, Manual | Emission Standard | Euro 3 |
| Water Tank Material | Carbon Steel Or Stainless Steel |
Product Description
The water tank truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water trasnpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.
Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon.
Main specification :
| Complete Vehicle Parameter | |
| Vehicle | DONGFENG water sprinkler truck |
| Overall dimensions (mm) | 8210x 2500 x 3200 |
| Water tank volume (L) | 10000 |
| Gross Vehicle Weight (kg) | Appro × 16480 |
| Net weight (kg) | Appro × 6480 |
| Loading (kg) | Appro × 10000 |
| Wheel base (mm) | 3950 |
| Max speed (Km/h) | 89 |
| Truck Chassis Parameter | |
| Condition | New, year 2025 |
| Cabin | D9 cabin, a sleeper, power steering, electric window, central lock, air conditioner, 3 passengers, left hand drive. |
| Drive form | 4×2 |
| Engine |
Brand : CUMMINS Model : B170 33 Engine power : 170hp Type : diesel,turbocharger inter-cooler,6 cylinder. Displacement : 5.9L Emission standard : Euro 3 |
| Transmission | 8 forward,1 reverse, manual operated |
| Tire model | 9.00R20 |
| No.of tires | 6+1pcs |
| Water Tank Body Parameter | |
| Standard configuration |
1) Carbon steel material water tank, thickness 5mm, electrophoretic paint. 2) With water pump. 3) With rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve. 7) Equipped with electric water cannon in front of cabin. 8) Equipped with 30m fog cannon at rear . |
| Special performance |
1) Left and right side spraying water. 2) Platform has a sprinkler, spraying water. 3) Water column can be adjusted into mist 4) Width of spraying water : ≥14m. 5) Distance of spraying water : ≥28m. 6) Vertical suction 6-8 m. |

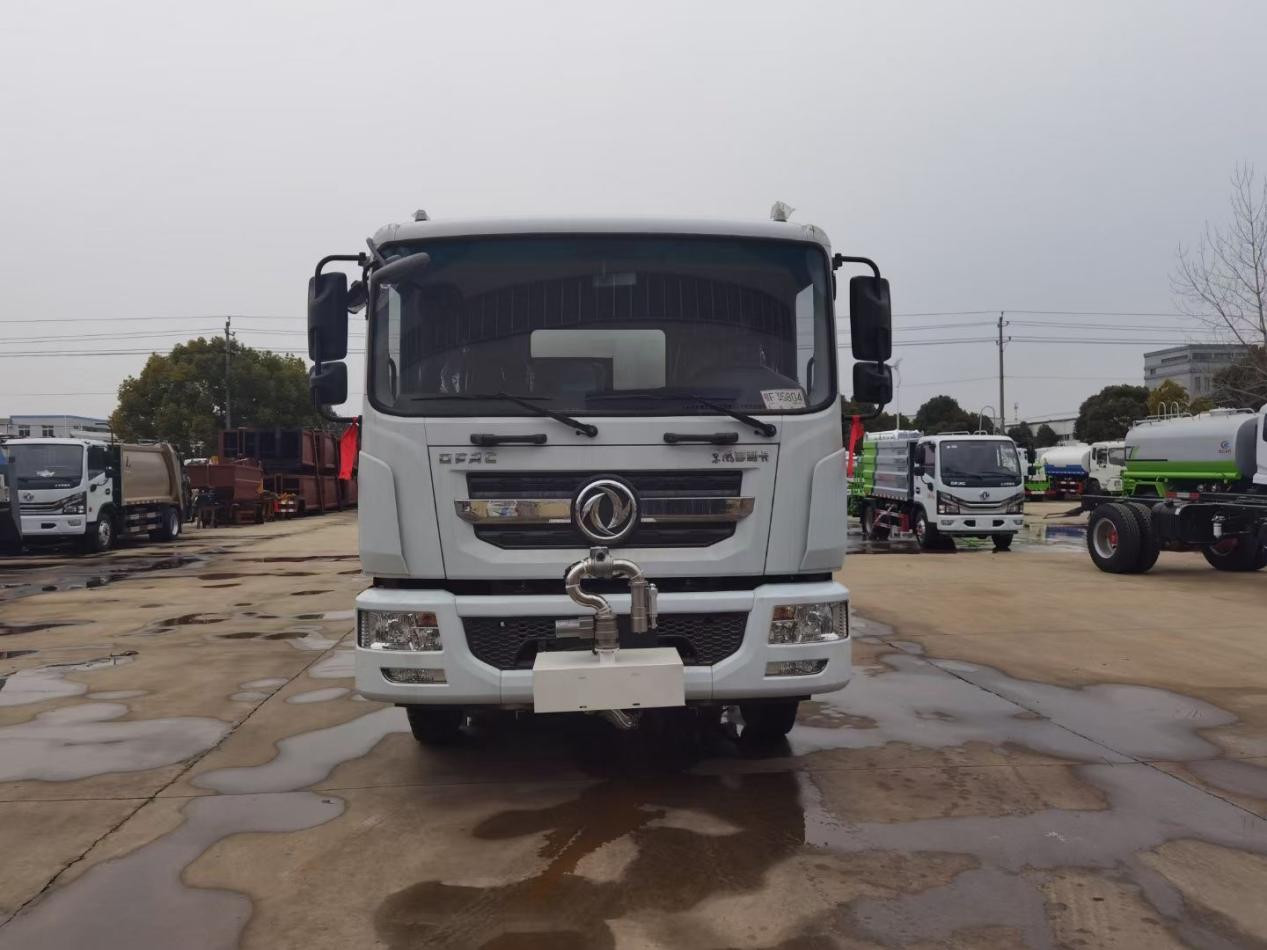

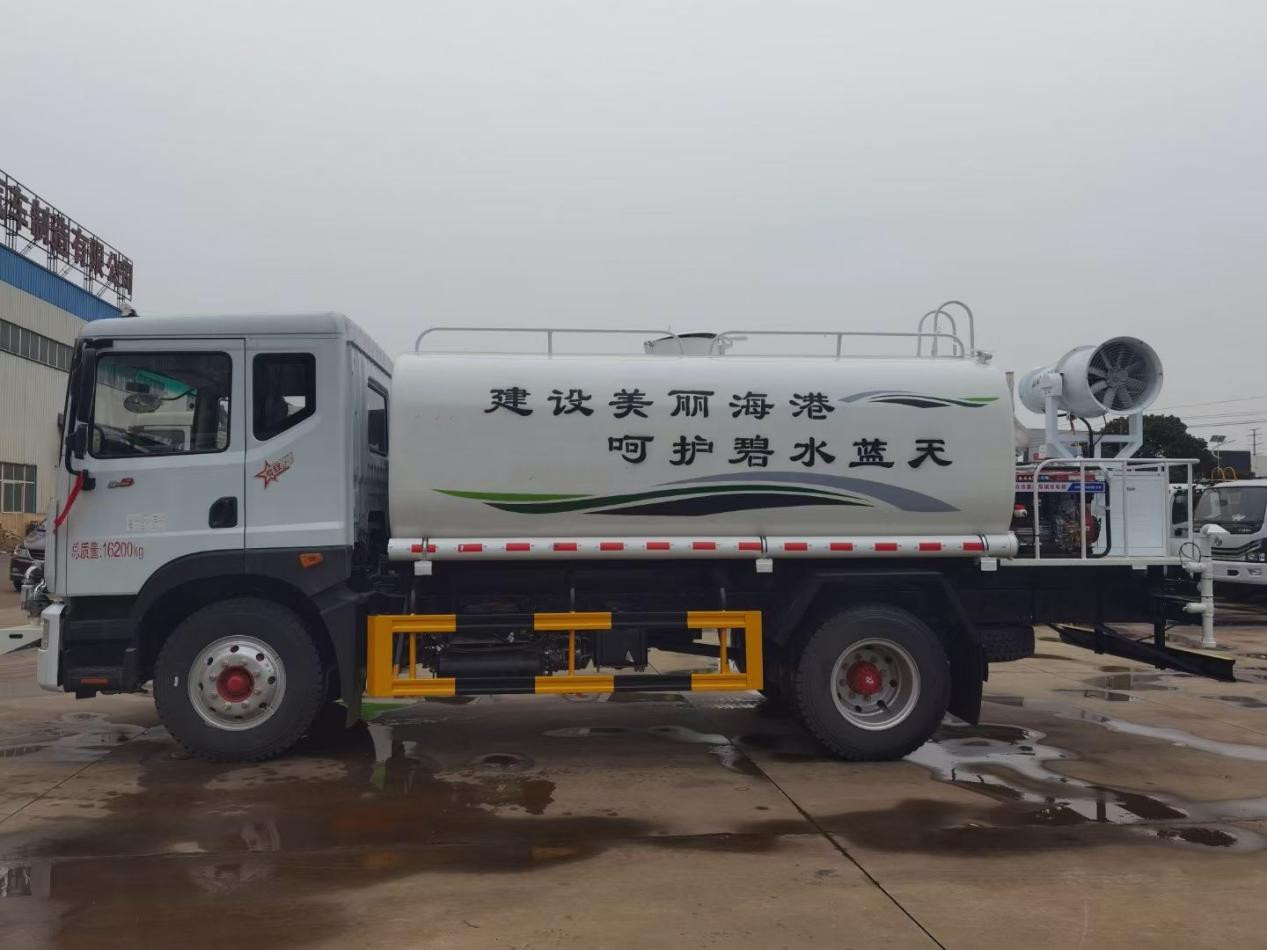

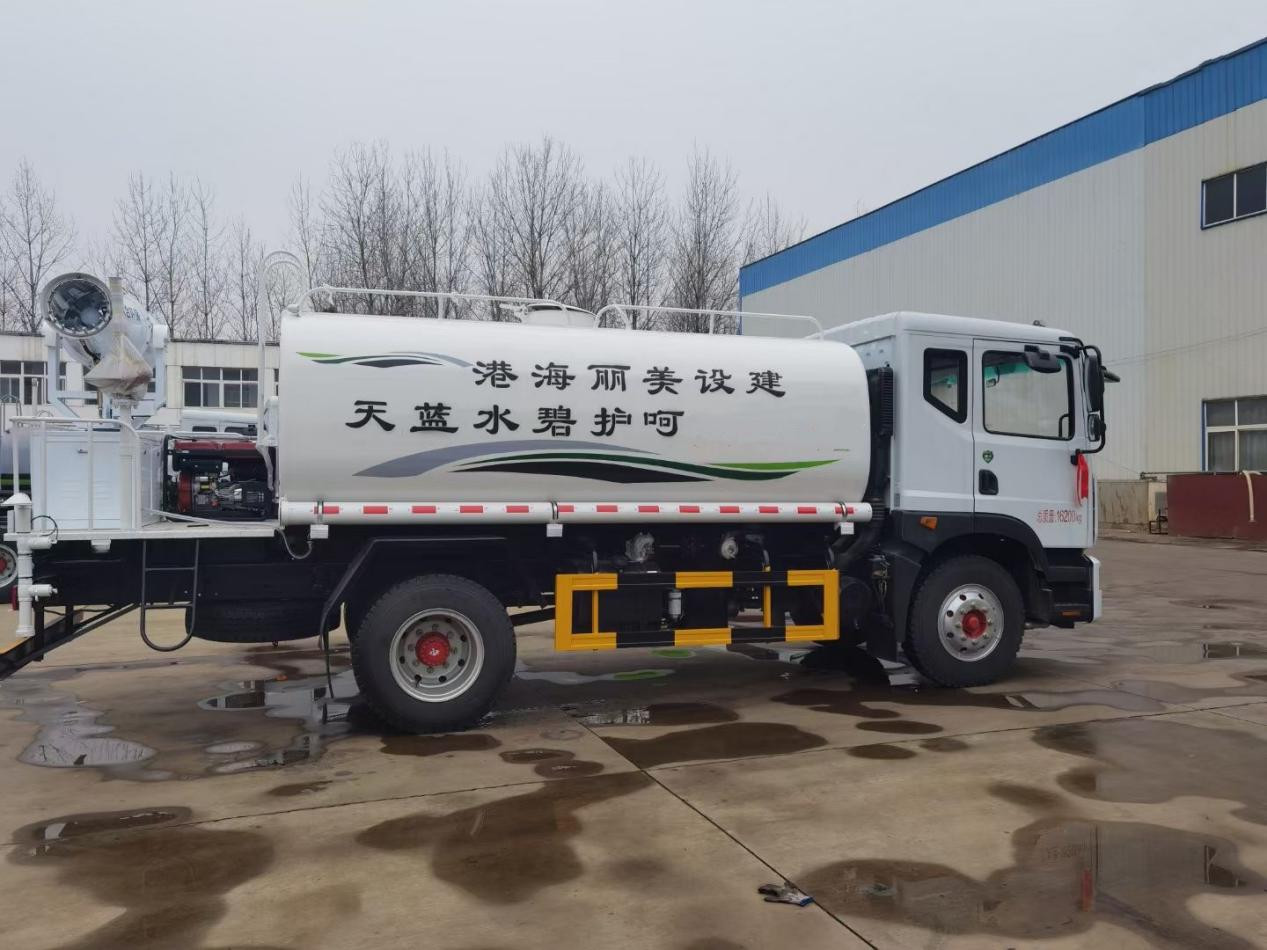

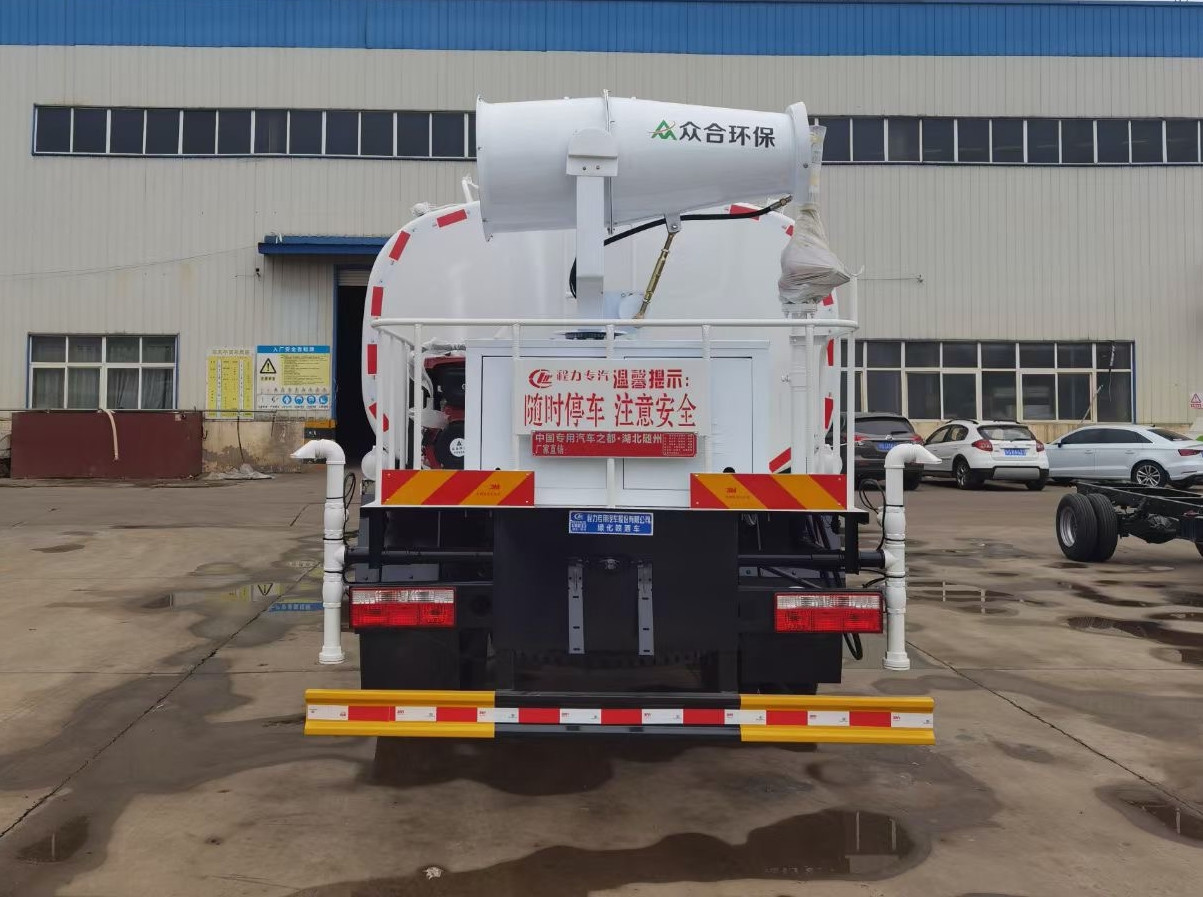

Pictures:
