new ISUZU KV100 water vehicle 5 tons water tank
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ISO |
| Model Number | KV100 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $19800/unit |
| Packaging Details | nude with waxing |
| Delivery Time | 15-35 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Isuzu Water Tank Truck | Volume | 5000 Liters |
|---|---|---|---|
| Chassis Model | ISUZU | Engine | 4KH1CN6LB |
| Wheelbase | 3360 Mm | Function | Spraying Water And Delivery Drinking Water |
| Drive Model | 4x2 | Tire | 7.00R16 |
| Transmission | 5-speed | Emission Standard | Euro 6 |
| Water Tank Material | Carbon Steel Or Stainless Steel | Engine Power | 120hp |
Product Description
The water tank truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water trasnpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.
Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.
new ISUZU KV100 water vehicle 5 tons water tank.
Main specification :
| Complete Vehicle Parameter | |
| Vehicle | ISUZU water sprinkler truck |
| Overall dimensions (mm) | 5995x 1980 x 2350 |
| Water tank volume (L) | 5000 |
| Gross Vehicle Weight (kg) | Appro × 8170 |
| Net weight (kg) | Appro × 3170 |
| Loading (kg) | Appro × 5000 |
| Wheel base (mm) | 3360 |
| Max speed (Km/h) | 89 |
| ISUZU Truck Chassis Parameter | |
| Year | 2025, new |
| Cabin | Single row cabin, power steering, air conditioner, 2 passengers,left hand drive. |
| Drive form | 4×2 |
| Engine |
Brand : ISUZU Model : 4KH1CN6LB Engine power : 98hp Fuel type : diesel. Displacement : 2999cc Emission standard : Euro 6 |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 7.00R16 |
| No.of tires | 6+1pcs |
| Water Tanker Body Parameter | |
| Year | 2025, new |
| Standard configuration |
1) Carbon steel material water tank, thickness 5mm. 2) With water pump. 3) With rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve. |
| Special performance |
1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, spraying water. 4) Water column can be adjusted into mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. 7) Vertical suction 6-8 m. |
| Applicable scope |
1. for a variety of road cleaning 2. City green sanitation 3. Trees, green belt and lawn watering 4. High altitude building rinse |

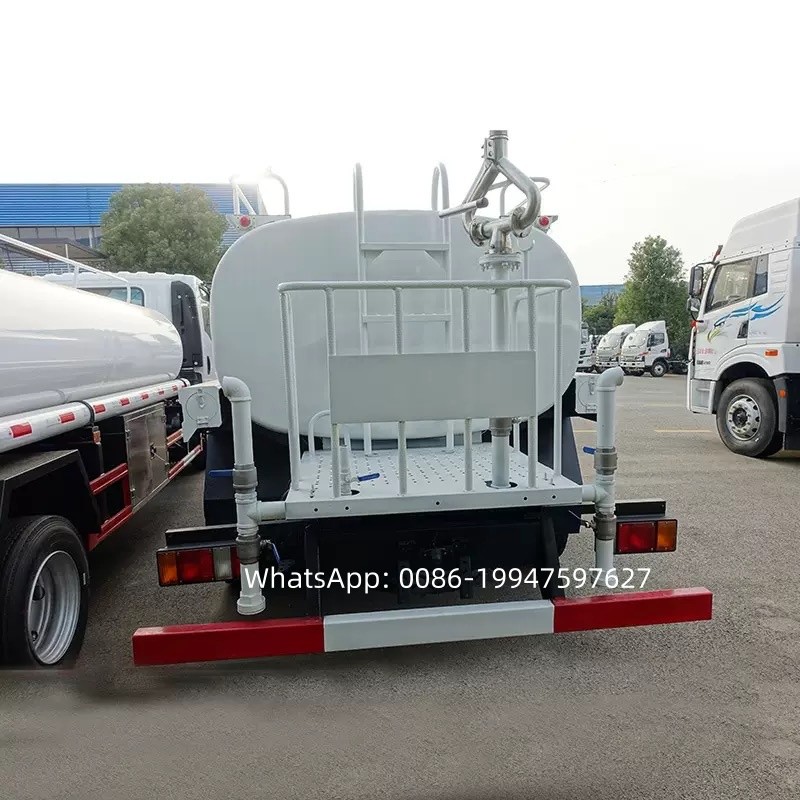

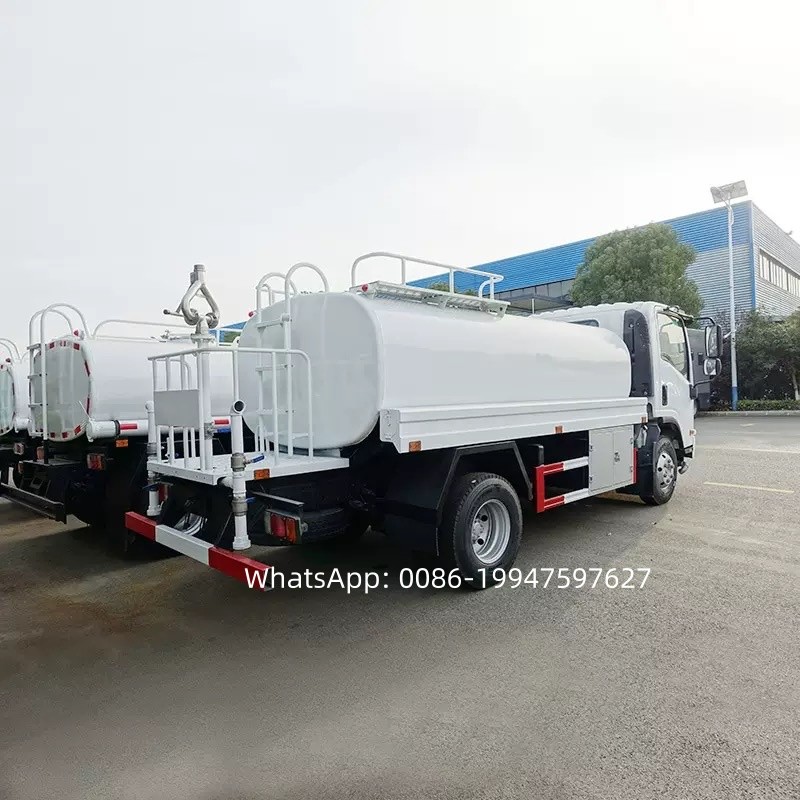

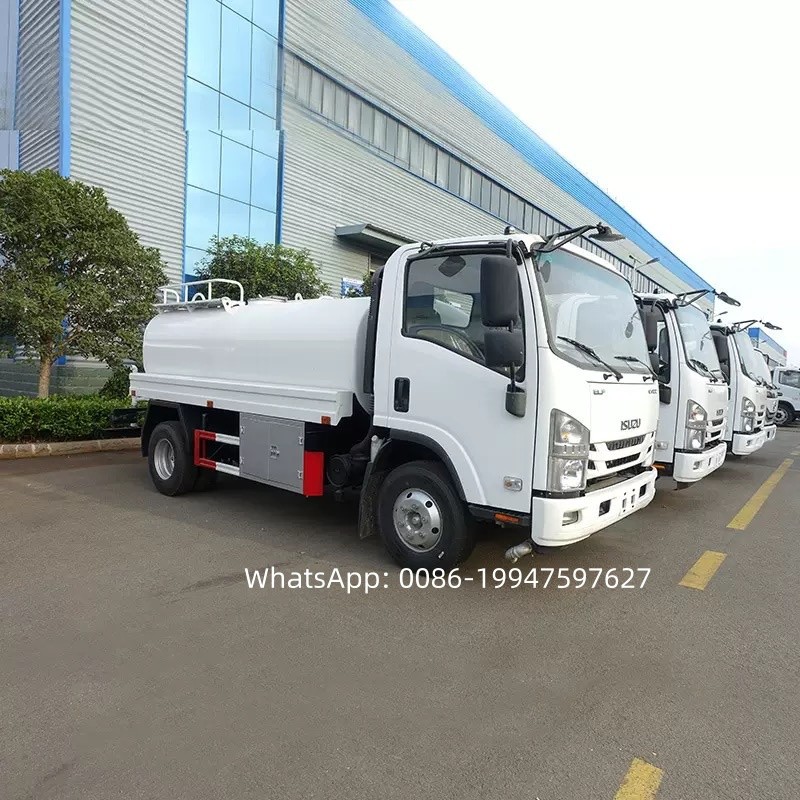

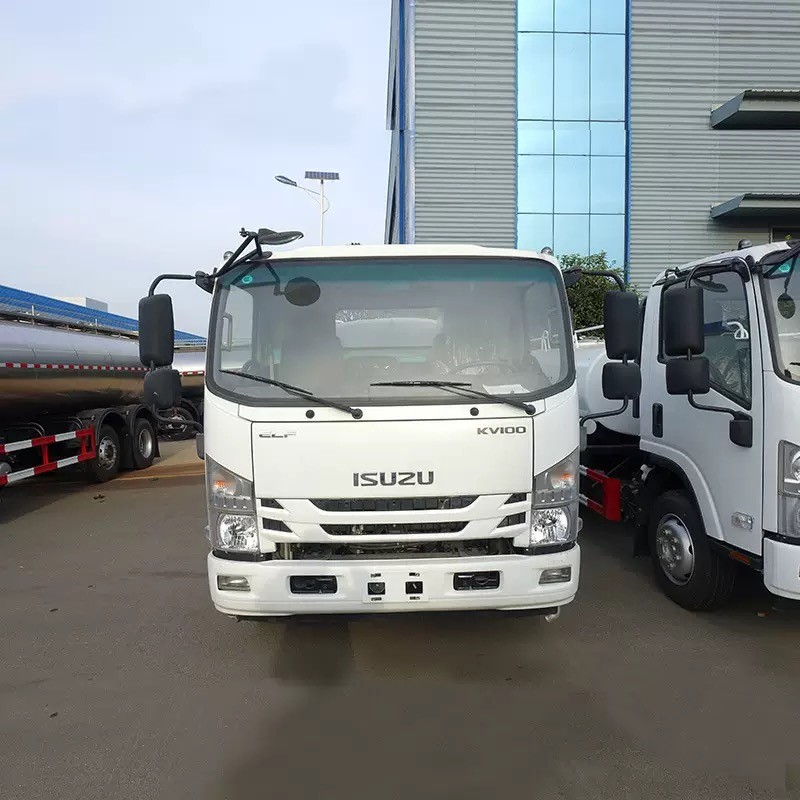

Pictures:
