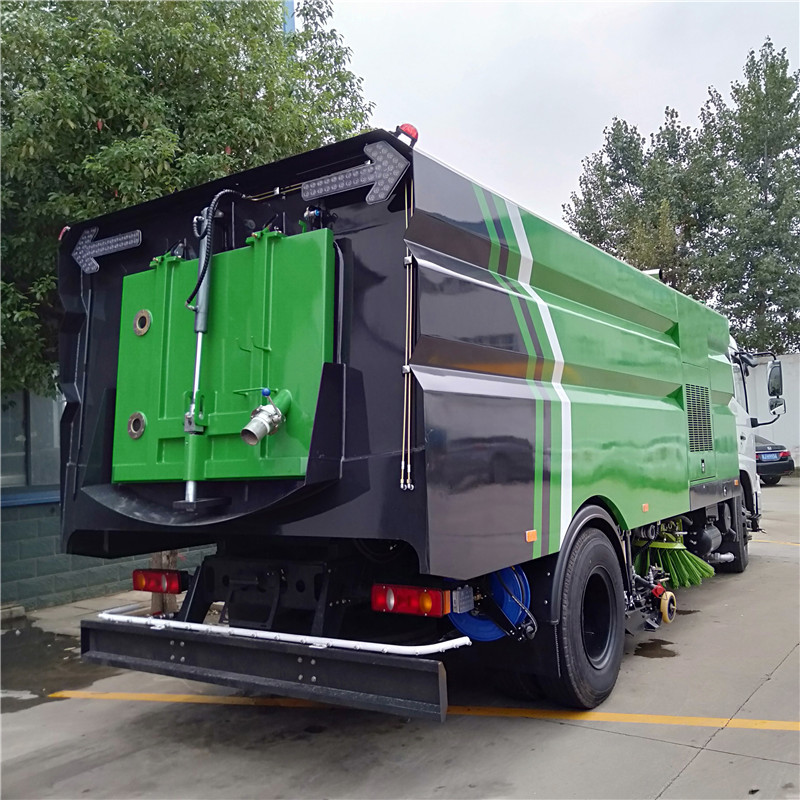

Diesel Powered Commercial Sweeper Truck For Urban Air Improvement
| Place of Origin | Hubei |
|---|---|
| Brand Name | itruck |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 57800 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Drive Model | 4x2 | Gross Weight Vehicle | 18,000 Kg |
|---|---|---|---|
| Dumping Method | Rear Dump | Transmission | 6 Gears |
| Water Tank Capacity | 9000 Liters | Waste Suction Tank | 7000 Liters |
| Curb Weight | 11,350 Kg | Fuel Type | Diesel |
| Spare Engine | EQB160-20 | Clean Speed | 3-20 Km/h |
| Clean Width | 3.5m | Water Pressure | 10 MPa |
| Water Pump Flow | 154 L/min | Cleaning Efficiency | ≥95% |
| Maximum Suction Particle Size | 110 Mm | Max Clean Capacity | 70000 M2/h |
| Disc Brush Size | ≥400 Mm | Dump Bin Tilting Angle | ≥46° |
| Discharge Door Opening Angle | ≥85° | Hydraulic System Pressure | 16 MPa |
| Hyraulic Oil Tank | 60 L | Brush Diameter | 850 Mm |
| High Pressure Pump | Germany PT36 | ||
| Highlight | Diesel Powered Commercial Sweeper Truck,Diesel Powered air sweeper truck,Urban Air Improvement Commercial Sweeper Truck |
||

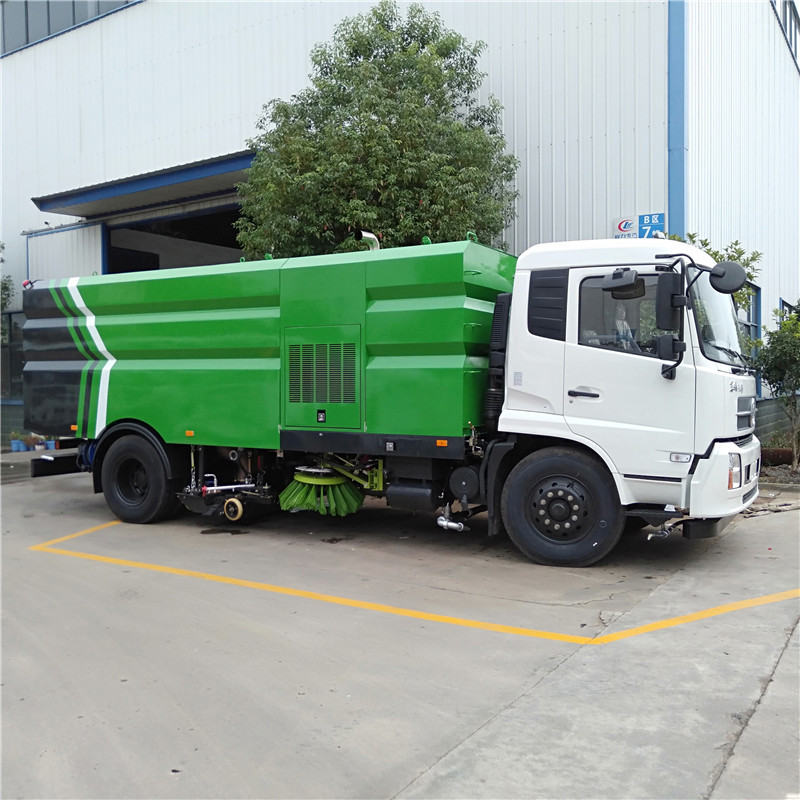

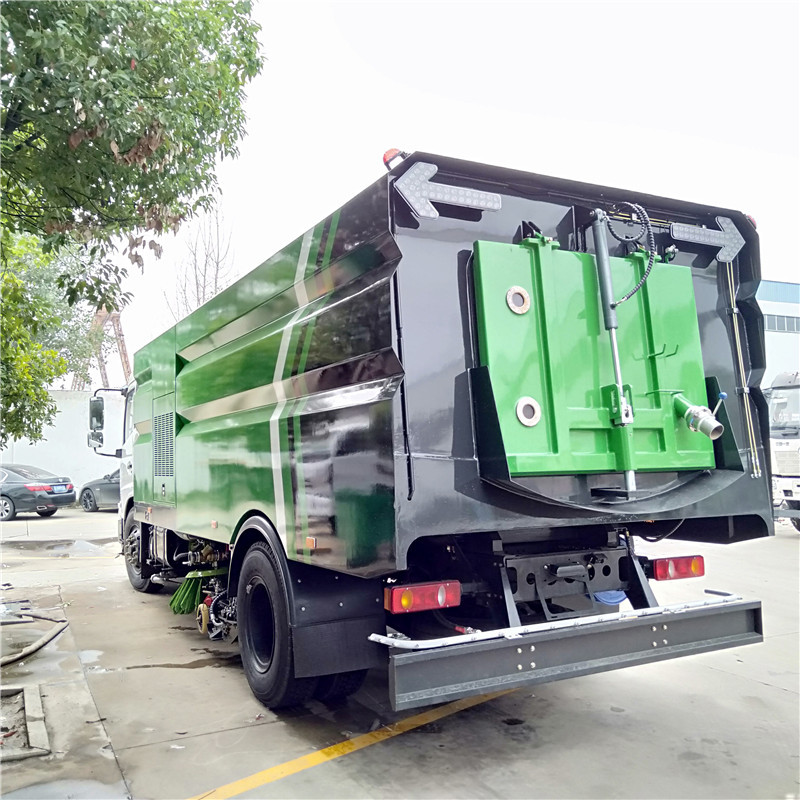

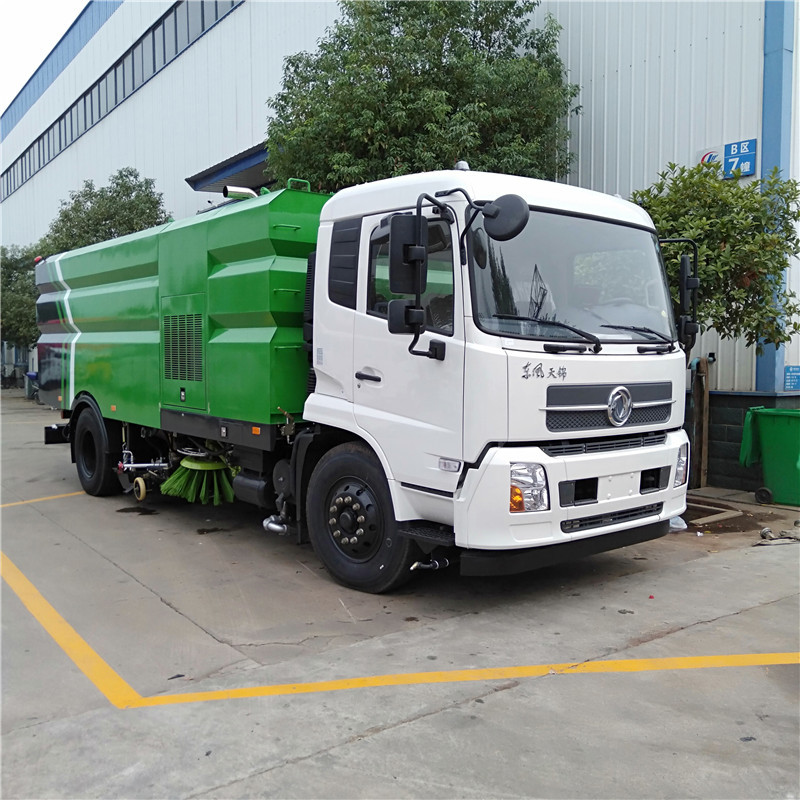

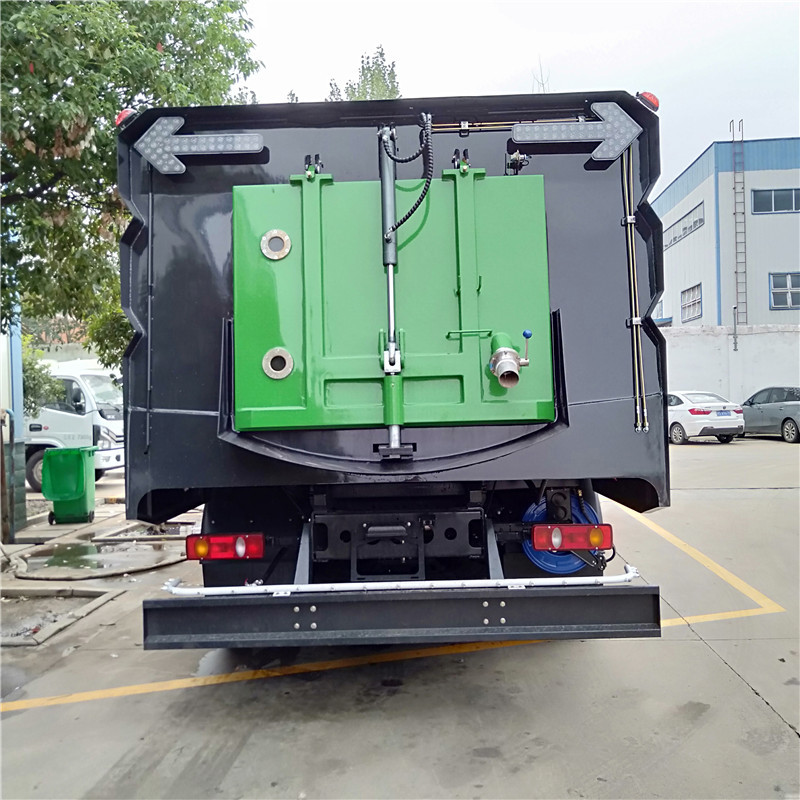

16 cbm High-pressure water spray and suction nozzle sweeper truck for urban air improvement
High pressure washing and sweeping truck.
1. Working principle of washing and sweeping truck

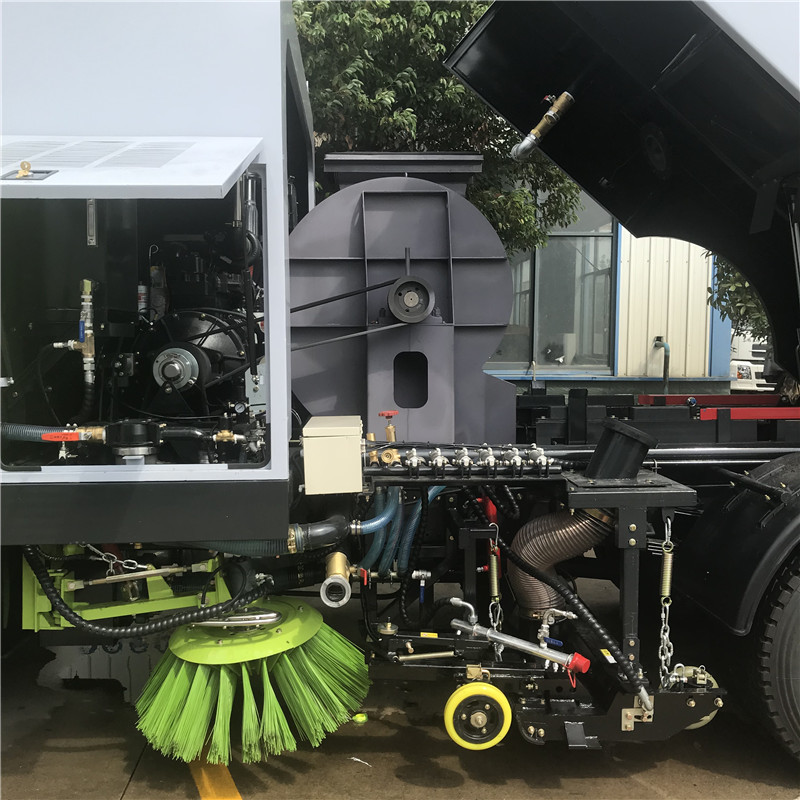

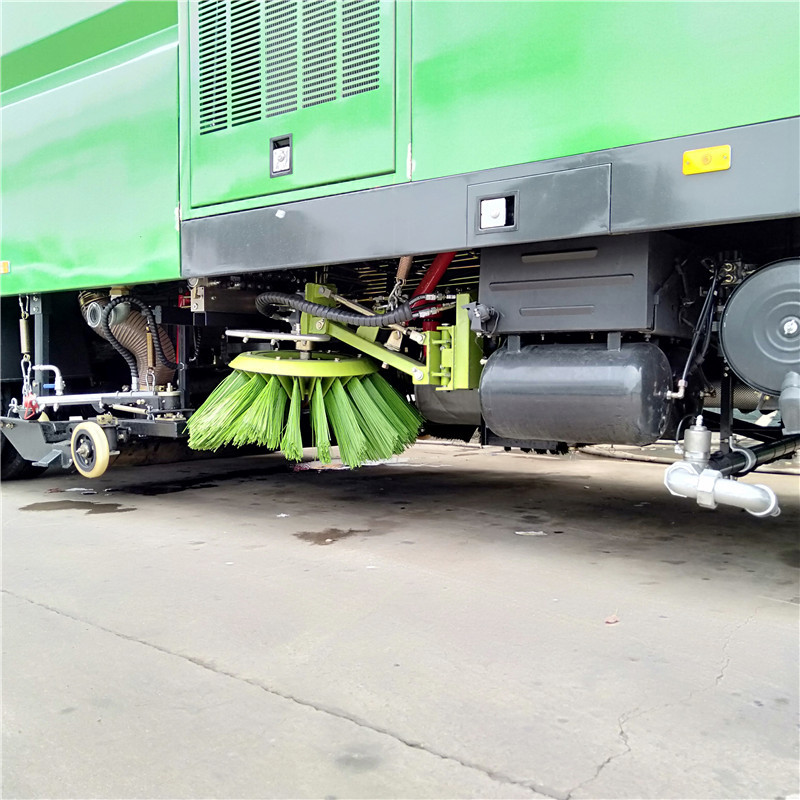

The cleaning and sweeping vehicle combines the functions of a road sweeper and a high-pressure cleaning vehicle. Generally, it comes standard with two center mounted brushes (equipped with a V-shaped high-pressure water spray rod in front of the brushes) and a center mounted suction nozzle (with a built-in high-pressure water spray rod). The washing and sweeping vehicle sprays high-pressure water from the high-pressure water spray rod during operation, which can flush stubborn attachments on the road surface. The water and garbage are sucked into the garbage bin together with the suction nozzle. Due to the high water consumption of the washing and sweeping vehicles during the operation, the water tank is relatively large. Therefore, the washing and sweeping vehicles are all modified from chassis with a wheelbase of 3800 mm or more. The washing and sweeping vehicle is equipped with a 17 meter high-pressure water flushing reel and a high-pressure water gun, making it more convenient and efficient to clean roads, sidewalks, and small advertisements.
2. Applicable environment for washing and sweeping truck
The cleaning truck has good cleaning effect and convenient maintenance, and is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations of urban roads, highways, squares, airports, docks, tunnels, bridges, separation walls, curbs and curb facades.
Main Technical specifications
| Overview | |
| Chassis model | DFL1160BX3 |
| Wheelbase | 4700mm |
| Front/rear suspension | 1430/2150 mm |
| Chassis engine | B190-33 |
| Spare engine | EQB160-20 |
| Chassis engine | 140kw, 5900cc, 190hp |
| Spare engine | 155 kW |
| Max upgrade angle | 30% |
| Emission standard | Eu 3 |
| Accelerating outside noise | ≤84dB(A) |
| Max speed | 103 km/h |
| Approach angle | 20° |
| Departure angle | 13° |
| Kurb weight | 11350 kg |
| Whole weight | 16000kg |
| Whole dimension | 8580×2490×3100mm |
| Minimum height above ground | 230 mm |
| High pressure clean | |
| Clean speed | 3~20 Km/h |
| Clean width | 3.5 m |
| Water pressure | 10 MPa |
| Water pump flow | 154 L/min |
| Clean and suction performance | |
| Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm |
| Clean and suction width | 3.5 m |
| Max clean capacity | 70000 m2/h |
| Disc brush size | ≥400 mm |
| Clean and suction speed | 3-20 km/h |
| Tank capacity | |
| Water tank volume | 9 m³ |
| Dust tank volume | 7 m³ |
| Dump bin tilting angle | ≥46° |
| Discharge door opening angle | ≥85° |
| Hydraulic Hydraulic system | |
| Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
| System pressure | 16 MPa |
| Oil tank | 60 L |
| Oil temperature | 60 ˚C |
| Electrical system | |
| Model | DC24 V |
| Voltage | 24 V |
| Battery | 24 V |
| Sweeping devise | |

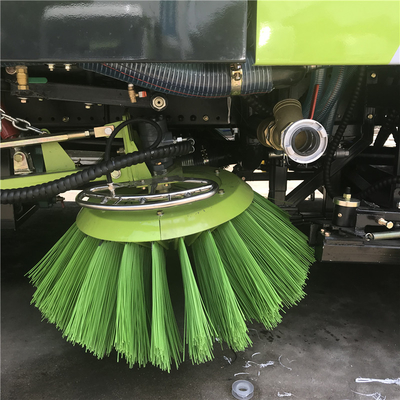

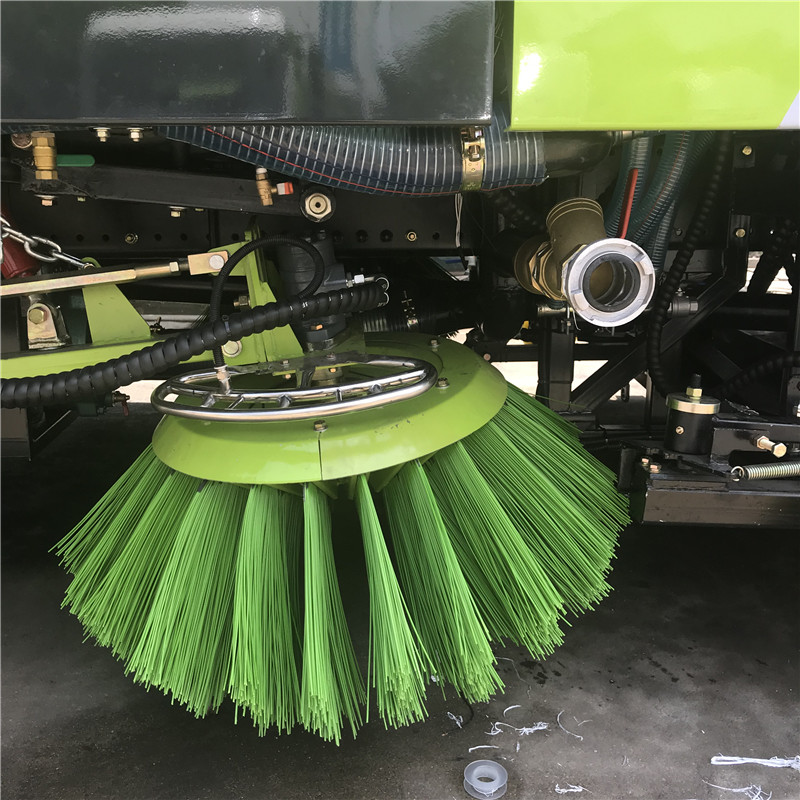

| Modle | Center two swabs, driven by a hydraulic motor, and the front right can be controlled independently, with a evasive reply function. |
| Brush diameter | 850 mm |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees |
| Sucking plate | |
| Model | Double suction, hydraulic control, spring suspension. |
| Suction plate diameter | 180 mm |
| Suction plate width | 1800mm |
| High pressure water system | |
| Model | post pump |
| No:. | Germany PT36 |
| System pressure | 10 MPa |
| Speed | 1150 r/min |
| Water valve model | Hydraulic pressure ball valve. |
| Water valve pressure | 7 MPa |
| Spray nozzles model | High pressure washing type |
| Water filter | Mesh type |
| Water spray system | Electric diaphragm pumps, water filters, nozzles, etc. |
Truck tools
| No:. | ITEM | QTY | REMARK |
| 1 | Fire hose | 2 | |
| 2 | Fire wrench | 1 | |
| 3 | Water filter wrench | 1 | |
| 4 | High pressure water jet gun | 1 | |
| 5 | Spare tire | 1 | 10.00R20 |
| 6 | Manual hydraulic pump rocker | 1 |
Truck spare parts
| No:. | ITEM | QTY | |
| 1 | Brushing | 44 | |
| 2 | Suction cup front rubber | 1 | |
| 3 | After the suction cup | 1 | |
| 4 | Fan belt | 5 | |
| 5 | Water pump belt | 3 | |
| 6 | Casters | 4 | |
| 7 | O-rings and combination washers | ||
| 8 | Middle baffle rubber | 1 | |
| 9 | Seal | 1 |
Major import configurations
| No. | Item | Type | Manufacturer |
| 1 | High pressure water pump | PF36 | Germany PINFL |
| 2 | Automatic unloading after valve | VB200/150 | Germany PINFL |
| 3 | Flood valve | VS200-180 | Germany PINFL |
| 4 | Nozzle | B1/4MEG | America spray company |
| 5 | Liquid level switch | LME200B5/24V | Italy SOFIMA |
| 6 | CPU | 6ES7 214-1AD23-OXB0 | Germany SIEMENS |
| 7 | Digital quantity extension module | 6ES7 223-1PH22-OXA0 | Germany SIEMENS |
| 8 | The central distribution box | DVEC | America COOPER |
| 9 | Stepping motor | 57H41-2.7-001 | America Haydn |
| 10 | Switchgear cabinet | NE-AG | Korea HIBOX |
| 11 | Switch Control | Japan IDEC | |
| 12 | Proximity switch | NBB10-30GM50-E0 | PEPPRL FUCHS |
| 13 | Suction pipe | NORRES | |
| 14 | Hydraulic motor | BMR125 | Brevini |
| 15 | Hydraulic valve | SWH-G02-C4-D2H | Radix stemonae machines |
