ISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving Type
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Model Number | QL1180JQFRY |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 62500 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Crane Truck | Chassis | ISUZU |
|---|---|---|---|
| Crane Loading | 8-10 Tons | Crane Type | Straight Arm |
| Support Leg | 4 | Wheelbase | 4500 Mm |
| Lifting Height | 15.5m | Working Radius | 13.5m |
| Crane Model | SQS200 | Crane Brand | XCMG |
| Highlight | 205hp Engine Truck Mounted Crane,205hp Engine vehicle mounted crane,Truck Mounted Crane 4x2 Driving |
||
Product Description
ISUZU FTR 205hp Engine 8 tons XCMG Straight arm truck mounted crane
The official name of the truck mounted crane is the truck mounted crane transport vehicle, which is a device that uses hydraulic lifting and telescopic systems to lift, rotate, and hoist goods. It is usually assembled on cargo trucks.
It is widely used for the hoisting and transportation of infrastructure materials and other equipment in municipal construction, coal mining engineering, landscaping, and other fields.
Truck mounted crane is a type of transportation vehicle that combines a truck mounted crane and a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Applicable working conditions: In traditional areas of Dongfeng, high-density goods such as iron powder and iron ore are loaded and transported, suitable for poor road conditions such as mountainous roads and construction site roads.
Main Technical specification
| Overview | |
| Name | 8 tons Isuzu FTR Crane Truck |
| Dimension(LxWxH) | 9000x2500x3750 mm |
| Total Mass | 18000 kg |
| Rated Payload | 11280 kg |
| Kerb Weight | 6500 kg |
| Passenger | 3 |
| Approach/Departure Angle | 16°/12 ° |
| The Parameters of Chassis | |
| Manufacture/Model | QL1180JQFRY |
| Driving Type | 4x2 |
| Wheel Base | 5550 mm |
| Gearbox | MLD6 |
| Front/Rear Track | 2011/1860 mm |
| Tyre model | 10.00R20 |
| The Number of Tyre | 6+1 (spare tyre) |
| Front/Rear Suspension | 1350/2200 mm |
| Axles Loading | Front Man 6.3 T Rear Man 13 T |
| Oil Tank | 300L Iron |
| The Parameters of Engine | |
| Manufacturer/Model | ISUZU/ 4HK1-TC60 |
| Rated Power | 151kw/105hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5193 ml |
| Emission Standard | Eu 6 |
| Cylinder | 4 |
| Max. Torque/ speed | 647N.m/ 1600rpm |
| Velocity | 2600 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customized |
| Rear bucket | 6000x2200x500 mm |
| Dump function | NO |
| Crane | Xcmg 8 tons straight arm, MSQS200-4 |
XCMG 8 tons straight arm crane specifications
| Model | MSQS200-4 (8 tons, 4 arms) |
| Max loading weight | 8,000 kg |
| Max torque | 200 kN.m |
| Max outreach | 13.5 m |
| Max lifting height | 15.5 m |
| Oil tank capacity | 200 L |
| Max pressure of hydraulic system | 26 mpa |
| Recommended pump capacity | 63/50+50 L/min |
| Installation space | 1200 mm |
| Slewing angle | 360 ° |
| Crane weight | 3450 kg |
| Stabilizer spread | 2300-5700 mm |
| Support leg | yes |

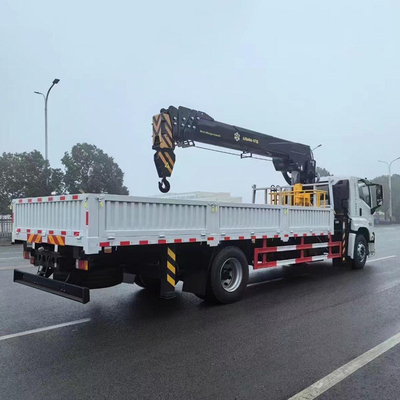

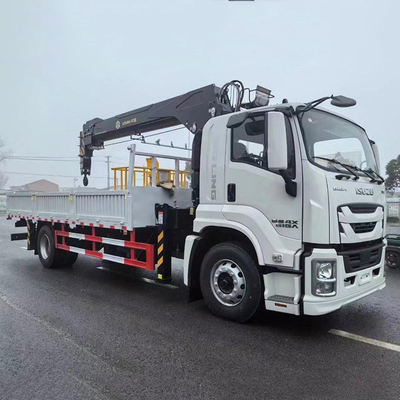

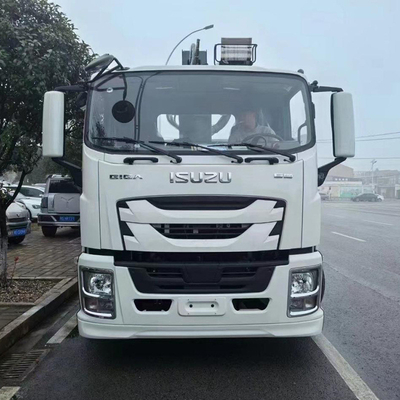

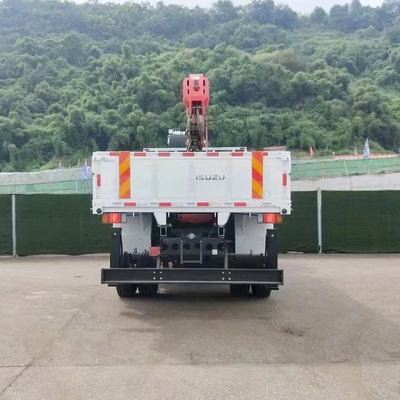

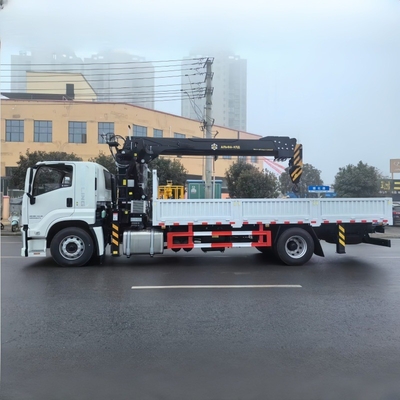

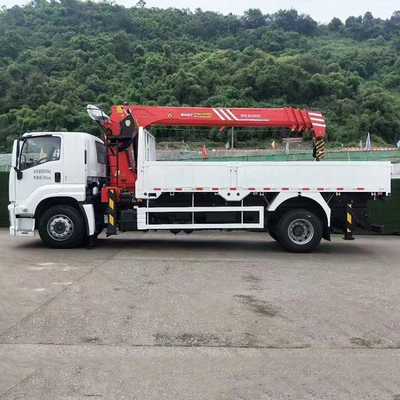

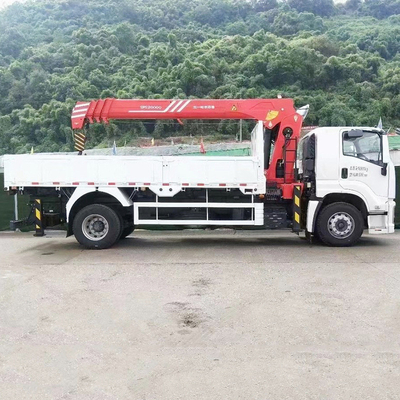

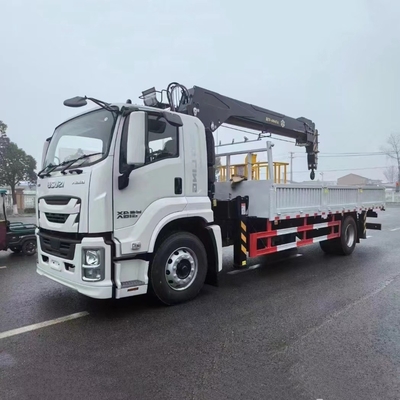

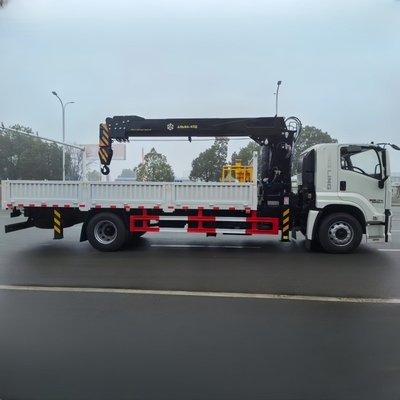

ISUZU FTR Crane Truck Picture
Crane Truck Working Stock
Crane Truck Working Working
