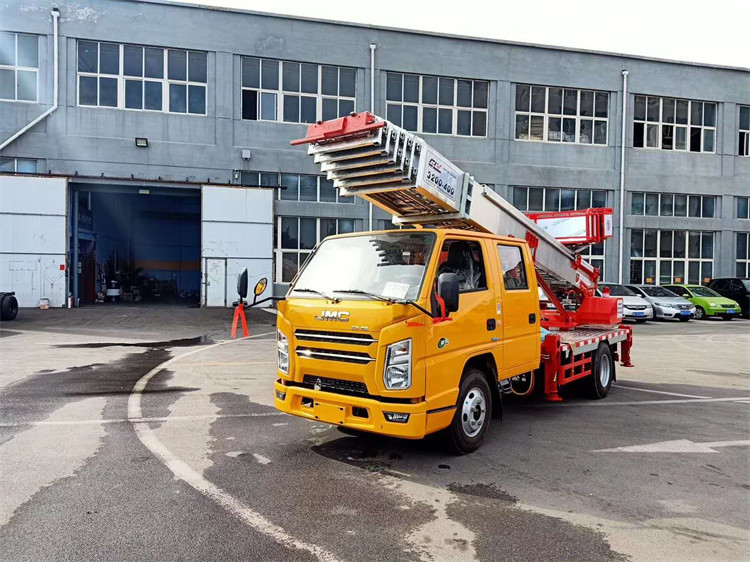

28m JMC High Building Moving Ladder Bucket Truck Aerial Ladder Truck
| Place of Origin | Hubei |
|---|---|
| Brand Name | JMC |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 22700$ |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, D/P, D/A |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Altitude Working Truck | Wheelbase | 3360 Mm |
|---|---|---|---|
| Cabin | Single Row | Tire | 7.00R16 |
| Engine | JX493ZLQ5 | Working Height | 28 M |
| Cage Loading | 250 Kg | Arm Type | Ladder |
| Air Condition | Yes | Support Leg | 2 |
| Control Method | Manual Hydraulic Or Electronic Control | ||
| Highlight | 28m Ladder Bucket Truck,28m Aerial Ladder Truck,JMC Ladder Bucket Truck |
||
Product Description

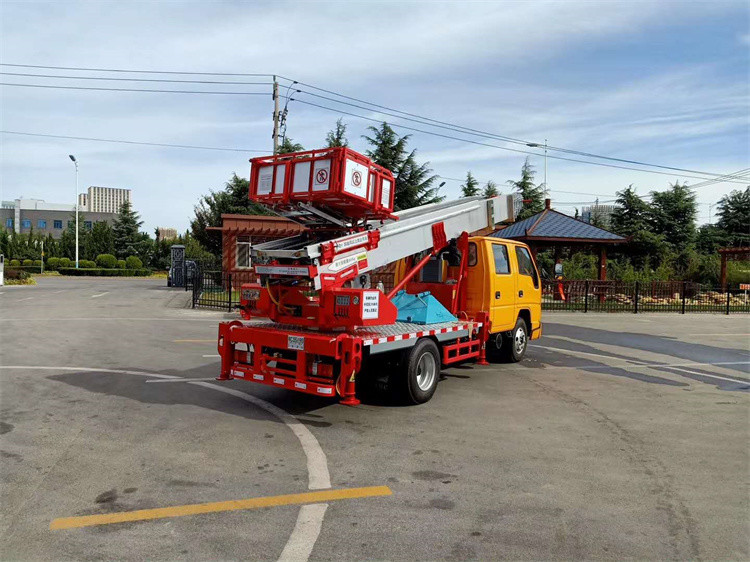

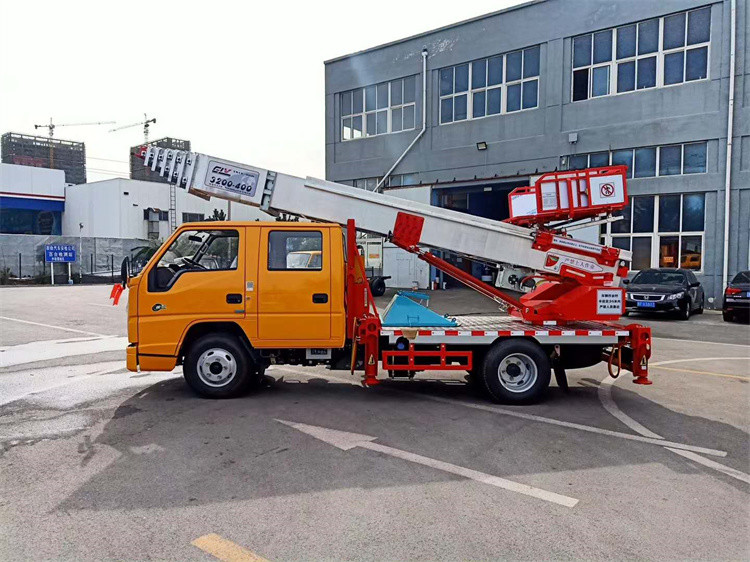

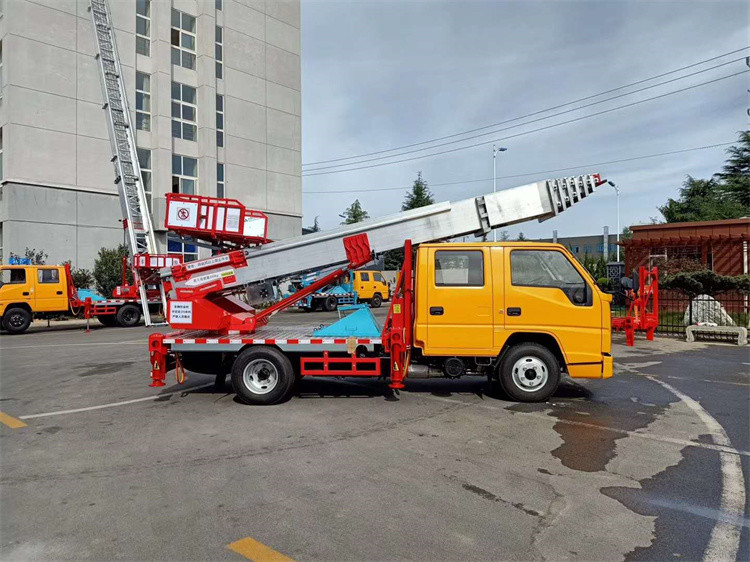

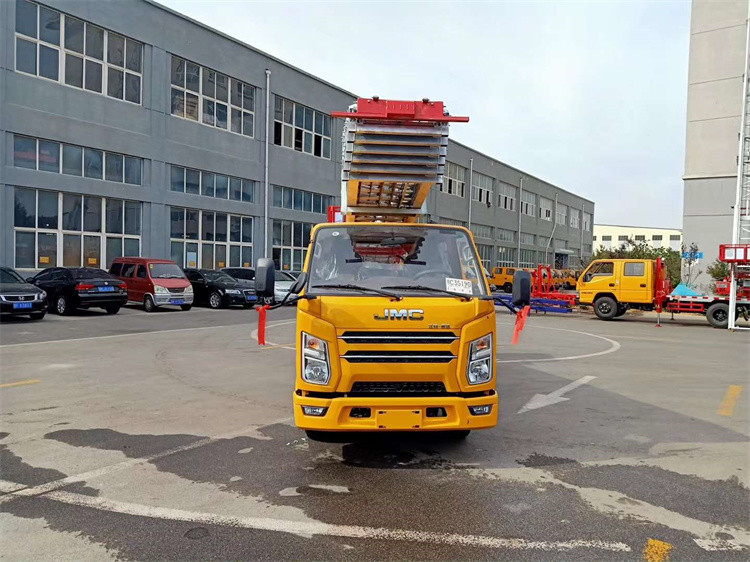

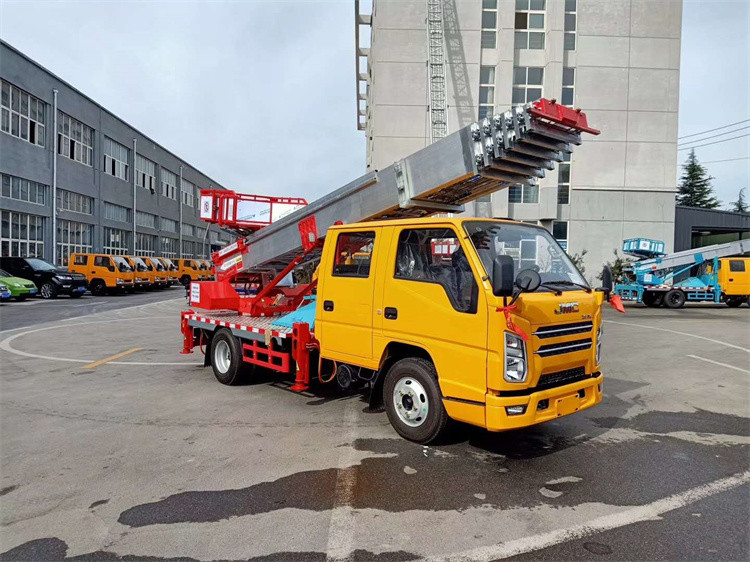

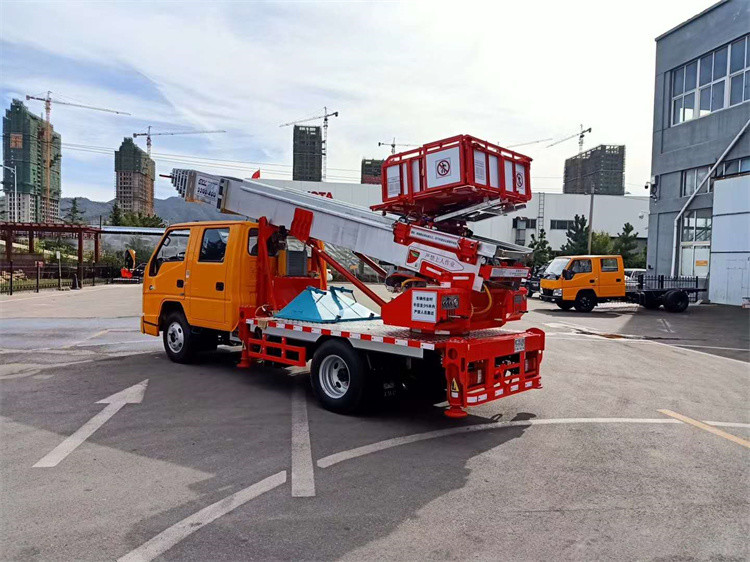

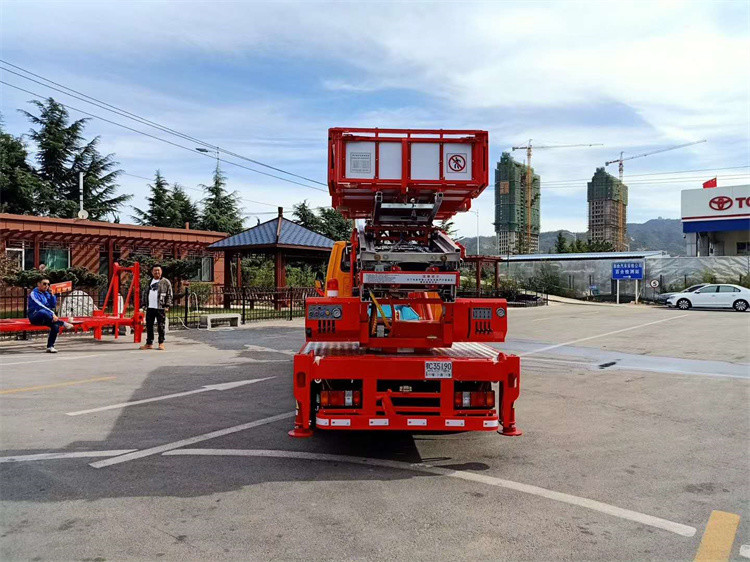

JMC 28 Meters High building moving ladder truck
High building moving ladder truck.
1. The ladder arm adopts the original Korean Delin ladder arm, and the key components are imported from the original Korean package.
2. Hydraulic telescopic outriggers, the whole vehicle is equipped with four hydraulic horizontal telescopic outriggers, up and down telescopic outriggers, and a total of eight hydraulic cylinders. The H-type hydraulic outrigger has a large span of two horizontal outriggers, which ensures the stability of the ladder arm and can be operated simultaneously or separately.
3. Wireless remote control operation, which can be operated within 80 meters, is convenient to observe the working space, safe and reliable. The remote control and manual operation modes greatly improve the work efficiency. For workers, there is no need to worry about working in the sun. It is more convenient to work.
4. The photoelectric switch with high sensitivity is used with wireless remote control to ensure the accuracy of the elevator arm. The travel of the elevator arm can be flexibly adjusted according to the actual situation of the operation to ensure the stability of the operation.
5. The drag chain is added to the horizontal telescopic tubing to ensure the smooth expansion and service life of the tubing.
6. The original design of the dump hopper has been improved to ensure the portability and flexibility of the product, while maintaining the original cargo weight and increasing the service life of the elevator arm. The size of the dump hopper is 1160x900x370mm, which is mainly used for the up and down transportation of sand and stone materials. After the dump hopper is loaded under the bottom, it is automatically unloaded after it is sent to the set position by remote control, which is convenient, fast, time-saving and labor-saving.
7. Radiator, hydraulic radiator is mainly used to cool the oil in the hydraulic tank.
8. 220V on-board power supply (optional), 220V on-board power supply can be connected to electric operation tools at the work site for convenient operation
Main Technical specification
JMC 10 Meters Elevating Platform Aerial Truck Picture
High building moving ladder truck
ISUZU High Altitude Aerial Cage Truck Working
