4X2 26 METERS FAW AERIAL WORK PLATFORMS TELESCOPIC LIFT TRUCK
| Place of Origin | Hubei |
|---|---|
| Brand Name | FAW |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, D/P, D/A |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Altitude Working Truck | Wheelbase | 3600 Mm |
|---|---|---|---|
| Cabin | Single Cab | Tire | 7.00R16 |
| Engine | YuChai | Working Height | 16-31m |
| Cage Loading | 200 Kg | Arm Type | Telecopic |
| Air Condition | Yes | Support Leg | 4 Sets, H Type, Lateral Span 3755 Mm, Longitudinal Span 3750 Mm |
| Lifting Hook | Max Weight ≤1000kg, Saftey 800kg | ||
| Highlight | 26 METERS FAW AERIAL WORK PLATFORMS,4X2 FAW AERIAL WORK PLATFORMS,TELESCOPIC LIFT TRUCK |
||
Product Description
4X2 26 METERS FAW AERIAL WORK PLATFORMS TELESCOPIC LIFT TRUCK
Telescopic boom aerial working truck.

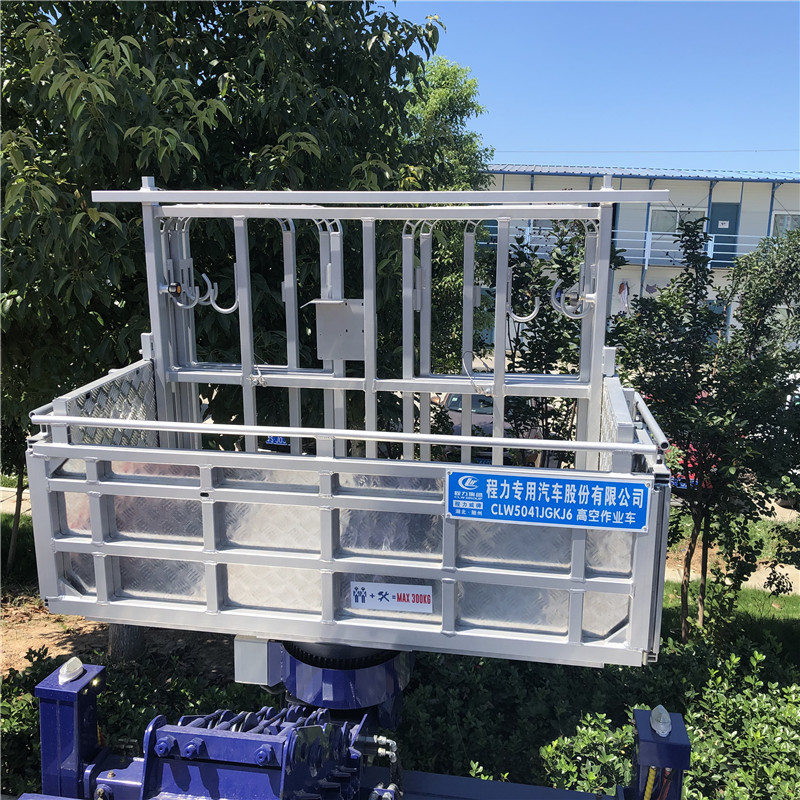

1. The aerial work vehicle adopts a telescopic straight arm structure. The operating arm is a four-section telescopic type. The turntable can be operated, and can also be operated by a remote control. It can rotate 360 degrees. Four hydraulic outriggers are available. The maximum weight of the platform is 200 kg. The stainless steel coaming and patterned anti-skid walking platform are available.
2. The worktable is designed with mechanical self-balance, which is used to keep the worktable in balance during operation. The maximum extension angle of the jib reaches 80 °, so as to adjust to the best operation position.
3. Night work light, the operation light can be installed on the operation platform according to the customer's working environment to make night work safer.
4. Computer control, automatic limit, dangerous work alarm, excellent safety performance. The vehicle is equipped with a display to display the working conditions of the whole vehicle in real time.
5. Hexagonal working arm increases strength, synchronous telescopic, compact structure, high working efficiency and wide working range. The telescopic oil cylinder is external and the chain telescopic mechanism makes it easier to observe the fault point and facilitate maintenance.

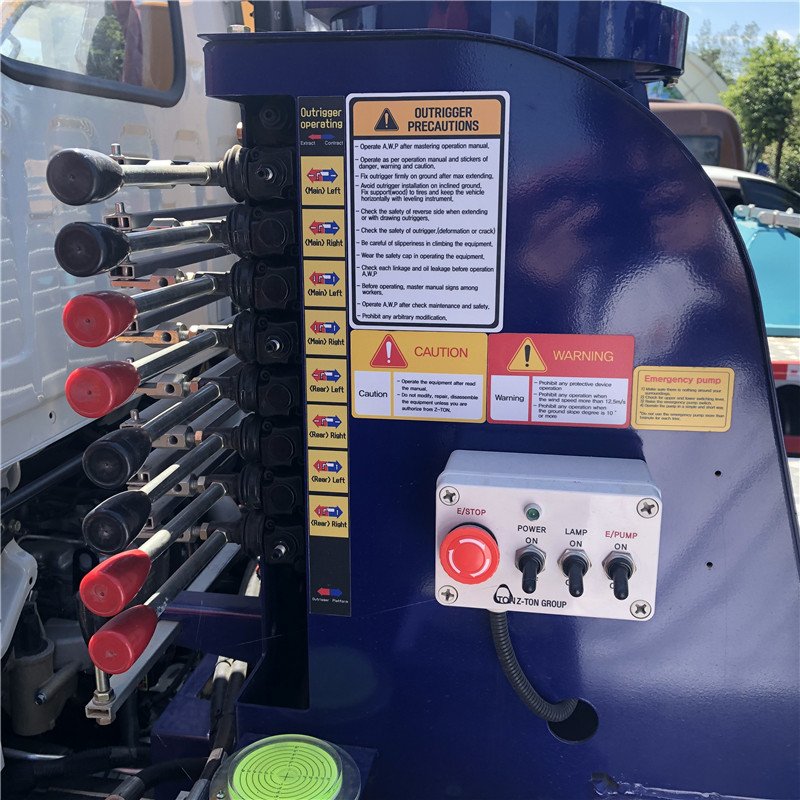

6. The outrigger adopts the front V and rear H structure, with larger stress surface and higher stability; It can prevent the girder from deformation or fracture. The outriggers can be adjusted independently. Each outrigger can be adjusted independently according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
7. The four vertical outrigger cylinders and the upper arm, lower arm and lower arm cylinders are equipped with two-way hydraulic locks, whose function is to lock the cylinder after reaching the required position to prevent accidents. The working arm is equipped with a two-way balance valve to make the operation of the working arm more stable. The main components of the vehicle, such as two-way hydraulic lock, two-way lock balance valve, hydraulic flow valve, hydraulic cylinder, emergency pump for engine start and stop, operating system and its control computer, are all domestic well-known brands, and the core components are imported parts. Stable reversing, flexible and convenient operation; The outrigger and working arm are interlocked, safe and reliable to prevent miss operation.
Main Technical specification
Truck Specs
| 4x2 FAW Work Platform Truck | |
| Overview | |
| Name | 4x2 FAW Work Platform Truck |
| Dimension(LxWxH) | 5995x2190x3450(mm) |
| Total Mass | 4495 Kg |
| Kerb Weight | 4300 Kg |
| Passenger | 3 |
| Appr/Dep Angle | 19/19 |
| The Parameters of Chassis | |
| Manufacture/Model | FAW |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 3300 mm |
| Gearbox |
WLY 6T115, six speed forward and one reverse, manual |
| Ratio | Front and rear 4.875 |
| Crossbeam | 237*65*7 |
| Tyre | 7.50R1614 |
| The Number of Tyre | 6+1(spare tyre) |
| The Paremeters of Engine | |
| Manufacturer/Model | YuChai/YC4D130-33 |
| Rated Power | 130hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 4214ml |
| Emission Standard | Euro 3 |
| Cylinder |
Straight/4/turbocharge/intercooling/ watercooling/direct injection |
| Max. torque | 420N.m |
| Velocity | 2800rpm |
Body Specs
| Manlift Truck Body | |
| The Parameters of Equipment | |
| Platform Dimension | 1400x700x1150mm |
| Boom | 3-7 stages, hexagon, synchronously working |
| Max Working Height | 22-36 m |
| Platform Loading | 200kg |
| Rotation Degree | 360° continuous rotation |
| Outriggers | Four independent legs, front V shape and rear H shape, extension 4m |
| Operation | Electrical, manual, and remote control (CAN) |
| Control System | Electric hydraulic proportional control system, continuously variable |
| Leveling System | Hydraulic leveling system |
| Bucket | Stainless steel bucket, 360 degrees rotation |
| Interlocking System | Safety device for wrong operation proof |
| Emergency Electric Pump | For personal safe return when engine fails |
| Emergency Shutoff Device | Equipped |
| Engine Remote Control | Platform and bucket available |
| Warning Lights | Equipped |
| Computer Display | Equipped |
| Rotation Rack | Adjustable |

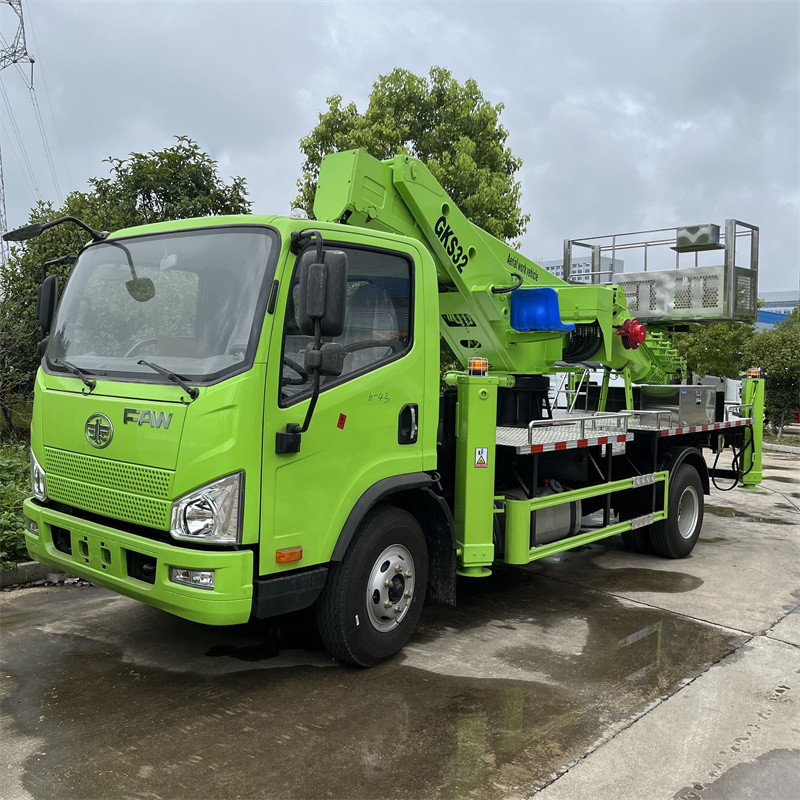

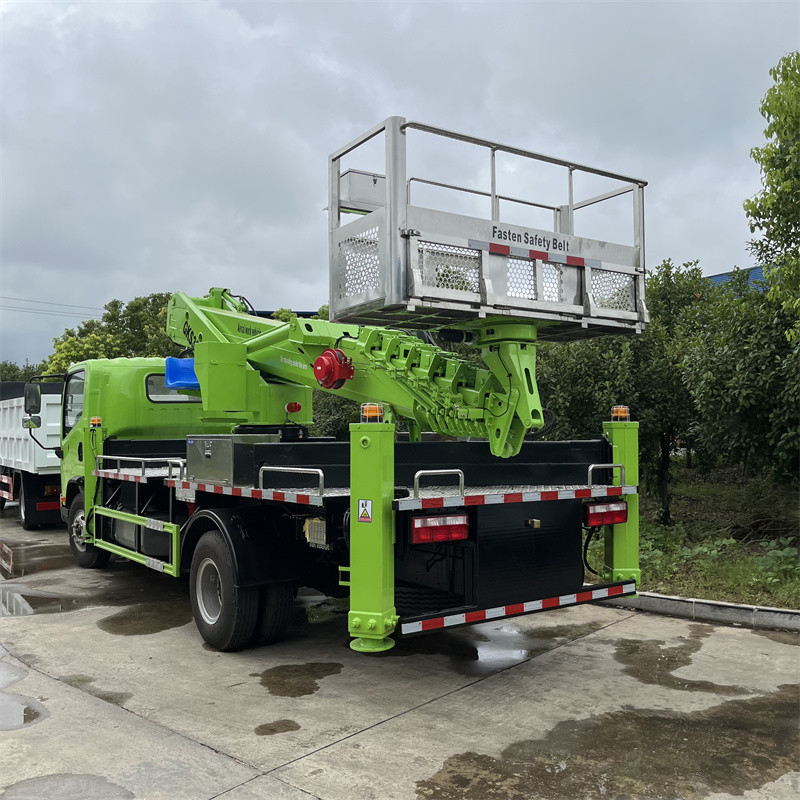

FAW High Altitude Aerial Cage Truck Picture
