4X2 EURO 6 DONGFENG 3 SIDES LED SCREEN TRUCKS LED ADVERTISING VAN
| Place of Origin | Hubei |
|---|---|
| Brand Name | Dongfeng |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, , L/C, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LED Advertising Truck | Wheelbase | 3300 Mm |
|---|---|---|---|
| Cabin | Single Cab | Tire | 7.00R16 |
| Screen Pixel | P5/P4/P3 | Screen Sides | 1/2/3 |
| Generator | 15kW | Computer | Included |
| Amplifier | Included | Speakers | 4 Pcs |
| Floor | Alumunum Checkered Plate | Hydrulic Lift | Optional |
| Hydraulic Stage | Optional | ||
| Highlight | 4X2 LED ADVERTISING VAN,EURO 6 LED ADVERTISING VAN,3 SIDES LED SCREEN TRUCKS |
||
Product Description
4X2 EURO 6 DONGFENG 3 SIDES LED SCREEN TRUCKS LED ADVERTISING VAN
The composition of the LED advertising vehicle:

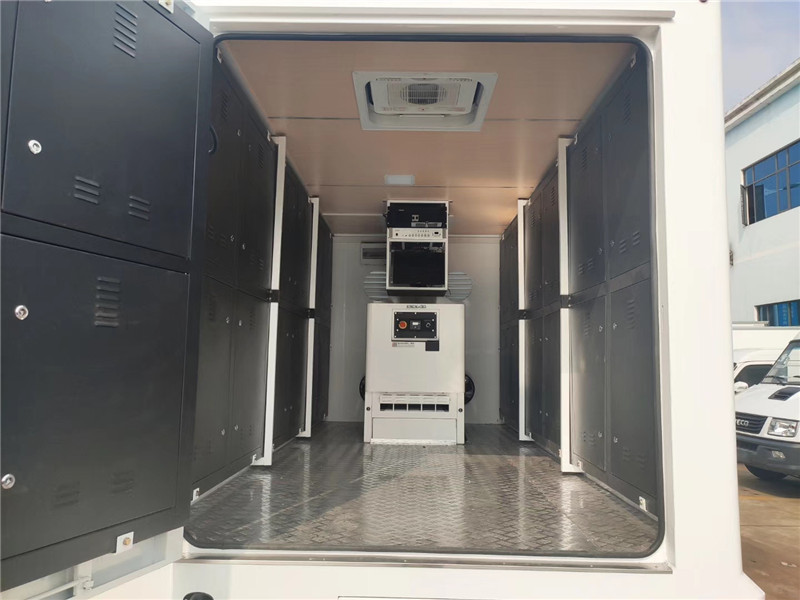

1. LED advertising truck compartment: The compartment is a rectangular square frame structure, the interior of the compartment is aluminum checkered plate, installed with lighting, and the front face and rear door are equipped with shutters and exhaust fans. The cabin is equipped with: 2-4 speakers, a power amplifier, a brand computer, and a set of control.
2. LED screen: The car adopts P5/P4/P3 high-resolution LED screen; the area of the LED screen can be customized according to the actual requirements of customers, and it can be done on one side to three sides.
3. Lifting system(optional): The LED screen can be lifted by two hydraulic cylinders. The lifting height is 1.5 or 1.2 meters, so that the audience behind can clearly see the LED screen.
4. Power: The car comes with a high-power ultra-quiet diesel generator, which can be used independently without the support of the power grid and is not limited by the power supply. It is also equipped with a switching distribution box, which can directly use the grid power supply when there is a power supply.
5. Hydraulic outrigger: It is a supporting mechanism installed on the vehicle frame or sub-frame. The whole vehicle is supported by four hydraulic outriggers, so that the whole LED advertising vehicle forms a settlement-free one. The LED screen can be used normally even in the case of windy and uneven ground.
6. Advertising light box (optional): The advertising light box is equipped with an intelligent digital computer to switch pictures, 2-6 pictures are automatically switched, and the exterior is equipped with tempered high transparent glass. The top of the light box can be used as a monochrome LED advertising screen.
Main Technical specification
| Dongfeng LED Truck | |
| Overview | |
| Name | Dongfeng LED Truck |
| Dimension(LxWxH) | 5803x2300x3300(mm) |
| Total Mass | 4495 Kg |
| Kerb Weight | 4300 Kg |
| Passenger | 3 |
| Appr/Dep Angle | 19/19 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4x2 left hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1503,1485,1519/1494,1516(mm) |
| Tyre | 7.00R16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1040/1497,1040/1250(mm) |
| Leaf Spring Number | 6/6+5 |
| AC, ABS | Equipped |
| The Paremeters of Engine | |
| Manufacturer/Model | QuanChai/4B2-115C50 |
| Rated Power | 115hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2545ml |
| Emission Standard | Euro 6 |
| Cylinder | Straight/4/intercooling/turbo charge/electric common rail + SCR |
| Max. Torque | 320N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Type of Screen | Two sides full color screens,rear monochrome |
| LED's Pixel Pitch | 6 mm |
| LED Screen Size (L*H) | 3840*1728=6.62 (left & right), 1280*1440=1.84 (rear). |
| Generator | 15KW OUMA diesel generator |
| Computer | Huntkey with English Windows Software |
| Amplifier | 200W |
| Loudspeaker | 30w waterproof column loudspeakers x 4 |
| Control Panel | In English |
| Hydraulic Lifting | Equipped |
| Hydraulic Stage | Equipped |
| Other Accessories | Wood ceiling,waterproof aluminum floors,safe and intelligent switch power distribution system,lighting,integrated electromechanical control,two skylight,30m exter powerline,and other tiny accessory facilities. |

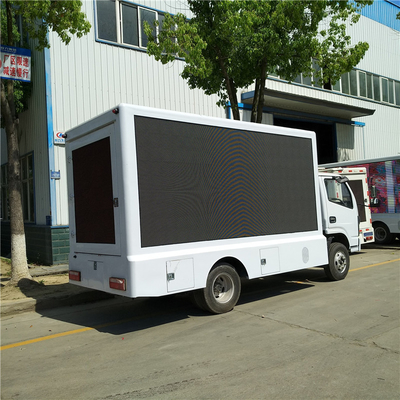

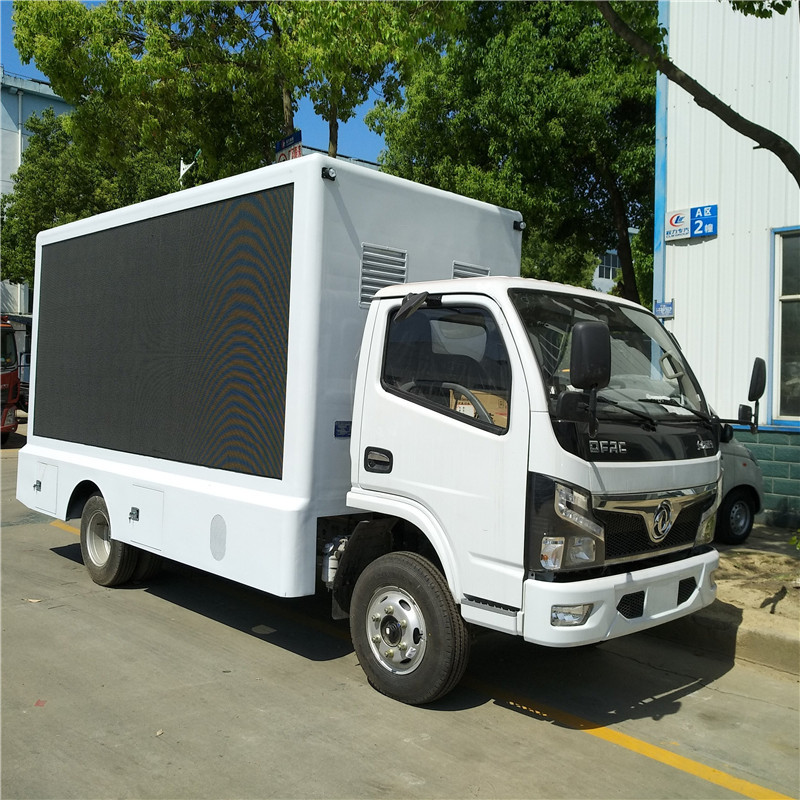

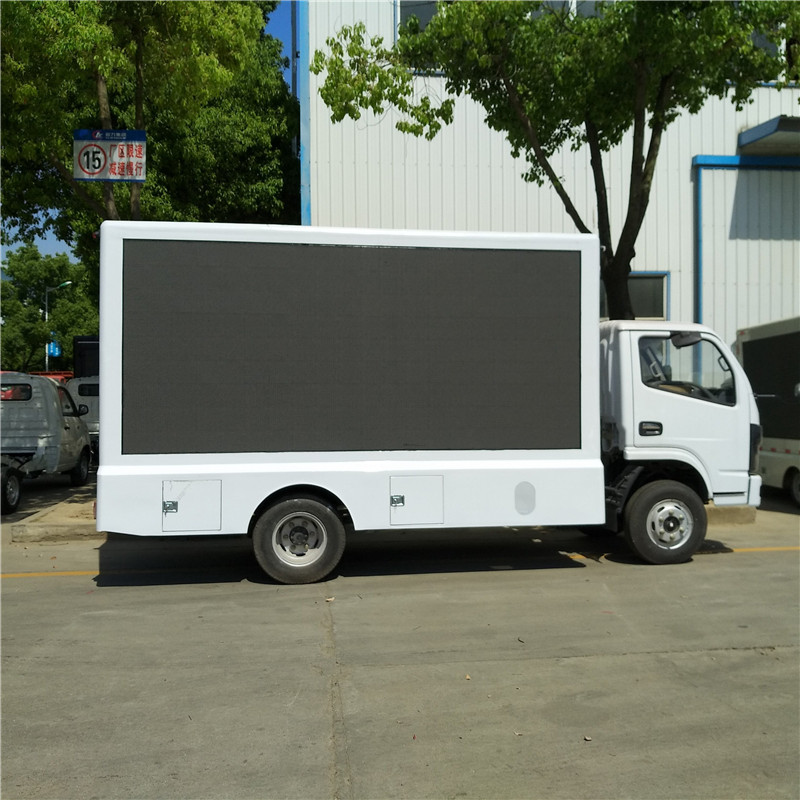

Dongfeng LED Truck Picture
