ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | nude with waxing |
| Delivery Time | 20-35 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | ISUZU Refuel Truck | Material | Carbon Steel |
|---|---|---|---|
| Wheelbase | 3300 Mm | Engine | 4KH1CN5LS |
| Tank Volume | 5 Cbm | Manhole | Euro Standard Manhole |
| Valve | Emergency Shutoff Valve | Emission | Euro 5/6 |
| Horse Power | 98hp/120hp | Warranty | 1 Year |
| Highlight | ISUZU FUEL DISPENSING TRUCK,4000 LITERS FUEL DISPENSING TRUCK,98HP FUEL DISPENSING TRUCK |
||
Product Description
ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK
Tank trucks/fuel trucks/oil trucks are mainly used for the transportation of various light fuels, heavy oils, edible oils, etc. in
the petrochemical sector. It can be used for sucking oil, pump oil, carring different oil products. The design can realize the
functions of pumping in and out of the meter, self-flowing through the meter, not through the meter.
The tank trucks modified and produced by our company are all modified with domestic mature original chassis, and users can also bring their own chassis.
-
Tank material: carbon steel, stainless steel, steel lined plastic, aluminum
-
Tank type: square, oval, round
-
Oil pump: self-priming pump, gear pump, chemical pump, stainless steel pump
-
Oil meter: single count, double count, tax-controlled fuel dispenser
-
Function: It can be independently divided into compartments, and can be divided for different oil products, chemicals, and food
-
All tank trucks can be designed as chemical trucks.
-
Tanker trucks can be equipped with computer fuel dispensers.
-
Wide range of tonnage options for tank trucks to meet user needs.
-
The tank body of the oil tanker is equipped with multiple wave-proof baffles. The high-pressure gas leak test is adopted to make the tank body have the characteristics of high strength for safe and stable transportation.
Main Technical specification
| ISUZU 5000L Refuel Truck | |
| Overview | |
| Name | ISUZU 5000L Refuel Truck |
| Dimension(LxWxH) | 5990X1940X2080(mm) |
| Total Mass | 8050Kg |
| Rated Payload | 5000Kg |
| Kerb Weight | 3050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 24/16 |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU/QL1040A6HAY |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 3360 mm |
| Gearbox | ISUZU MSB, five speed forward and one reverse, manual |
| Front/Rear Track | 1377,1425(mm) |
| Tyre | 700R16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1015/1620(mm) |
| Leaf Spring Number | 3/3+2 |
| The Paremeters of Engine | |
| Manufacturer/Model | ISUZU/4KH1CN5LS |
| Rated Power | 98hp/72kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2999ml |
| Emission Standard | Euro 5 |
| Cylinder | Straight/4 |
| Max. torque | 220N.m |
| Velocity | 3400rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Volume of Tank | 5,000 liters |
| Compartments | 1 |
| Material | Carbon steel Q235B |
| Thickness | 5mm |
| Function | Transporting and refueling, etc. |

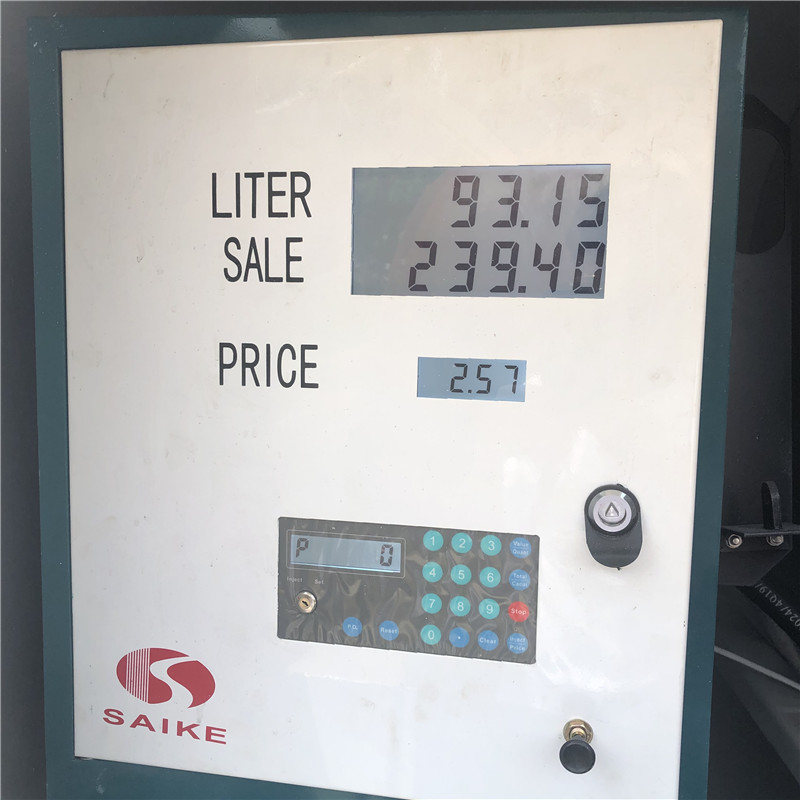

| Dispenser | Equipped with 15m hose |
| Oil Pump | Equipped |

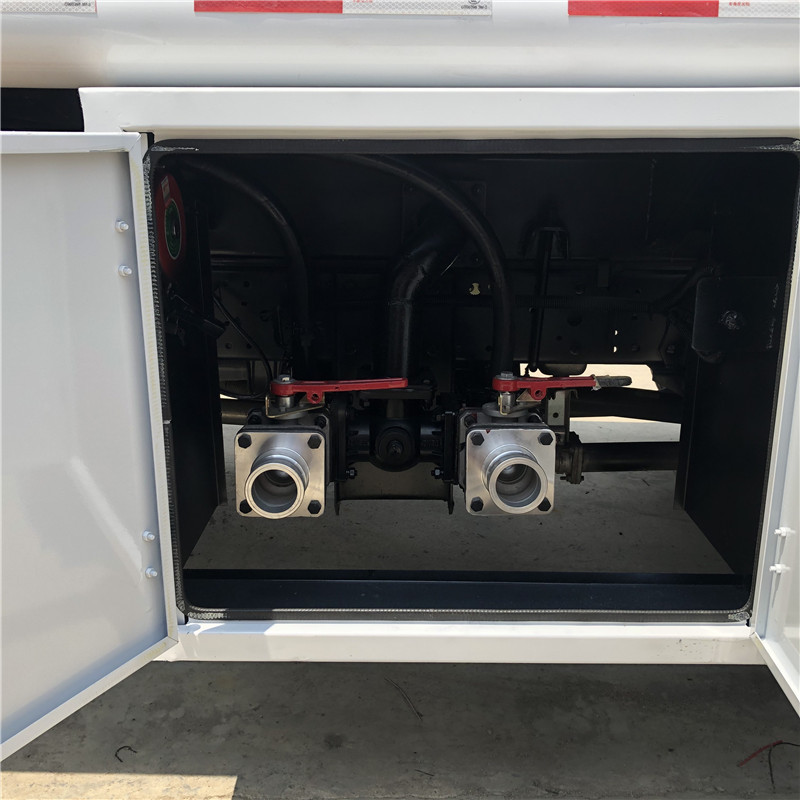

| Discharge Valves | 1, aluminum |

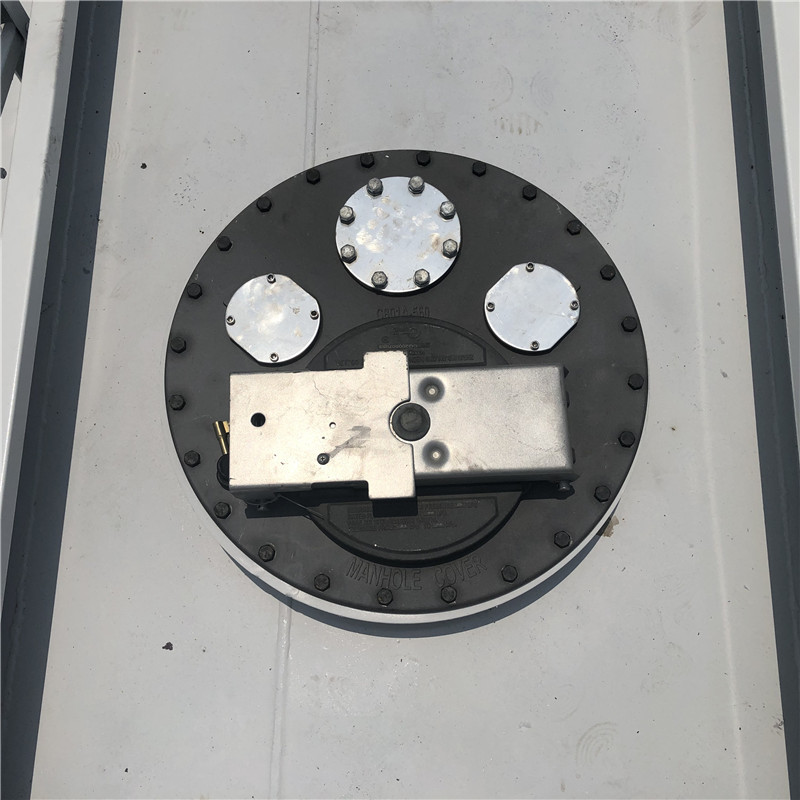

| Euro Manhole | 1, aluminum |

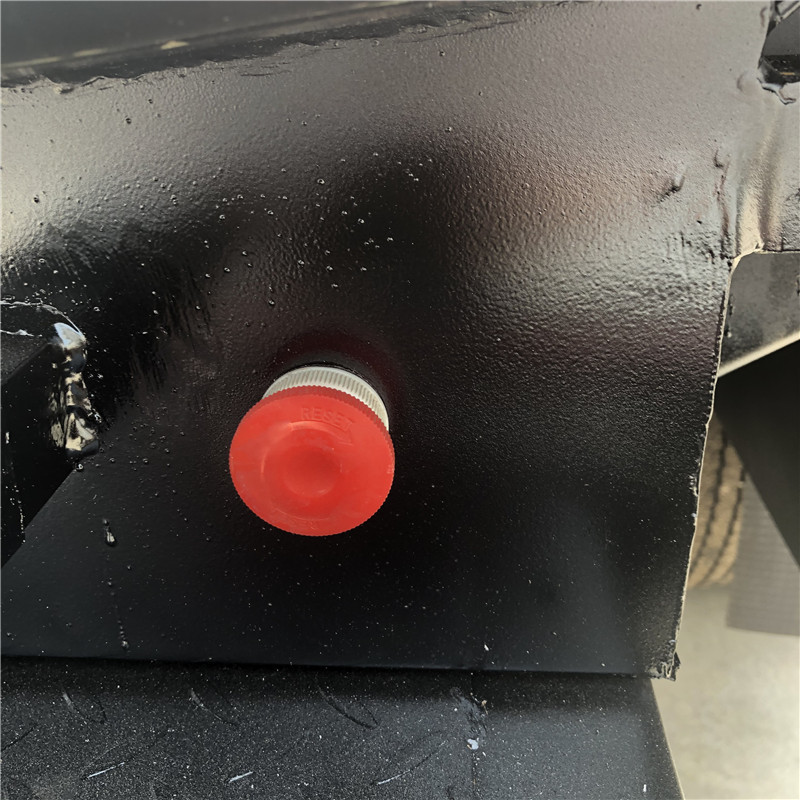

| Emergency Shutoff Valve | 1 |
| Others | Tool box,ladder,railings,static electric coil,walkway,fire extingushers,etc. |

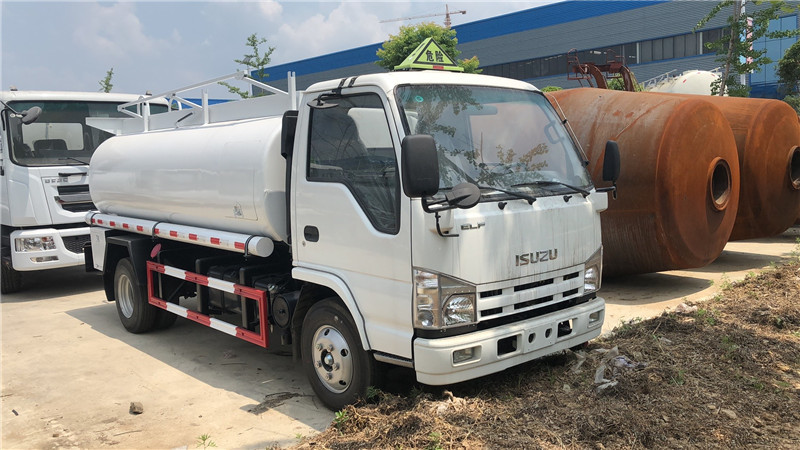

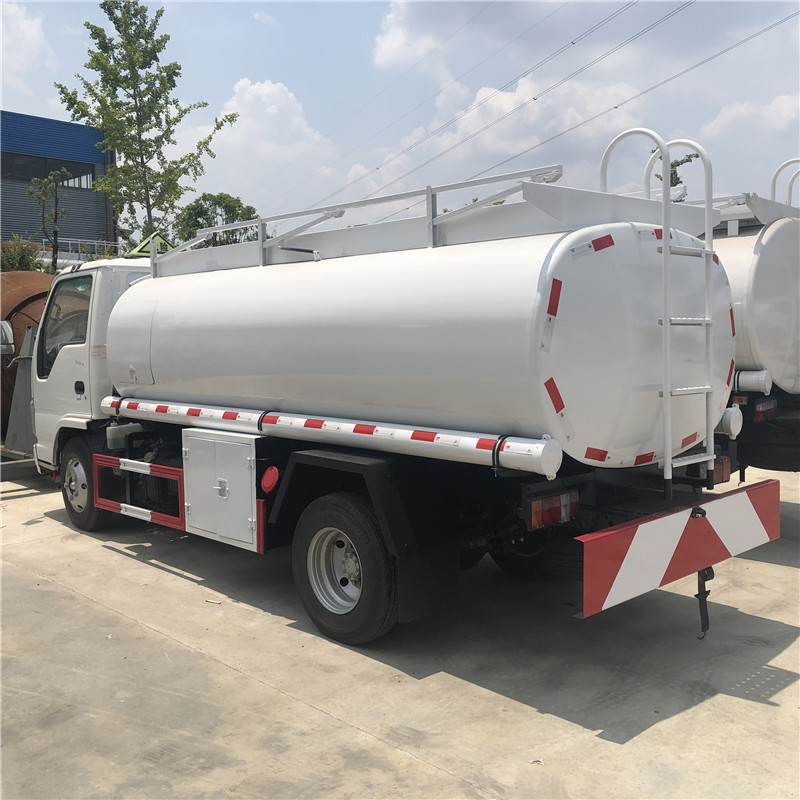

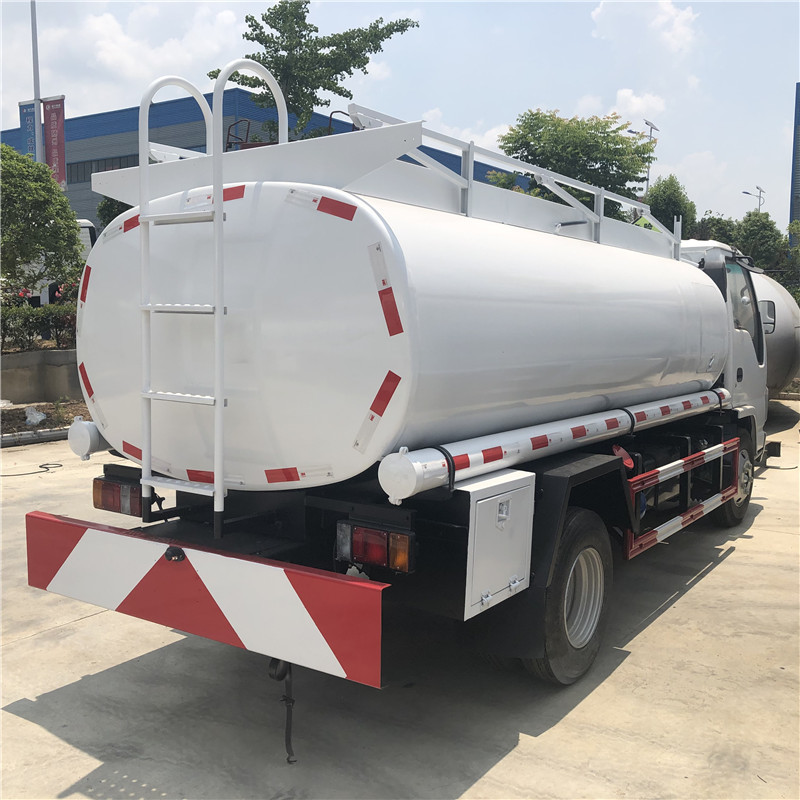

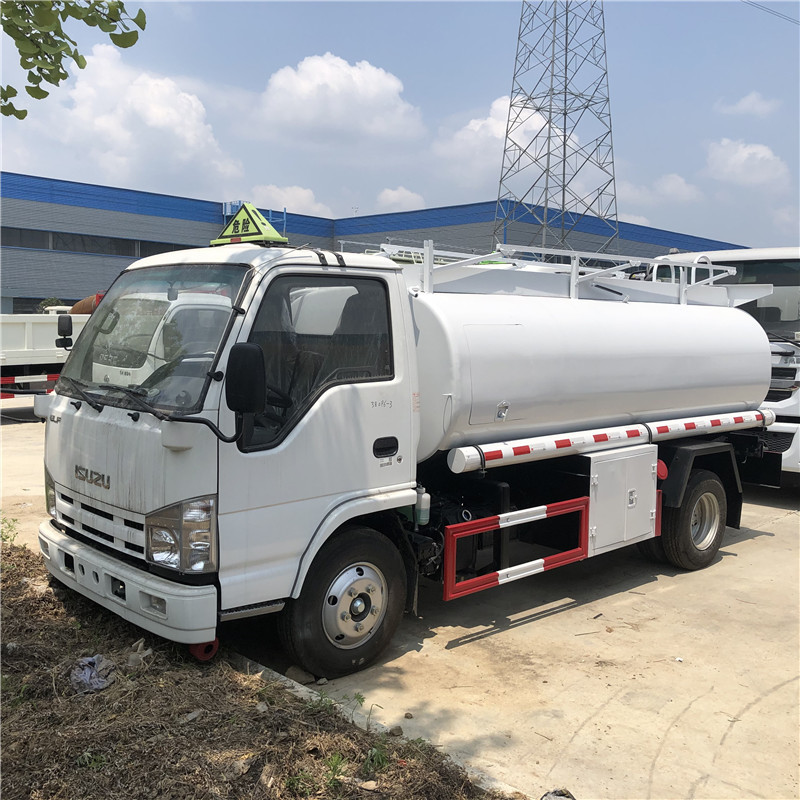

Refueling truck image
