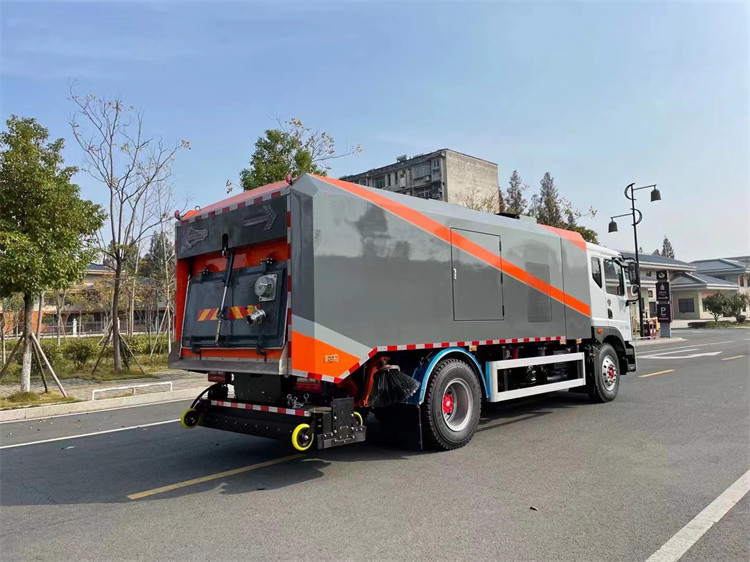

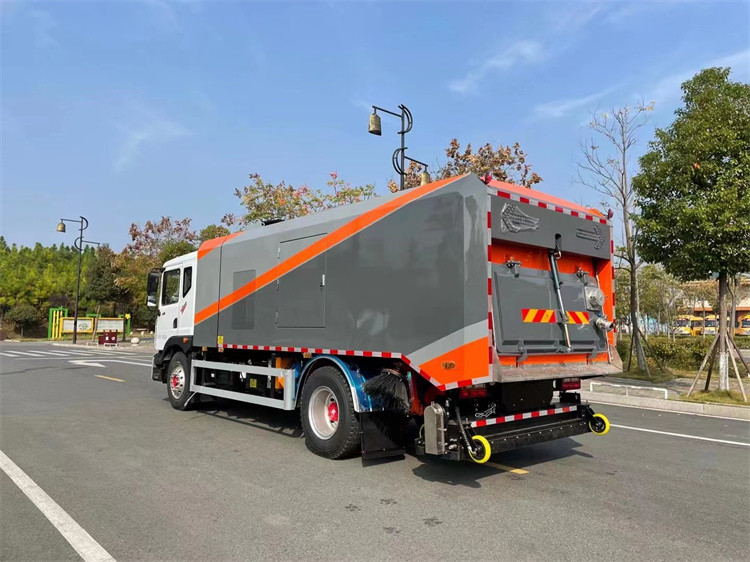

Advanced Sweeper Truck With Integrated High Pressure Washing And Sweeping Capabilities
| Place of Origin | Hubei |
|---|---|
| Brand Name | itruck |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 57800 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Drive Model | 4x2 | Gross Weight Vehicle | 18,000 Kg |
|---|---|---|---|
| Dumping Method | Rear Dump | Transmission | 6 Gears |
| Water Tank Capacity | 5600 Liters | Waste Suction Tank | 7000 Liters |
| Curb Weight | 11,350 Kg | Fuel Type | Diesel |
| Spare Engine | EQB160-20 | Clean Speed | 3-20 Km/h |
| Clean Width | 3.5m | Water Pressure | 10 MPa |
| Water Pump Flow | 154 L/min | Cleaning Efficiency | ≥95% |
| Maximum Suction Particle Size | 110 Mm | Max Clean Capacity | 70000 M2/h |
| Disc Brush Size | ≥400 Mm | Dump Bin Tilting Angle | ≥46° |
| Discharge Door Opening Angle | ≥85° | Hydraulic System Pressure | 16 MPa |
| Hyraulic Oil Tank | 60 L | Brush Diameter | 850 Mm |
| High Pressure Pump | Germany PT36 | ||
| Highlight | Integrated High Pressure Sweeper Truck,Advanced Sweeper Truck,High Pressure Washing Sweeper Truck |
||

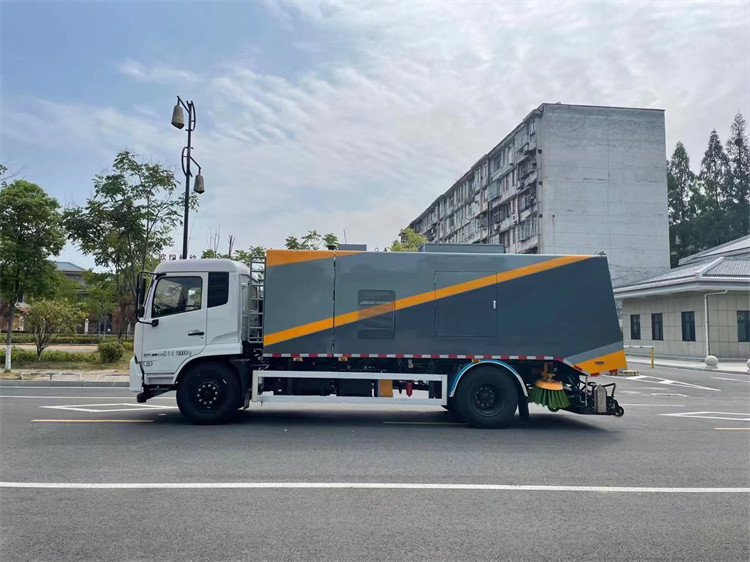

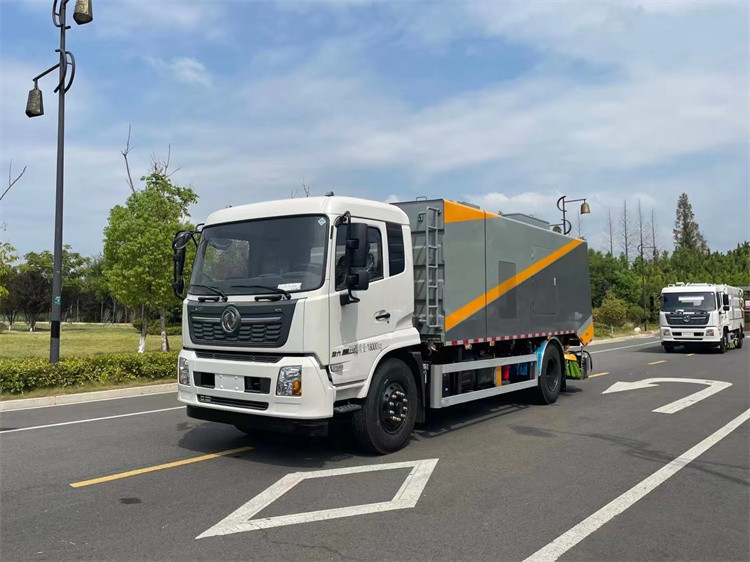

Multi-Functional Sweeper Truck Combining Sweeping and Washing
High pressure washing and sweeping truck.
1. Working principle of washing and sweeping truck
The cleaning and sweeping vehicle combines the functions of a road sweeper and a high-pressure cleaning vehicle. Generally, it comes standard with two center mounted brushes (equipped with a V-shaped high-pressure water spray rod in front of the brushes) and a center mounted suction nozzle (with a built-in high-pressure water spray rod). The washing and sweeping vehicle sprays high-pressure water from the high-pressure water spray rod during operation, which can flush stubborn attachments on the road surface. The water and garbage are sucked into the garbage bin together with the suction nozzle. Due to the high water consumption of the washing and sweeping vehicles during the operation, the water tank is relatively large. Therefore, the washing and sweeping vehicles are all modified from chassis with a wheelbase of 3800 mm or more. The washing and sweeping vehicle is equipped with a 17 meter high-pressure water flushing reel and a high-pressure water gun, making it more convenient and efficient to clean roads, sidewalks, and small advertisements.
2. Applicable environment for washing and sweeping truck
The cleaning truck has good cleaning effect and convenient maintenance, and is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations of urban roads, highways, squares, airports, docks, tunnels, bridges, separation walls, curbs and curb facades.
Main Technical specifications
| Overview | |
| Chassis model | DFL1160BX3 |
| Wheelbase | 4700mm |
| Front/rear suspension | 1430/2150 mm |
| Chassis engine | B190-33 |
| Spare engine | EQB160-20 |
| Chassis engine | 140kw, 5900cc, 190hp |
| Spare engine | 155 kW |
| Max upgrade angle | 30% |
| Emission standard | Eu 3 |
| Accelerating outside noise | ≤84dB(A) |
| Max speed | 103 km/h |
| Approach angle | 20° |
| Departure angle | 13° |
| Kurb weight | 11350 kg |
| Whole weight | 16000kg |
| Whole dimension | 8580×2490×3100mm |
| Minimum height above ground | 230 mm |
| High pressure clean | |
| Clean speed | 3~20 Km/h |
| Clean width | 3.5 m |
| Water pressure | 10 MPa |
| Water pump flow | 154 L/min |
| Clean and suction performance | |
| Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm |
| Clean and suction width | 3.5 m |
| Max clean capacity | 70000 m2/h |
| Disc brush size | ≥400 mm |
| Clean and suction speed | 3-20 km/h |
| Tank capacity | |
| Water tank volume | 9 m³ |
| Dust tank volume | 7 m³ |
| Dump bin tilting angle | ≥46° |
| Discharge door opening angle | ≥85° |
| Hydraulic Hydraulic system | |
| Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
| System pressure | 16 MPa |
| Oil tank | 60 L |
| Oil temperature | 60 ˚C |
| Electrical system | |
| Model | DC24 V |
| Voltage | 24 V |
| Battery | 24 V |
| Sweeping devise | |
| Modle | Center two swabs, driven by a hydraulic motor, and the front right can be controlled independently, with a evasive reply function. |
| Brush diameter | 850 mm |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees |
| Sucking plate | |
| Model | Double suction, hydraulic control, spring suspension. |
| Suction plate diameter | 180 mm |
| Suction plate width | 1800mm |
| High pressure water system | |
| Model | post pump |
| No:. | Germany PT36 |
| System pressure | 10 MPa |
| Speed | 1150 r/min |
| Water valve model | Hydraulic pressure ball valve. |
| Water valve pressure | 7 MPa |
| Spray nozzles model | High pressure washing type |
| Water filter | Mesh type |
| Water spray system | Electric diaphragm pumps, water filters, nozzles, etc. |
Truck tools
| No:. | ITEM | QTY | REMARK |
| 1 | Fire hose | 2 | |
| 2 | Fire wrench | 1 | |
| 3 | Water filter wrench | 1 | |
| 4 | High pressure water jet gun | 1 | |
| 5 | Spare tire | 1 | 10.00R20 |
| 6 | Manual hydraulic pump rocker | 1 |
Truck spare parts
| No:. | ITEM | QTY | |
| 1 | Brushing | 44 | |
| 2 | Suction cup front rubber | 1 | |
| 3 | After the suction cup | 1 | |
| 4 | Fan belt | 5 | |
| 5 | Water pump belt | 3 | |
| 6 | Casters | 4 | |
| 7 | O-rings and combination washers | ||
| 8 | Middle baffle rubber | 1 | |
| 9 | Seal | 1 |
Major import configurations
| No. | Item | Type | Manufacturer |
| 1 | High pressure water pump | PF36 | Germany PINFL |
| 2 | Automatic unloading after valve | VB200/150 | Germany PINFL |
| 3 | Flood valve | VS200-180 | Germany PINFL |
| 4 | Nozzle | B1/4MEG | America spray company |
| 5 | Liquid level switch | LME200B5/24V | Italy SOFIMA |
| 6 | CPU | 6ES7 214-1AD23-OXB0 | Germany SIEMENS |
| 7 | Digital quantity extension module | 6ES7 223-1PH22-OXA0 | Germany SIEMENS |
| 8 | The central distribution box | DVEC | America COOPER |
| 9 | Stepping motor | 57H41-2.7-001 | America Haydn |
| 10 | Switchgear cabinet | NE-AG | Korea HIBOX |
| 11 | Switch Control | Japan IDEC | |
| 12 | Proximity switch | NBB10-30GM50-E0 | PEPPRL FUCHS |
| 13 | Suction pipe | NORRES | |
| 14 | Hydraulic motor | BMR125 | Brevini |
| 15 | Hydraulic valve | SWH-G02-C4-D2H | Radix stemonae machines |
1) This car integrates the functions of a cleaning and vacuuming vehicle, and can switch the air duct to change the dust reduction mode. It does not require the use of water for dust reduction and is not limited by the distance of the water source. It is an all terrain, all-weather road cleaning vehicle, especially suitable for cold and dusty areas.

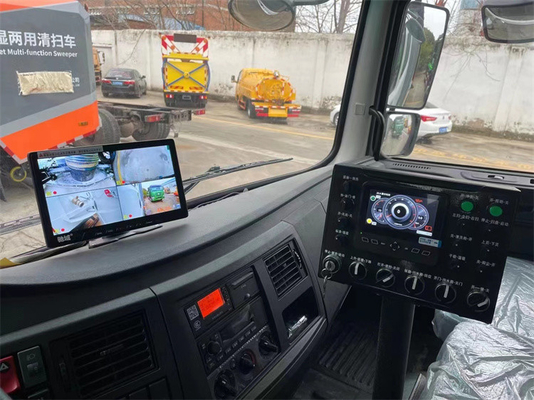

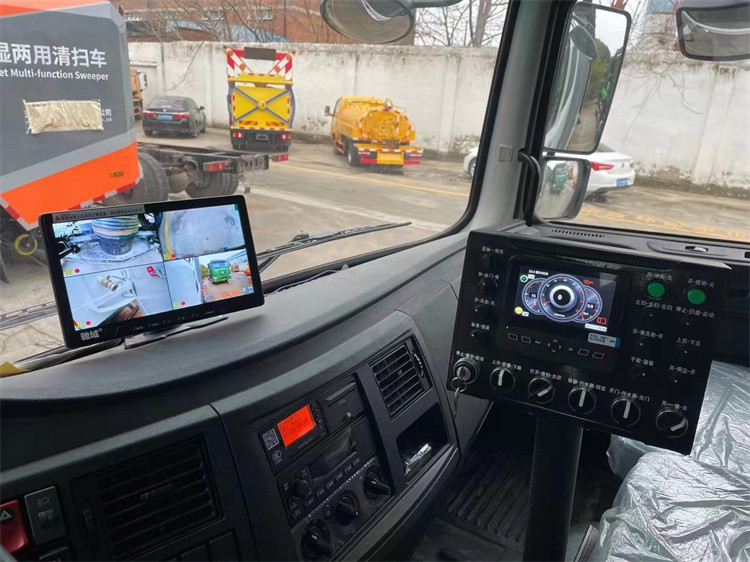

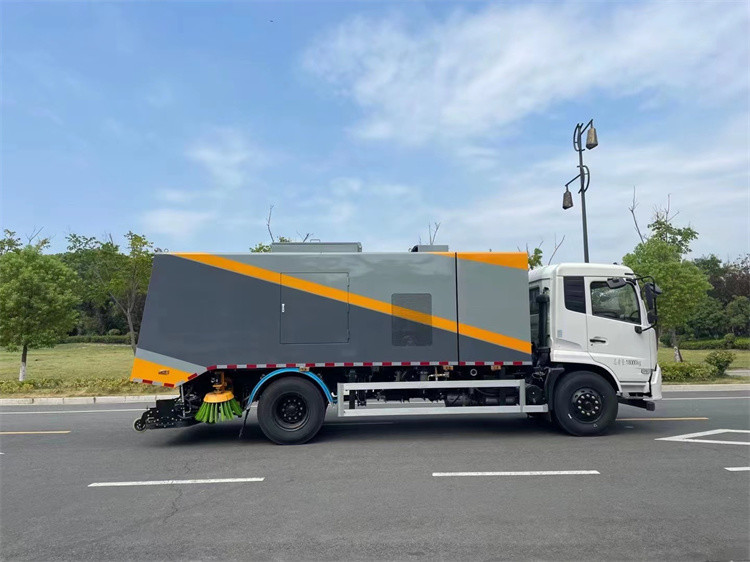

2) The vehicle adopts a control mode of "display screen+controller+CAN bus operation panel". You can choose the rain and rain working mode. When starting and stopping the homework, the auxiliary engine speed control, suction nozzle lifting, sweeping disk retraction and other homework devices are all controlled by one key, making the operation simple.
3) The layout of the "rear wide suction nozzle". Sweep brush design, capable of removing garbage from dead corners of road steps. The suction nozzle can automatically level according to the ground conditions, with high cleaning ability and fast cleaning speed
4) The left and right scanning disks are designed to work independently or in conjunction, allowing for both independent right scanning and simultaneous left and right scanning.
5) Adopting a dedicated auxiliary engine to drive the fan and hydraulic system, ensuring continuous operation during driving and ensuring the continuity of the cleaning process.
6) The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic disengagement of the auxiliary engine from the fan during no-load starting and stopping, reduce the impact on the auxiliary engine, and improve the reliability and service life of the auxiliary engine.
7) Imported hydraulic valve assembly can ensure the stability and smoothness of the hydraulic action of the entire vehicle..
8) High quality hydraulic motor can ensure the stability and long service life of the sweeping disc.
9) Precision seamless cold bending hydraulic oil pipe, with no oxidation impurities on the inner wall, ensuring clean hydraulic oil circuit and no valve blockage.
10) High definition monitoring probes are installed on the right, left, front, and rear sides, and a high-definition LCD display is installed in the cab to monitor the effectiveness of the operation;
11) Equipped with a reverse protection device, in case of emergency reverse during operation, the intelligent control system will automatically stop the operation and retract the sweeping disc, suction cup, and side spray bar; It has protection against lifting garbage bins and overturning; Equipped with maintenance safety protection.
12) Equipped with a garbage bin lifting safety protection device, it ensures that the garbage bin cannot be lifted when the rear door is not open.
13) When the safety rod is not lowered, the intelligent system will prohibit the garbage bin from returning to its original position, which can effectively prevent accidents during maintenance.
14) Garbage bin, with high strength, can resist general corrosion and increase the service life of the box.

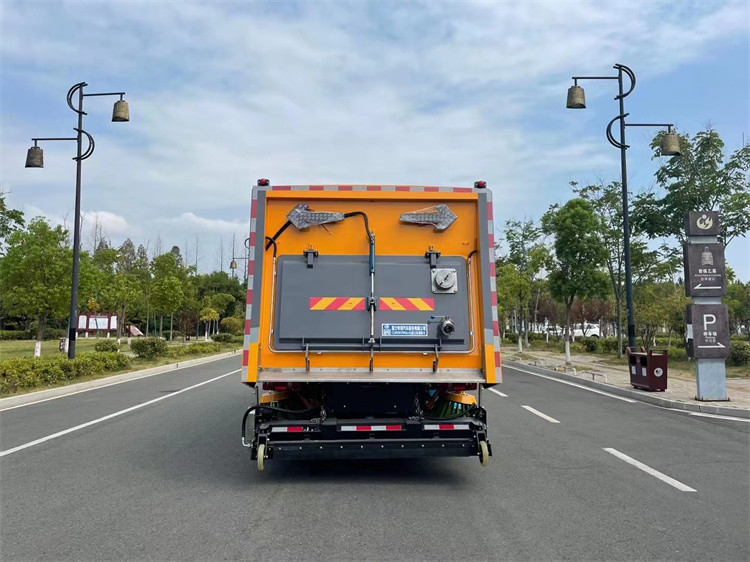

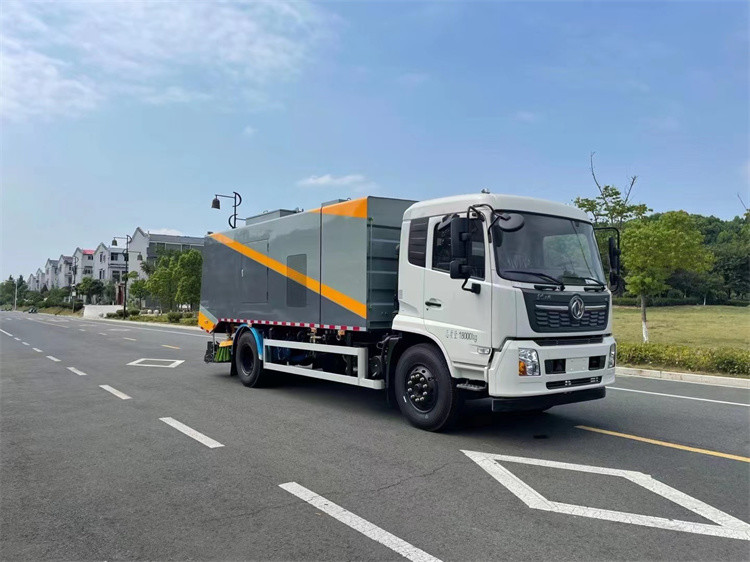

15) The ultra wide rear door with an opening angle greater than 90 degrees is easy to dump garbage and clean the garbage bin.
16) The tipping angle of the garbage bin is greater than 48 degrees, making it easy to dump garbage.
17) High voltage reel.
