4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | nude with waxing |
| Delivery Time | 20-35 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | ISUZU Water Tank Truck | Material | Carbon Steel |
|---|---|---|---|
| Wheelbase | 3200 Mm | Tank Volume | 5 Cbm |
| Emission | Euro 5/6 | Horse Power | 120hp |
| Transmission | 5 Forward And 1 Reverse | Valve | 2 Pcs |
| Water Cannon | Equipped | Warranty | 1 Year |
| Highlight | 120HP DIESEL ISUZU WATER TANK TRUCK,CARBON STEEL TANK WATER TANK TRUCK,600P WATER TANK TRUCK |
||
Product Description
4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK
The watering truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water transpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.

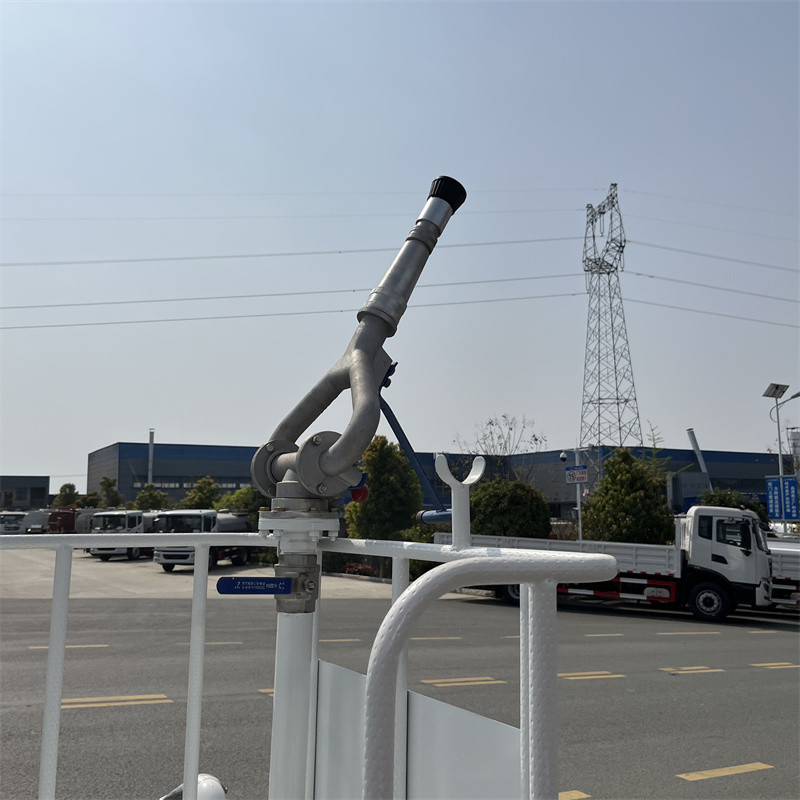

Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.
Water Tanker Specs
| 5000 Liters ISUZU Water Truck | |
| Overview | |
| Name | 5000 Liters ISUZU Water Truck |
| Dimension(LxWxH) | 5990x1960x2380(mm) |
| Total Mass | 8050Kg |
| Rated Payload | 5000Kg |
| Kerb Weight | 3050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 3360 mm |
| Gearbox | ISUZU MSB, five speed forward and one reverse, manual |
| Front/Rear Track | 1377,1425(mm) |
| Tyre | 700R16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1015/1620(mm) |
| Leaf Spring Number | 3/3+2 |
| The Paremeters of Engine | |
| Manufacturer/Model | ISUZU |
| Rated Power | 120hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2999ml |
| Emission Standard | Euro 5 |
| Cylinder | Straight/4 |
| Max. torque | 280N.m |
| Velocity | 3400rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Material | 4mm Carbon Steel |
| Volume of Tank | 5,000 Liters |
| Water Pump | Equipped |
| Discharge Valve | 1 pcs |
| Fire Fighting Joint | 1 pcs |
| Manhole | 1 pcs |
| Ladder | Equipped |
| Hoses | 2 pcs, 3 meters |
| Water Cannon | 1 pcs |
| Water Sprinkler, Sprayer | 6 pcs |

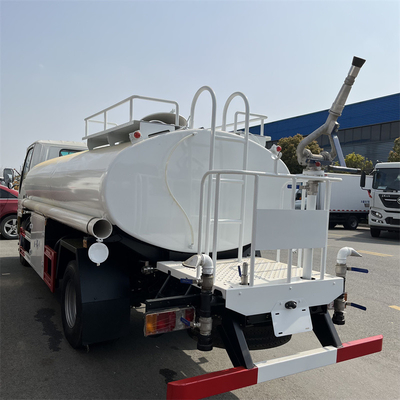

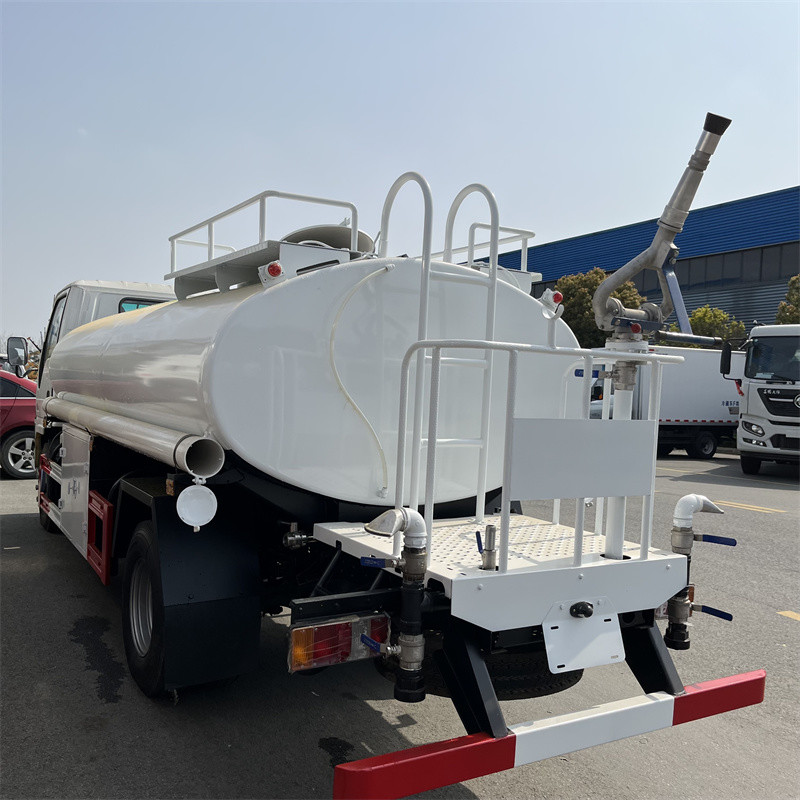

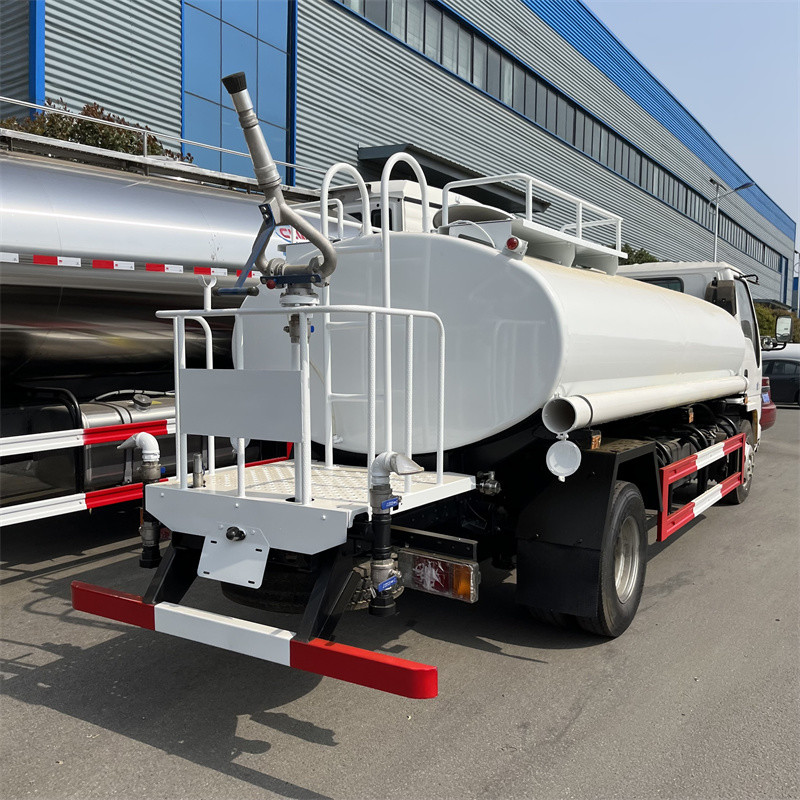

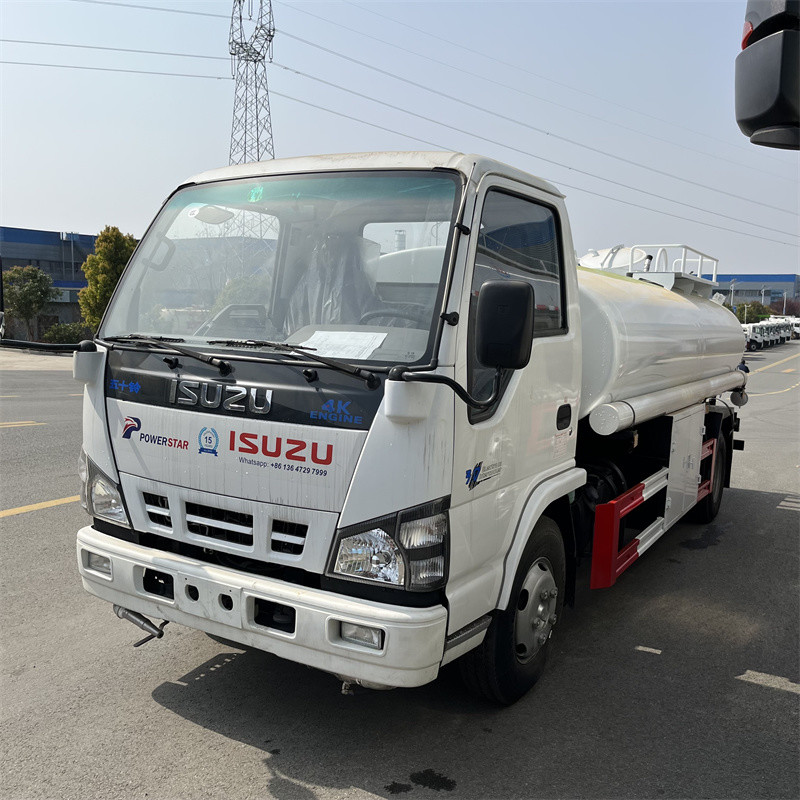

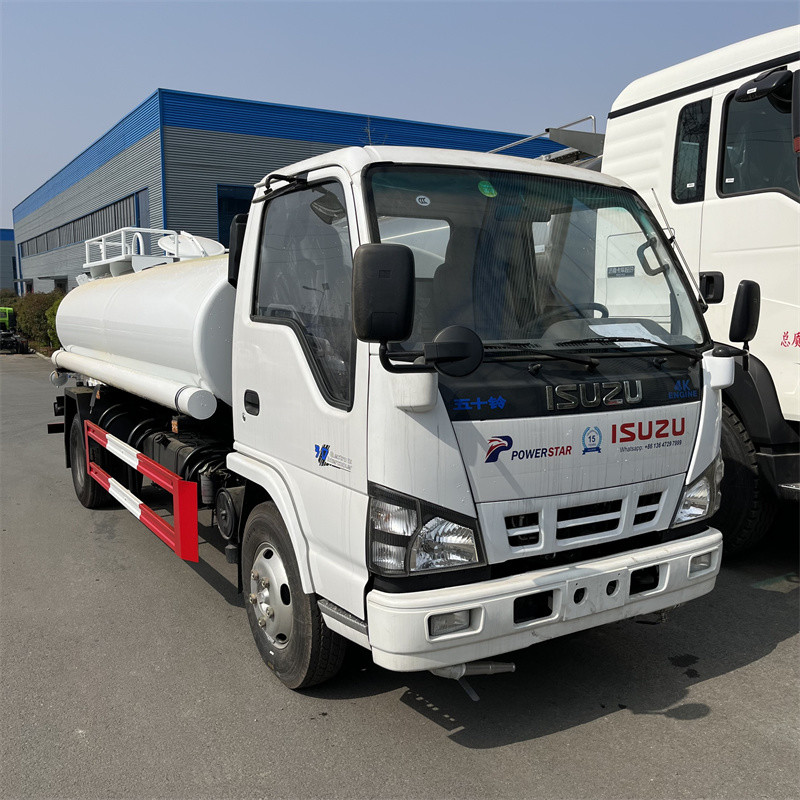

Water tank truck image
