20,000 Liters Japanese ISUZU VC61 6x4 High Pressure Sludge Suction Truck Sewage Tank Truck
| Place of Origin | Hubei |
|---|---|
| Brand Name | ISUZU |
| Certification | ccc |
| Model Number | QL4250U4NDZ |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 76200$ |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, D/P, L/C |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ISUZU High Pressure Sewage Clean And Suction Truck | Water Tank | 8000 Liters |
|---|---|---|---|
| Sewage Tank | 12000 Liters | Total Amount | 25000 Kg |
| Driving Type | 6x4 | Wheelbase | 4565+1370 Mm |
| Gearbox | FAST 12 | Tyre Model | 295/80R22.5 18PR |
| Engine Model | 6UZ1-TCG51 | Rated Power | 257kw/350hp |
| Displacement/Capacity | 9839 Ml | High Pressure Pump | Pinfu 330 |
| Vacuum Suction Pump | SK-12 | ||
| Highlight | Japanese ISUZU Sludge Suction Truck,20,000 liters Sludge Suction Truck,6x4 Sludge Suction Truck |
||
Product Description
20 cbm Japanese ISUZU VC61 Combine Sewage Clean and Suction Truck
The cleaning and suction truck has the functions of flushing, dredging, suction, and reverse discharge.
The function of a sewage suction truck:
The cleaning and suction truck is a new type of environmental sanitation vehicle used for collecting, transferring, and cleaning the transportation of sludge and sewage. It has the function of self suction and self discharge, and its advantages are fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, crude oil, etc.
The working principle of cleaning the suction truck:
The working principle of cleaning and suction trucks is mainly based on the siphon principle. When the fecal suction hose is submerged under the liquid surface and air is sucked in, the pressure inside the tank will gradually decrease due to the inability to be replenished, causing the fecal liquid to enter the tank through the fecal suction hose under atmospheric pressure. In addition, when the siphon tube approaches the bottom of the tank, air is continuously discharged into the tank. As the air cannot be discharged, the pressure inside the tank will increase, and the feces will be discharged outside the tank through the siphon tube and suction hose under the action of compressed air.
Main Technical specification
| Overview | |
| Name | 20 cbm ISUZU High Pressure sewage Clean and Suction Truck |
| Dimension(LxWxH) | 10100x2550x3950 mm |
| Total Mass | 25000 kg |
| Rated Payload | 7370 kg |
| Kerb Weight | 17500 kg |
| Passenger | 3 |
| Approach/Departure Angle | 17°/10 ° |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU VC61 |
| Driving Type | 6x4 |
| Wheel Base | 4565+1370 mm |
| Gearbox | FAST 12 |
| Front/Rear Track | 2060/1855 mm |
| Tyre model | 295/80R22.5 18PR |
| The Number of Tyre | 10+1 (spare tyre) |
| Front/Rear Suspension | 1370/2710 mm |
| The Paremeters of Engine | |
| Manufacturer/Model | 6UZ1-TCG51 |
| Rated Power | 257kw/350hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 9839 ml |
| Emission Standard | Eu 5 |
| Cylinder | 6 |
| Max. Torque/ speed | 1422 N.m/ 1400rpm |
| Velocity | 2000 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Volume of Clean Water Tank | 10,000 liters |
| Volume of Clean Waste Water Tank | 10,000 liters |
| Function | High pressure water pump clean waster sluge and vacuum pump suction waste water waste garbage |
| Standard configuration | Clean water tank 10 cbm, Rust proof tank body, 6mm thick, with measuring pipes on the left and right sides for cleaning and preventing water ingress. Pinfu 330 flow high-pressure pump, sewage tank 10 cbm, 8mm thick, 4 partitions, partition sealing reinforcement, SK-12 water ring pump, pneumatic sewage discharge outlet at the tail 220, sewage discharge outlet at the tail 100, one sewage pipe on the left and right sides of the tank, guardrail on the top of the tank, hydraulic suspension rod installation of 10 meter sewage suction pipe, with remote control, platform below the tank, and built-in top, The back cover can be opened, with 4 locks, and the tail coil is enlarged. Accessories: 200 meter high-pressure pipe, 10 combination nozzles. |

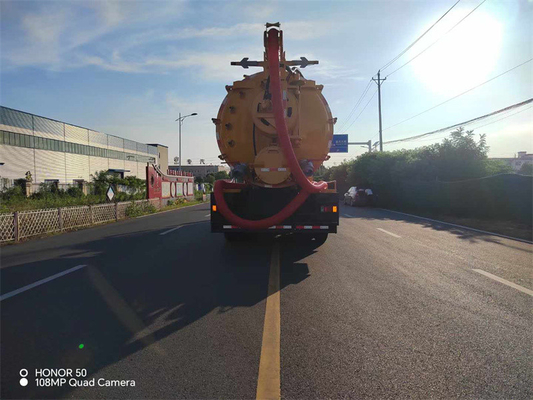

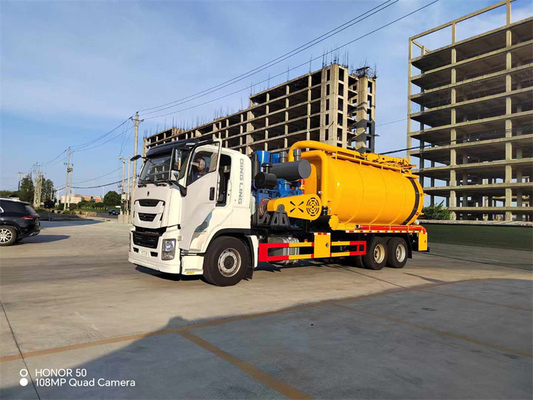

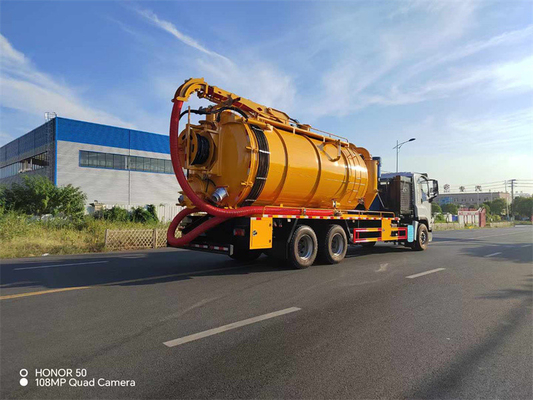

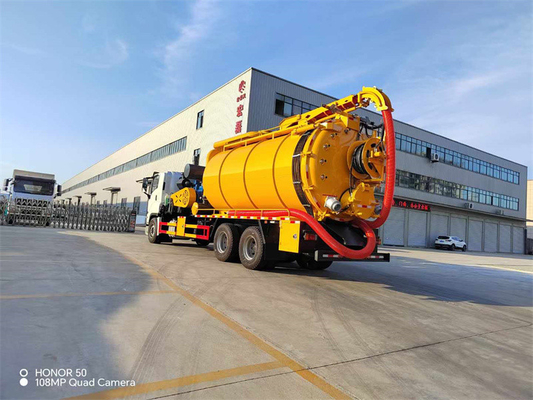

ISUZU High Pressure Sewage Clean and Suction Truck Picture
Combine Sewage Clean and Suction Truck Stock
