4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck

Place of Origin Hubei
Brand Name Dongfeng
Certification ccc
Model Number CL5120GXW6HQ
Document Product Brochure PDF
Minimum Order Quantity 1
Price 22300$
Packaging Details nude with waxing
Delivery Time 30-35 working days
Payment Terms T/T, D/P, L/C
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dongfeng Sewage Suction Truck Sewage Tank 8000 Liters
Total Amount 12000 Kg Driving Type 4x2
Wheelbase 3800 Mm Gearbox 6TS55
Tyre Model 7.50/R16 Engine Model YC4E135 33
Rated Power 100kw/135hp Displacement/Capacity 4257 Ml
Vacuum Suction Pump SK-12
Highlight

6000 liters sewage suction truck

,

4x2 sewage suction truck

,

Large Capacity Sewage Suction Truck

Leave a Message
Product Description

8 cbm Chinese Dongfeng Sewage Suction Truck



The cleaning and suction truck has the functions of flushing, dredging, suction, and reverse discharge.
The function of a sewage suction truck:
The cleaning and suction truck is a new type of environmental sanitation vehicle used for collecting, transferring, and cleaning the transportation of sludge and sewage. It has the function of self suction and self discharge, and its advantages are fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, crude oil, etc.
The working principle of cleaning the suction truck:
The working principle of cleaning and suction trucks is mainly based on the siphon principle. When the fecal suction hose is submerged under the liquid surface and air is sucked in, the pressure inside the tank will gradually decrease due to the inability to be replenished, causing the fecal liquid to enter the tank through the fecal suction hose under atmospheric pressure. In addition, when the siphon tube approaches the bottom of the tank, air is continuously discharged into the tank. As the air cannot be discharged, the pressure inside the tank will increase, and the feces will be discharged outside the tank through the siphon tube and suction hose under the action of compressed air.



Main Technical specification

Overview
Name 8 cbm Dongfeng Suction Truck
Dimension(LxWxH) 7000x2350x3000 mm
Total Mass 12000 kg
Rated Payload 5720 kg
Kerb Weight 6140 kg
Passenger 3
Approach/Departure Angle 17°/10 °
The Parameters of Chassis
Manufacture/Model Dongfeng
Driving Type 4x2
Wheel Base 3815 mm
Gearbox 6TS55
Front/Rear Track 2060/1855 mm
Tyre model 7.50R16
The Number of Tyre 6+1 (spare tyre)
Front/Rear Suspension 1370/2710 mm
The Paremeters of Engine
Manufacturer/Model YC4E135 33
Rated Power 100kw/135hp
Fuel Type Diesel oil
Displacement/Capacity 4257 ml
Emission Standard Eu 3
Cylinder 4
Max. Torque/ speed 392 N.m/ 1700rpm
Velocity 2800 rpm
The Parameters of Equipment
Color/Logo Customizable
Volume of Clean Water Tank 10,000 liters
Volume of Clean Waste Water Tank 10,000 liters
Function High pressure water pump clean waster sluge and vacuum pump suction waste water waste garbage
Standard configuration Install Yifeng oil circulation vacuum pump with four-way valve, anti overflow valve, oil-water separator, oil-gas separator, vacuum pipe with filter, lifting function, back cover can be opened, one 100 suction port, 100 discharge port, with suction pipe

Dongfeng Sewage Suction Picture

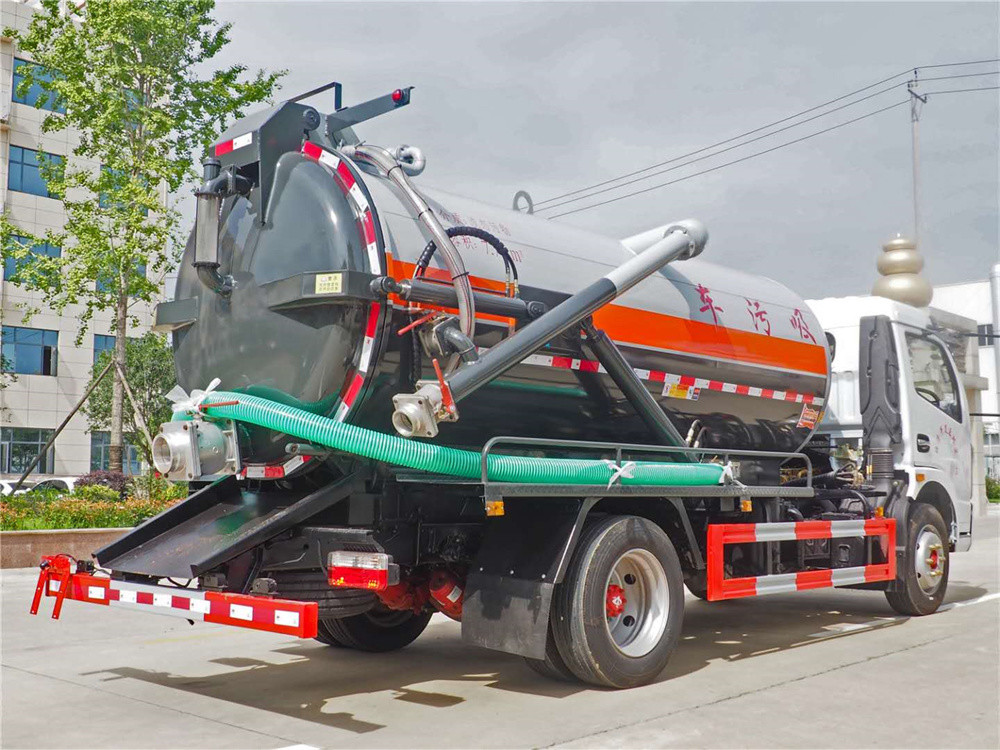

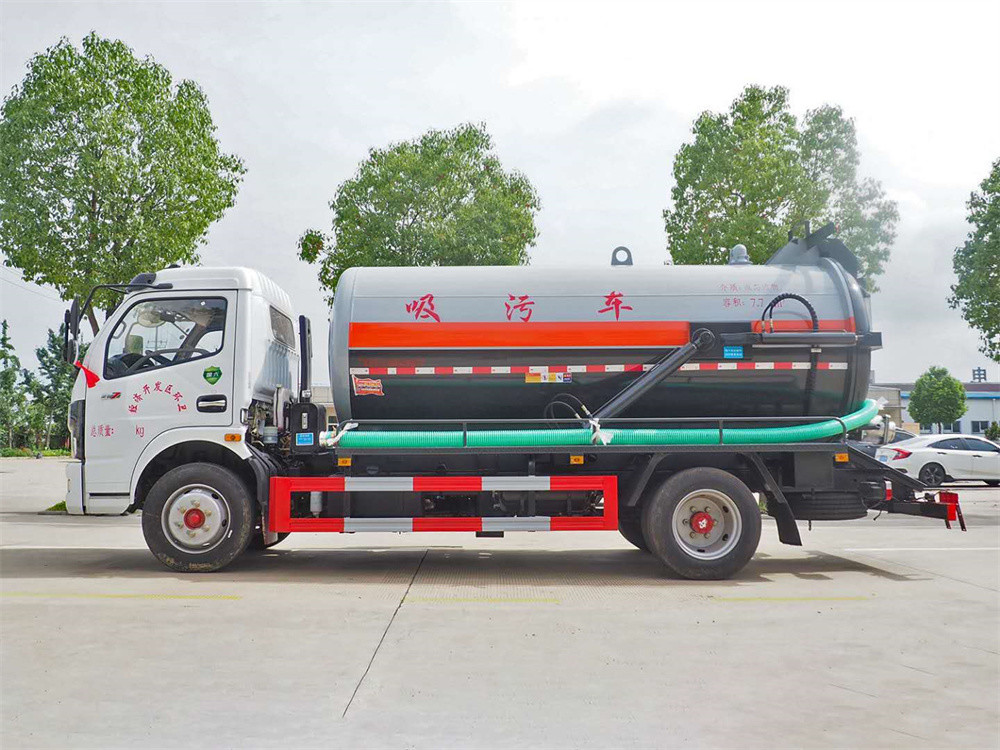

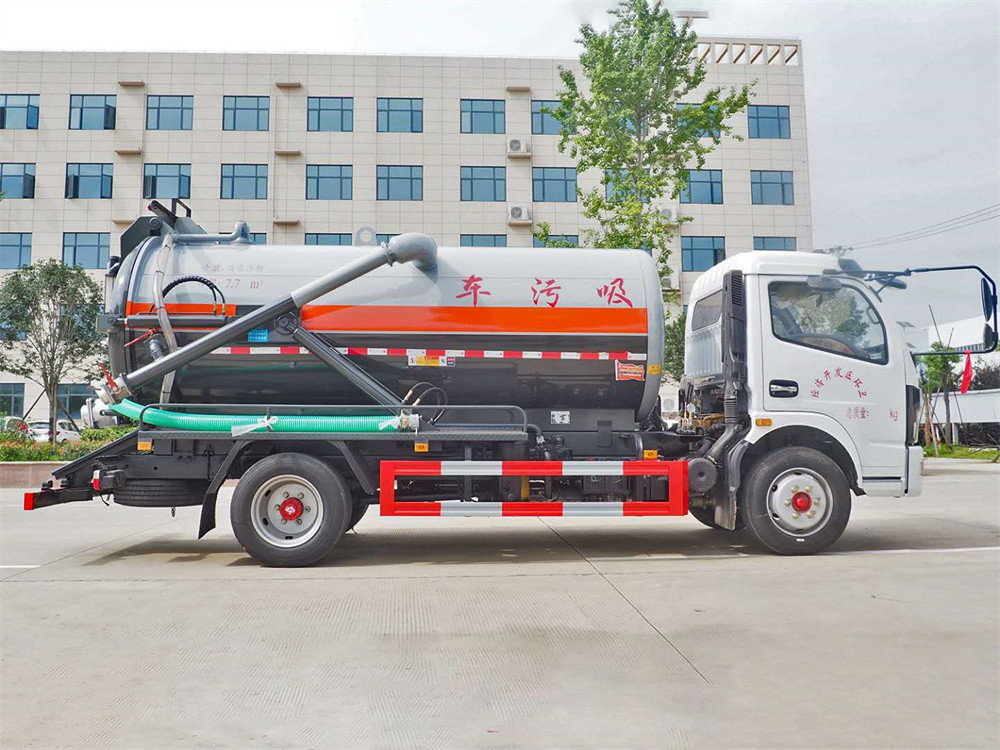

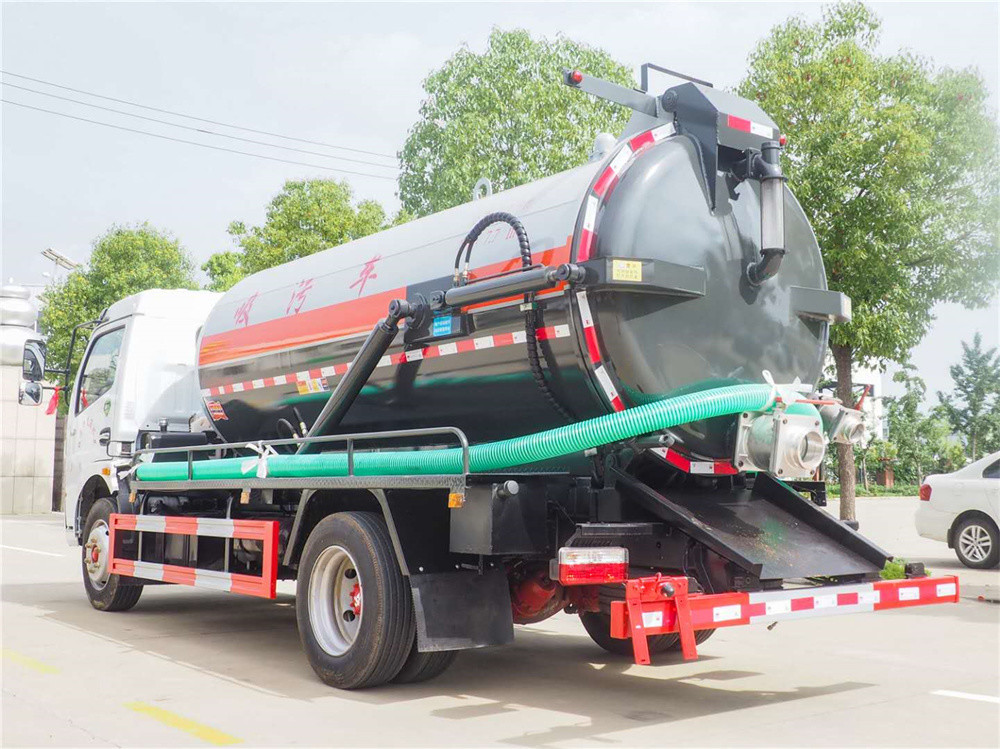

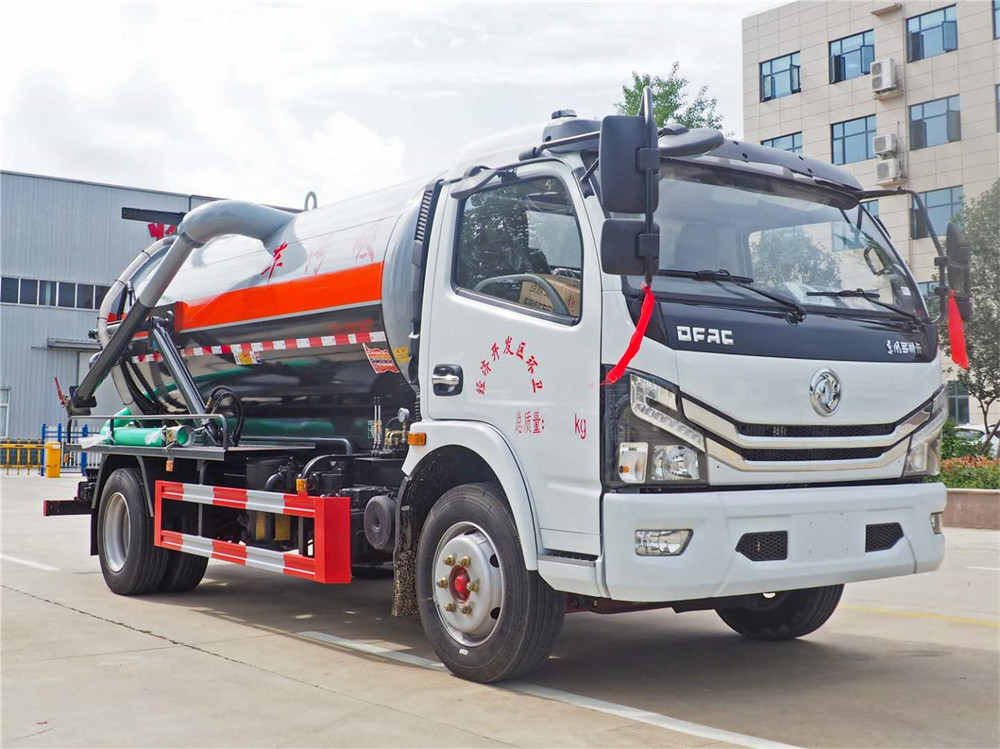

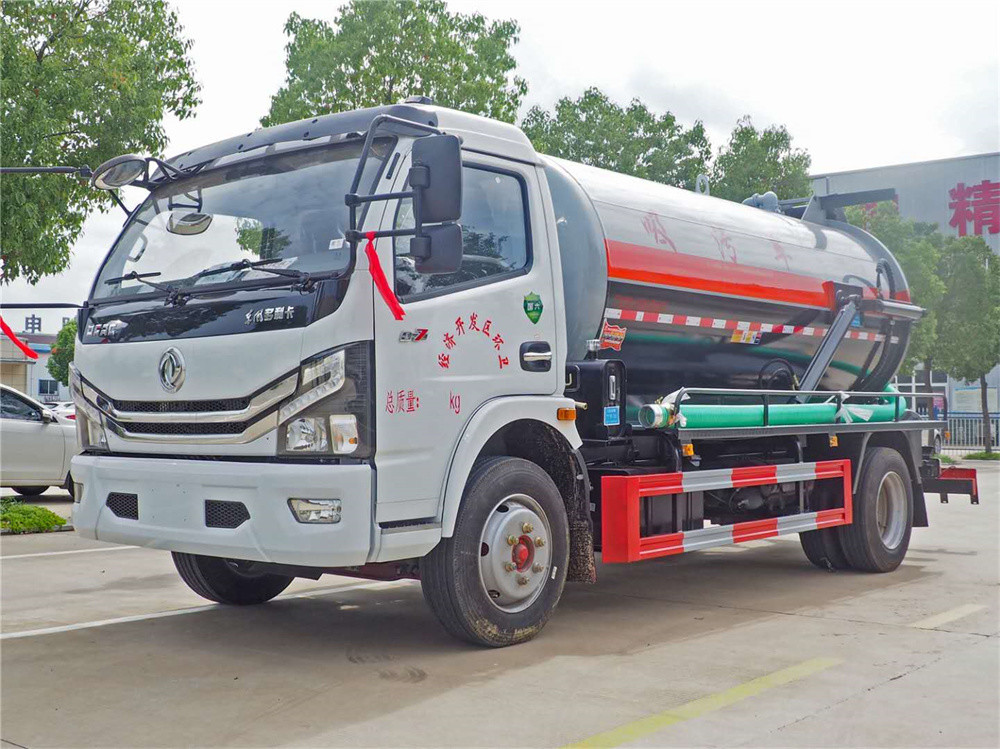

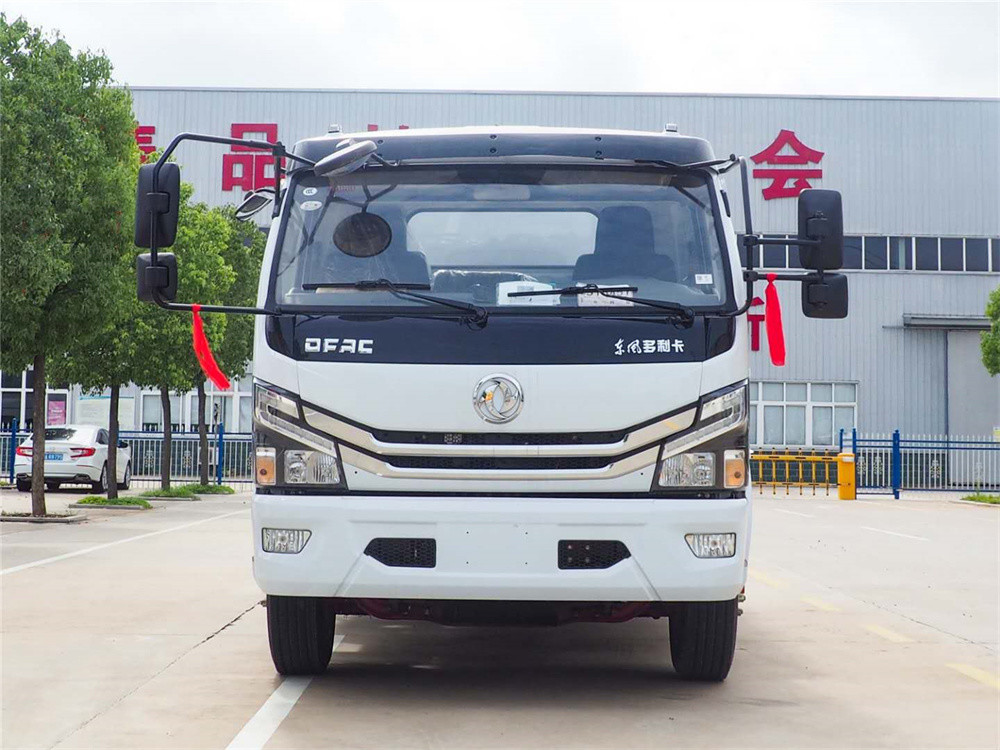

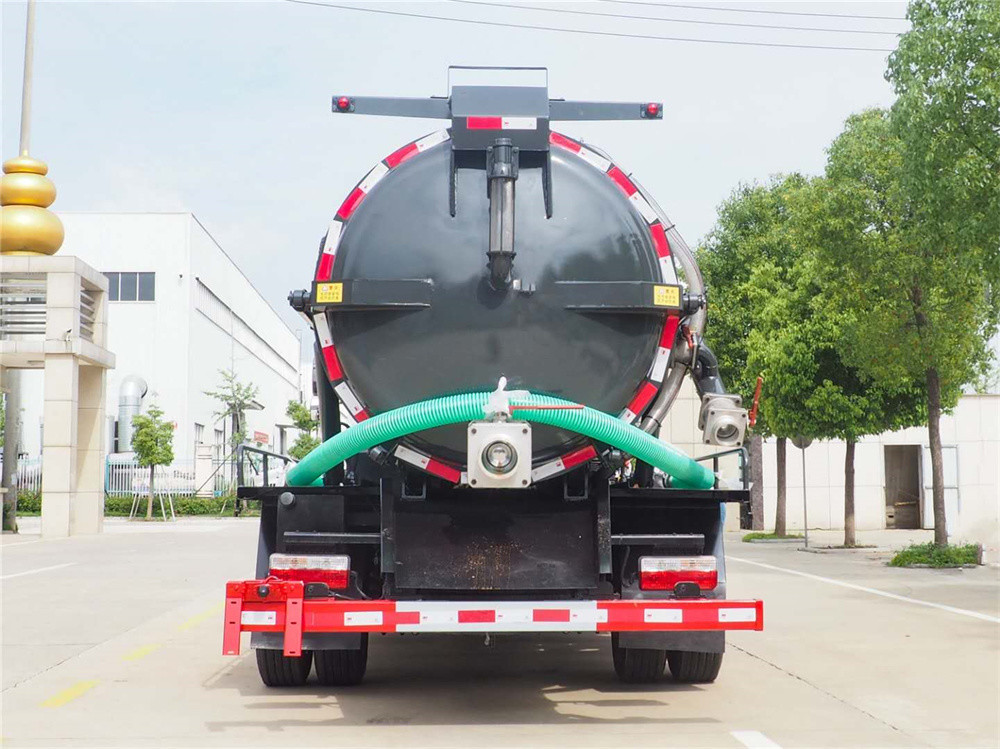

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck 0

Combine Sewage Clean and Suction Truck Stock

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck 1

Export

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck 2
