4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck
| Place of Origin | Hubei |
|---|---|
| Brand Name | Dongfeng |
| Certification | ccc |
| Model Number | CL5180GXW6HQ |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 29700$ |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, D/P, L/C |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dongfeng Sewage Suction Truck | Sewage Tank | 10000 Liters |
|---|---|---|---|
| Total Amount | 18000 Kg | Driving Type | 4x2 |
| Wheelbase | 4700 Mm | Gearbox | 9JSD180T |
| Tyre Model | 10.00R20 | Engine Model | B190-33 |
| Rated Power | 140Kw, 190Hp | Displacement/Capacity | 5900 Ml |
| Vacuum Suction Pump | SK15 | ||
| Highlight | Chinese Dongfeng Sewage Suction Truck,6000 Liters Sewage Suction Truck,4x2 Sewage Suction Truck |
||
Product Description
10 cbm Chinese Dongfeng Sewage Suction Truck
The cleaning and suction truck has the functions of flushing, dredging, suction, and reverse discharge.
The function of a sewage suction truck:
The cleaning and suction truck is a new type of environmental sanitation vehicle used for collecting, transferring, and cleaning the transportation of sludge and sewage. It has the function of self suction and self discharge, and its advantages are fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, crude oil, etc.
The working principle of cleaning the suction truck:
The working principle of cleaning and suction trucks is mainly based on the siphon principle. When the fecal suction hose is submerged under the liquid surface and air is sucked in, the pressure inside the tank will gradually decrease due to the inability to be replenished, causing the fecal liquid to enter the tank through the fecal suction hose under atmospheric pressure. In addition, when the siphon tube approaches the bottom of the tank, air is continuously discharged into the tank. As the air cannot be discharged, the pressure inside the tank will increase, and the feces will be discharged outside the tank through the siphon tube and suction hose under the action of compressed air.
Main Technical specification
| Overview | |
| Name | 10 cbm Dongfeng Suction Truck |
| Dimension(LxWxH) |
8200×2500×3550 mm |
| Total Mass | 18000 kg |
| Rated Payload | 8900 kg |
| Kerb Weight | 9100 kg |
| Passenger | 3 |
| Approach/Departure Angle | 17°/10 ° |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4X2 |
| Wheel Base | 4700 mm |
| Gearbox |
9JSD180T |
| Front/Rear Track | 2060/1855 mm |
| Tyre model |
10.00R20 |
| The Number of Tyre | 6+1 (spare tyre) |
| Front/Rear Suspension | 1370/2710 mm |
| The Paremeters of Engine | |
| Manufacturer/Model |
B190-33 |
| Rated Power |
140Kw, 190Hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5900 ml |
| Emission Standard | Eu 3 |
| Cylinder | 6 |
| Max. Torque/ speed |
650 N.m/ 1500 rpm |
| Velocity | 2500 rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Volume of Clean Waste Water Tank | |
| 10,000 liters | |
| Standard configuration |
1. The tank has a volume of 10 cubic meters and is made of high quality steel plate. The wall thickness is 6mm. The middle of the tank is reasonably designed with a wave plate 2. Install SK-15 water circulating pump 3. Install the overflow valve, and install stainless steel filter screen on the vacuum pipe (to prevent impurities from entering the pump) 4. A shock resistant pressure gauge with a diameter of 100 is installed at the four-way dirt suction valve, which can resist the vibration of the working environment and reduce the pulsation effect of the medium pressure 5. A 100 suction port, a 600 hydraulic drain port at the tail, and a 100 drain port 6. The tank body is equipped with lifting and self unloading function, and the drain outlet at the tail can be opened hydraulically with locking device 7. The tank top is designed as a platform with protective railings and 2 tank openings installed to facilitate feeding from the top and cleaning the tank |

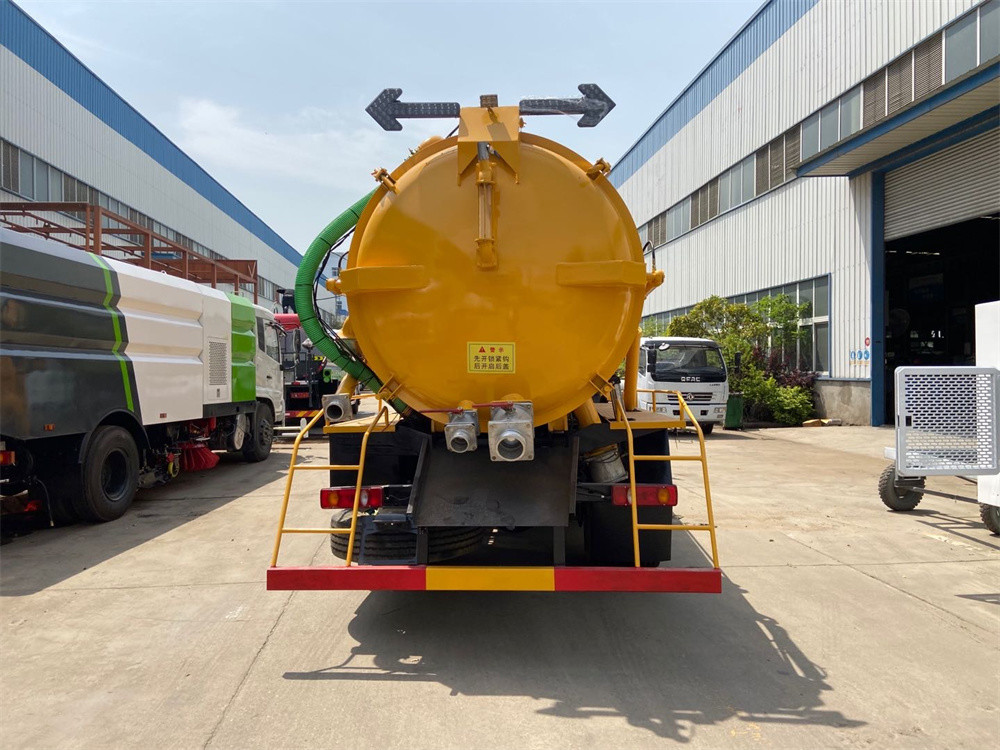

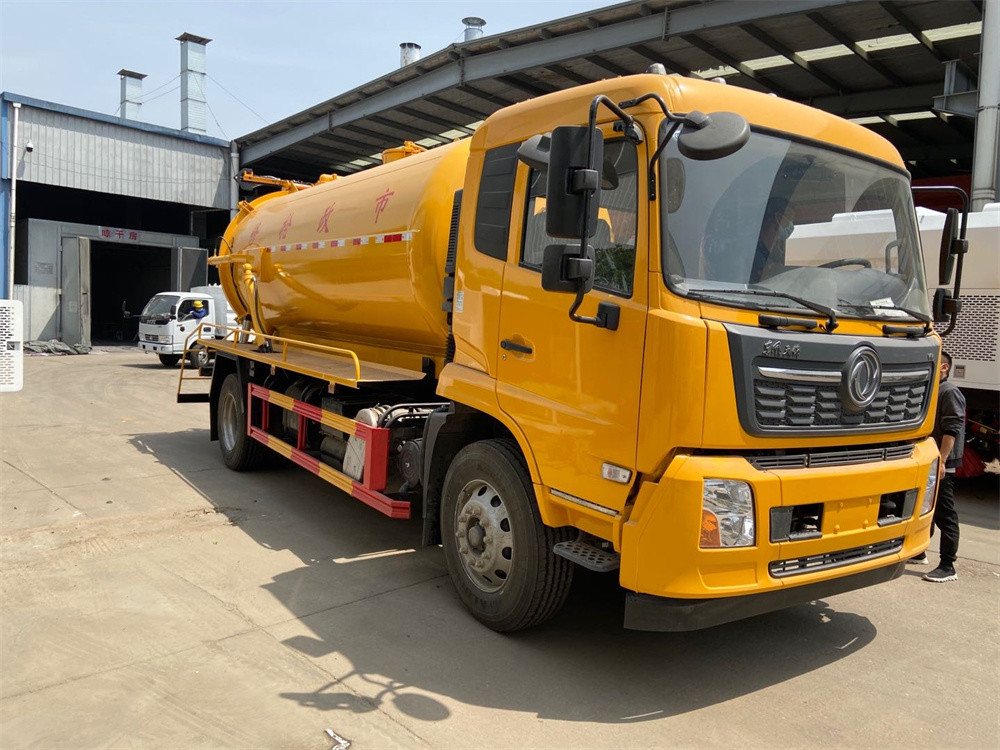

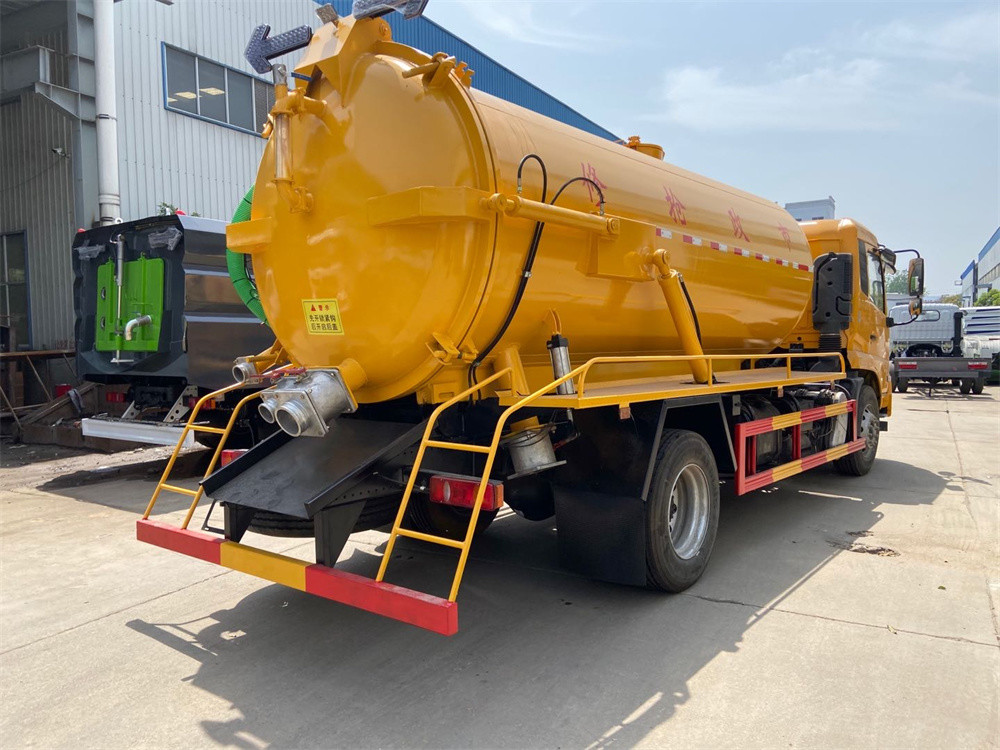

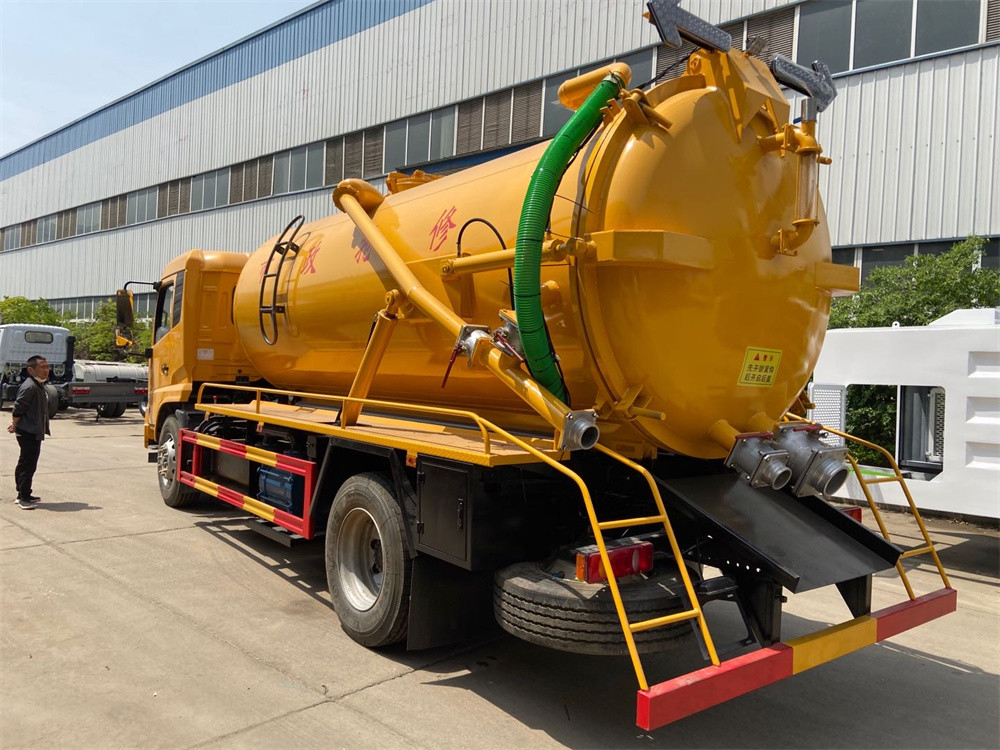

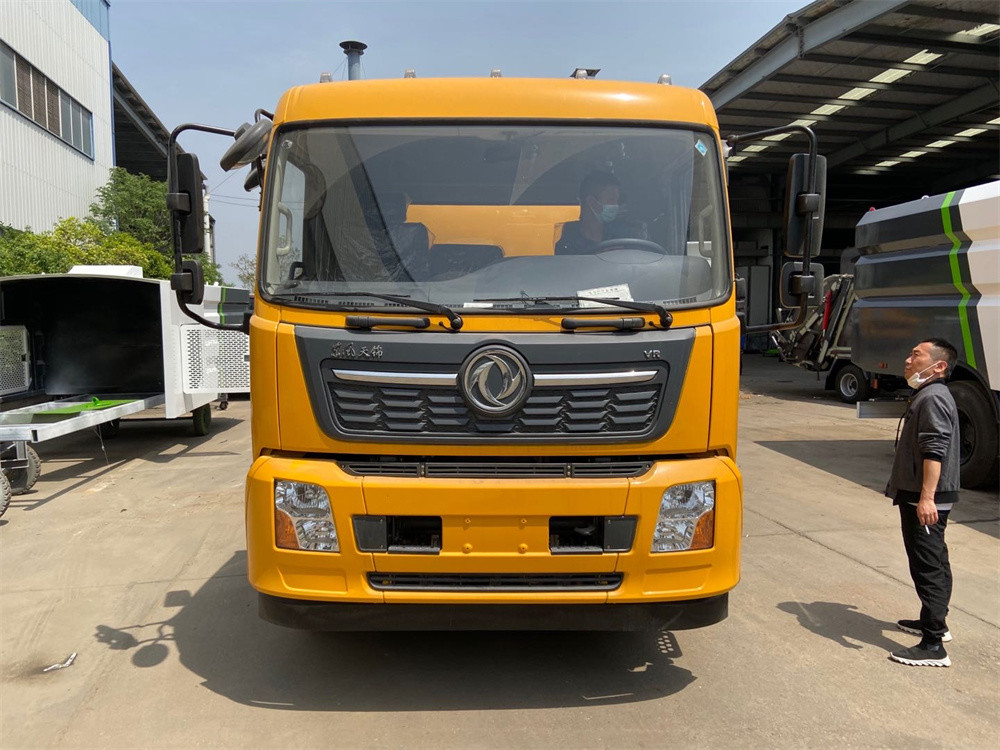

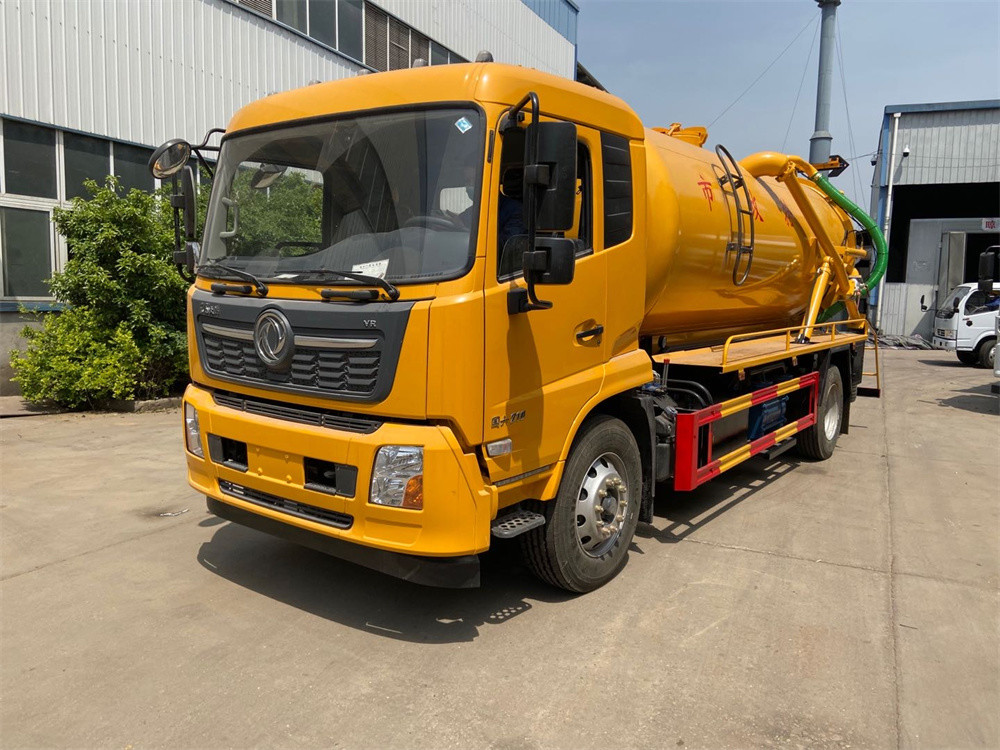

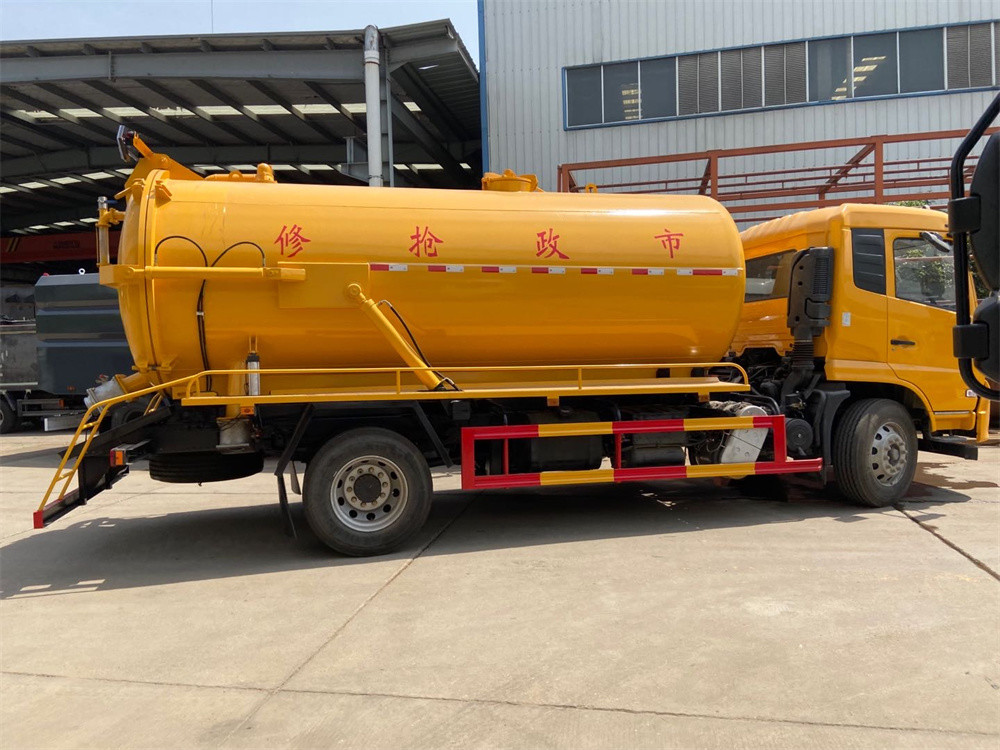

Dongfeng Sewage Suction Picture
Combine Sewage Clean and Suction Truck Stock
