25 Tons Fifth Wheel Wrecker Attachment DTU Towing Unit Customization

Place of Origin Hubei, China
Brand Name iTruck
Document Product Brochure PDF
Minimum Order Quantity 1
Price $35000/units
Packaging Details Nude, covered with protection film
Delivery Time 65 days
Supply Ability 5 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DTU Dimensions (L X W X H) (mm) 6000x1500x2680mm
Condition New Drive Type 6*4 Driving/4x2 Driving
WheelBase As Required Main Winch 10 Tons, 2 Pcs
Auxiliary Winch Optional Underlift G70, 3 Sections
Boom G70, 2 Sections Remote Control Wireless
Hydraulic DOT Certified Warranty 2 Year
Highlight

25 Tons Fifth Wheel Wrecker Attachment

,

25 Tons DTU Towing Unit

,

DTU Towing Unit Customization

Leave a Message
Product Description
Product Description

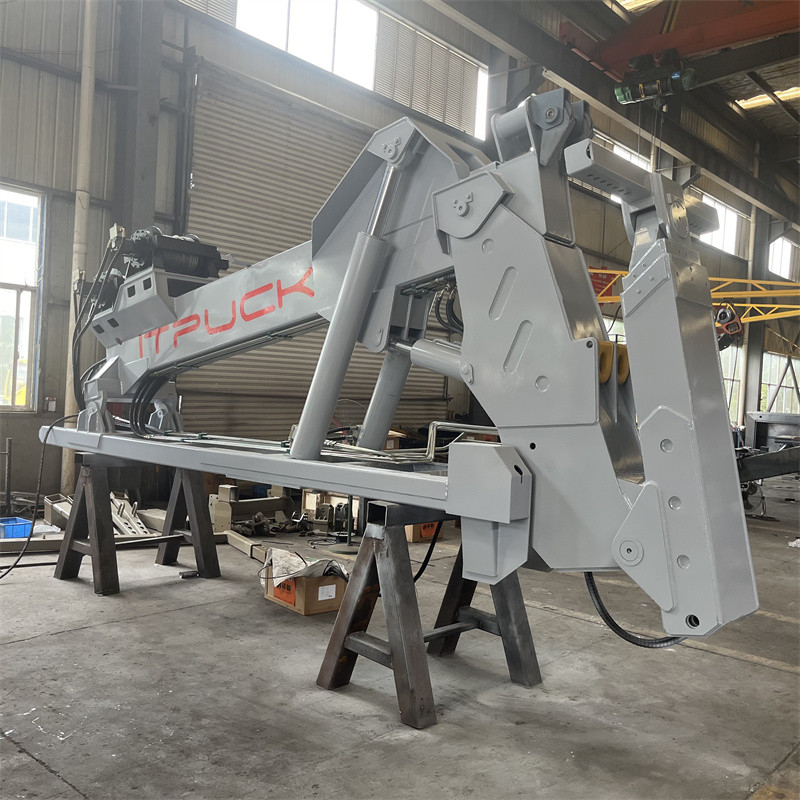

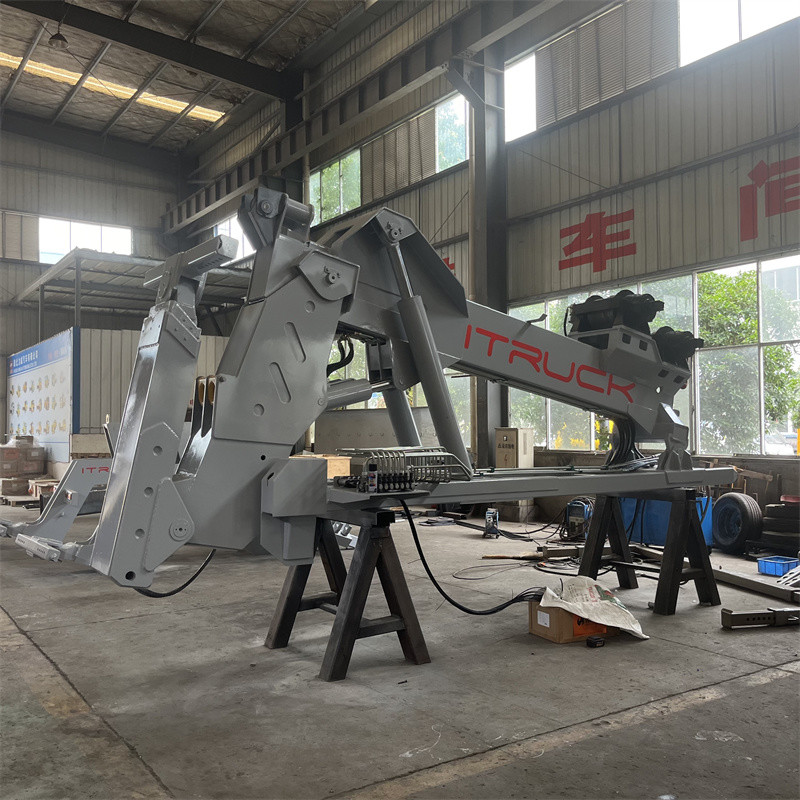

The DTU (Detachable Towing Unit) series has different capacities from 10 tons to 30 tons.



The 25 tons unit comes standard with 2 pcs of 22,000 lb planetary winch, 150’ of 7’’ wire rope and front legs that allow the unit to be easily removed in a matter of minutes so your truck can be multi-functional for both towing and pulling trailers. The DTU is designed to secure to your truck using a front lock-down bracket and your Fifth Wheel Plate. The power for the unit is provided by an hydraulic pump system, with quick connect couplers, which is installed on your truck. The DTU also comes with standard joystick remote control, it supports stable and safe operation.


Main Features
1. 20 Tons / 44100 lbs. Planetary Winch, 10 Tons, 2 Pcs
2. 25 Tons / 55100 lbs. Underlift Capacity, Tow Rate At Least 50 Tons / 110200 lbs.

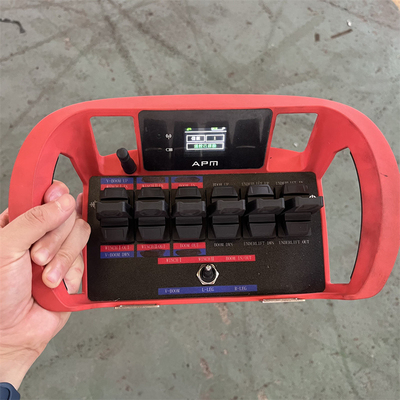

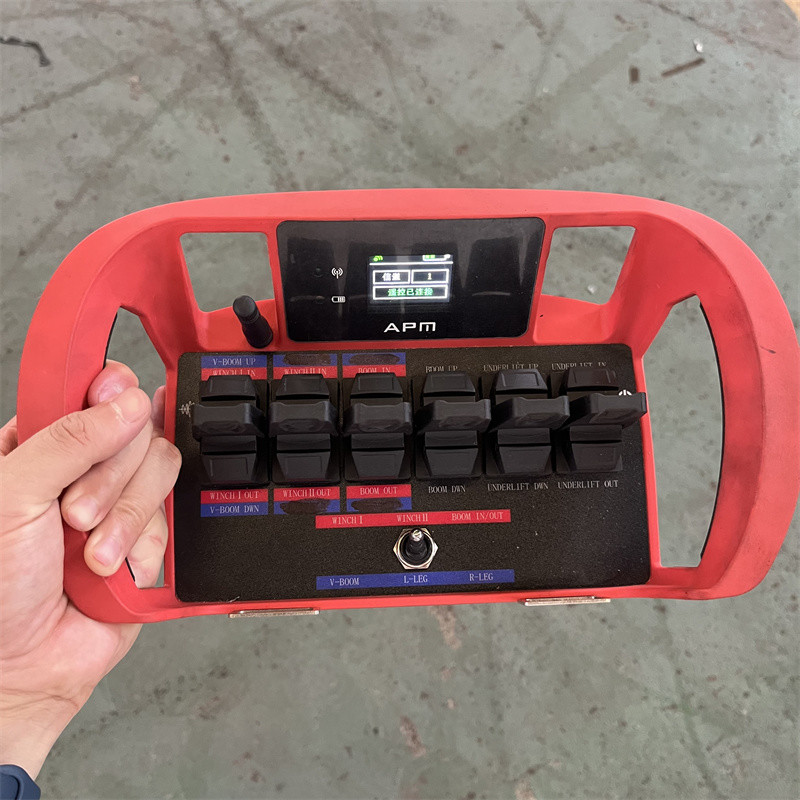

3. Joystick Remote Control
4. Stainless Steel Tool Boxes
5. Low Profile Crossbar, min 12cm / 5.12 inch

Specs
25 Tons DTU
No. Item Content Details Unit
1 Name 25 Tons DTU
2 Winches 2×10 Tons Main Winches
3 Underlift Underlift G70 material, 3 stage
4 Boom Boom G70 material, 2 stage, hexagon
5 Stand Front Manual Stand
6 Toolbox Stainless Steel
7 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
8 Control Remote Wireless Control Joystick type, chest mount, English Indication
    Hand Manual Control

On Lift and Right Side, English

Indication


9 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves
    Cylinders
10 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
11 Painting and Indication Electrophoresis Painting

Boom, underlift and side

boxes EP Painting


    Surface Painting Epoxy Resin
    Indication English Indication and Marks as per Miller
    Packaging Boxes and underlift protected for the painting
Specifications
1 Underlift Retracted Lifting Capacity 25000 kg
    Retracted Length 2100 mm
    Extended Lifting Capacity 6500 kg
    Extended Length 3200 mm
    Undelift Tilt -10 °
    Towing Capacity 50 ton
2 Boom Retracted Lifting Capacity (45°) 20 ton
    Extended Lifting Capacity (45°) 11.5 ton

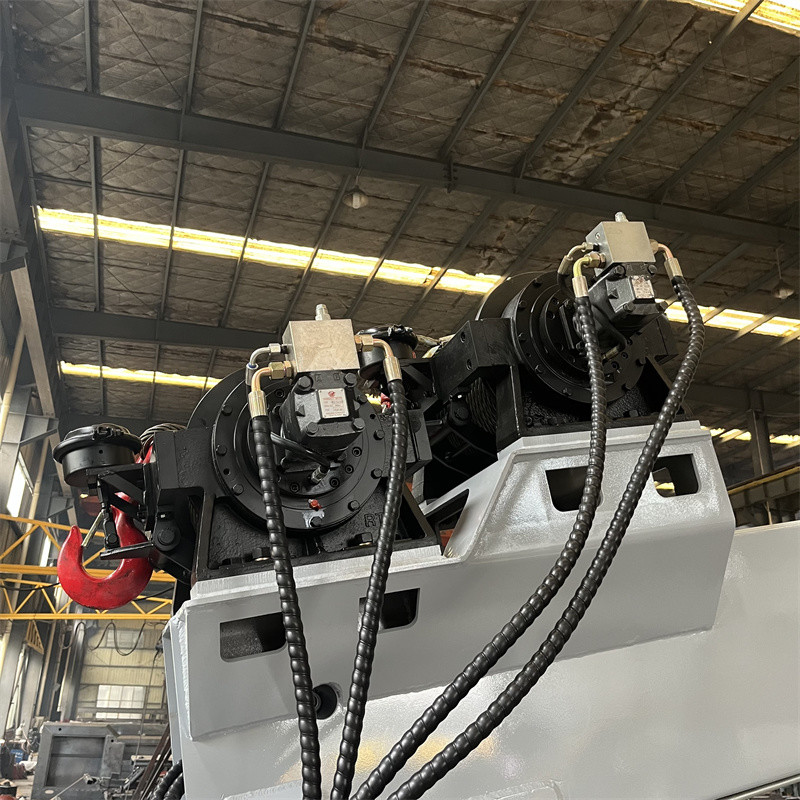

3 Main Winches Quantity 2 pcs
    Pulling Power 10 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
