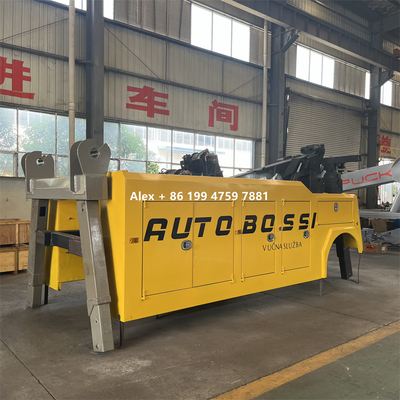

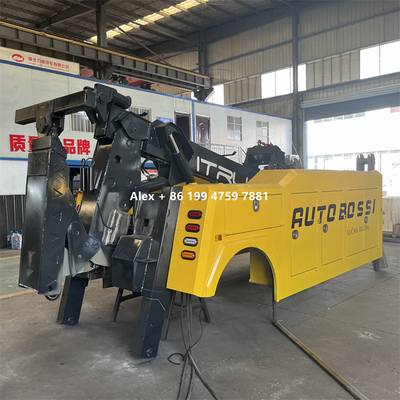

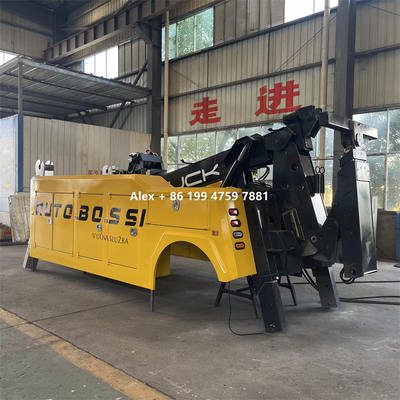

10 TONS LIFT 20 TONS TOW RATE POWER ARC UNDERLIFT with 16 Tons Recovery Boom

Place of Origin Hubei, China
Brand Name iTruck
Document Product Brochure PDF
Minimum Order Quantity 1
Price $16,500.00/units
Packaging Details Nude, covered with film protection
Delivery Time 60 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Body Transmission Type Manual
Dimensions (L X W X H) (mm) Customs Made Condition New
WheelBase As Required Subframe Equipped
Main Winch 8 Tons, 2 Pcs Underlift 3 Sections
Underlift Tow Rating 20 Ton Operation Both Sides Manual
Remote Control Optional Warranty 2 Year
Highlight

10 Tons Lift Underlift

,

20 Tons Tow Rate Underlift

,

16 Tons Recovery Boom Underlift

Leave a Message
Product Description

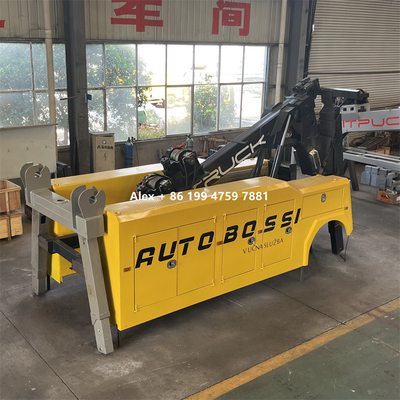

10 TONS LIFT 20 TONS TOW RATE POWER ARC UNDERLIFT WITH 16 TONS RECOVERY BOOM
Product Description

The medium duty integrated series have different capacities from 8 tons to 16 tons.



ENGINEERED FOR STRENGTH AND DURABILITY

The 12 ton Integrated Medium Duty wrecker with a 22,200 lb. rated underlift and a modern, steel body that is maximized for available storage and deck space.



Main Features
1. 8 Tons / 17,800 lbs. Planetary Winch, 2 Pcs. Total 16 Tons / 35,600 lbs.
2. 10 Tons / 22,200 lbs. Underlift Capacity, Tow Rate At Least 20 Tons / 44,500 lbs.
3. Spacious Tool Compartments
4. Multi-Positional Rear Jacks
5. Optional Remote Control
6. Available Low Profile Tow Bar

Specs
16 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 16 Tons Wrecker Body

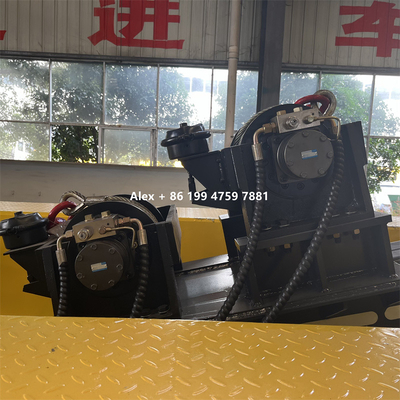

2 Winches 2×8 Tons Main Winches

Side puller (8 tons) is optional,

extra USD2,000

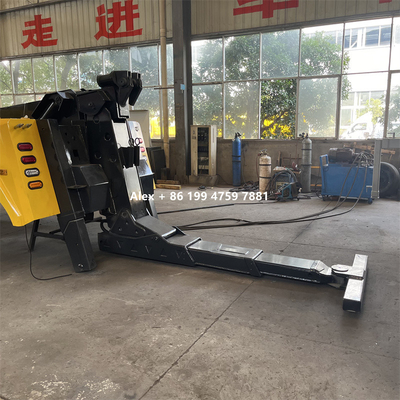

3 Underlift Underlift G70 material, 3 stage

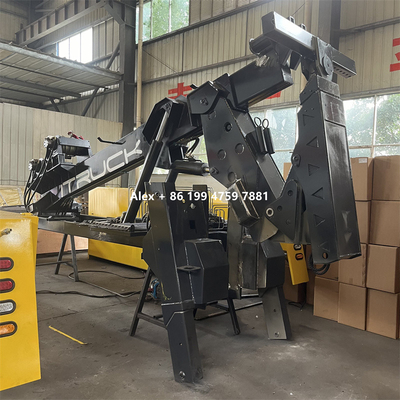

4 Boom Boom G70 material, 2 stage, hexagon
5 Legs Rear Hydraulic rear supporting legs

Front support legs are optional.

Extra USD1,500

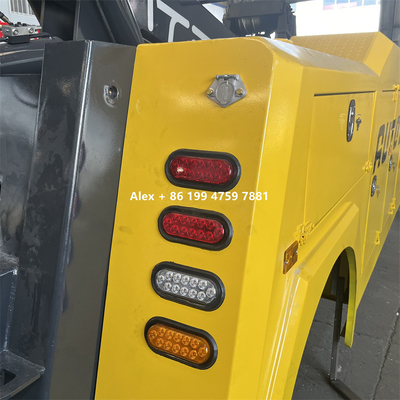

6 Frame LED Lights Frame, full size

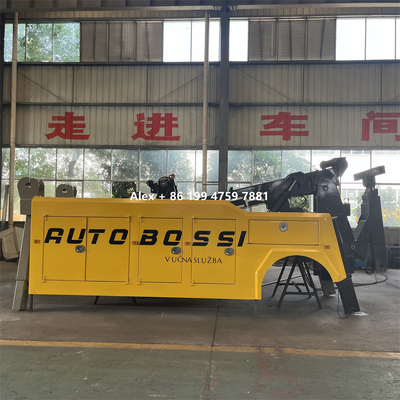

7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD3,000

8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control

Optional button remote control.

Extra USD1,000

Optional Joystick type remote

control, English Display

Extra USD3,000

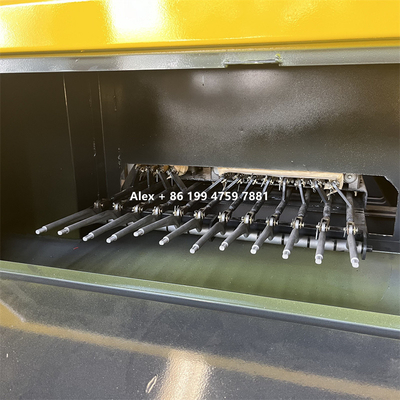

    Hand Manual Control

On Lift and Right Sides, English

Indication


10 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves Italy Hydrocontrol
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting

Normal primer and surface

painting

Subframe with boom and underlift

EP painting extra USD1,500

    Surface Painting Epoxy Resin
    Indication English Indication and Marks
Specifications
1 Underlift Retracted Lifting Capacity 10000 kg
    Retracted Length 1505 mm
    Extended Lifting Capacity 3800 kg
    Extended Length 2760 mm
    Undelift Tilt -10 °
    Towing Capacity 20-30 ton
2 Boom Retracted Lifting Capacity (45°) 16 ton
    Extended Lifting Capacity (45°) 6 ton
3 Main Winches Quantity 2 pcs
    Pulling Power 8 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
