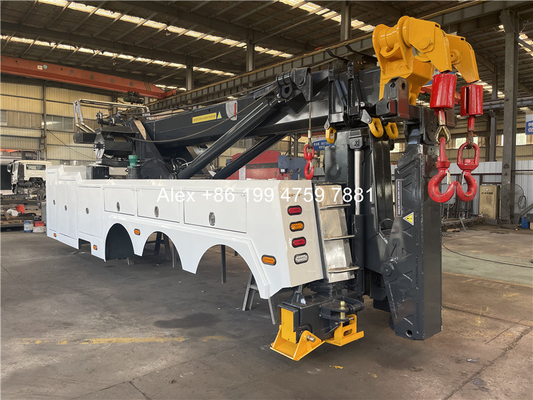

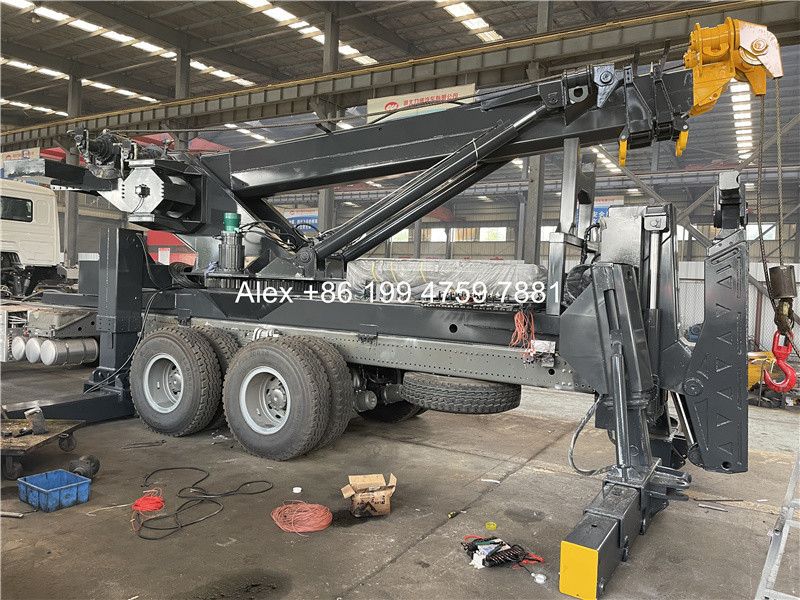

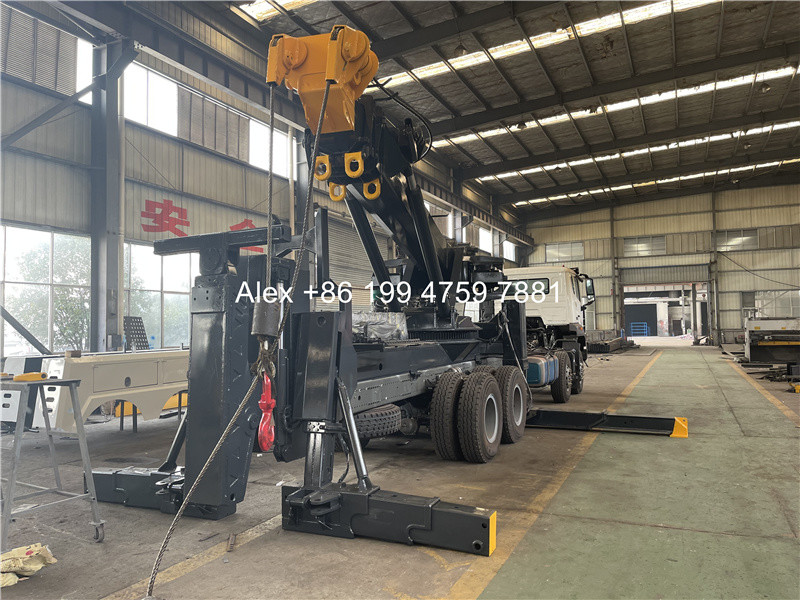

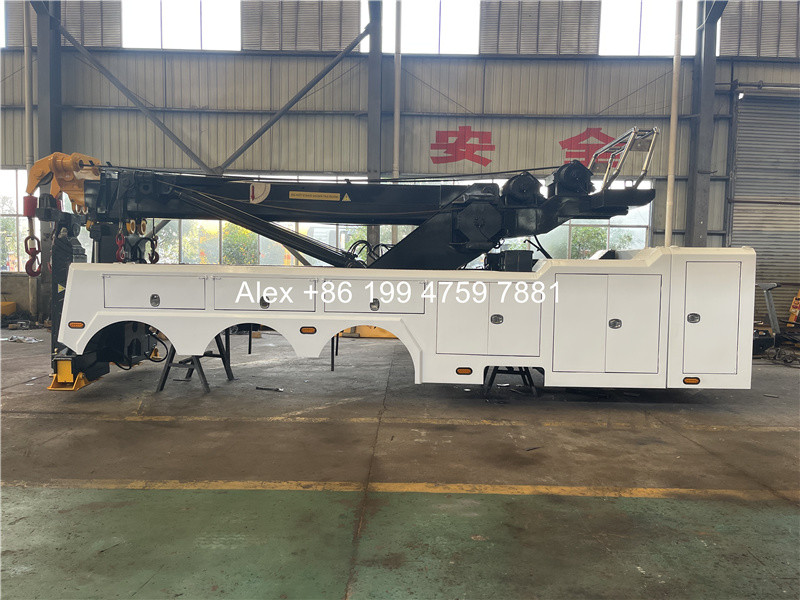

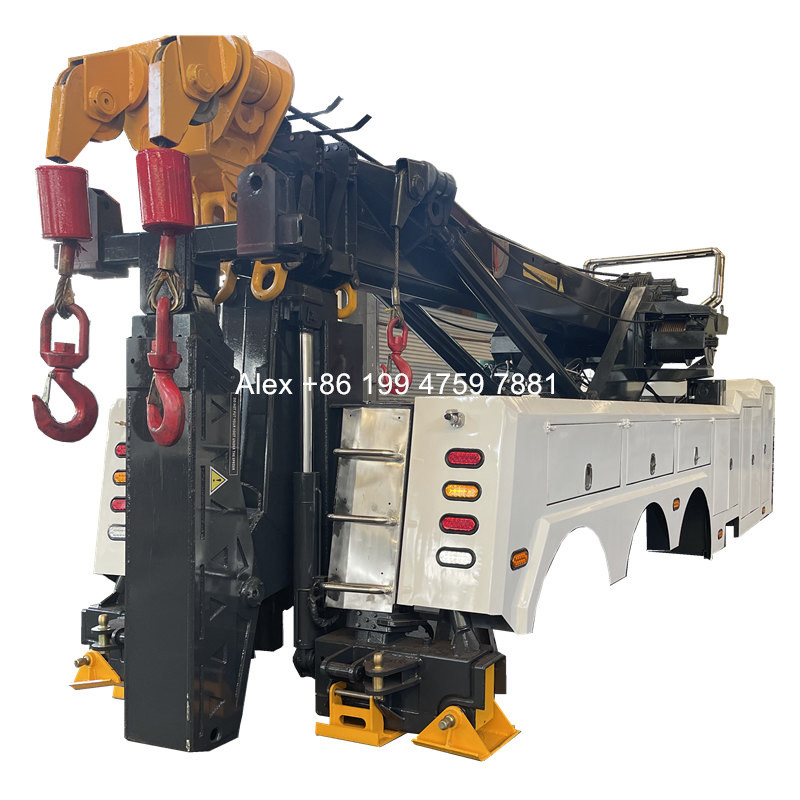

110000 Lbs. Heavy Duty Rotator Wrecker Body With Continuous Rotation Recovery Boom
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $65000/units |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 75 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rotator | Dimensions (L X W X H) (mm) | Custom Made To Fit Your Truck |
|---|---|---|---|
| Condition | New | Drive Type | 8*6 Driving/10x6 Driving |
| WheelBase | As Required | Main Winch | 25 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 3 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | 110000 Lbs Heavy Duty Rotator,110000 Lbs Rotator Wrecker,Rotation Boom Rotator Wrecker |
||
Product Description
Product Description
The rotator series has different capacities from 20 tons to 100 tons.
MAXIMUM STABILITY FOR MAXIMUM PERFORMANCE.
The strength and stability of the 50 tons rotator comes from the industry-leading scissor-style outriggers and unique frame design. The rotator also comes with standard joystick remote control, it supports stable and safe operation.
Main Features
1. 25 Tons / 55,600 lbs. Planetary Winch, 2 Pcs, Total 50 Tons / 111,000 lbs. Optional Multi Drag and Turret Winches.
2. 28 Tons / 62,000 lbs. Underlift Capacity, Tow Rate At Least 56 Tons / 125,000 lbs. Underlift Boom 3 Stages.
3. Continuous Boom Rotation, Recovery Boom 3 Stage
4. Joystick Remote Control
5. Optional Aluminum Tool Boxes
Specs
| 50 Tons Rotator Wrecker Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 50 Tons Rotator Wrecker | ||
| 2 | Winches | 2×25 Tons Main Winches |
Additional winches are optional |
|
| 3 | Underlift | Underlift | G70 material, 3 stage | |
| 4 | Boom | Boom | G70 material, 3 stage | |
| 5 | Legs | Hydraulic |
Hydraulic rear and front supporting legs |
|
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD5,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control | Button remote control. |
Optional Joystick type, chest mount, English display, extra USD2,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | Double Pump | |
| Hydraulic Cylinder | ||||
| Hose | ||||
| Valves | Italy | |||
| Connector | ||||
| 11 | Attachments | 5 Sets of Forks |
4 sets for axle, 1 set for suspension |
|
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting |
Toolbox EP painting, other normal painting |
All subframe, boom and under lift electrophoresis painting optional, extra USD2,000 |
| Surface Painting | Epoxy Resin | |||
| Indication |
English Indication and Marks |
|||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 28000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 7310 | kg | ||
| Extended Length | 3410 | mm | ||
| Undelift Tilt | -10 | ° | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 50 | ton |
| Extended Lifting Capacity (45°) | 11.5 | ton | ||
| Max. Lifting Tilt | 62 | ° | ||
| Max. Lifting Height | 13129 | mm | ||
| Boom Hook(Max. Lifting Height)Away from Underlift(Folding) | 5219 | mm | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 25 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 55 | m | ||
| Steel Wire Diameter | 26 | mm | ||
