75 Tons Underlift Heavy Duty Rotator With 360 Operation Boom 3 Stages Boom
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $95000/units |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 75 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rotator | Dimensions (L X W X H) (mm) | Custom Made To Fit Your Truck |
|---|---|---|---|
| Condition | New | Drive Type | 8*6 Driving/10x6 Driving |
| WheelBase | As Required | Main Winch | 25 Tons, 2 Pcs, And 10 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 3 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | 75 Tons Heavy Duty Rotator,75 Tons rotator wrecker,360 Operation Boom Heavy Duty Rotator |
||
Product Description
Product Description

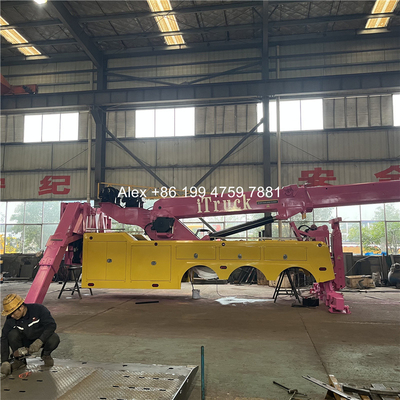

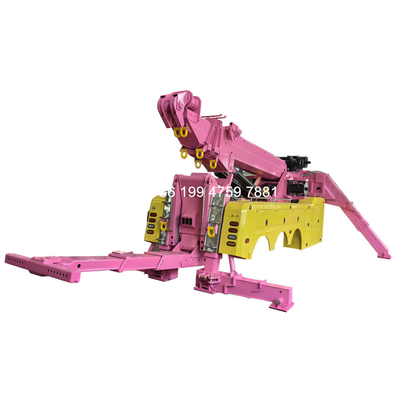

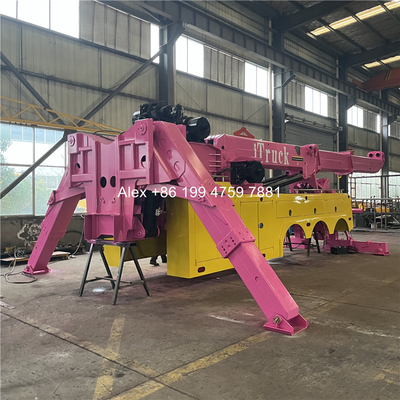

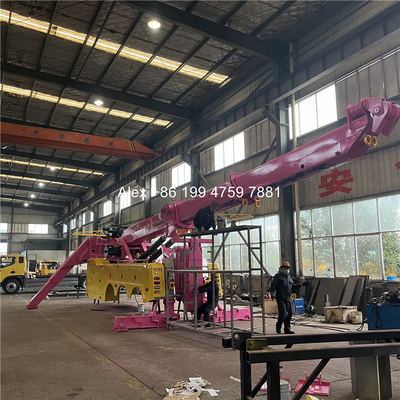

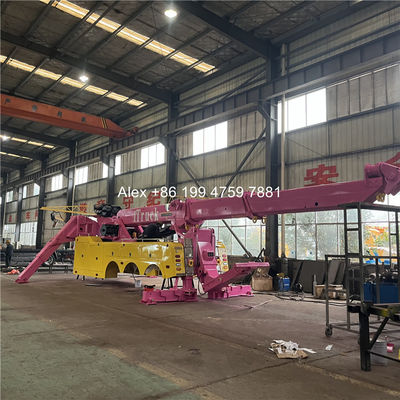

75 TONS 360 OPERATION BOOM 3 STAGES BOOM AND UNDERLIFT HEAVY ROTATOR
The rotator series has different capacities from 20 tons to 100 tons.
MAXIMUM STABILITY FOR MAXIMUM PERFORMANCE.
The strength and stability of the 75 tons rotator comes from the industry-leading outriggers and unique frame design. The rotator also comes with standard joystick remote control, it supports stable and safe operation.
Main Features
1. 25 Tons / 55,600 lbs Planetary Winch, 2 Pcs. Auxiliary 10 Tons / 22,000 lbs Planetary Winch, 2 Pcs. Total 75 Tons / 166,000 lbs.
2. 28 Tons / 62,000 lbs. Underlift Capacity, Tow Rate At Least 56 Tons / 125,000 lbs. Underlift Boom 3 Stages.
3. Continuous Boom Rotation, Recovery Boom 3 Stage

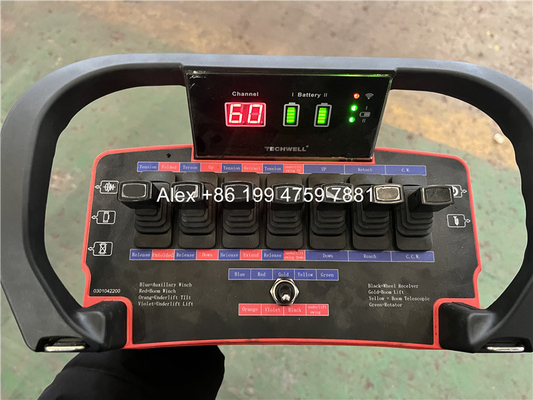

4. Joystick Remote Control
5. Optional Aluminum Tool Boxes
Specs
| 75 Tons Rotator Wrecker Body | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 75 Tons Rotator Wrecker Body | ||
| 2 | Winches | 2×30 Tons Main Winches | DOT certified | |
| 2×10 Tons Auxiliary Winches | DOT certified | |||
| 3 | Underlift | Underlift | G70 material, 3 stage, hexagon | |
| 4 | Boom | Boom | G70 material, 3 stage, hexagon | |
| 5 | Legs | Hydraulic |
Hydraulic rear and front supporting legs |
|
| 6 | Frame | LED Lights Frame, full size | Lights DOT certified | |
| 7 | Toolbox | Stainless Steel Handle |
Made to fit your truck. Aluminum alloy tool box extra USD5,000 |
|
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V, DOT certified | |
| 9 | Control | Remote Wireless Control | 11 ways Joystick Type, chest mount | |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | Double Pump | |
| Hydraulic Hose | DOT Certified | |||
| Hose Connector | DOT Certified | |||
| Valves | DOT Certified | |||
| Hydraulic Cylinders | Famous HZLI cylinders | |||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting |
Whole Wrecker Body, including crane and underlift, EP Painting and baking |
|
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks as per Miller | |||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 28000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 8310 | kg | ||
| Extended Length | 3492 | mm | ||
| Undelift Tilt | -10 | ° | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 75 | ton |
| Extended Lifting Capacity (45°) | 11.5 | ton | ||
| Max. Lifting Tilt | 65 | ° | ||
| Max. Lifting Height | 13029 | mm | ||
| Boom Hook(Max. Lifting Height)Away from Underlift(Folding) | 5219 | mm | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 30 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 55 | m | ||
| Steel Wire Diameter | 28 | mm | ||
| 4 | Auxiliary Winches | Quantity | 2 | pcs |
| Pulling Power | 10 | ton | ||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 16 | mm | ||
