35600lb 16 Ton Medium Duty Wrecker Integrated Tow Truck With Front Outrigger

Place of Origin Hubei, China
Brand Name iTruck
Document Product Brochure PDF
Minimum Order Quantity 1
Price $22,000.00/units
Packaging Details Nude, covered with film protection
Delivery Time 60 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Body Transmission Type Manual
Dimensions (L X W X H) (mm) Customs Made Condition New
WheelBase As Required Subframe Equipped
Main Winch 10 Tons, 2 Pcs Underlift 3 Sections
Underlift Tow Rating 24 Tons Operation Both Sides Manual
Remote Control Optional Warranty 2 Year
Highlight

35600lb Medium Duty Wrecker

,

35600lb Integrated Tow Truck

,

16 Ton Medium Duty Wrecker

Leave a Message
Product Description
16 TONS 18 TONS MEDIUM DUTY INTEGRATED WRECKER WITH FRONT OUTRIGGER AND SIDE PULLER
Product Description

The medium duty integrated series have different capacities from 8 tons to 18 tons.



ENGINEERED FOR STRENGTH AND DURABILITY

The 16 ton Integrated Medium Duty wrecker with a 35,600 lb. rated underlift and a modern, steel body that is maximized for available storage and deck space.



Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 12 Tons / 26,700 lbs. Underlift Capacity, Tow Rate At Least 24 Tons / 53,300 lbs.
3. Spacious Tool Compartments
4. Multi-Positional Rear Jacks
5. Optional Remote Control
6. Available Low Profile Tow Bar

Specs
16 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 16 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller (10 tons) is optional,

extra USD2,500

3 Underlift Underlift G70 material, 3 stage
4 Boom Boom G70 material, 2 stage, hexagon
5 Legs Rear Hydraulic rear supporting legs

Front support legs are optional.

Extra USD3,000

6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD4,000

8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V

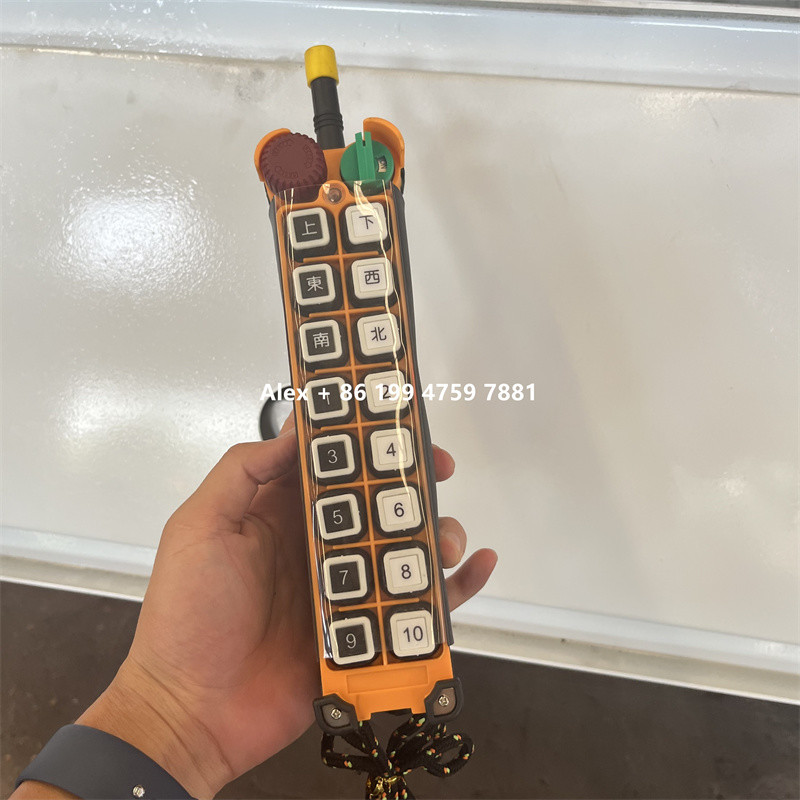

9 Control Remote Wireless Control Standard button remote control.

Optional Joystick type remote control,

English Display Extra USD2,000

    Hand Manual Control

On Lift and Right Sides,

English

Indication


10 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves Italy Hydrocontrol
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Toolbox EP painting

Subframe with boom and underlift

EP painting extra USD1,500

    Surface Painting Epoxy Resin
    Indication English Indication and Marks
Specifications
1 Underlift Retracted Lifting Capacity 12000 kg
    Retracted Length 1505 mm
    Extended Lifting Capacity 4200 kg
    Extended Length 2760 mm
    Undelift Tilt -10 °
    Towing Capacity 24-36 ton
2 Boom Retracted Lifting Capacity (45°) 18 ton
    Extended Lifting Capacity (45°) 6.3 ton
3 Main Winches Quantity 2 pcs
    Pulling Power 10 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
