4T To 20T Usa Style Towing Truck Flatbed With Grid Carrier Deck

Place of Origin Hubei, China
Brand Name iTruck
Document Product Brochure PDF
Minimum Order Quantity 1
Price $5,200.00 - 28,500/units
Packaging Details Nude, covered with film protection
Delivery Time 30 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name USA Carrier Deck Dimensions (L X W X H) (mm) Customs Made
Condition New WheelBase As Required
Subframe Equipped Main Winch 4 - 20 Tons
Underlift 3 Sections, 3 - 20 Tons Underlift Tow Rating 6 - 50 Tons
Operation Both Sides Manual Remote Control Optional
Warranty 2 Year
Highlight

20T Towing Truck Flatbed

,

4T Towing Truck Flatbed

,

20T tow truck deck

Leave a Message
Product Description

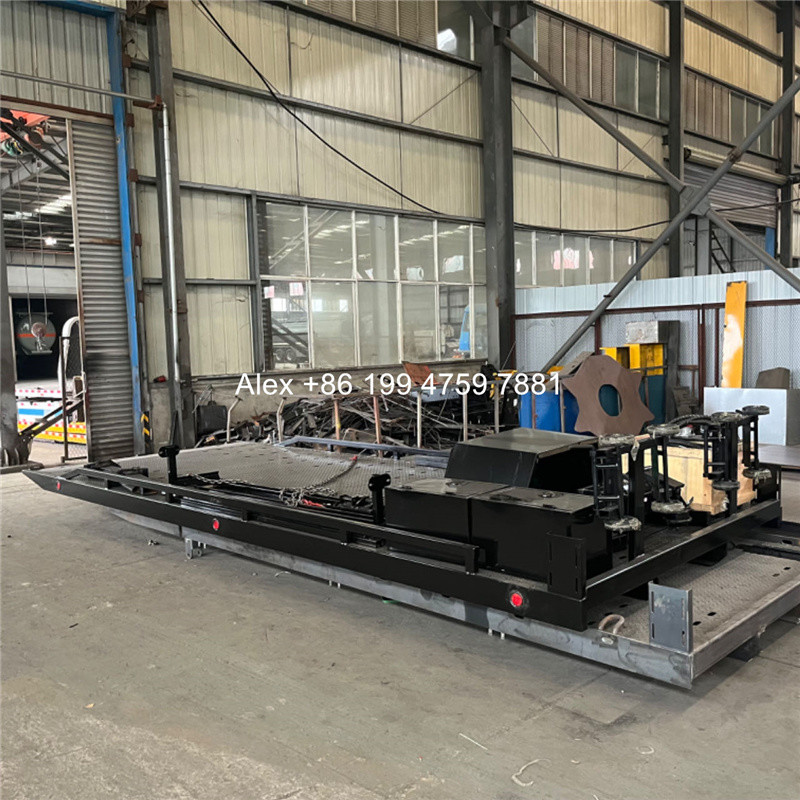

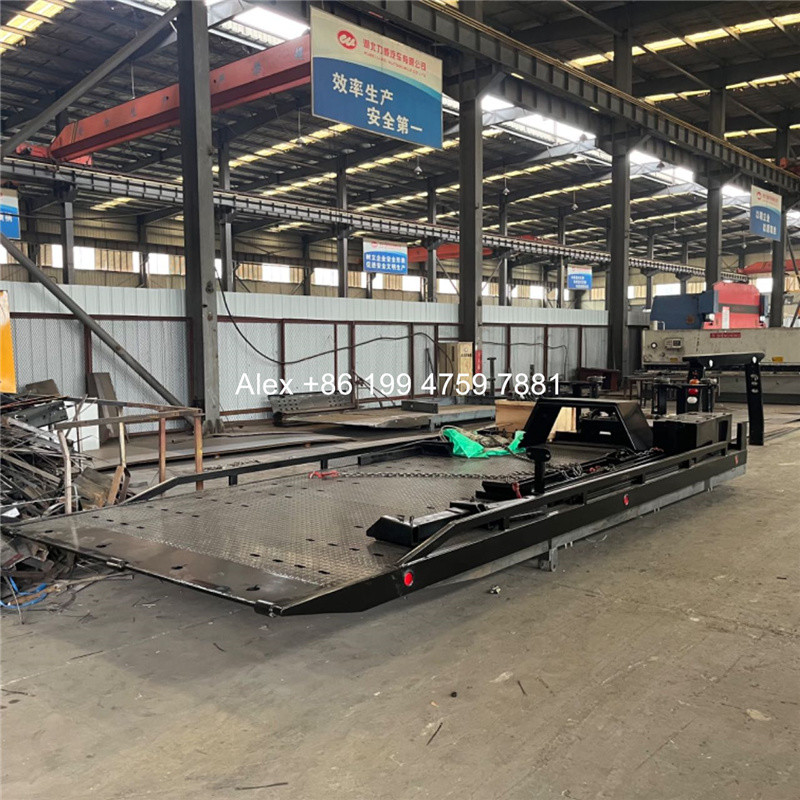

4 TONS TO 20 TONS USA STYLE TOW TRUCK BED WITH GRID CARRIER DECK
Product Description

The USA style carrier deck is available in steel (light, medium and heavy duty) or aluminum (light duty), with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.


Main Features
1. Optional Button Remote Control
2. Container Pins for Heavy Duty with Bed More Than 22ft.
3. Rail on Both Sides, Built in Side Lights
4. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.

Specs
USA Style Carrier Deck
General Settings Color

Customizable, electrophoresis

painting is optional

  Winch Capacity 4 - 20 tons
  Lift Capacity 4 - 20 tons
  Extension Capacity 4 - 20 tons
  Underlift Capacity 4 - 20 tons
  Platform Material Q235B/Q345R/G70/NM500
  Platform Type Checkered
  Platform Dimension 5.2m to 9.5m
  Wireless Remote Control Optional, extra USD500
  Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs

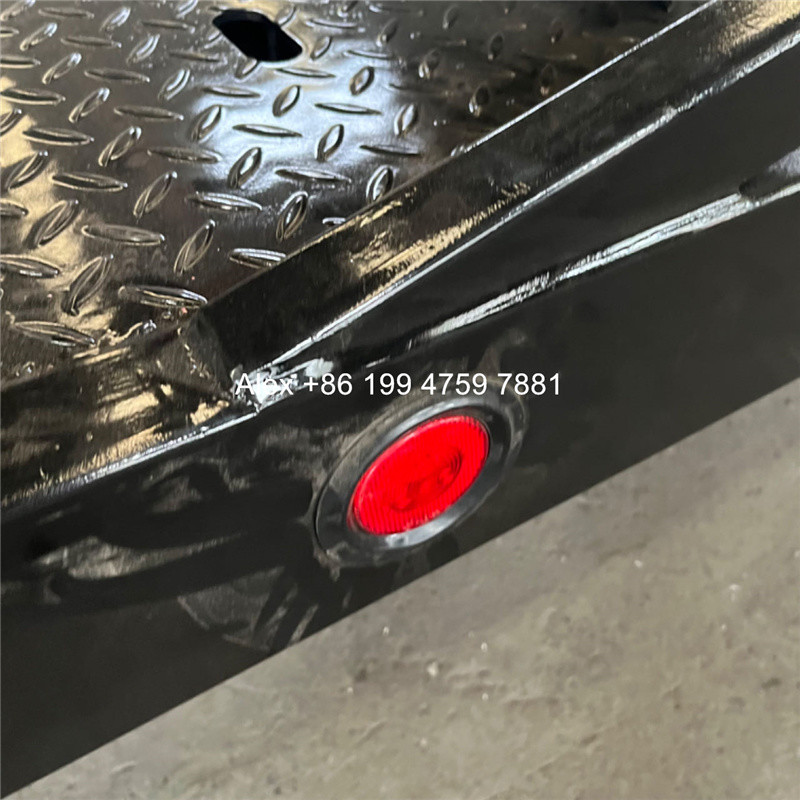

  Sides Lights 8 pcs
  Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
  Bed Lift Cylinder with Seat 2 pcs
  Underlift lift Cylinder 2 pcs
  Underlift Extension Cylinder 1 pcs

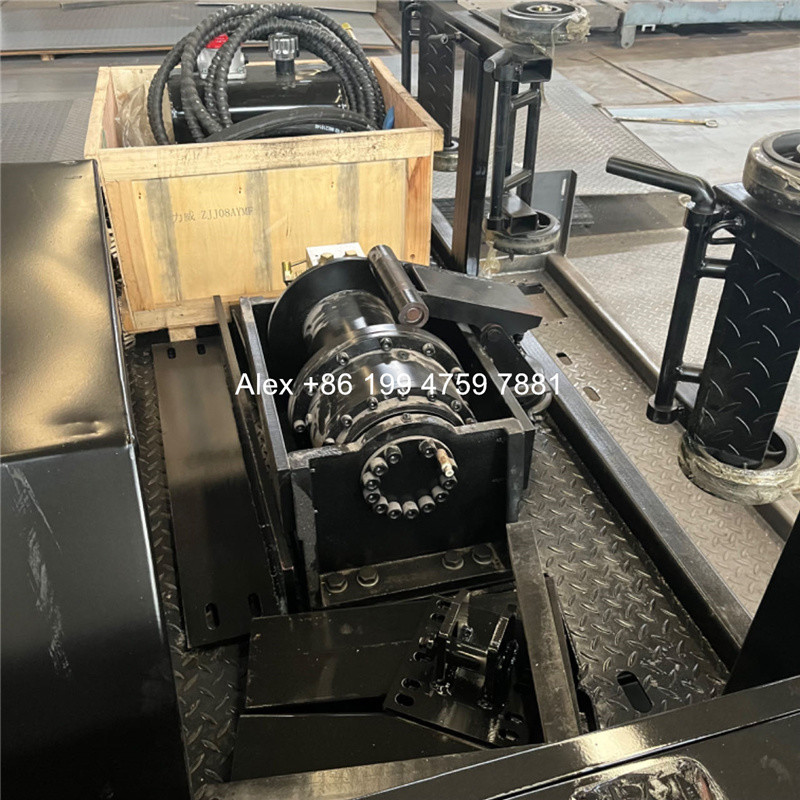

  Hydraulic Winch 1 pcs
  Hydraulic Pump 1 pcs
  Hydraulic Multi Way Valve 1 pcs
  Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
  Hydraulic Hose 1 set
  Hydraulic Hose Containment 1 set
  Hose Sleeve 1 pcs
  Manual Control with Stainless Steel Seat 2 sets (on both sides)
  Oil Tank 1 pcs
Accessories Trolleys 2 pcs
  Straps 4 pcs
  Toolbox 2 pcs
  Wheel Grids 2 pcs
  L arms 2 pcs
  Fence 2 pcs
  Mudflap 2 pcs

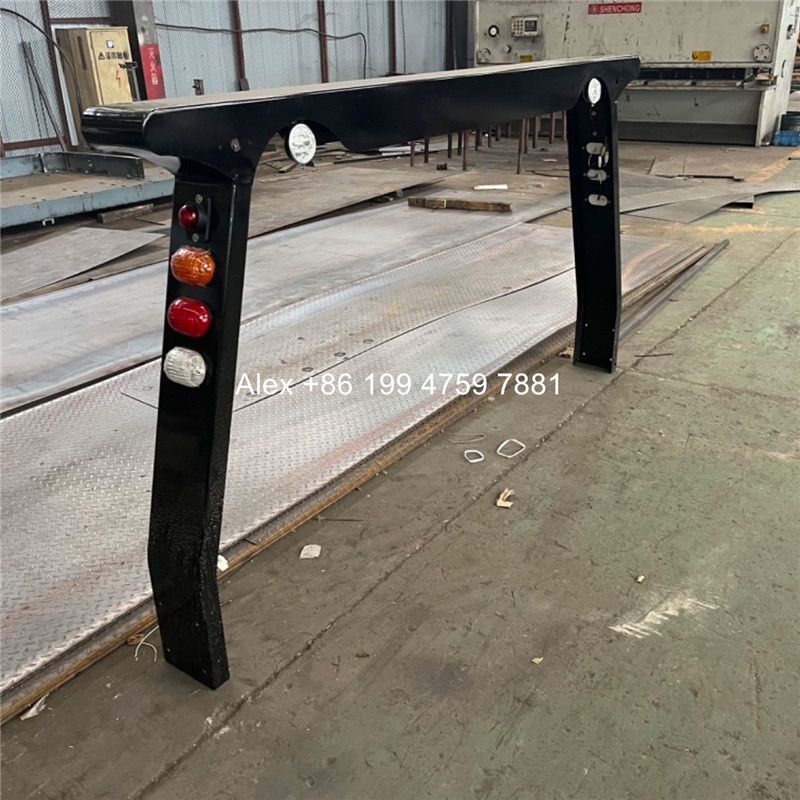

  Lamp Frame 1 pcs
  Bed Position Limit 1 set
  Frame and Lights Bolts 1 set
  Toolbox and Fence Brackets Square Tube 1 set
