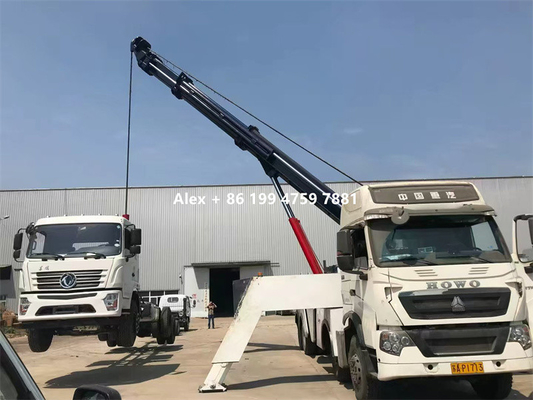

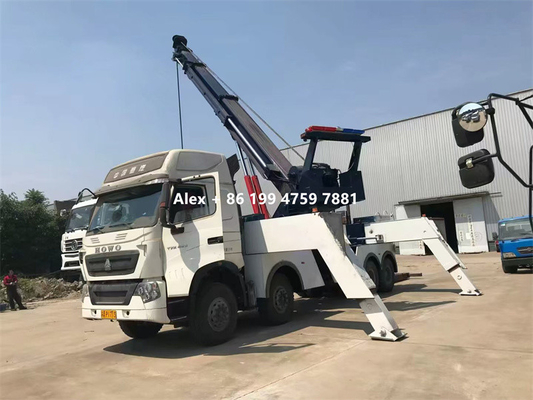

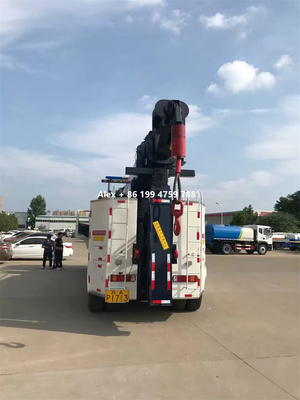

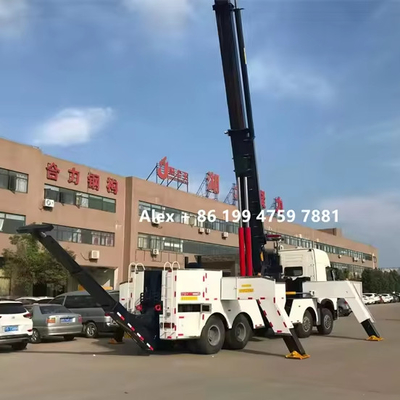

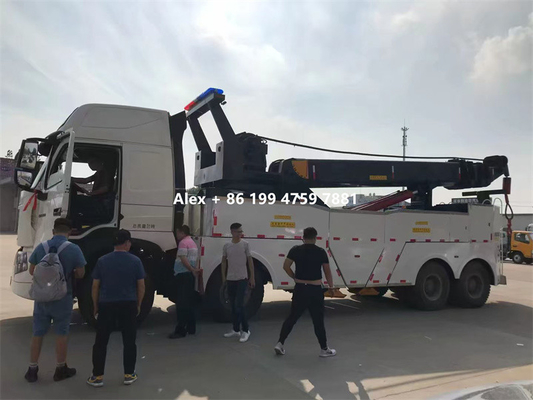

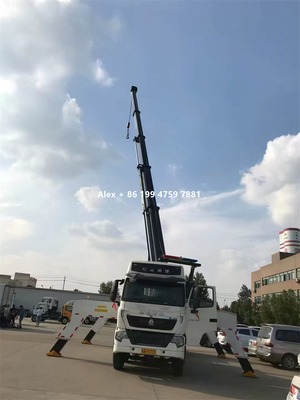

8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers

  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
  • 8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers
Place of Origin China
Document Product Brochure PDF
Minimum Order Quantity 1
Price $75,000.00/units (without truck)
Packaging Details Nude, covered with film protection
Delivery Time 85 days
Supply Ability 5 untis per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Rotator Drive Type 8*4 Driving
Winch 25 Tons X 2 Boom 5 Stages
Underlift 3 Stages Boom Capacity 50 Tons
Underlfit Capacity 28 Tons Underlift Tow Rate 56 Tons
Wireless Remote Control Equipped Warranty 3 Years
Highlight

5 Stages Boom Rotator Wrecker

,

8x4 50 Ton Rotator Wrecker

,

50 Tons rotator recovery truck
Leave a Message
Product Description
8X4 50 TONS 5 STAGES BOOM H SHAPE FRONT AND REAR OUTRIGGERS ROTATOR WRECKER
Product Description

The rotator series has different capacities from 20 tons to 100 tons.



Custom made H shape front and rear legs.



The strength and stability of the 50 tons rotator comes from the industry-leading scissor-style outriggers and unique frame design. The rotator also comes with standard joystick remote control, it supports stable and safe operation.


Main Features
1. 25 Tons / 55,600 lbs. Planetary Winch, 2 Pcs, Total 50 Tons / 111,000 lbs. Optional Multi Drag and Turret Winches.
2. 28 Tons / 62,000 lbs. Underlift Capacity, Tow Rate At Least 56 Tons / 125,000 lbs. Underlift Boom 3 Stages.
3. Continuous Boom Rotation, Recovery Boom 3 Stage
4. Joystick Remote Control
5. Optional Aluminum Tool Boxes

Specs
50 Tons Rotator Wrecker Specs
No. Item Content Details Unit
1 Name 50 Tons Rotator Wrecker
2 Winches 2×25 Tons Main Winches

Additional winches

are optional
3 Underlift Underlift G70 material, 3 stage
4 Boom Boom G70 material, 5 stage
5 Legs Hydraulic

Hydraulic rear and front

supporting legs

 H shape
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel

Q345R, with stainless

steel handles

Aluminum tool box

optional, extra USD5,000
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control.

Optional Joystick type,

chest mount, English display,

extra USD2,000
    Hand Manual Control

On Lift and Right Sides,

English Indication


10 Hydraulic Parts Hydraulic Pump Double Pump
    Hydraulic Cylinder
    Hose
    Valves Italy
    Connector
11 Attachments 5 Sets of Forks

4 sets for axle,

1 set for suspension


    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting

Toolbox EP painting,

other normal painting

All subframe, boom and

under lift electrophoresis

painting optional,

extra USD2,000
    Surface Painting Epoxy Resin
    Indication

English Indication

and Marks


Specifications
1 Underlift Retracted Lifting Capacity 28000 kg
    Retracted Length 1746 mm
    Extended Lifting Capacity 7310 kg
    Extended Length 3410 mm
    Undelift Tilt -10 °
2 Boom Retracted Lifting Capacity (45°) 50 ton
    Extended Lifting Capacity (45°) 11.5 ton
    Max. Lifting Tilt 62 °
    Max. Lifting Height 13129 mm
    Boom Hook(Max. Lifting Height)Away from Underlift(Folding) 5219 mm
3 Main Winches Quantity 2 pcs
    Pulling Power 25 ton
    Type Planetary
    Steel Wire Length 55 m
    Steel Wire Diameter 26 mm
8x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers 08x4 5 Stages Boom 50 Ton Rotator Wrecker With H Shape Front And Rear Outriggers 1
