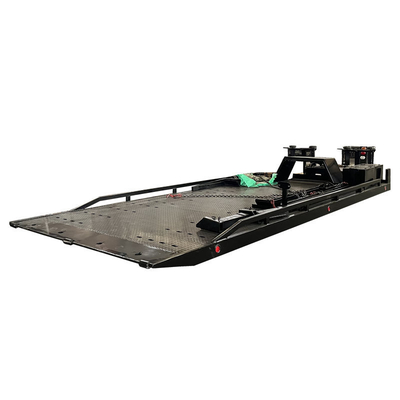

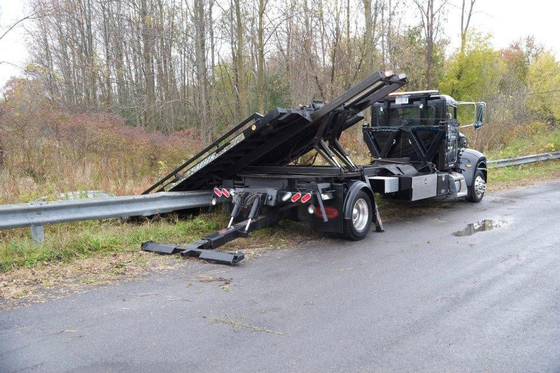

4 Tons 180 Degree Rotator Roll Back Truck Bed With Sliding Winch Rotating Ramp
| Place of Origin | Hubei, China |
|---|---|
| Document | Product Brochure PDF |
| Price | $19,500.00/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 30 days |
| Supply Ability | 5 units / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rotator Carrier / Rotator Tilt Tray | Dimensions (L X W X H) (mm) | 6 M |
|---|---|---|---|
| Material | Q235B, Q345R, Etc. | Thickness | 4 Mm |
| Winch | 4 Tons | Underlift | 4 Tons |
| Ram Lift | 4 Tons | Wireless Remote Control | Equipped |
| Hydraulic System | Equipped | Sliding Winch | Optional |
| Warranty | 1 Year | ||
| Highlight | 4 Tons Roll Back Truck Bed,180 Degree Rotator roll back flatbed,rollback flatbeds 4 Tons |
||
Product Description
| 4 Tons Rotator Tilt Tray | ||
| General Settings | Color |
Customizable, electrophoresis painting is optional |
| Winch Capacity | 4 tons | |
| Lift Capacity | 4 tons | |
| Extension Capacity | 4 tons | |
| Underlift Capacity | 4 tons | |
| Platform Material | Q235B, 4mm thick | |
| Platform Type | 180 degree rotator | |
| Platform Dimension | 5600 x 2300 mm (customizable) | |
| Wireless Remote Control | Optional | |
| Subframe with Underlift | Match to chassis | |
| Lights | Siren Long Lamp with Speaker | 1 pcs |
| Sides Lights | 8 pcs | |
| Frame Lights with Lights Seat | 6 pcs | |
| Hydraulic System | Bed Extension Cylinder with Seat | 1 pcs |
| Bed Lift Cylinder with Seat | 2 pcs | |
| Underlift lift Cylinder | 2 pcs | |
| Underlift Extension Cylinder | 1 pcs | |
| Hydraulic Winch | 1 pcs | |
| Hydraulic Pump | 1 pcs | |
| Hydraulic Multi Way Valve | 1 pcs | |
| Hydraulic Balance Valve | 2 pcs (1 for lift and 1 for underlift) | |
| Hydraulic Hose | 1 set | |
| Hydraulic Hose Containment | 1 set | |
| Hose Sleeve | 1 pcs | |
| Manual Control with Stainless Steel Seat | 2 sets (on both sides) | |
| Oil Tank | 1 pcs | |
| Accessories | Auxiliary Wheels | 2 pcs |
| Straps | 4 pcs | |
| Toolbox | 2 pcs | |
| Wheel Grids | 2 pcs | |
| L arms | 2 pcs | |
| Fence | 2 pcs | |
| Mudflap | 2 pcs | |
| Lamp Frame | 1 pcs | |
| Tow Chain | 1 pcs | |
| Frame and Lights Bolts | 1 set | |
| Toolbox and Fence Brackets Square Tube | 1 set | |
