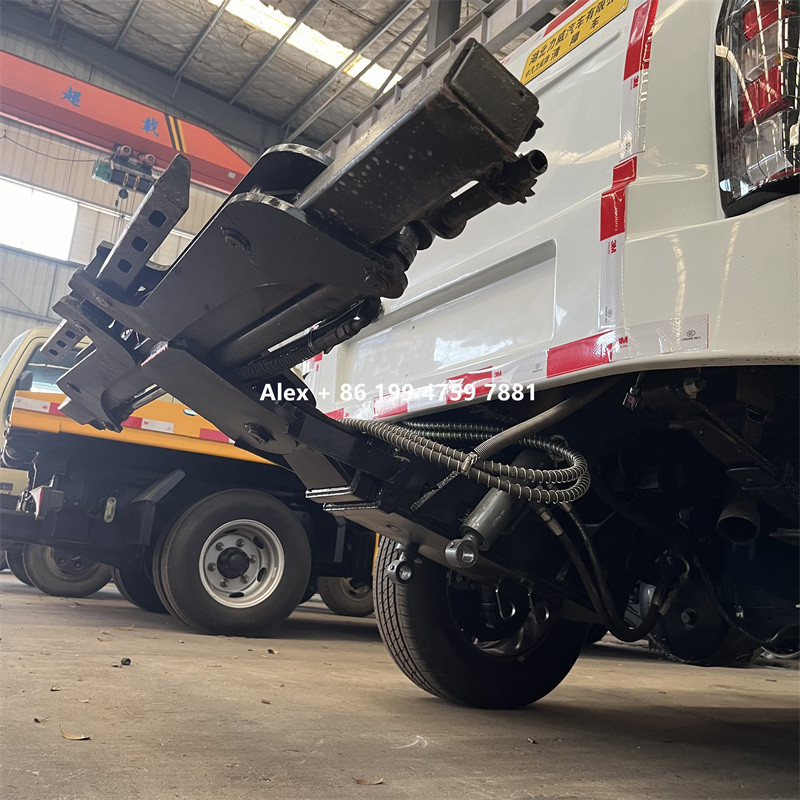

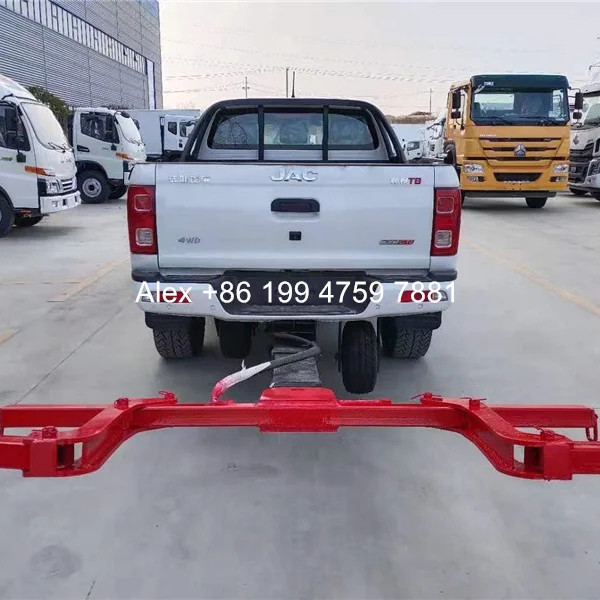

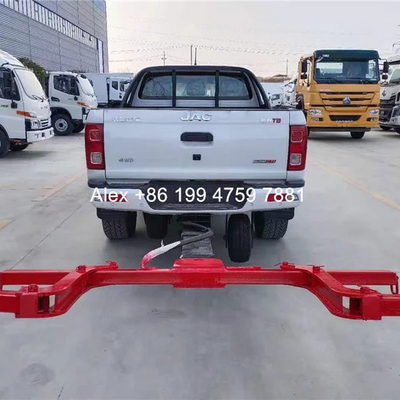

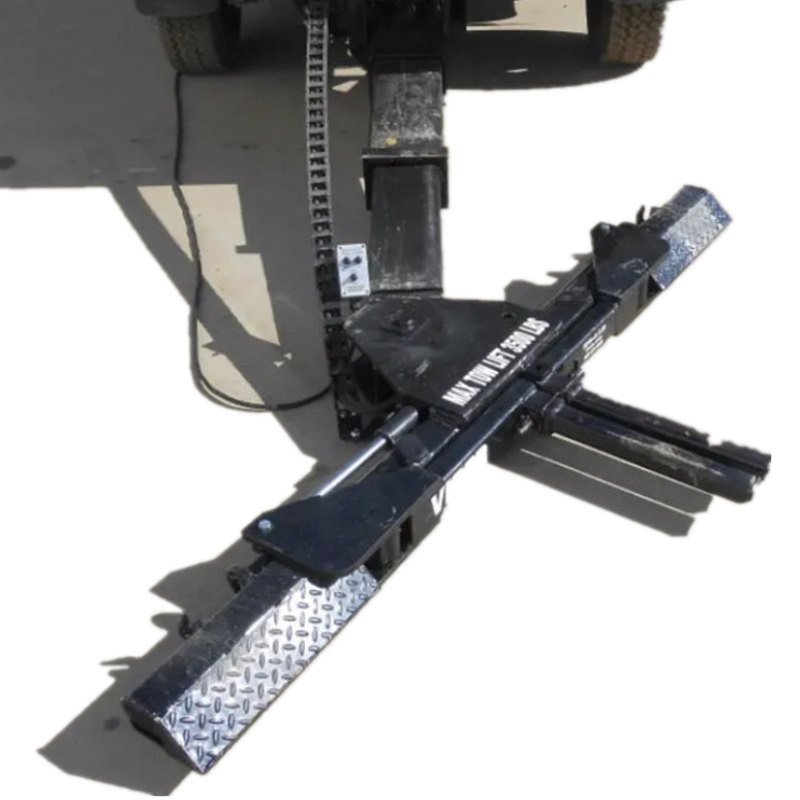

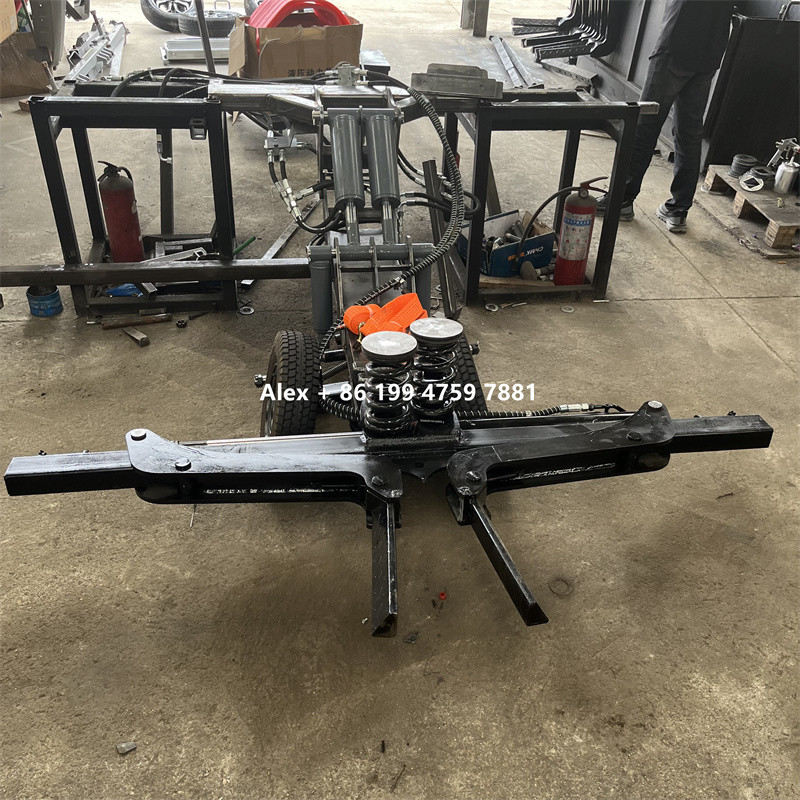

3 Tons 6500 Pounds Pickup Truck Wrecker Underlift Hide Away Wheel Lift
| Place of Origin | China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $3,800.00/units |
| Packaging Details | Wooden Case |
| Delivery Time | 5 days |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Product Name | Pickup Hiden Away Wheel Lift |
|---|---|---|---|
| Main Winch | Optional | Underlift | 3 Sections |
| Loading Capacity | 3 Tons | Underlift Tow Rating | 6 Ton |
| Automatic Tires Holder | Equipped | Remote Control | Wireless Equipped |
| Hose And Pump Station | Equipped | Warranty | 1 Year |
| Highlight | 3 Tons pickup truck wrecker,6500 Pounds Pickup Truck Wrecker,6500 Pounds truck wrecker |
||
Product Description
Specs
| 3 Ton Pickup Wheel Lift | ||||
| S.N. | Item | Unit | Quantity | Remarks |
| 1 | Max. Lift Capacity | 3 tons | ||
| 2 | Max. Towing Capacity | 6 tons | ||
| 3 | Retracted Length | 1m | ||
| 4 | Extended Length | 2m | ||
| 5 | Total Underlift Length | 2970mm | ||

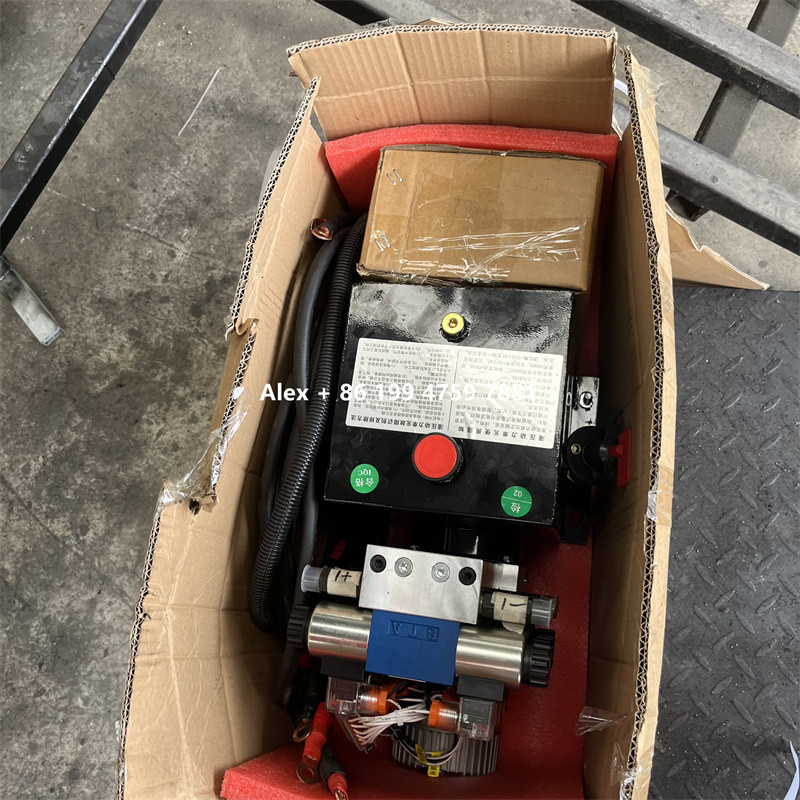

| 6 | Pump Power Station | set | 1 | 12V or 24V |
| 7 | Remote Control | set | 1 | |
| 8 | Lift Cylinder | pcs | 2 | |
| 9 | Extension Cylinder | pcs | 2 | |
| 10 | Supporting Trolley Cylinder | pcs | 2 | |
| 11 | Auto Tyre Holder | set | 1 | |
| 12 | Hose | set | 1 | |
| 13 |
Supporting Trolley with All Terrain Structure (patented) |
pcs | 1 | |
| 14 | Binding Strips | pcs | 2 | |
| 15 | Pins and Accessories | set | 1 | |
| 16 | Mounting Bracket | set | 1 | |
| 17 | Optional Rear Wheel Trolley | pair | 1 | Extra USD120 |
| 18 |
Optional Rear Wheel Large Size Trolley |
pair | 1 |
Extra USD1,000 for aluminum, USD800 for steel |
Invention Patent
Special auxiliary trolleys structure of all terrain can bear more work loading and be compatible to rough roads to protect the under lift.
