20 Tons Boom And Underlift Heavy Duty Wrecker Recovery Truck Bodies Manual Transmission

Place of Origin Hubei, China
Brand Name iTruck
Document Product Brochure PDF
Minimum Order Quantity 1
Price $25,500.00/units
Packaging Details Nude, covered with film protection
Delivery Time 60 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Body Transmission Type Manual
Dimensions (L X W X H) (mm) Customs Made Condition New
WheelBase As Required Subframe Equipped
Main Winch 10 Tons, 2 Pcs Underlift 3 Sections, Optional 4
Underlift Tow Rating 20 Ton Operation Both Sides Manual
Remote Control Optional Warranty 2 Year
Highlight

20 ton wrecker Manual Transmission

,

Manual Transmission Heavy Duty Wrecker

,

20 Tons Recovery Truck Bodies

Leave a Message
Product Description

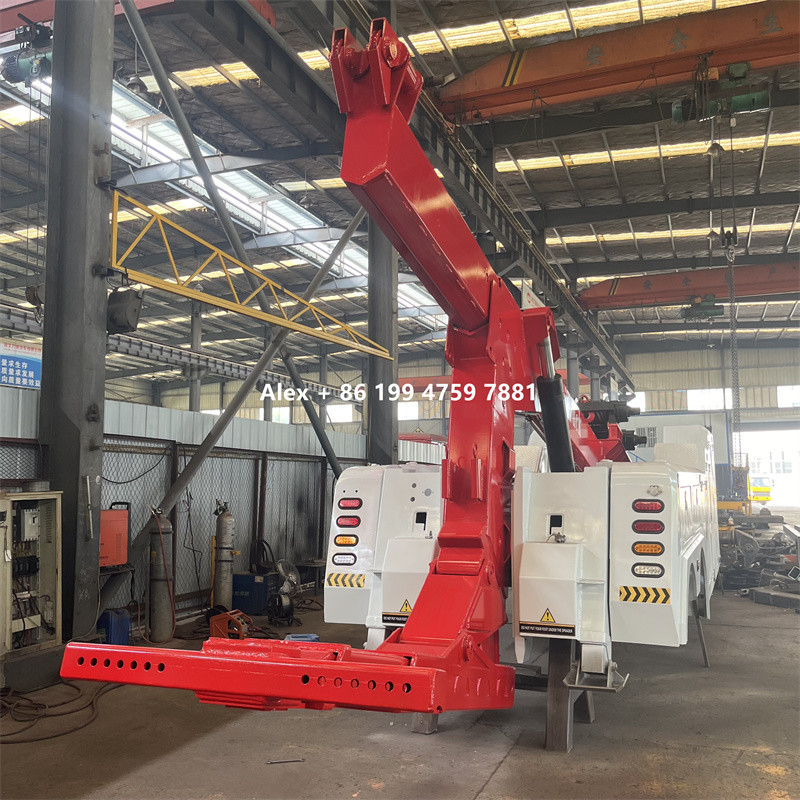

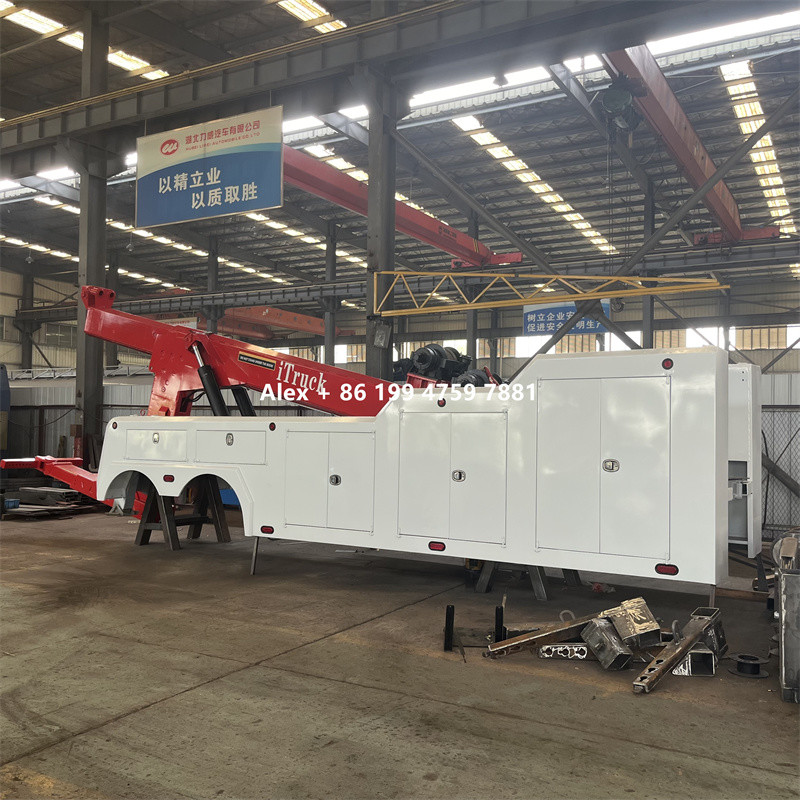

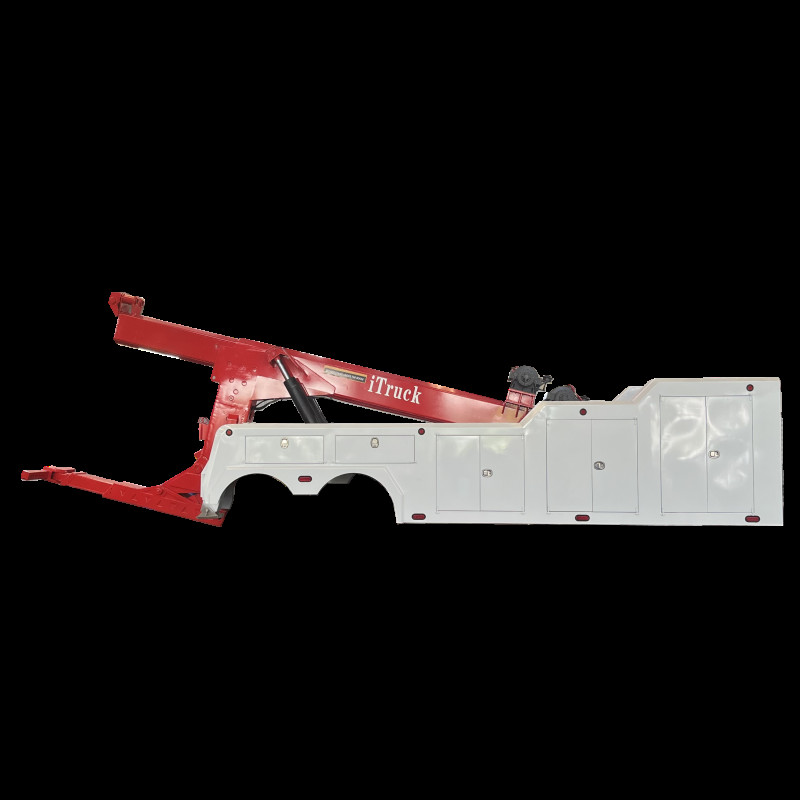

20 TONS BOOM AND UNDERLIFT HEAVY DUTY INTEGRATED WRECKER RECOVERY TRUCK BODY
Product Description

The heavy duty integrated series have different capacities from 20 tons to 50 tons.



BUILT FOR STRENGTH, RELIABILITY AND DURABILITY



The 20 tons integrated wrecker features a 44,500 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.


Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 20 Tons / 44,500 lbs. Underlift Capacity, Tow Rate At Least 40 Tons / 88,800 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers

Specs
20 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 20 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller/ extra winch is optional,

extra USD2,500

3 Under lift Under lift G70 material, 3 stage
4 Boom Boom G70 material, 2 stage, hexagon
5 Legs Rear Hydraulic rear supporting legs Front support legs extra USD3,500
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD5,000

8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V

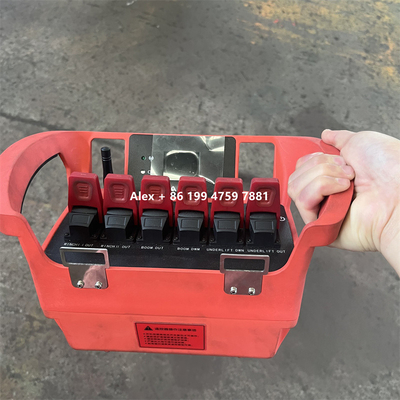

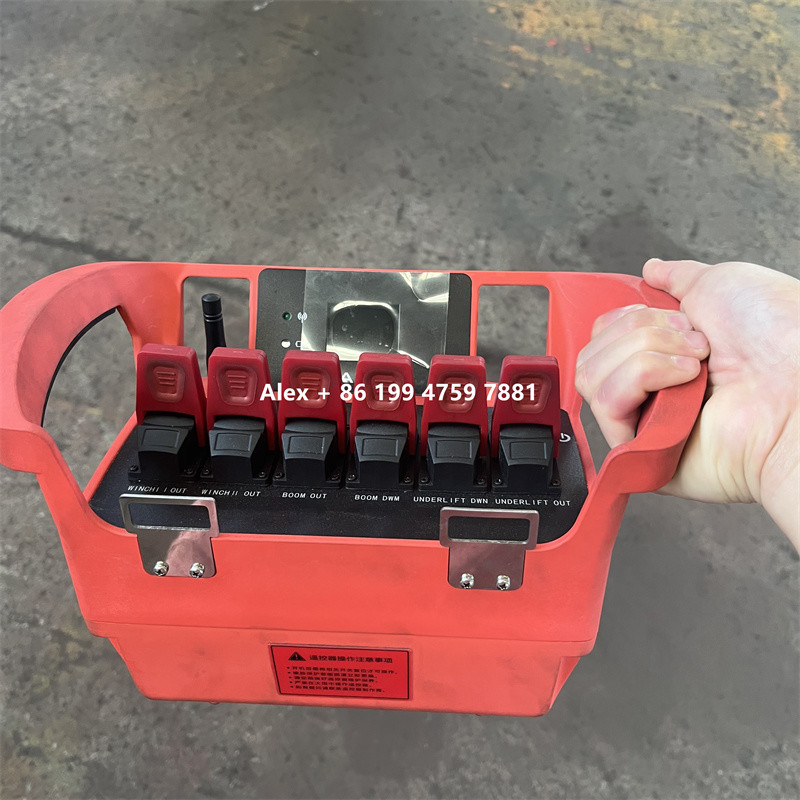

9 Control Remote Wireless Control Button remote control

Joystick type remote control, English

Display, optional, extra USD2,000

    Hand Manual Control

On Lift and Right Sides,

English Indication


10 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves Italy
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting

Primer and surface normal

painting

All subframe with boom, under lift

and tool box EP painting optional,

extra USD2,500

    Surface Painting Epoxy Resin
    Indication English Indication and Marks
    Packaging

Boxes and under lift protected

for the painting


Specifications
1 Underlift Retracted Lifting Capacity 20000 kg
    Retracted Length 1746 mm
    Extended Lifting Capacity 6500 kg
    Extended Length 3110 mm
    Undelift Tilt -10 °
    Towing Capacity 40 ton
2 Boom Retracted Lifting Capacity (45°) 20 ton
    Extended Lifting Capacity (45°) 12 ton
    Max. Lifting Tilt 33 °
    Max. Lifting Height 7022 mm

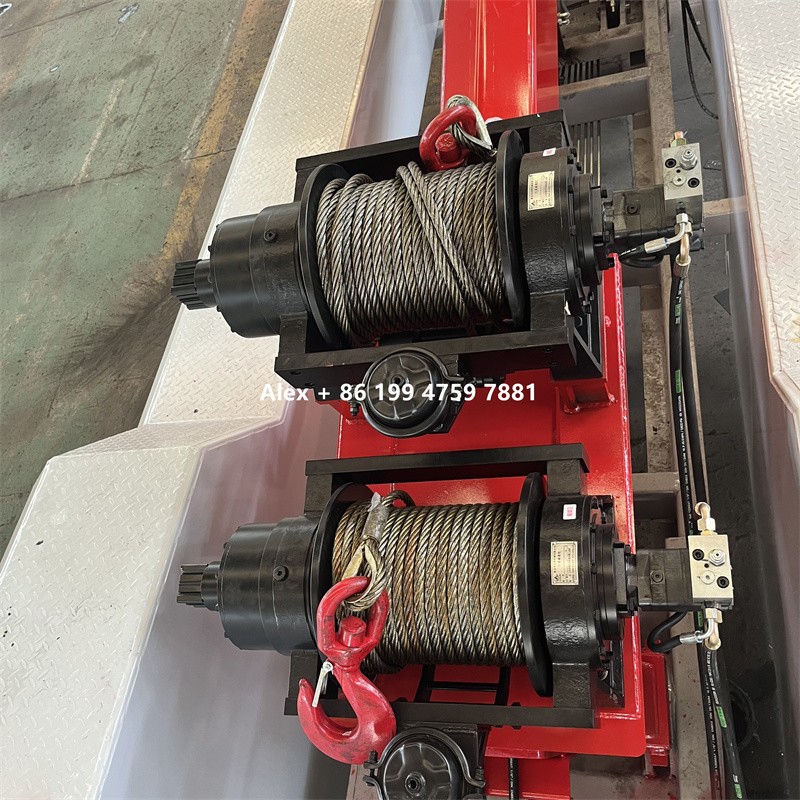

3 Main Winches Quantity 2 pcs
    Pulling Power 10 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
