30 Tons 360 Full Rotator Rotary Towing Truck Body Wrecker Body Custom Made
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $51000/units |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 75 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rotator | Dimensions (L X W X H) (mm) | Custom Made To Fit Your Truck |
|---|---|---|---|
| Condition | New | Drive Type | 6*4 Driving/8x4 Driving |
| WheelBase | As Required | Main Winch | 15 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 3 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | towing truck body Custom Made,30 Tons towing truck body,Wrecker Body Custom Made |
||
Product Description

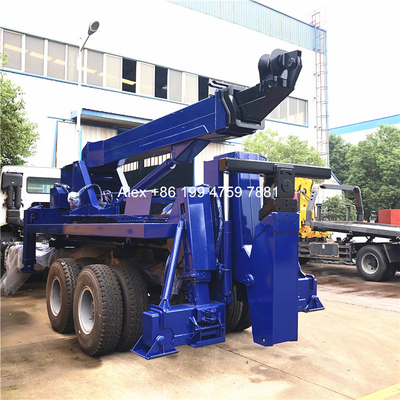

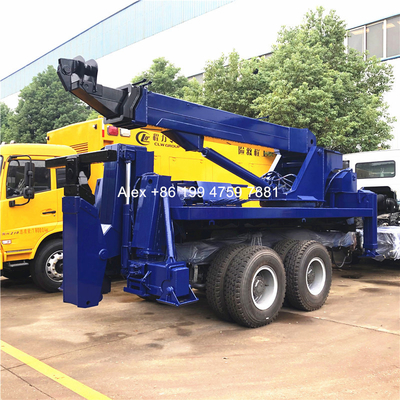

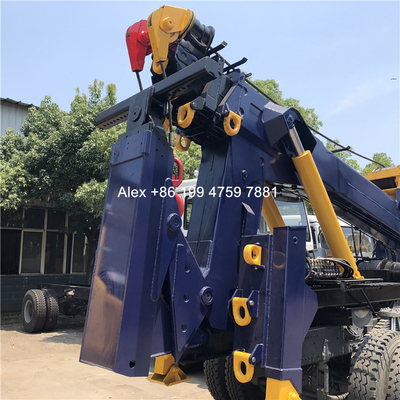

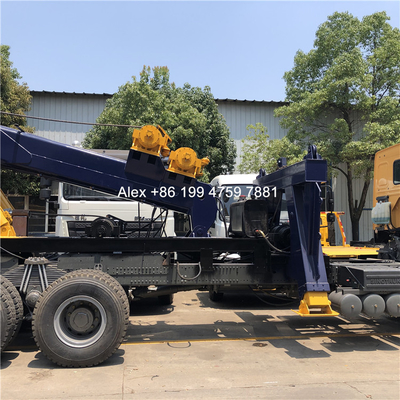

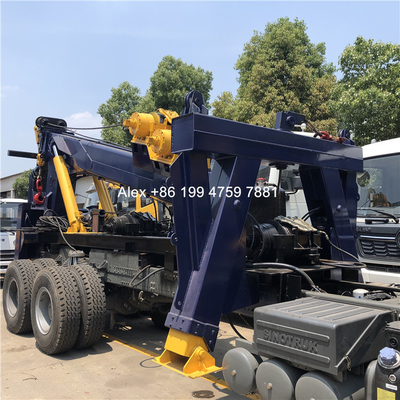

30 TONS 360 FULL ROTATOR ROTARY TOWING WRECKER BODY
Product Description
The rotator series has different capacities from 20 tons to 100 tons.
MAXIMUM STABILITY FOR MAXIMUM PERFORMANCE.
The strength and stability of the 30 tons rotator comes from the industry-leading scissor-style outriggers and unique frame design. The rotator also comes with standard joystick remote control, it supports stable and safe operation.
Main Features
1. 15 Tons / 33,300 lbs. Planetary Winch, 2 Pcs, Total 30 Tons / 66,600 lbs. Optional Multi Drag and Turret Winches.
2. 20 Tons / 44,500 lbs. Underlift Capacity, Tow Rate At Least 40 Tons / 88,800 lbs. Underlift Boom 3 Stages.
3. Continuous Boom Rotation, Recovery Boom 3 Stage
4. Joystick Remote Control
5. Optional Aluminum Tool Boxes
Specs
| 30 Tons Rotator Wrecker Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 30 Tons Rotator Wrecker | ||
| 2 | Winches | 2×15 Tons Main Winches | Additional winches are optional | |
| 3 | Under lift | Under lift | G70 material, 3 stage | |
| 4 | Boom | Boom | G70 material, 3 stage | |
| 5 | Legs | Hydraulic |
Hydraulic rear and front supporting legs |
|
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD5,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control | Button remote control |
Joystick type chest mount, English Display, extra USD2,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | Double pump | |
| Hydraulic Hose | ||||
| Hose Connector | ||||
| Valves | Italy | |||
| Cylinders | ||||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting |
Toolbox EP painting, other normal painting |
All subframe with boom and under lift EP painting optional, extra USD1,500 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 20000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 7310 | kg | ||
| Extended Length | 3492 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 40 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 30 | ton |
| Extended Lifting Capacity (45°) | 9 | ton | ||
| Max. Lifting Tilt | 65 | ° | ||
| Max. Lifting Height | 11529 | mm | ||
| Boom Hook(Max. Lifting Height)Away from Underlift(Folding) | 5219 | mm | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 15 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 60 | m | ||
| Steel Wire Diameter | 18 | mm | ||
