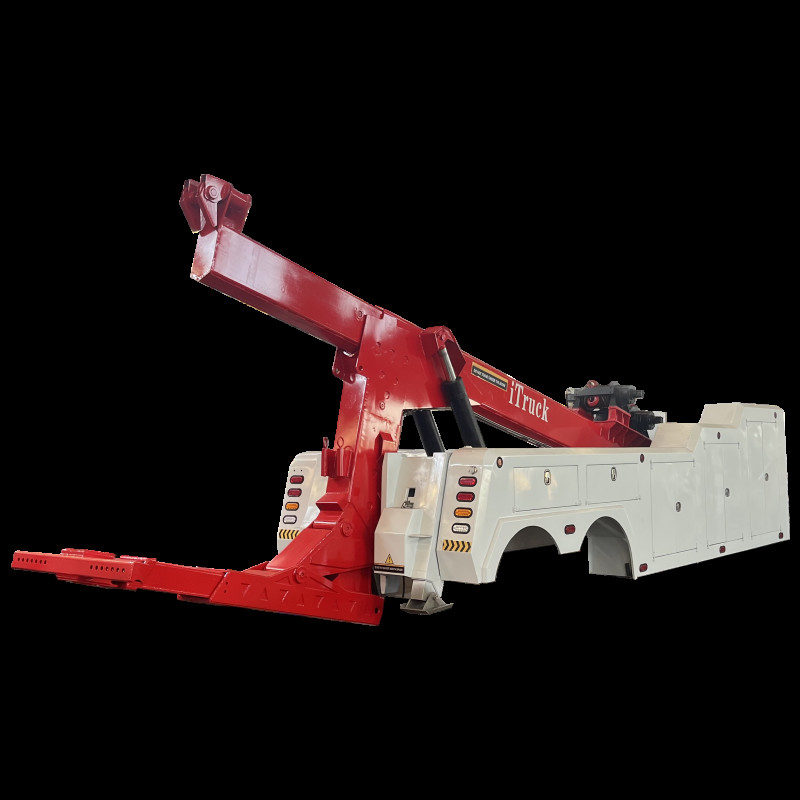

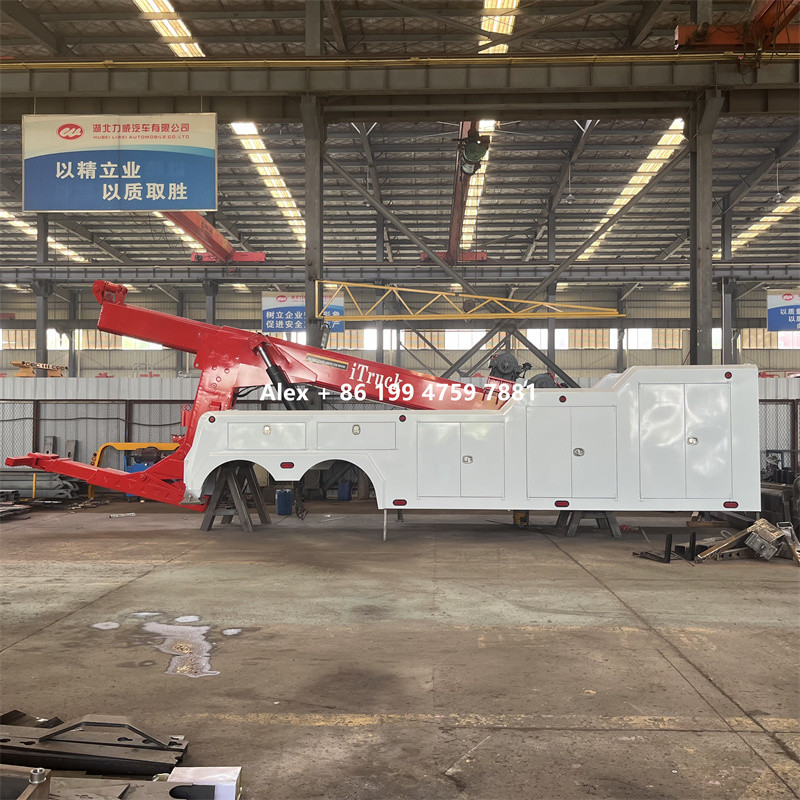

25 Ton Wrecker Body Integrated Underlift Boom Recovery Truck Body 44500 Lb.
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $26,500.00/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 60 days |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Integrated Wrecker Truck Body | Transmission Type | Manual |
|---|---|---|---|
| Dimensions (L X W X H) (mm) | Customs Made | Condition | New |
| WheelBase | As Required | Subframe | Equipped |
| Main Winch | 10 Tons, 2 Pcs | Underlift | 3 Sections, Optional 4 |
| Underlift Tow Rating | 25 Ton | Operation | Both Sides Manual |
| Remote Control | Optional | Warranty | 2 Year |
| Highlight | Recovery Truck Body 44500 Lb.,25 Ton Wrecker Body,Wrecker Body 44500 Lb. |
||
Product Description
| 25 Tons Wrecker Body Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 25 Tons Wrecker Body | ||
| 2 | Winches | 2×10 Tons Main Winches |
Side puller/ extra winch is optional, extra USD2,500 |
|
| 3 | Under lift | Under lift | G70 material, 3 stage | |
| 4 | Boom | Boom |
G70 material, 2 stage, hexagon |
|
| 5 | Legs | Rear | Hydraulic rear supporting legs |
Front supporting legs are extra USD3,500 or front outrigger extra USD5,000. |
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD5,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |

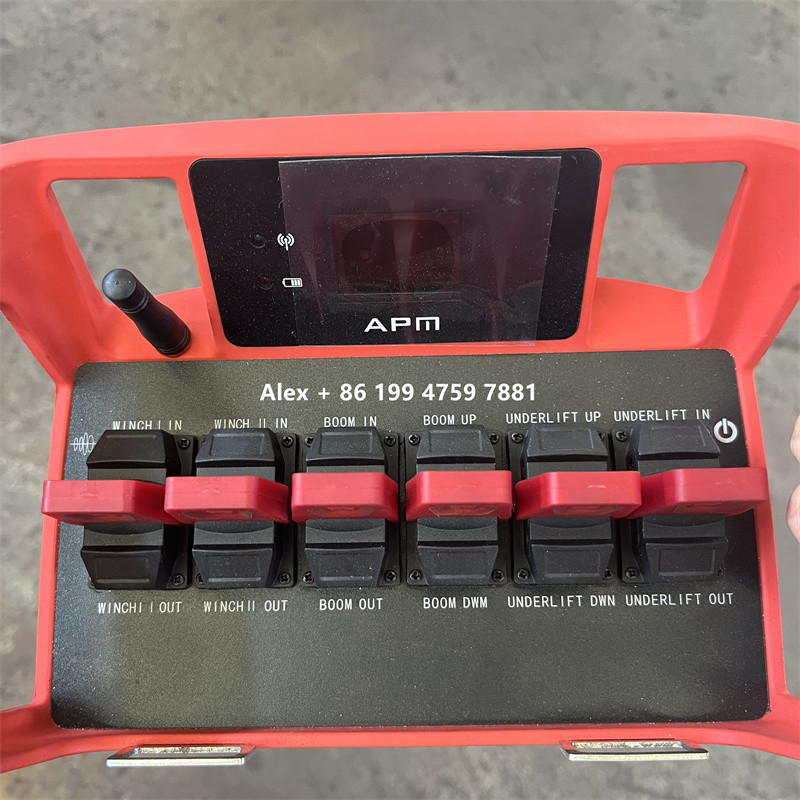

| 9 | Control | Remote Wireless Control | Button remote control |
Joystick type remote control, English Display, optional, extra USD2,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | ||
| Hydraulic Hose | ||||
| Hydraulic Connector | ||||
| Valves | ||||
| Cylinders | ||||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting | Primer and surface painting |
All subframe with boom, under lift and tool box EP painting optional, extra USD2,500 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Packaging |
Boxes and under lift protected for the painting |
|||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 25000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 7310 | kg | ||
| Extended Length | 3110 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 50 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 20 | ton |
| Extended Lifting Capacity (45°) | 12 | ton | ||
| Max. Lifting Tilt | 33 | ° | ||
| Max. Lifting Height | 7022 | mm | ||

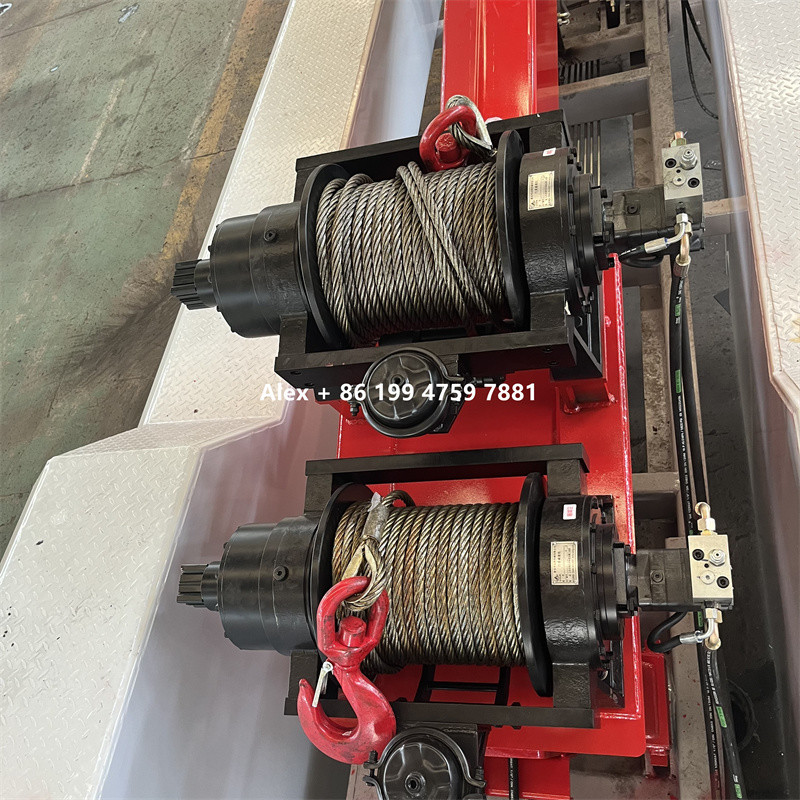

| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 10 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 18 | mm | ||
