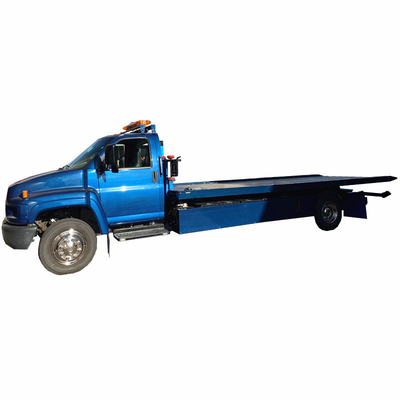

Roll Off System Lay Flat Slide Tilt Tray 5 Tons Wrecker Flatbed
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $9,000.00/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 25 days |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Lay Flat Wrecker Bed | Dimensions (L X W X H) (mm) | Customs Made |
|---|---|---|---|
| Condition | New | WheelBase | As Required |
| Subframe | Equipped | Main Winch | 5 Tons |
| Underlift | 2 Sections, 5 Tons | Underlift Tow Rating | 10 Tons |
| Operation | Both Sides Manual | Remote Control | Optional |
| Warranty | 1 Year | ||
| Highlight | 5 Tons Wrecker Flatbed,Slide Tilt Tray 5 Tons,Roll Off System Slide Tilt Tray |
||
Product Description
1. Fully Hydraulic Powered and Style Customs Made
2. 11,000 lbs. Planetary Winch
3. 11,000 lbs. Bed Capacity
4. Roll Off System Allow the Best Load Angle
5. Optional Remote Control
| 6 Tons Double Deck Wrecker Body | ||
| General Settings | Color |
Customizable, electrophoresis painting is optional |
| Winch Capacity | 4 tons | |
| First Deck Lift Capacity | 6 tons | |
| Second Deck Lift Capacity | 3 tons | |
| Extension Capacity | 6 tons | |
| Underlift Capacity | 5 tons (tow up to 10 tons) | |
| Platform Material | Q235R, 3/4mm thick | |
| Platform Type | Checkered | |
| Platform Dimension |
Around 7200 x 2400 mm for first deck, 4600 x 2200 mm for second deck |
|
| Wireless Remote Control | Optional, extra USD500 | |
| Subframe with Underlift | Match to chassis | |
| Lights | Siren Long Lamp with Speaker | 1 pcs |
| Sides Lights | 8 pcs | |
| Frame Lights with Lights Seat | 6 pcs | |
| Hydraulic System | Bed Extension Cylinder with Seat | 1 pcs |
| Bed Lift Cylinder with Seat | 2 + 2 pcs | |
| Underlift lift Cylinder | 2 pcs | |
| Underlift Extension Cylinder | 1 pcs | |

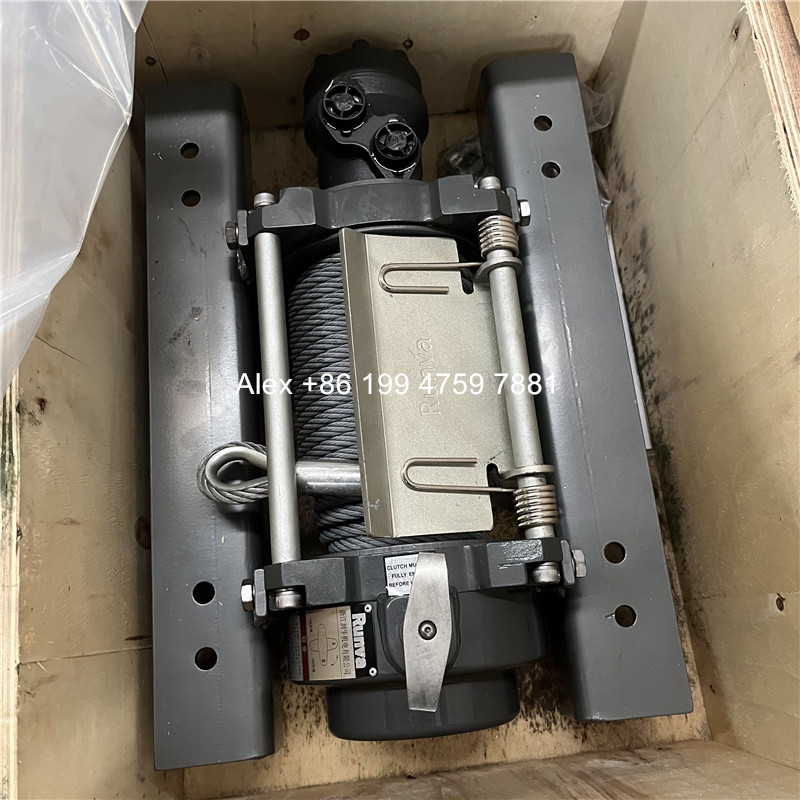

| Hydraulic Winch | 1 pcs | |
| Hydraulic Pump | 1 pcs | |
| Hydraulic Multi Way Valve | 1 pcs | |
| Hydraulic Balance Valve | 3 pcs (2 for lifts and 1 for underlift) | |
| Hydraulic Hose | 1 set | |
| Hydraulic Hose Containment | 1 set | |
| Hose Sleeve | 1 pcs | |

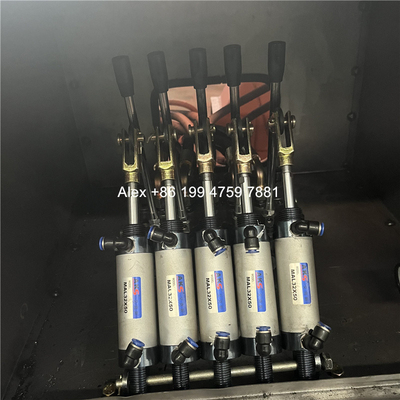

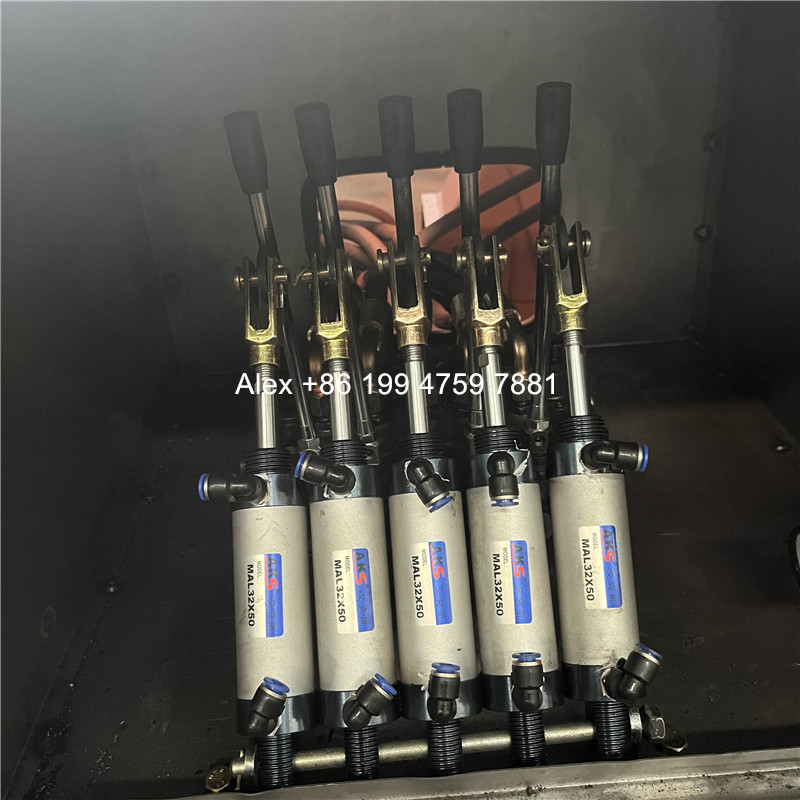

| Manual Control with Stainless Steel Seat | 2 sets (on both sides) | |
| Oil Tank | 1 pcs | |
| Accessories | Wheel Dollies | 2 pcs |
| Straps | 4 pcs | |
| Toolbox | 2 pcs | |
| Wheel Grids | 2 pcs | |
| L arms | 2 pcs | |
| Fence | 2 pcs | |
| Mudflap | 2 pcs | |
| Lamp Frame | 1 pcs | |
| Bed Position Limit | 1 set | |
| Frame and Lights Bolts | 1 set | |
| Tool Box and Fence Brackets Square Tube | 1 set | |
