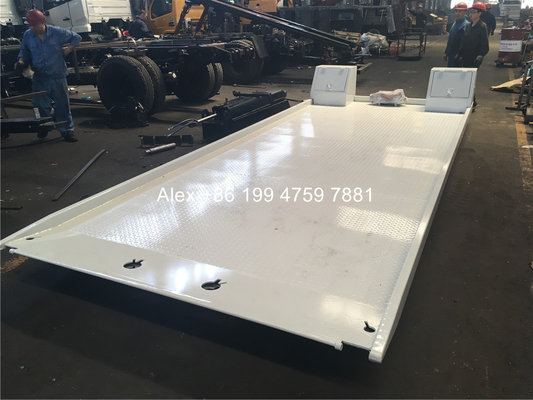

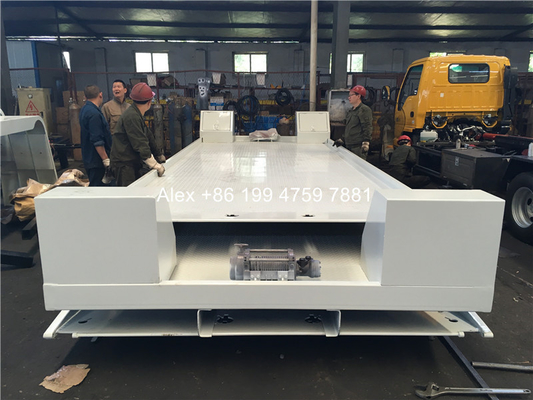

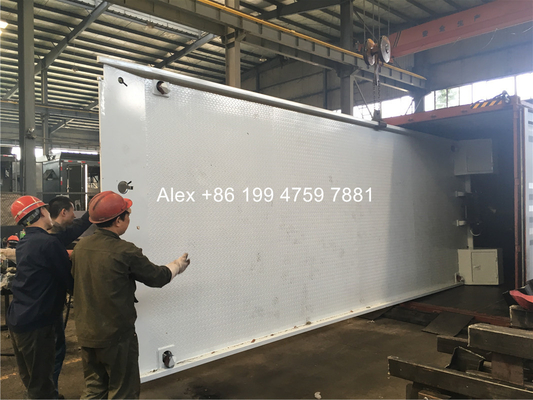

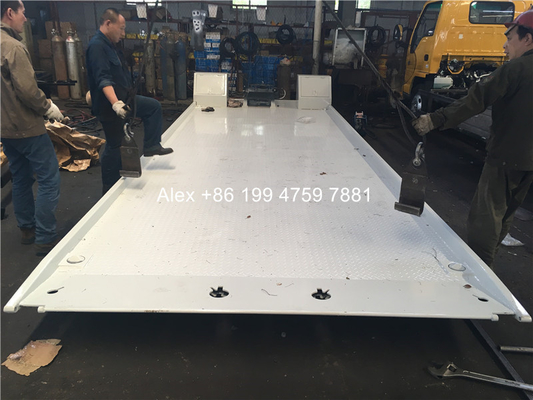

6 Tons Crane Platform Wrecker Flatbed Body Tilt Flatbed Truck Bed Custom Made
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $8,500.00/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 15 days |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rallback Deck | Dimensions (L X W X H) (mm) | Customs Made |
|---|---|---|---|
| Condition | New | WheelBase | As Required |
| Subframe | Equipped | Main Winch | 6 Tons |
| Underlift | 2 Sections, 5 Tons | Underlift Tow Rating | 10 Tons |
| Operation | Both Sides Manual | Remote Control | Optional |
| Warranty | 1 Year | ||
| Highlight | 6 Tons Wrecker Flatbed,6 Tons Tilt Flatbed Truck Bed,Custom Made Wrecker Flatbed |
||
Product Description
| 6 Tons Slide Type Tilt Tray | ||
| General Settings | Color |
Customizable, electrophoresis painting is optional |
| Winch Capacity | 6 tons | |
| Lift Capacity | 6 tons | |
| Extension Capacity | 6 tons | |
| Underlift Capacity | 6 tons (tow up to 12 tons) | |
| Platform Material | Q235B, 5mm thick | |
| Platform Type | Checkered | |
| Platform Dimension |
Around 6500 x 2500 mm (dimension customizable) |
|
| Wireless Remote Control | Optional, extra USD500 | |
| Subframe with Underlift | Match to chassis | |
| Lights | Siren Long Lamp with Speaker | 1 pcs |
| Sides Lights | 8 pcs | |
| Frame Lights with Lights Seat | 6 pcs | |
| Hydraulic System | Bed Extension Cylinder with Seat | 1 pcs |
| Bed Lift Cylinder with Seat | 2 pcs | |
| Underlift lift Cylinder | 2 pcs | |
| Underlift Extension Cylinder | 1 pcs | |

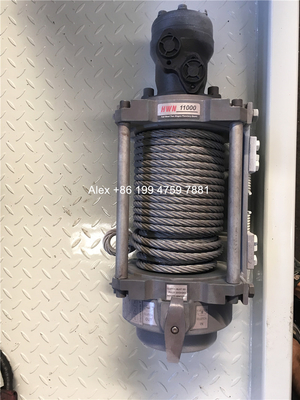

| Hydraulic Winch | 1 pcs | |
| Hydraulic Pump | 1 pcs | |
| Hydraulic Multi Way Valve | 1 pcs | |
| Hydraulic Balance Valve | 2 pcs (1 for lift and 1 for underlift) | |
| Hydraulic Hose | 1 set | |
| Hydraulic Hose Containment | 1 set | |
| Hose Sleeve | 1 pcs | |
| Manual Control with Stainless Steel Seat | 2 sets (on both sides) | |
| Oil Tank | 1 pcs | |
| Accessories | Wheel Dollies | 2 pcs |
| Straps | 4 pcs | |
| Toolbox | 2 pcs | |
| Wheel Grids | 2 pcs | |
| L arms | 2 pcs | |
| Fence | 2 pcs | |
| Mudflap | 2 pcs | |
| Lamp Frame | 1 pcs | |
| Bed Position Limit | 1 set | |
| Frame and Lights Bolts | 1 set | |
| Tool Box and Fence Brackets Square Tube | 1 set | |
