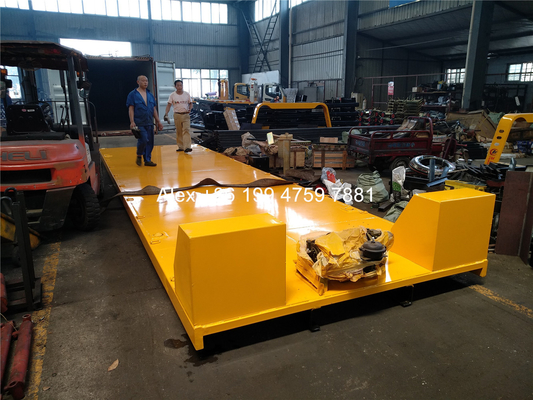

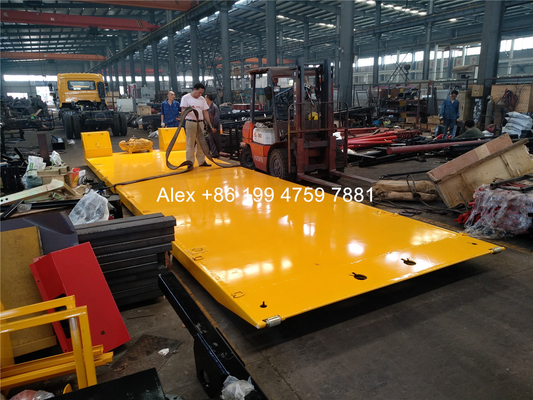

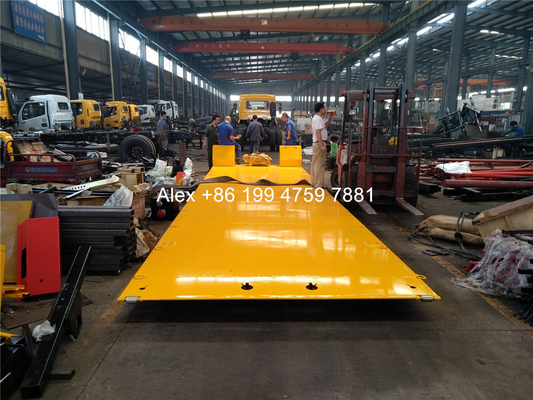

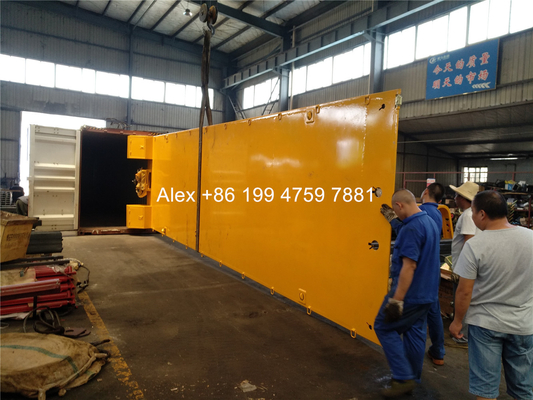

10 Tons 12 Tons Heavy Duty Tow Truck Tilt Tray For Twin Axles Truck Style Cutomizable
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $14,500.00- 16,500/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 25 days |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Slide And Tilt Truck Bed, Medium Duty | Dimensions (L X W X H) (mm) | Customs Made |
|---|---|---|---|
| Condition | New | WheelBase | As Required |
| Subframe | Equipped | Main Winch | 10-12 Tons |
| Underlift | 3 Sections, 10-12 Tons | Underlift Tow Rating | 20 Tons |
| Operation | Both Sides Manual | Remote Control | Optional |
| Warranty | 1 Year | ||
| Highlight | 10 Tons Tow Truck Tilt Tray,12 Tons Tow Truck Tilt Tray,Cutomizable truck tilt bed |
||
Product Description
| 10 - 12 Tons Slide Type Tilt Tray | ||
| General Settings | Color |
Customizable, electrophoresis painting is optional |
| Winch Capacity | 10 - 12 tons | |
| Lift Capacity | 10 - 12 tons | |
| Extension Capacity | 10 - 12 tons | |
| Underlift Capacity | 10 tons (towing up to 20 tons) | |
| Platform Material | Q235B, 6 -8 mm thick | |
| Platform Type | Smooth or checkered | |
| Platform Dimension | 8000-9000 x 2500 mm | |
| Wireless Remote Control | Equipped | |
| Subframe with Underlift | Equipped and match to chassis | |
| Lights | Siren Long Lamp with Speaker | 1 pcs |
| Sides Lights | 10 pcs | |
| Frame Lights with Lights Seat | 8 pcs | |
| Hydraulic System | Bed Extension Cylinder with Seat | 1 pcs |
| Bed Lift Cylinder with Seat | 2 pcs | |
| Supporting Legs Cylinder | 2 pcs | |

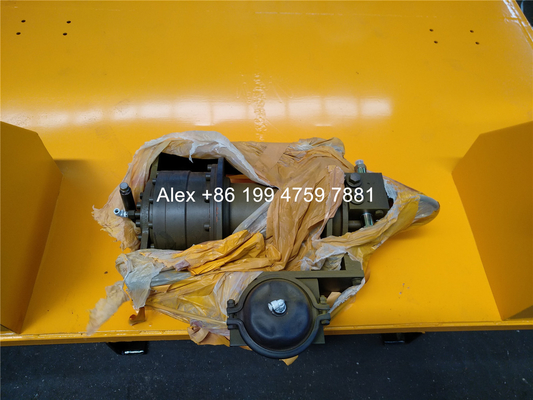

| Hydraulic Winch | 1 pcs | |
| Hydraulic Pump | 1 pcs | |
| Hydraulic Multi Way Valve | 1 pcs | |
| Hydraulic Balance Valve | 2 pcs (1 for lift and 1 for underlift) | |
| Hydraulic Hose | 1 set | |
| Hydraulic Hose Containment | 1 set | |
| Hose Sleeve | 1 pcs | |
| Manual Control with Stainless Steel Seat | 2 sets (on both sides) | |
| Oil Tank | 1 pcs | |
| Accessories | Wheel Trolleys | 2 pcs |
| Straps | 4 pcs | |
| Toolbox | 2 pcs | |
| Wheel Grids | 2 pcs | |
| L arms | 2 pcs | |
| Fence | 2 pcs | |
| Mudflap | 2 pcs | |
| Lamp Frame | 1 pcs | |
| Bed Position Limit | 1 set | |
| Frame and Lights Bolts | 1 set | |
| Toolbox and Fence Brackets Square Tube | 1 set | |
| Container Pins | 4 pcs | |
