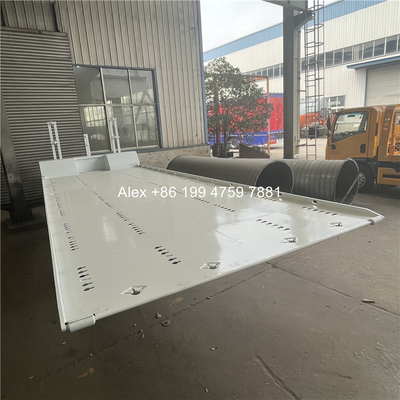

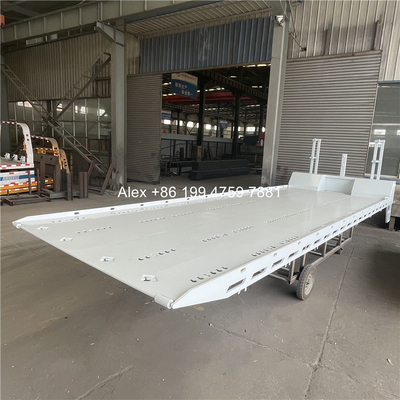

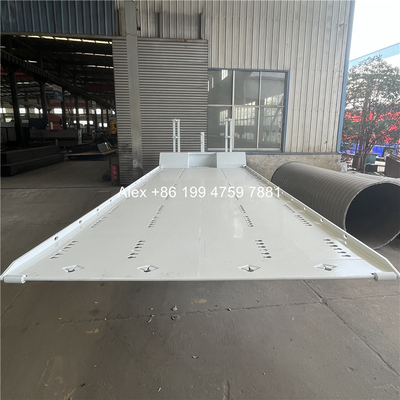

6 Tons 13500 Lbs Wrecker Bed Tow Truck Deck Width From 2.3m To 2.5m
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | iTruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | $10,000.00/units |
| Packaging Details | Nude, covered with film protection |
| Delivery Time | 30 days |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | AU Tilt Tray | Dimensions (L X W X H) (mm) | Customs Made |
|---|---|---|---|
| Condition | New | WheelBase | As Required |
| Subframe | Equipped | Main Winch | 4 - 20 Tons |
| Underlift | 3 Sections, 3 - 20 Tons | Underlift Tow Rating | 6 - 50 Tons |
| Operation | Both Sides Manual | Remote Control | Optional |
| Warranty | 2 Year | ||
| Highlight | 13500 Lbs Wrecker Bed,13500 Lbs Tow Truck Deck,Tow Truck Deck Width 2.3m |
||
Product Description
| AU Style Tilt Tray | ||
| General Settings | Color | As required, electrophoresis painting is optional |
| Winch Capacity | 4 - 20 tons | |
| Lift Capacity | 4 - 20 tons | |
| Extension Capacity | 4 - 20 tons | |
| Wheel lift or Stabilizer | 4 - 20 tons | |
| Platform Material | Q345R/G70/NM500/Hardox 450 | |
| Platform Type | Smooth | |
| Platform Dimension | 16.5ft-31.5ft | |
| Wireless Remote Control | Equipped | |
| Subframe with Wheel Lift or Stabilizer | Match to chassis | |
| Lights | Siren Long Lamp with Speaker | 1 pcs |
| Sides Lights | 16 pcs | |
| Frame Lights | 6 pcs | |
| Hydraulic System | Bed Extension Cylinder with Seat | 1 pcs |
| Bed Lift Cylinder with Seat | 2 pcs (inside or outside the mainframe as required) | |
| Wheel Lift/Stabilizer Cylinder | 2 pcs | |
| Hydraulic Winch | 1 pcs (center located) | |
| Hydraulic Pump | 1 pcs | |
| Hydraulic Multi Way Valve | 1 pcs | |
| Hydraulic Balance Valve | 2 pcs (1 for lift and 1 for wheel lift or stabilizer) | |
| Hydraulic Hose | 1 set | |
| Hydraulic Hose Containment | 1 set | |
| Hose Sleeve | 1 pcs | |
| Manual Control with Stainless Steel Seat | 2 sets (on both sides) | |
| Oil Tank | 1 pcs | |
| Accessories | Quicklash | 2 pcs |
| Toolbox | 2 pcs | |
| Wheel Dolly | 2 pcs | |
| L Arms | 2 pcs (for with wheel lift) | |
| Wheel Grids | 2 pcs (for with wheel lift) | |
| Fence | 2 pcs | |
| Mudflap | 2 pcs | |
| Lamp Frame | 1 pcs | |
| Bed Supporting Racks | as required if lift cylinder inside the main frame | |
| Bed Position Limit | 1 set | |
| Frame and Lights Bolts | 1 set | |
| Toolbox and Fence Brackets Square Tube | 1 set | |
