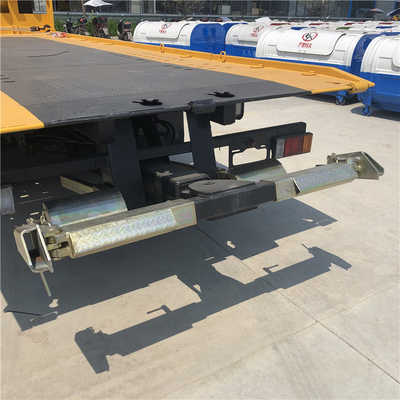

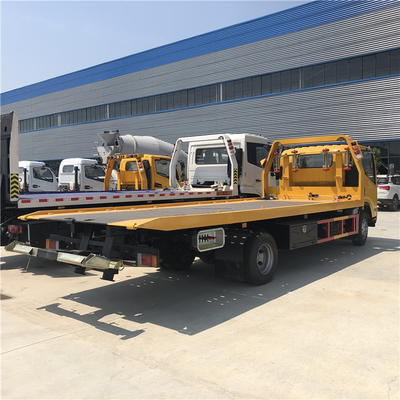

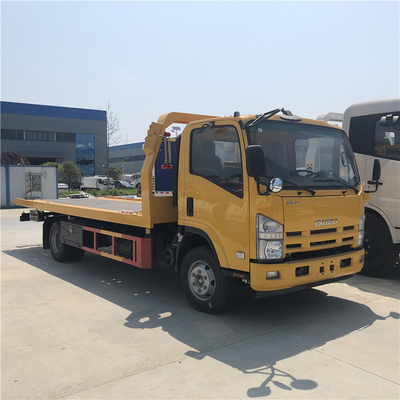

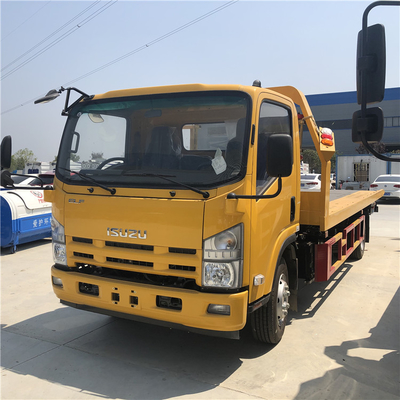

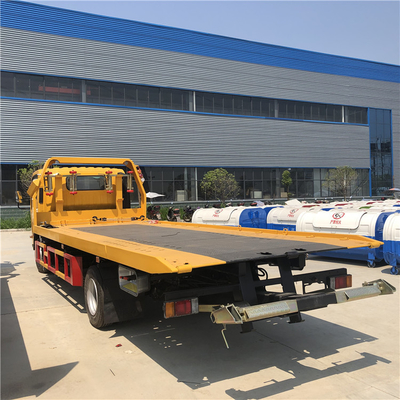

6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift

  • 6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift
  • 6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift
  • 6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift
  • 6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift
  • 6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift
Place of Origin Hubei, China
Brand Name ISUZU
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude
Delivery Time 15 days
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flatbed Wrecker Truck Dimensions (L X W X H) (mm) 8490x2350x2700mm
Condition New Main Winch 6 Tons
Underlift 2 Sections, 5 Tons Underlift Tow Rating 10 Tons
Operation Both Sides Manual Remote Control Optional
Warranty 1 Year Bed Dimension 7000x2350mm
Highlight

6 Tons light duty flatbed tow truck

,

700p light duty flatbed tow truck

,

700p flat bed tow trucks
Leave a Message
Product Description

6 TONS 700P ISUZU JAPAN PLATFORM TOW TRUCK ROLLBACK FLATBED WRECKER TOW TRUCK
Product Description

The 6 tons flatbed wrecker truck is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.



The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4.

Other special requirements you want.


Main Features
1. Bed Length 7m. Capacity 6 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.

Truck Specs
6 Tons ISUZU Flatbed Wrecker Truck
Overview
Name 6 Tons ISUZU Flatbed Wrecker Truck
Dimension(LxWxH) 8490x2480x2380(mm)
Total Mass 12500 Kg
Rated Payload 6000 Kg
Kerb Weight 6500 Kg
Passenger 3
Approach/Departure Angle 18/10
The Parameters of Chassis
Manufacture/Model ISUZU/QL1100A8MAY
Driving Type 4*2 left hand drive
Wheel Base 4475 mm
Gearbox

MLD-6Q, six speed forward and

one reverse, manual
Tyre 235/75R17.5
The Number of Tyre 6+1(spare tyre)
Axle Front 4 tons and rear 7 tons
Leaf Spring Number 8/10+6
AC,Power Steer,ABS,Air Brake,Tilt Cab Equipped
The Paremeters of Engine
Manufacturer/Model ISUZU/4HK1-TC51
Rated Power 190hp/141kw
Fuel Type Diesel oil
Displacement/Capacity 5193ml
Emission Standard Euro 5
Cylinder

Straight/4/turbo charge/intercooling

/high pressure common rail
Max. torque 510N.m
Velocity 2600rpm

Body Specs
6 Tons Slide Type Tilt Tray
General Settings Color

Customizable, electrophoresis

painting is optional
  Winch Capacity 6 tons
  Lift Capacity 6 tons
  Extension Capacity 6 tons
  Underlift Capacity 6 tons (tow up to 12 tons)
  Platform Material Q235B, 5mm thick
  Platform Type Checkered
  Platform Dimension

Around 6500 x 2500 mm

(dimension customizable)
  Wireless Remote Control Optional, extra USD500
  Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
  Sides Lights 8 pcs
  Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
  Bed Lift Cylinder with Seat 2 pcs
  Underlift lift Cylinder 2 pcs
  Underlift Extension Cylinder 1 pcs
  Hydraulic Winch 1 pcs
  Hydraulic Pump 1 pcs
  Hydraulic Multi Way Valve 1 pcs
  Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
  Hydraulic Hose 1 set
  Hydraulic Hose Containment 1 set
  Hose Sleeve 1 pcs
  Manual Control with Stainless Steel Seat 2 sets (on both sides)
  Oil Tank 1 pcs
Accessories Wheel Dollies 2 pcs
  Straps 4 pcs
  Toolbox 2 pcs
  Wheel Grids 2 pcs
  L arms 2 pcs
  Fence 2 pcs
  Mudflap 2 pcs
  Lamp Frame 1 pcs
  Bed Position Limit 1 set
  Frame and Lights Bolts 1 set
  Tool Box and Fence Brackets Square Tube 1 set





6 Tons 700p Isuzu Japan Light Duty Flatbed Tow Truck With 2 Sections Underlift 0
