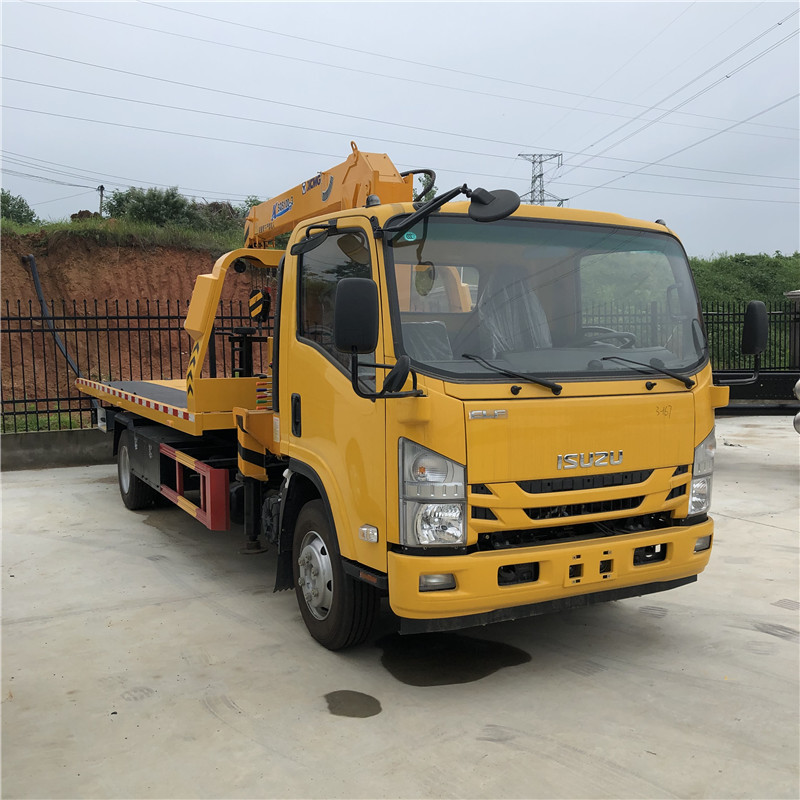

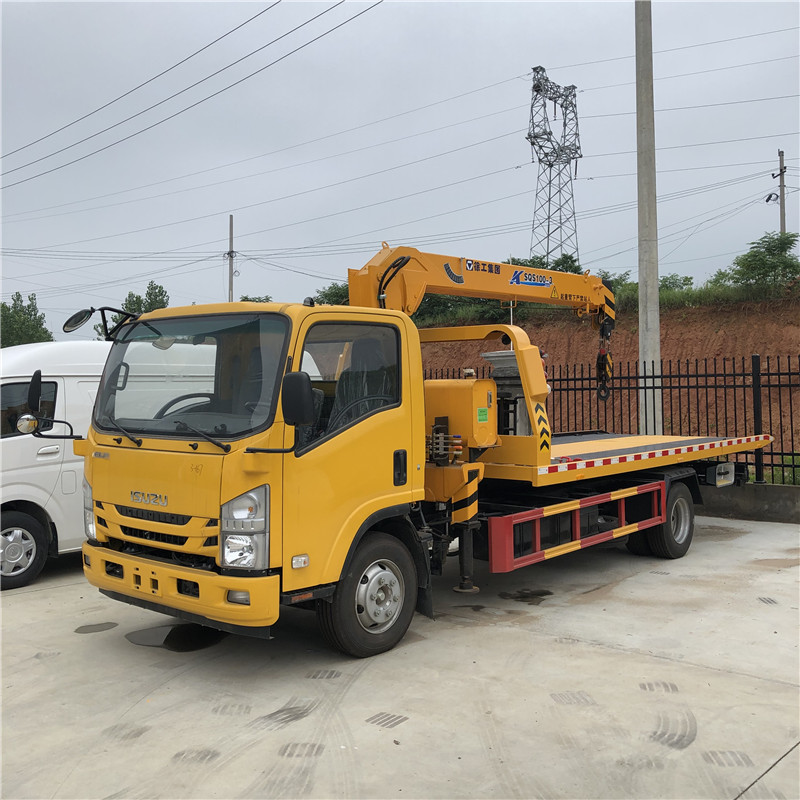

KV600 Isuzu 5 Ton Recovery Truck Flatbed Towtrucks With Crane

  • KV600 Isuzu 5 Ton Recovery Truck Flatbed Towtrucks With Crane
  • KV600 Isuzu 5 Ton Recovery Truck Flatbed Towtrucks With Crane
  • KV600 Isuzu 5 Ton Recovery Truck Flatbed Towtrucks With Crane
Place of Origin Hubei, China
Brand Name ISUZU
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude
Delivery Time 15 days
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flatbed Wrecker Truck Dimensions (L X W X H) (mm) 8350x2350x3300mm
Condition New Main Winch 5 Tons
Underlift 2 Sections, 5 Tons Underlift Tow Rating 10 Tons
Operation Both Sides Manual Remote Control Optional
Warranty 1 Year Bed Dimension 5600x2350mm
Highlight

KV600 5 Ton Recovery Truck

,

Flatbed Towtrucks With Crane

,

KV600 Flatbed Towtrucks
Leave a Message
Product Description
5 TONS KV600 ISUZU CRANE TRUCK BEDS RECOVERY TRUCK WRECKER MOUNTED TRUCK
Product Description

The 5 tons flatbed wrecker truck is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.



The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4.

Other special requirements you want.


Main Features
1. Bed Length 5.6 m. Capacity 5 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.

Truck Specs

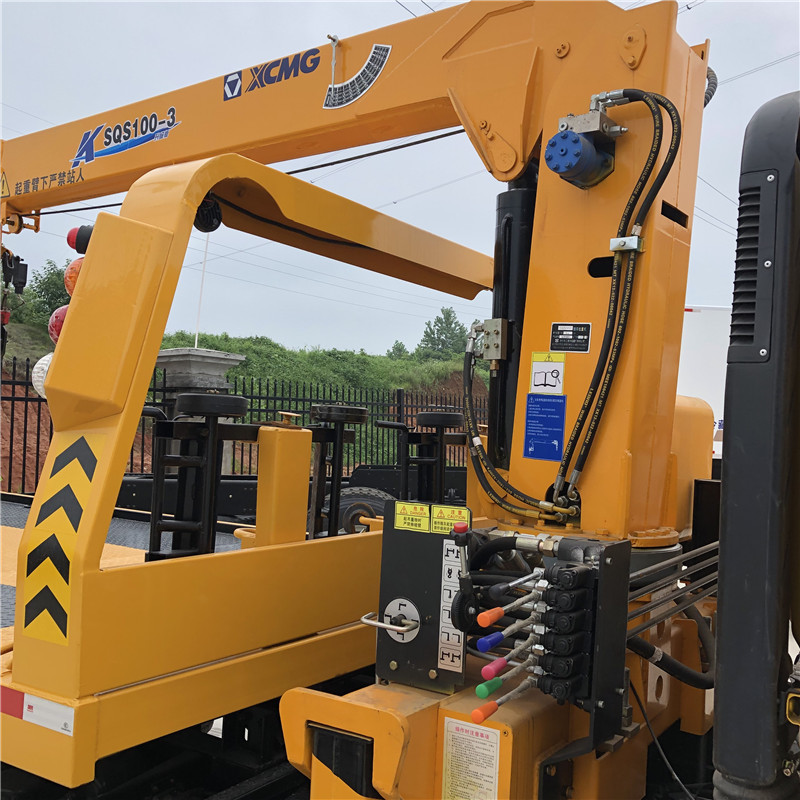

5 Tons ISUZU Flatbed Wrecker Truck with 3.2 Tons Crane
Overview
Name 5 Tons ISUZU Wrecker Truck with 3.2 Tons Crane
Dimension(LxWxH) 8450x2350x3300(mm)
Total Mass 11200 Kg
Rated Payload 5000 Kg
Kerb Weight 6200 Kg
Passenger 3
Approach/Departure Angle 21.5/11
The Parameters of Chassis
Manufacture/Model ISUZU
Driving Type 4*2 left hand drive
Wheel Base 4475 mm
Gearbox Five speed forward and one reverse, manual
Tyre 700R16
The Number of Tyre 6+1(spare tyre)
Axle Front 2.5 tons and rear 4.8 tons
AC,Power Steer,ABS,Air Brake,Tilt Cab Equipped
The Paremeters of Engine
Manufacturer/Model ISUZU/4KH1CN5HS
Rated Power 130hp/96kw
Fuel Type Diesel oil
Displacement/Capacity 2999ml
Emission Standard Euro 5
Cylinder Straight/4/turbo charge/intercooling/high pressure common rail
Max. torque 290N.m
Velocity 3400rpm

Body Specs
5 Tons Slide Type Tilt Tray
General Settings Color

Customizable, electrophoresis painting

is optional and extra USD400
  Winch Capacity 5 tons
  Lift Capacity 5 tons
  Extension Capacity 5 tons
  Underlift Capacity 5 tons
  Platform Material Q235B, 4mm thick
  Platform Type Checkered
  Platform Dimension 5600 x 2300 mm (customizable)
  Wireless Remote Control Optional
  Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
  Sides Lights 8 pcs
  Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
  Bed Lift Cylinder with Seat 2 pcs
  Underlift lift Cylinder 2 pcs
  Underlift Extension Cylinder 1 pcs
  Hydraulic Winch 1 pcs
  Hydraulic Pump 1 pcs
  Hydraulic Multi Way Valve 1 pcs
  Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
  Hydraulic Hose 1 set
  Hydraulic Hose Containment 1 set
  Hose Sleeve 1 pcs
  Manual Control with Stainless Steel Seat 2 sets (on both sides)
  Oil Tank 1 pcs
Accessories Auxiliary Wheels 2 pcs
  Straps 4 pcs
  Toolbox 2 pcs
  Wheel Grids 2 pcs
  L arms 2 pcs
  Fence 2 pcs
  Mudflap 2 pcs
  Lamp Frame 1 pcs
  Tow Chain 1 pcs
  Frame and Lights Bolts 1 set
  Toolbox and Fence Brackets Square Tube 1 set





KV600 Isuzu 5 Ton Recovery Truck Flatbed Towtrucks With Crane 0
