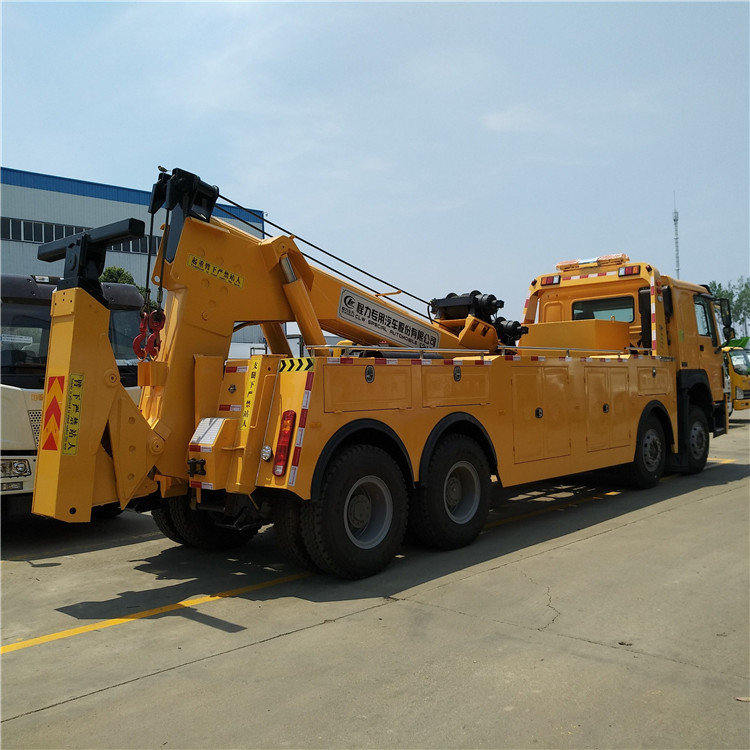

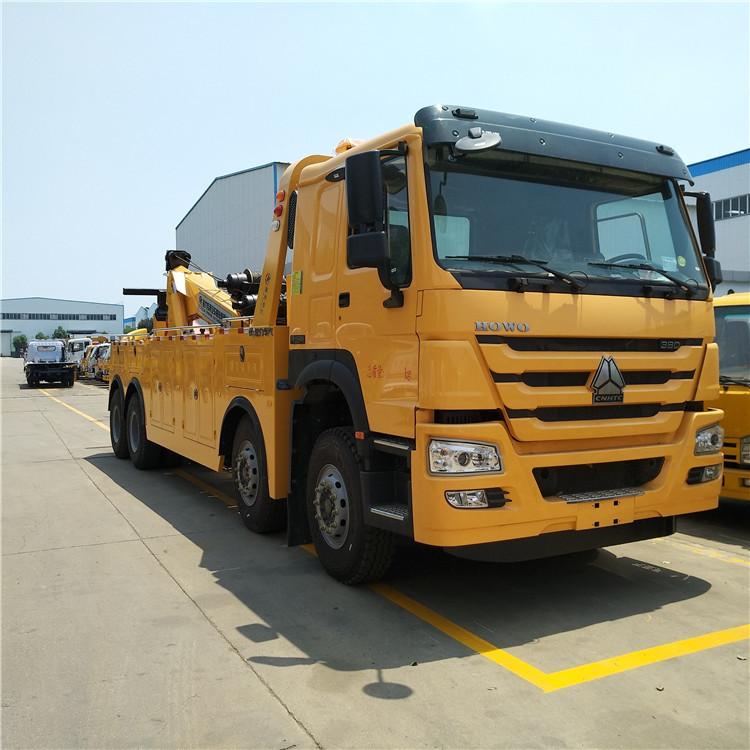

Howo 8x4 50 Tons 25 Tons Integrated Wrecker Truck Underlift Tow Truck

  • Howo 8x4 50 Tons 25 Tons Integrated Wrecker Truck Underlift Tow Truck
  • Howo 8x4 50 Tons 25 Tons Integrated Wrecker Truck Underlift Tow Truck
Place of Origin Hubei, China
Brand Name HOWO Sinotruck
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude, covered with film protection
Delivery Time 60 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Transmission Type Manual
Dimensions (L X W X H) (mm) Customs Made Condition New
Subframe Equipped Main Winch 10 Tons, 2 Pcs
Underlift 3 Sections, Optional 4 Underlift Tow Rating 25 Ton/50 Tons
Operation Both Sides Manual Remote Control Optional
Warranty 2 Year
Highlight

25 Tons Integrated Wrecker Truck

,

8x4 Wrecker Truck

,

25 Tons Underlift Tow Truck
Leave a Message
Product Description
25 TONS HOWO 8X4 50 TONS TOW RATE 25 TONS RECOVERY BOOM INTEGRATED WRECKER TRUCK
Product Description

The heavy duty integrated series have different capacities from 20 tons to 50 tons.



BUILT FOR STRENGTH, RELIABILITY AND DURABILITY



The 25 tons integrated wrecker features a 44,500 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.



Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 25 Tons / 55,500 lbs. Underlift Capacity, Tow Rate At Least 50 Tons / 111,000 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers

Truck Specs
25 Tons HOWO Integrated Wrecker
Overview
Name 25 Tons HOWO Integrated Wrecker
Dimension(LxWxH) 11310x2500x3500(mm)
Total Mass 31000Kg
Kerb Weight 20770Kg
Passenger 3
Approach/Departure Angle 16/18
The Parameters of Chassis
Manufacture/Model HOWO
Driving Type 8*4 right hand drive
Wheel Base 1800+3000+1350 mm
Gearbox HW19710,ten speed forward and two reverse, manual
Front/Rear Track 2022,2041,2022,2041/1830(mm)
Tyre 12.00R20
The Number of Tyre 12+1(spare tyre)
Front/Rear Suspension 1500/750(mm)
Leaf Spring Number 14,13/14,13/12
The Paremeters of Engine
Manufacturer/Model HOWO/D10.38-30
Rated Power 380hp
Fuel Type Diesel oil
Displacement/Capacity 9726ml
Emission Standard Euro 3
Cylinder In-line/6/watercooling/turbo charge/intercooling/common rail high pressure
Max. torque 1590N.m
Velocity 2000rpm

Body Specs
25 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 25 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller/ extra winch is optional,

extra USD2,500
3 Under lift Under lift G70 material, 3 stage
4 Boom Boom

G70 material, 2 stage,

hexagon


5 Legs Rear Hydraulic rear supporting legs

Front supporting legs are extra

USD3,500 or front outrigger

extra USD5,000.
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD5,000
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control

Joystick type remote control,

English Display, optional,

extra USD2,000
    Hand Manual Control

On Lift and Right Sides,

English

Indication


10 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Primer and surface painting

All subframe with boom, under lift

and tool box EP painting optional,

extra USD2,500
    Surface Painting Epoxy Resin
    Indication English Indication and Marks
    Packaging

Boxes and under lift protected

for the painting


Specifications
1 Underlift Retracted Lifting Capacity 25000 kg
    Retracted Length 1746 mm
    Extended Lifting Capacity 7310 kg
    Extended Length 3110 mm
    Undelift Tilt -10 °
    Towing Capacity 50 ton
2 Boom Retracted Lifting Capacity (45°) 20 ton
    Extended Lifting Capacity (45°) 12 ton
    Max. Lifting Tilt 33 °
    Max. Lifting Height 7022 mm
3 Main Winches Quantity 2 pcs
    Pulling Power 10 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
