4x4 Dongfeng RHD LHD Underlift Recovery Truck 16 Tons 18 Tons
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | Dongfeng |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 85 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Integrated Wrecker Truck | Condition | New |
|---|---|---|---|
| Drive Type | 4x4 Driving | Main Winch | 8 Tons/10 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 2 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | Underlift Recovery Truck 16 Tons,Underlift Recovery Truck 18 Tons,18 Tons underlift tow truck |
||
Product Description

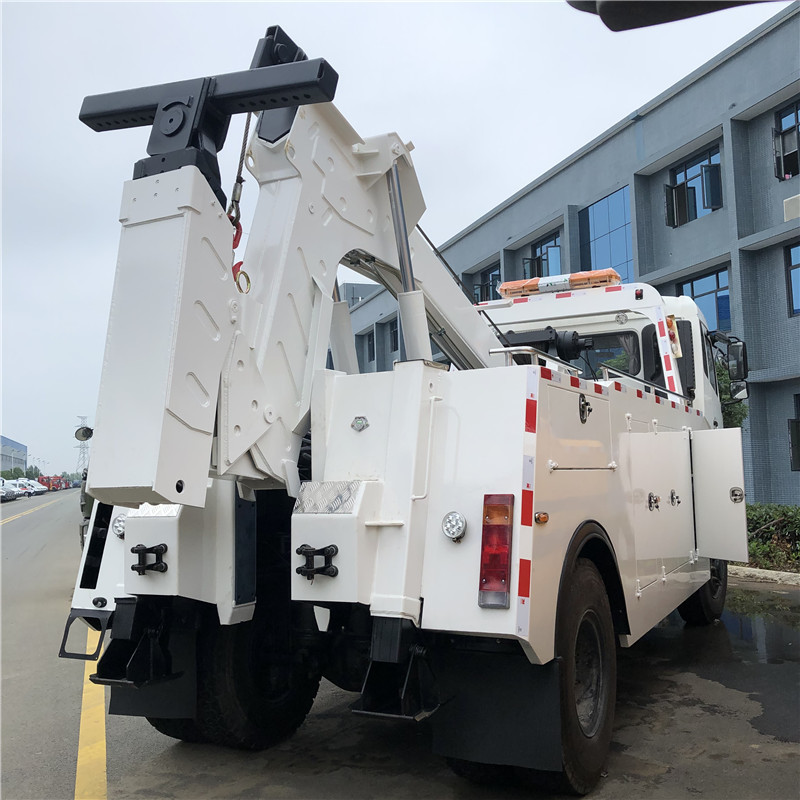

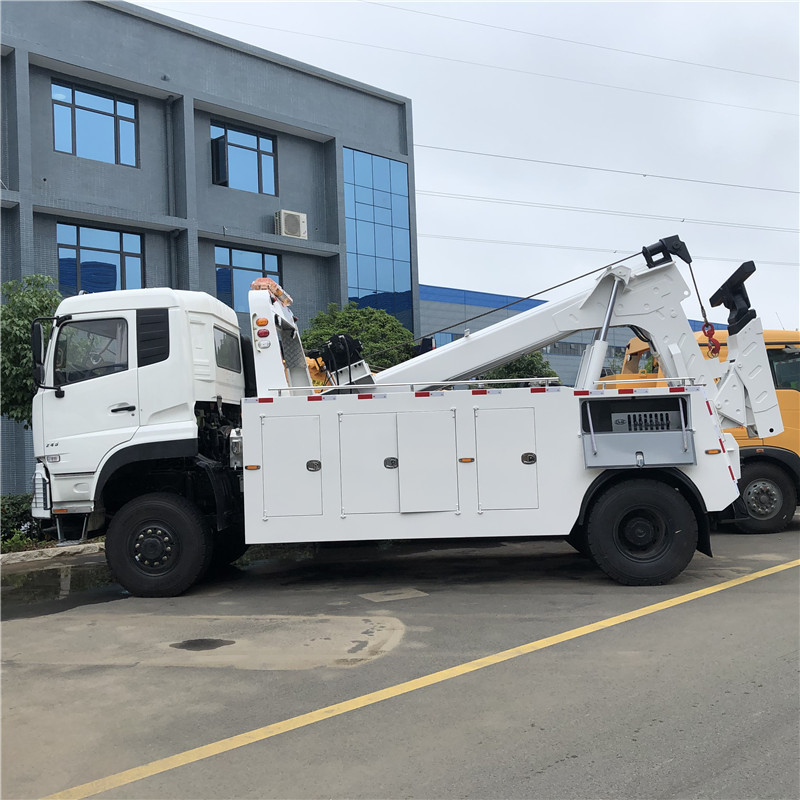

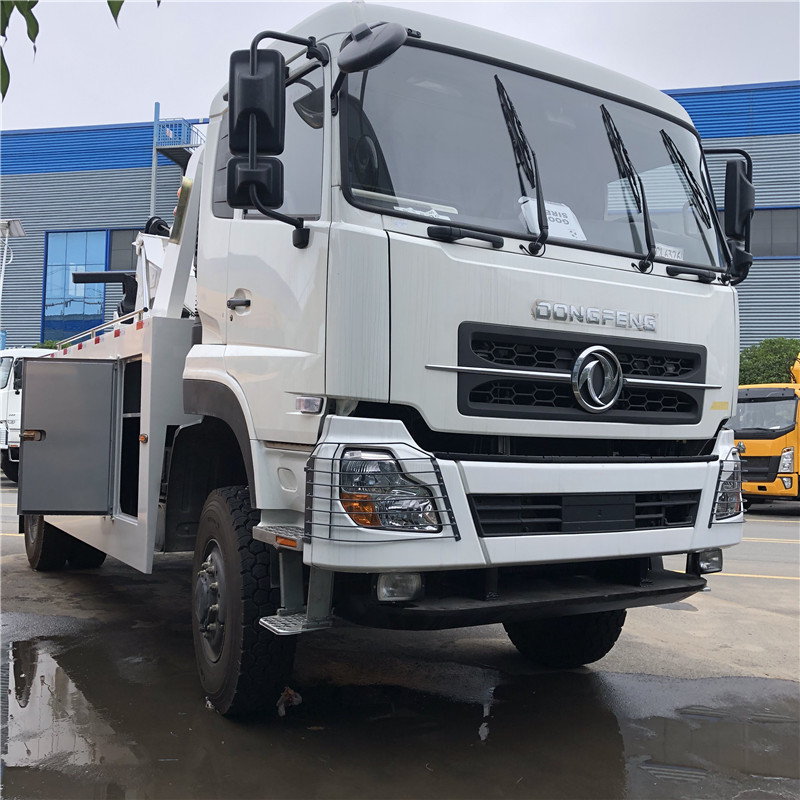

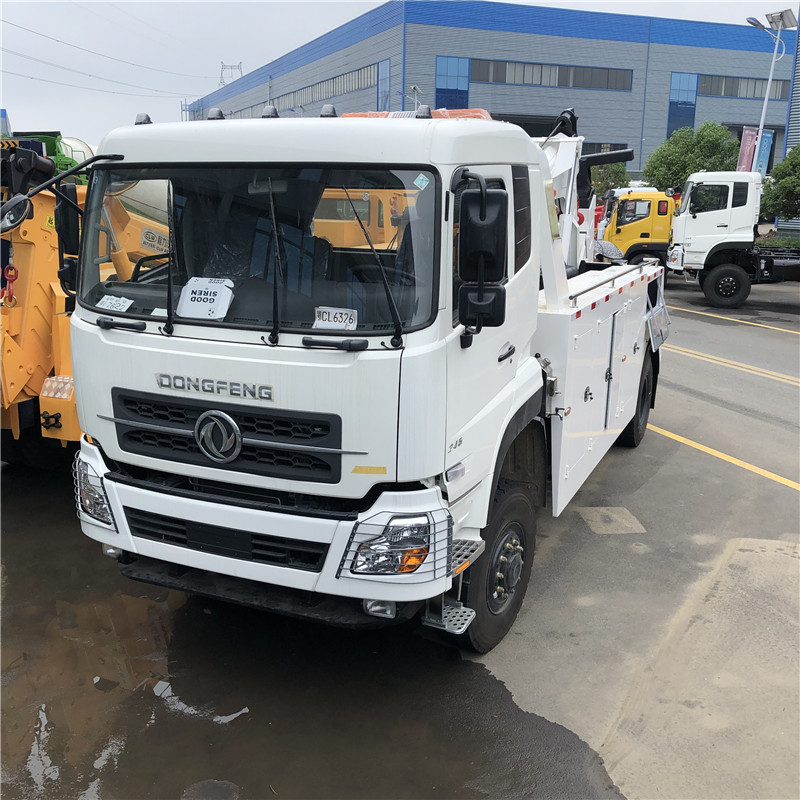

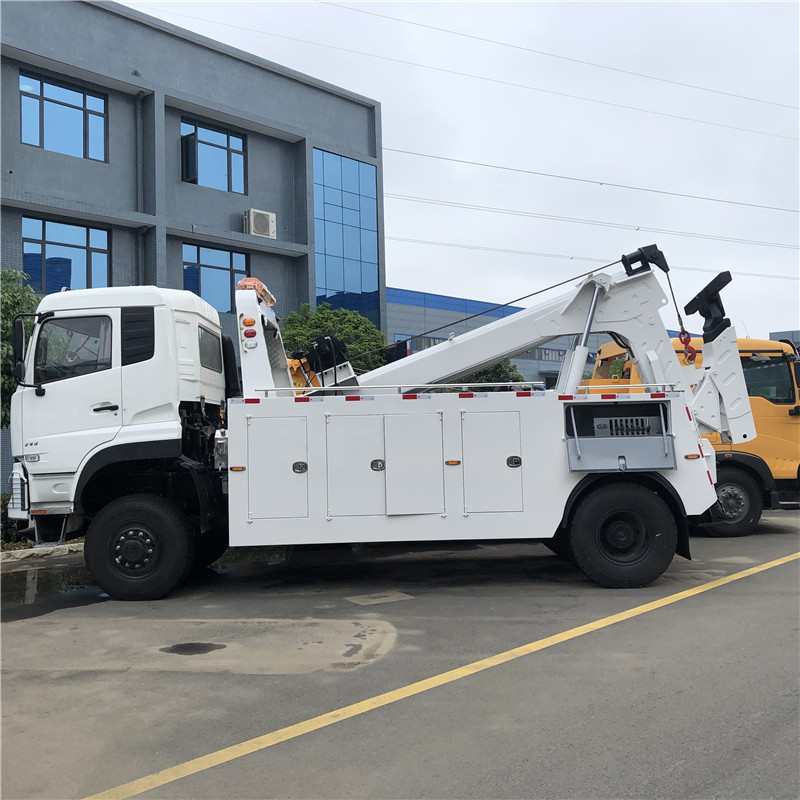

4X4 DONGFENG RHD LHD 16 TONS 18 TONS UNDERLIFT RECOVERY TRUCK
Body Specs
| 16 Tons Wrecker Body Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 16 Tons Wrecker Body | ||
| 2 | Winches | 2×10 Tons Main Winches |
Side puller (10 tons) is optional, extra USD2,500 |
|
| 3 | Underlift | Underlift | G70 material, 3 stage | |
| 4 | Boom | Boom | G70 material, 2 stage, hexagon | |
| 5 | Legs | Rear | Hydraulic rear supporting legs |
Front support legs are optional. Extra USD3,000 |
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD4,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control | Standard button remote control. |
Optional Joystick type remote control, English Display Extra USD2,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | ||
| Hydraulic Hose | ||||
| Hydraulic Connector | ||||
| Valves | Italy Hydrocontrol | |||
| Cylinders | ||||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting | Toolbox EP painting |
Subframe with boom and underlift EP painting extra USD1,500 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 12000 | kg |
| Retracted Length | 1505 | mm | ||
| Extended Lifting Capacity | 4200 | kg | ||
| Extended Length | 2760 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 24-36 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 18 | ton |
| Extended Lifting Capacity (45°) | 6.3 | ton | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 10 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 18 | mm | ||
