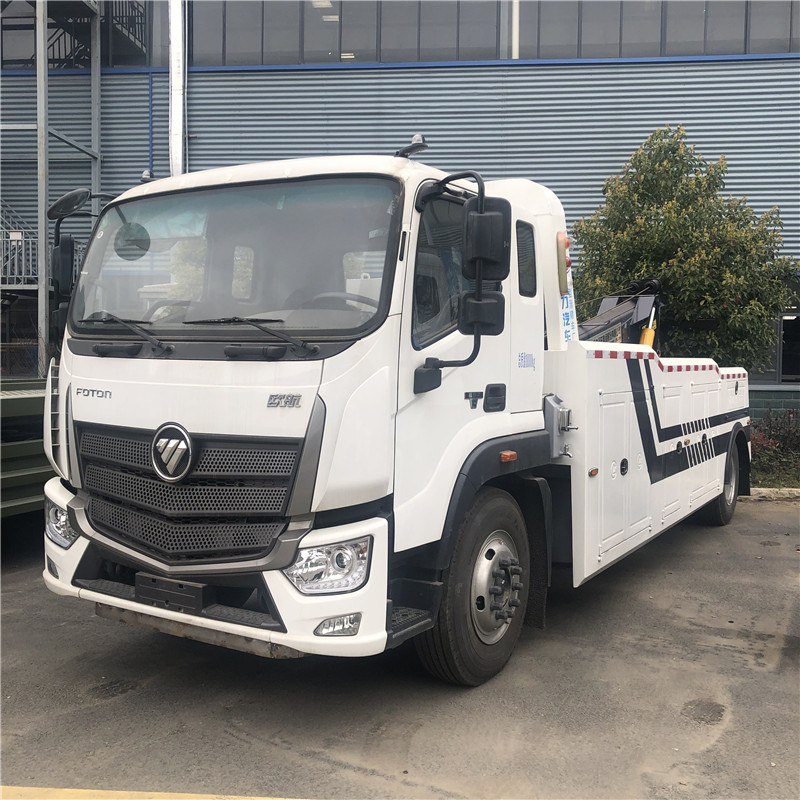

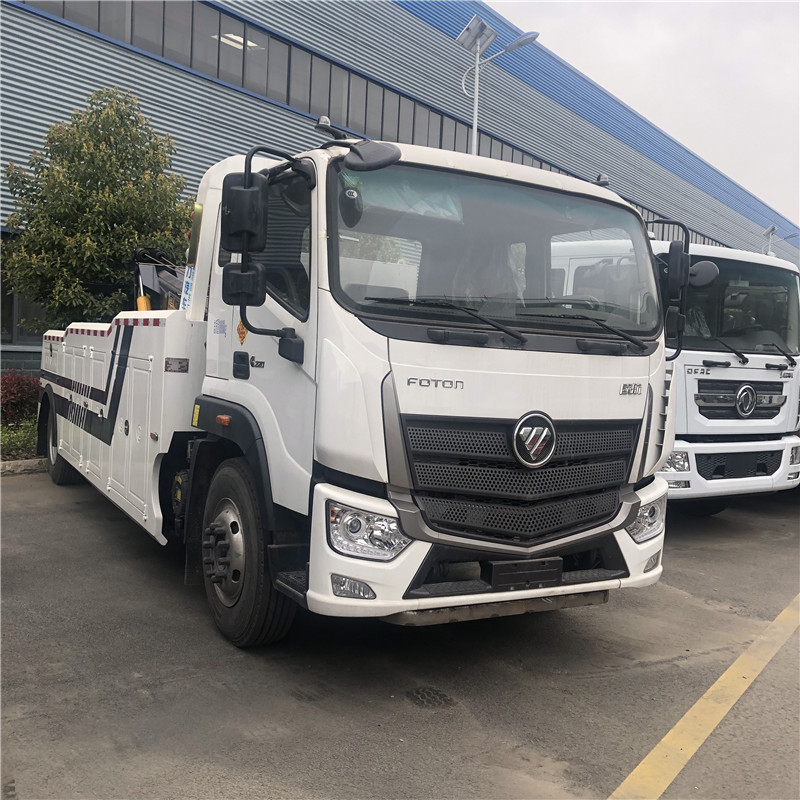

4x2 Foton 220hp Cummins Engine 12 Ton Tow Truck Towing Vehicle
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | Foton |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 85 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Integrated Wrecker Truck | Condition | New |
|---|---|---|---|
| Drive Type | 4x2 Driving | Main Winch | 8 Tons/10 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 2 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | Cummins Engine 12 Ton Tow Truck,220hp 12 Ton Tow Truck,Cummins Engine Towing Vehicle |
||
Product Description
4X2 FOTON 220HP CUMMINS ENGINE 12 TONS INTEGRATED TOW TRUCK
Truck Specs
| 12 Tons Foton Wrecker Truck | |
| Overview | |
| Name | 12 Tons Foton Wrecker Truck |
| Dimension(LxWxH) | 8250x2250x2655(mm) |
| Total Mass | 16510Kg |
| Rated Payload | 12000Kg |
| Kerb Weight | 4510Kg |
| Passenger | 3 |
| Approach/Departure Angle | 30/23 |
| The Parameters of Chassis | |
| Manufacture/Model | Foton |
| Driving Type | 4*2 LHD/RHD |
| Wheel Base | 5150 mm |
| Gearbox | FAST 8JS85T, eight speed forward and two reverse, manual |
| Front/Rear Track | 1914/1800(mm) |
| Tyre | 10.00R20 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1250/2320(mm) |
| Leaf Spring Number | 4+3 |
| Fuel Tank | 260L Aliminum |
| Power Steer, AC, Air Brake, MP3, ABS, etc | Equipped |
| The Paremeters of Engine | |
| Manufacturer/Model | Cummins/ISF4.5 210 |
| Rated Power | 210hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 4460ml |
| Emission Standard | Euro 5 |
| Cylinder | In-line/4/intercooling/turbo charge/Bosch common rail/pressure direct injection |
| Max. torque | 760N.m |
| Velocity | 2300rpm |
Body Specs
| 12 Tons Wrecker Body Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 12 Tons Wrecker Body | ||
| 2 | Winches | 2×8 Tons Main Winches |
Side puller (8 tons) is optional, extra USD2,000 |
|
| 3 | Underlift | Underlift | G70 material, 3 stage | |
| 4 | Boom | Boom | G70 material, 2 stage, hexagon | |
| 5 | Legs | Rear | Hydraulic rear supporting legs |
Front support legs are optional. Extra USD1,500 |
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD3,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control |
Optional button remote control. Extra USD1,000 |
Optional Joystick type remote control, English Display Extra USD3,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | ||
| Hydraulic Hose | ||||
| Hydraulic Connector | ||||
| Valves | Italy Hydrocontrol | |||
| Cylinders | ||||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting | Toolbox EP painting |
Subframe with boom and underlift EP painting extra USD1,200 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 8000 | kg |
| Retracted Length | 1505 | mm | ||
| Extended Lifting Capacity | 3500 | kg | ||
| Extended Length | 2760 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 16-24 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 12 | ton |
| Extended Lifting Capacity (45°) | 5.5 | ton | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 8 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 16 | mm | ||
