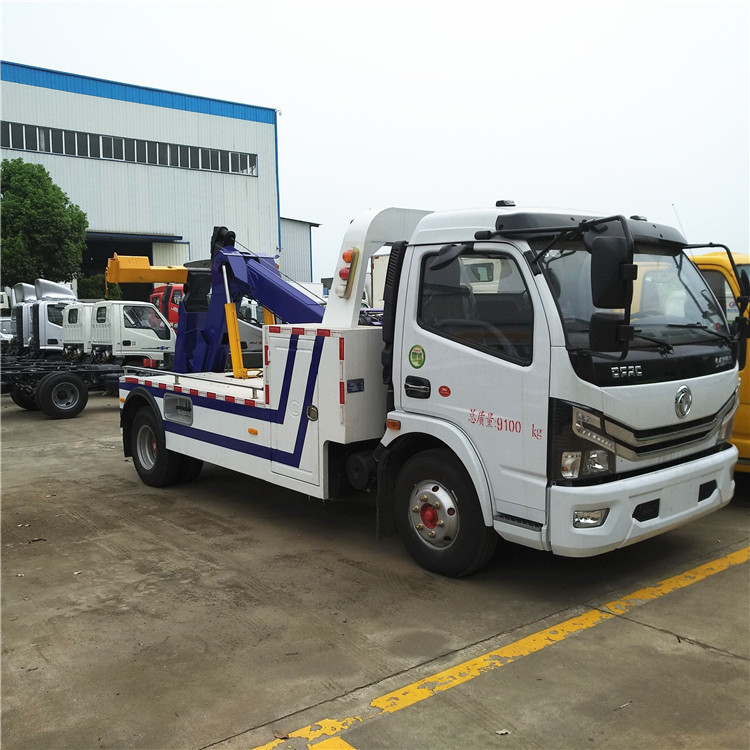

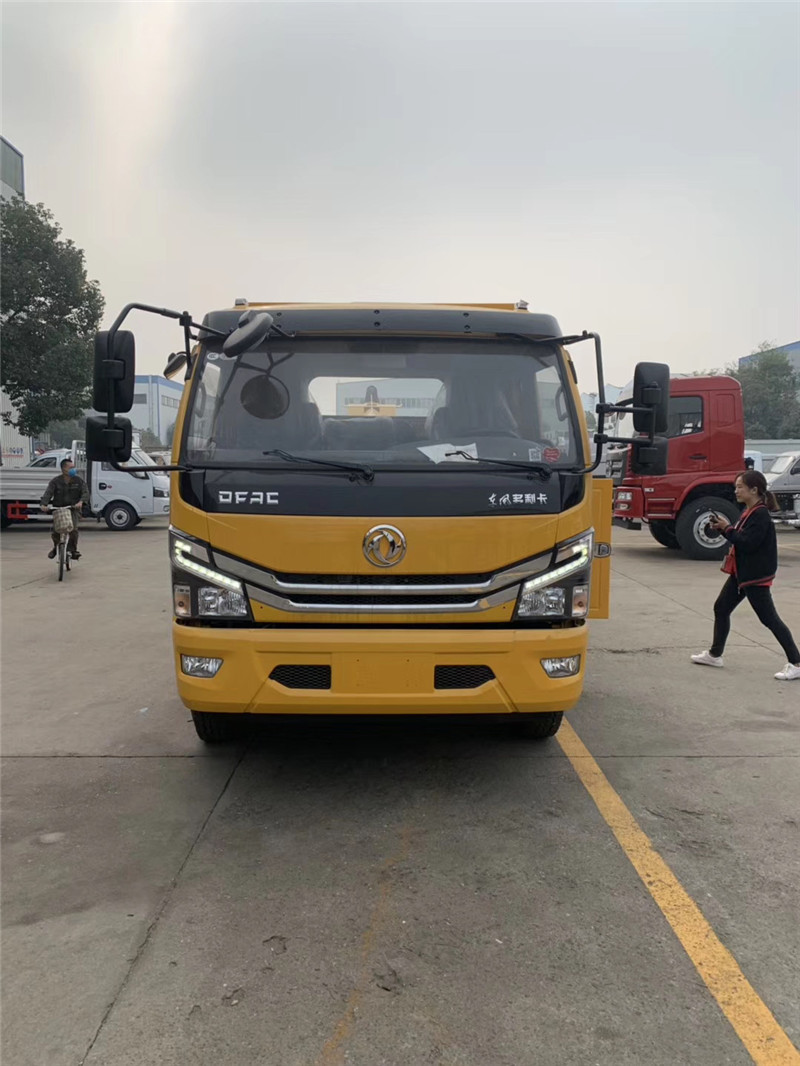

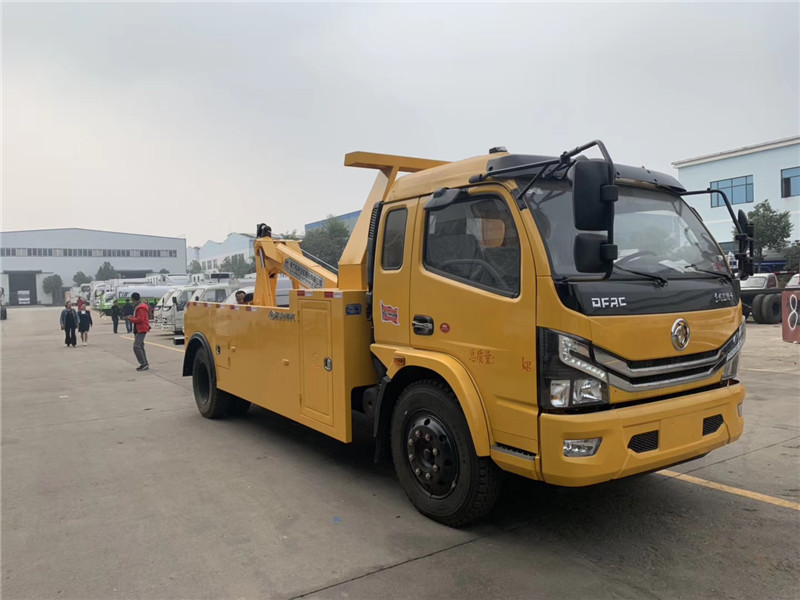

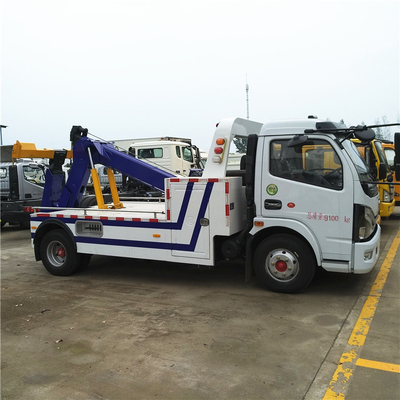

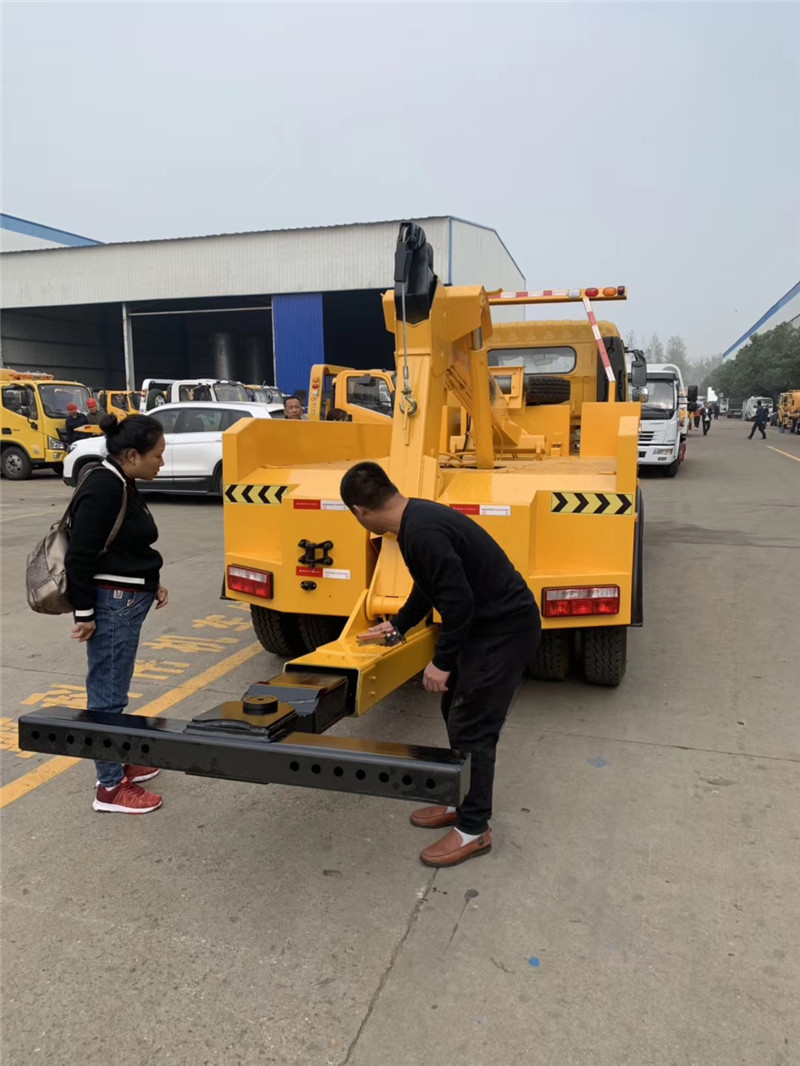

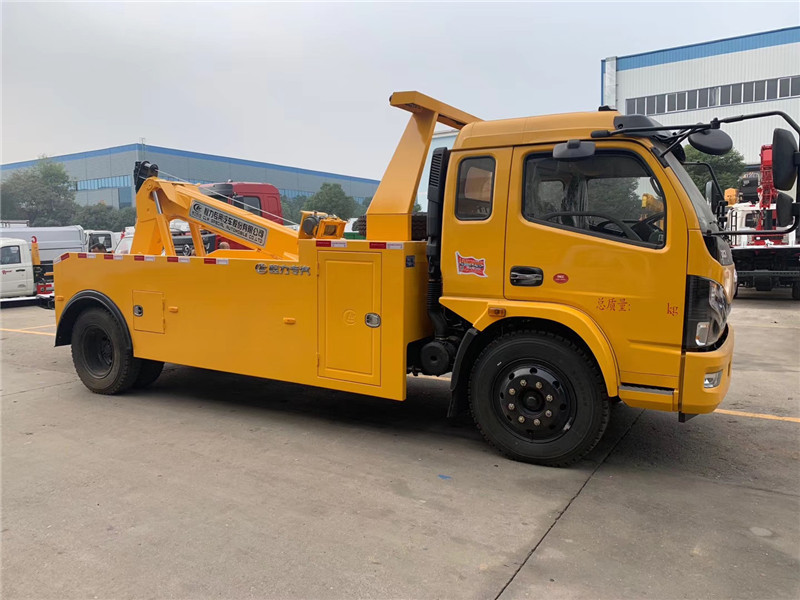

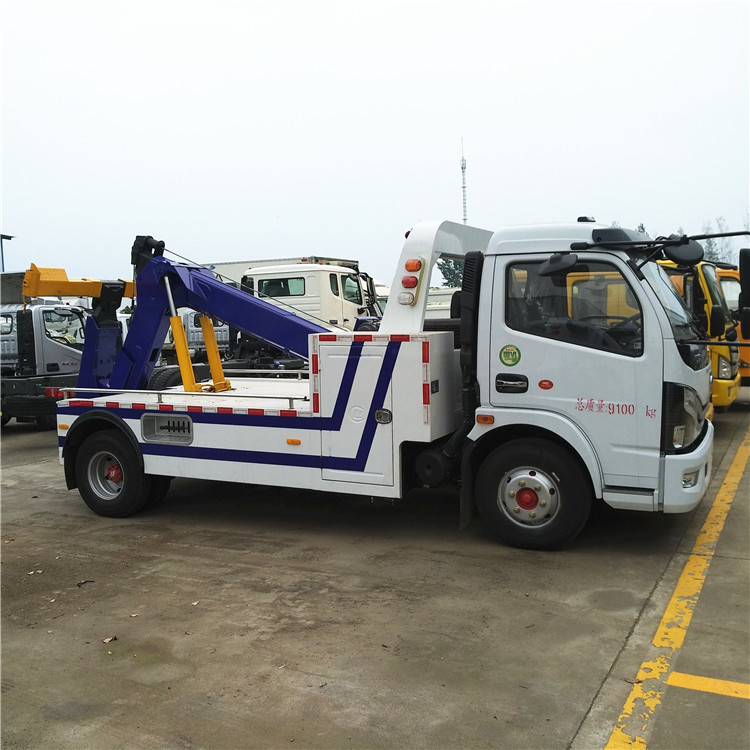

Euro 6 Dongfeng Underlift Recovery Truck 12 Tonne Recovery Truck
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | Dongfeng |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 35 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Integrated Wrecker Truck | Condition | New |
|---|---|---|---|
| Drive Type | 4x2 Driving | Main Winch | 6 Tons, 1 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 2 Sections |
| Boom | G70, 2 Sections | Remote Control | Optional |
| Warranty | 2 Year | ||
| Highlight | Dongfeng Underlift Recovery Truck,Dongfeng 12 Tonne Recovery Truck,Euro 6 12 Tonne Recovery Truck |
||
Product Description
6 TONS EURO 6 DONGFENG 12 TONS UNDERLIFT RECOVERY TRUCK LIFT AND BOOM TOW TRUCK WRECKER
Truck Specs
| 6 Tons Integrated Wrecker Truck | |
| Overview | |
| Name | 6 Tons Integrated Wrecker Truck |
| Dimension (LxWxH) | 6450x2300x2400(mm) |
| Total Mass | 9100Kg |
| Rated Payload | 4000Kg |
| Kerb Weight | 5900Kg |
| Passenger | 3 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 3800 mm |
| Gearbox | Six speed forward and one reverse, manual |
| Tyre | 7.50R16 |
| The Number of Tyre | 6+1(spare tyre) |
| Leaf Spring Number | 8/10+7 |
| AC, Power Window, Central Locking, etc. | Included |
| The Parameters of Engine | |
| Manufacturer/Model | Yunnei/YCY24140-60 |
| Rated Power | 140hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2360ml |
| Emission Standard | Euro 6 |
| Cylinder | In-line/4/turbo/intercooling/+EGR+DOC+DPF+SCR+ASC |
| Max. torque | 400N.m |
| Velocity | 2950rpm |
Body Specs
| 6 Tons Wrecker Body | ||||
| S.N. | Item | Unit | Quantity | Remarks |
| 1 | Boom | Stage | 2 | |
| 2 | Wheel Lift | Stage | 2 | |
| 3 | Boom Extension Cylinder | pcs | 1 | |
| 4 | Boom Lift Cylinder | pcs | 2 | |
| 5 | Wheel Lift Extension Cylinder | pcs | 1 | |
| 6 | Wheel Lift Tilt Cylinder | pcs | 1 | |
| 7 | Multi Way Valve | pcs | 1 | |
| 8 | Balance Valve | pcs | 1 | For boom lift |
| 9 | Pump | pcs | 1 | |
| 10 | Winch | pcs | 1 | 6 tons |
| 11 | Hose | set | 1 | |
| 12 | Remote Control | set | 1 | Optional, extra USD500 |
| 13 | Manual Control | side | 2 | |
| 14 | Toolbox | side | 2 | |
| 15 | Trolleys | pcs | 2 |
Large trolley is optional, aluminum trolley is extra USD1000, steel trolley is extra USD800 |
| 16 | Wheel Grids | pcs | 2 | Auto loader is optional, extra USD500 |
| 17 | L Arms | pcs | 2 | |
| 18 | Forks | pcs | 2 | |
| 19 | Forks Holder | pcs | 2 | |
| 20 | Binding Strips | pcs | 4 | |
| 21 | Lights | set | 1 | |
