6 Tons Euro 5 Isuzu Tow Trucks Wheel Lift Light Duty Wrecker

  • 6 Tons Euro 5 Isuzu Tow Trucks Wheel Lift Light Duty Wrecker
  • 6 Tons Euro 5 Isuzu Tow Trucks Wheel Lift Light Duty Wrecker
Place of Origin Hubei, China
Brand Name ISUZU
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude, covered with protection film
Delivery Time 35 days
Supply Ability 5 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Condition New
Drive Type 4x2 Driving Main Winch 6 Tons, 1 Pcs
Auxiliary Winch Optional Underlift G70, 2 Sections
Boom G70, 2 Sections Remote Control Optional
Warranty 2 Year
Highlight

6 Tons Isuzu Tow Trucks

,

Euro 5 Isuzu Tow Trucks

,

6 Tons Light Duty Wrecker
Leave a Message
Product Description

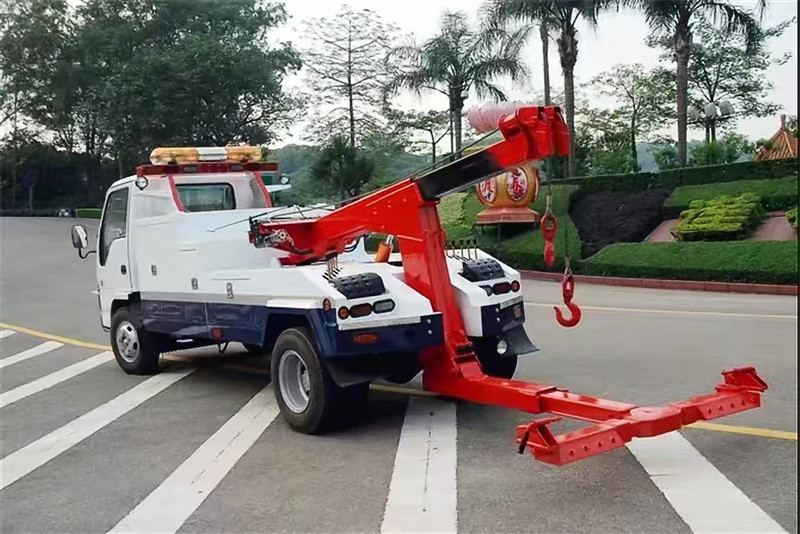

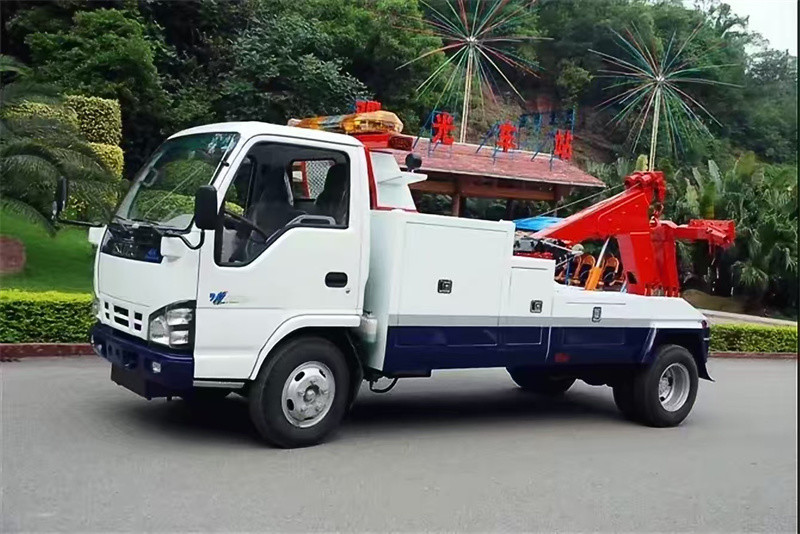

6 TONS EURO 5 ISUZU TOW TRUCK WHEEL LIFT LIGHT DUTY INTERGRATED WRECKER
Product Description

The light duty medium duty integrated series have different capacities from 3 tons to 10 tons.



The 6 ton Integrated wrecker body with a 13,500 lb. rated winch and underlift. A modern, modular steel body that is maximized for available storage and deck space. Optional aluminum body available.



The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.


Main Features
1. 6 Tons / 13,500 lbs. Planetary Winch, 1 Pcs
2. 6 Tons / 13,500 lbs. Underlift Capacity, Tow Rate At Least 12 Tons / 26,600 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
Truck Specs
ISUZU 6 Tons Integrated
Overview
Name ISUZU 6 Tons Wrecker Tow Truck
Dimension (LxWxH) 6990x1940x2280(mm)
Total Mass 8550Kg
Rated Payload 5000Kg
Kerb Weight 3550Kg
Passenger 3
Approach/Departure Angle 24/16
The Parameters of Chassis 　
Manufacture/Model ISUZU
Driving Type 4*2 left hand drive
Wheel Base 3815 mm
Gearbox ISUZU MSB, five speed forward and one reverse, manual
Front/Rear Track 1377,1425(mm)
Tyre 700R16
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1015/1620(mm)
The Parameters of Engine
Manufacturer/Model ISUZU/4KH1CN5HS
Rated Power 130hp/96kw
Fuel Type Diesel oil
Displacement/Capacity 2999ml
Emission Standard Euro 5
Cylinder Straight/4
Max. torque 290N.m
Manufacturer/Model ISUZU/4KH1CN5HS

Body Specs
6 Tons Wrecker Body
S.N. Item Unit Quantity Remarks
1 Boom Stage 2 　
2 Wheel Lift Stage 2 　
3 Boom Extension Cylinder pcs 1
4 Boom Lift Cylinder pcs 2
5 Wheel Lift Extension Cylinder pcs 1
6 Wheel Lift Tilt Cylinder pcs 1
7 Multi Way Valve pcs 1
8 Balance Valve pcs 1 For boom lift
9 Pump pcs 1
10 Winch pcs 1 6 tons
11 Hose set 1 　
12 Remote Control set 1 Optional, extra USD500　
13 Manual Control side 2 　
14 Toolbox side 2
15 Trolleys pcs 2

Large trolley is optional, aluminum trolley is

extra USD1000, steel trolley is extra USD800　
16 Wheel Grids pcs 2 Auto loader is optional, extra USD500
17 L Arms pcs 2
18 Forks pcs 2
19 Forks Holder pcs 2
20 Binding Strips pcs 4 　
21 Lights set 1
