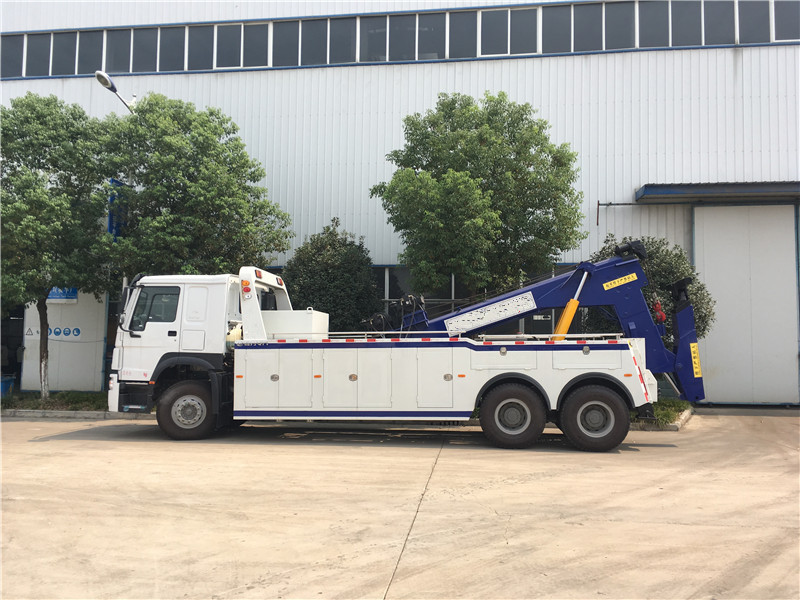

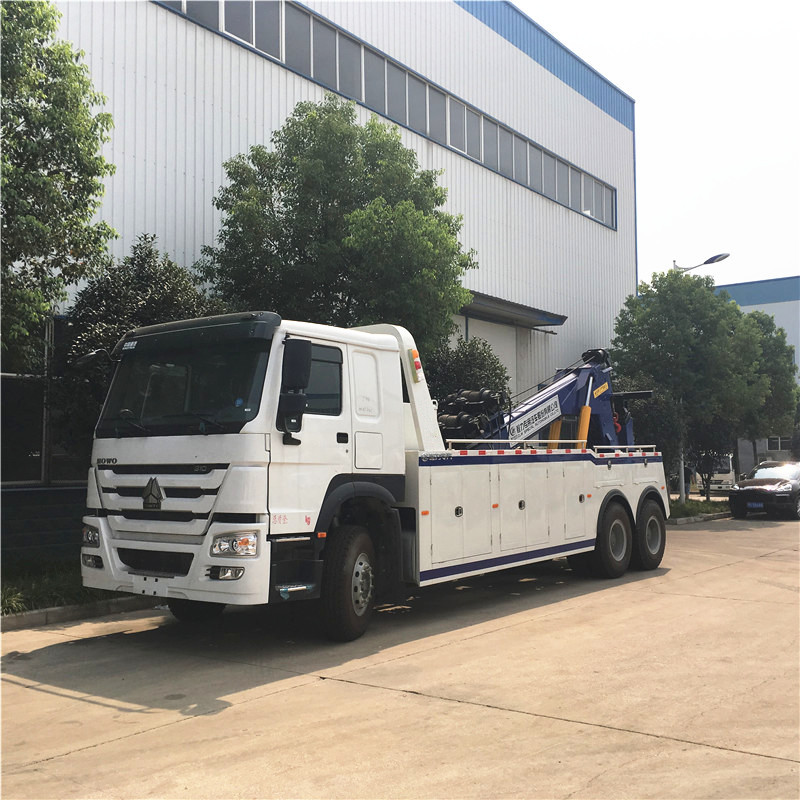

6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | Sinotruck |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Packaging Details | Nude, covered with protection film |
| Delivery Time | 85 days |
| Supply Ability | 5 unit/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Integrated Wrecker Truck | Condition | New |
|---|---|---|---|
| Drive Type | 6x4 Driving | Main Winch | 10 Tons, 2 Pcs |
| Auxiliary Winch | Optional | Underlift | G70, 3 Sections |
| Boom | G70, 2 Sections | Remote Control | Wireless |
| Hydraulic | DOT Certified | Warranty | 3 Year |
| Highlight | 20 Tons Heavy Recovery Truck,6x4 Driving Heavy Recovery Truck,20 Tons Underlift Tow Truck |
||
Product Description
6X4 HOWO 20 TONS HEAVY RECOVERY TRUCK UNDERLIFT TOW TRUCK
Truck Specs
| 6x4 20 Tons HOWO Integrated Wrecker Truck | |
| Overview | |
| Name | 6x4 20 Tons HOWO Integrated Wrecker Truck |
| Dimension(LxWxH) | 10480x2550x3150 (mm) |
| Total Mass | 25000 Kg |
| Rated Payload | 20000 Kg |
| Kerb Weight | 21900 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 16/14 |
| The Parameters of Chassis | |
| Manufacture/Model | HOWO |
| Driving Type | 6*4 RHD/LHD |
| Wheel Base | 4600+1350 mm |
| Gearbox | HW13710, ten speed forward and two reverse, manual |
| Front/Rear Track | 2022,2041/1830,1830(mm) |
| Tyre | 12R22.5 |
| The Number of Tyre | 10+1(spare tyre) |
| Front/Rear Suspension | 1500/2900,2875(mm) |
| Leaf Spring Number | 10/12 |
| The Paremeters of Engine | |
| Manufacturer/Model | Sinotruck/WD615.87 |
| Rated Power | 290hp/213kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 9726ml |
| Emission Standard | Euro 2 |
| Cylinder | Direct injection/6 cylinders/4 strokes/turbo/intercooling/watercooling |
| Max. torque | 1160N.m |
| Velocity | 2200rpm |
Body Specs
| 25 Tons Wrecker Body Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 25 Tons Wrecker Body | ||
| 2 | Winches | 2×10 Tons Main Winches |
Side puller/ extra winch is optional, extra USD2,500 |
|
| 3 | Under lift | Under lift | G70 material, 3 stage | |
| 4 | Boom | Boom |
G70 material, 2 stage, hexagon |
|

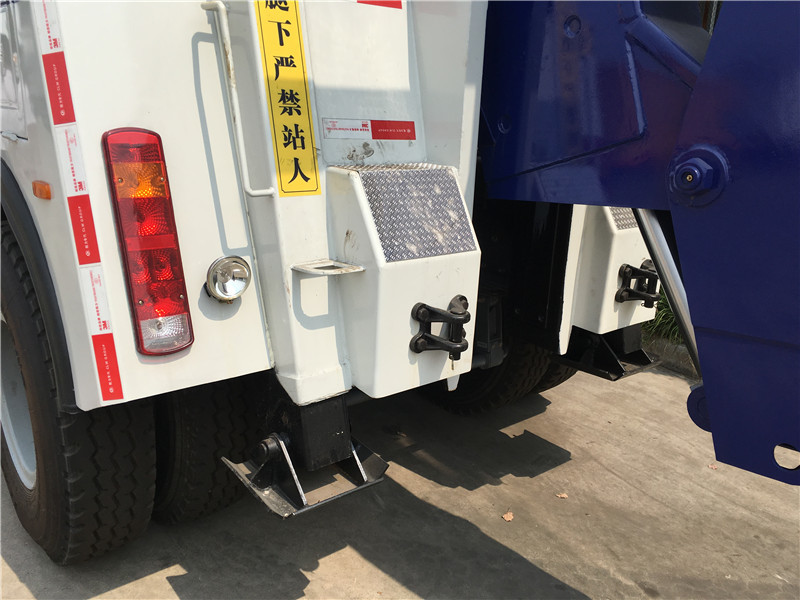

| 5 | Legs | Rear | Hydraulic rear supporting legs |
Front supporting legs are extra USD3,500 or front outrigger extra USD5,000. |
| 6 | Frame | LED Lights Frame, full size | ||

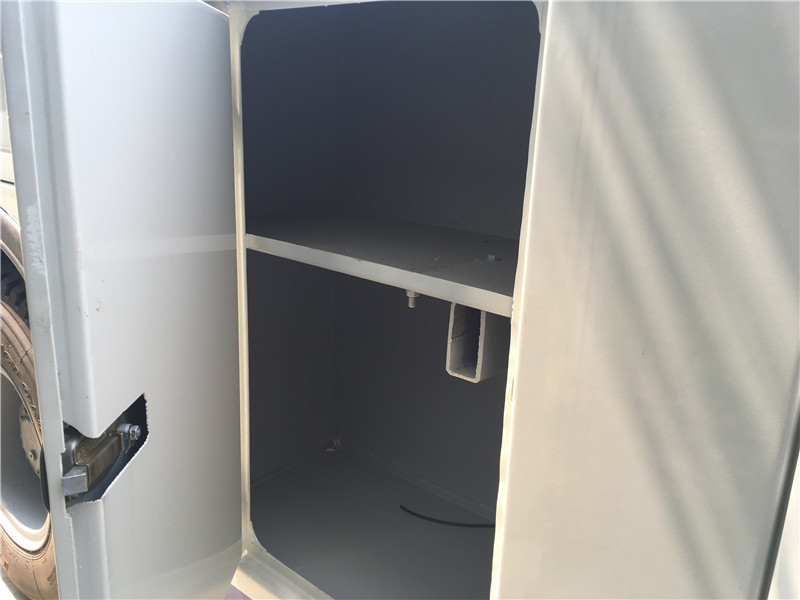

| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD5,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control | Button remote control |
Joystick type remote control, English Display, optional, extra USD2,000 |

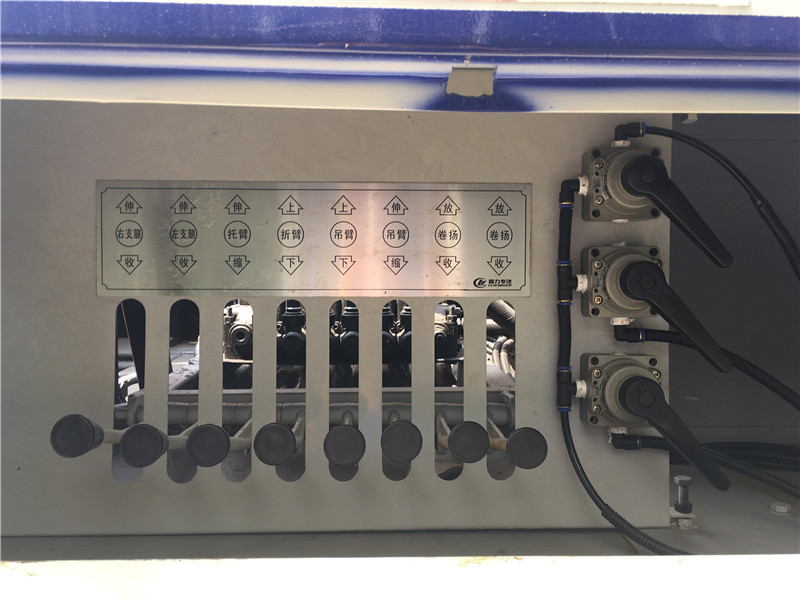

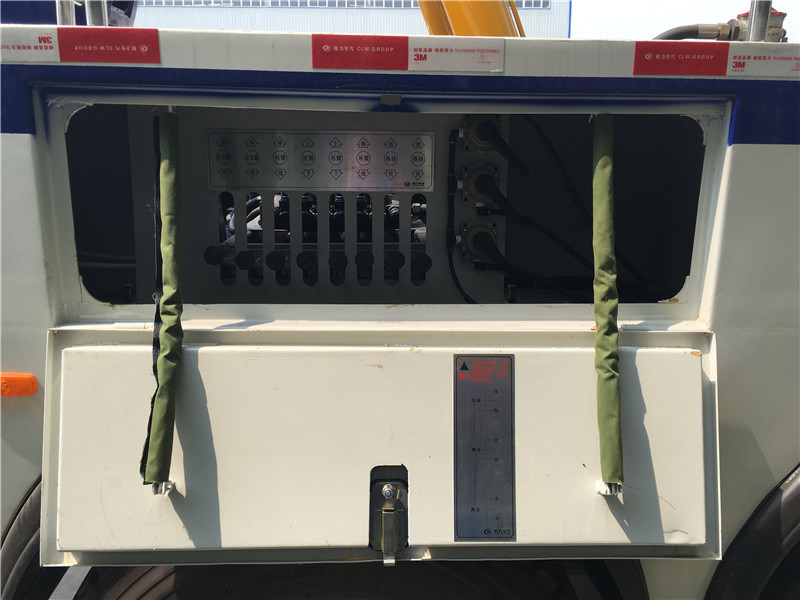

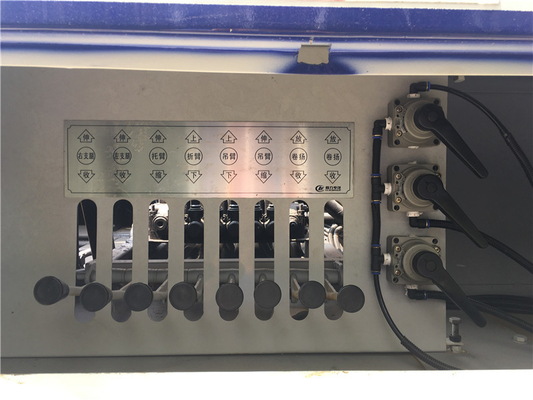

| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | ||
| Hydraulic Hose | ||||
| Hydraulic Connector | ||||
| Valves | ||||
| Cylinders | ||||

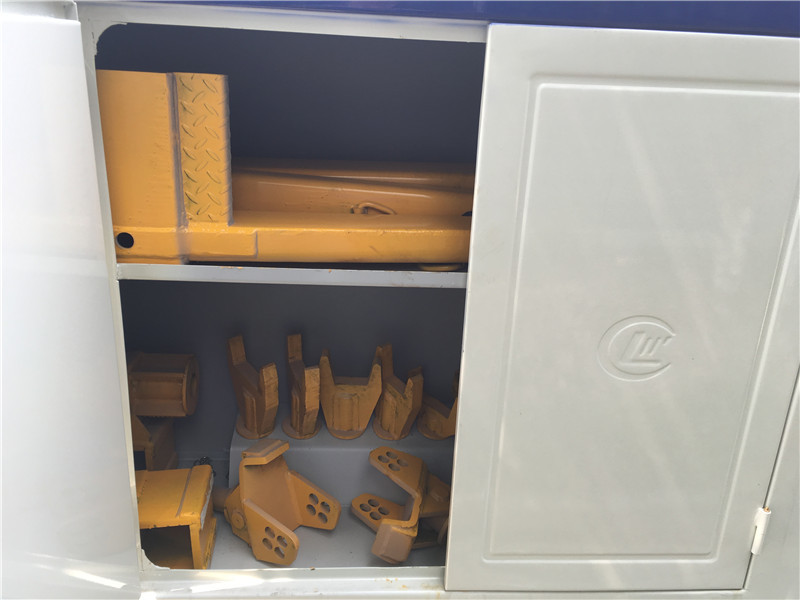

| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting | Primer and surface painting |
All subframe with boom, under lift and tool box EP painting optional, extra USD2,500 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Packaging |
Boxes and under lift protected for the painting |
|||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 25000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 7310 | kg | ||
| Extended Length | 3110 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 50 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 20 | ton |
| Extended Lifting Capacity (45°) | 12 | ton | ||
| Max. Lifting Tilt | 33 | ° | ||
| Max. Lifting Height | 7022 | mm | ||

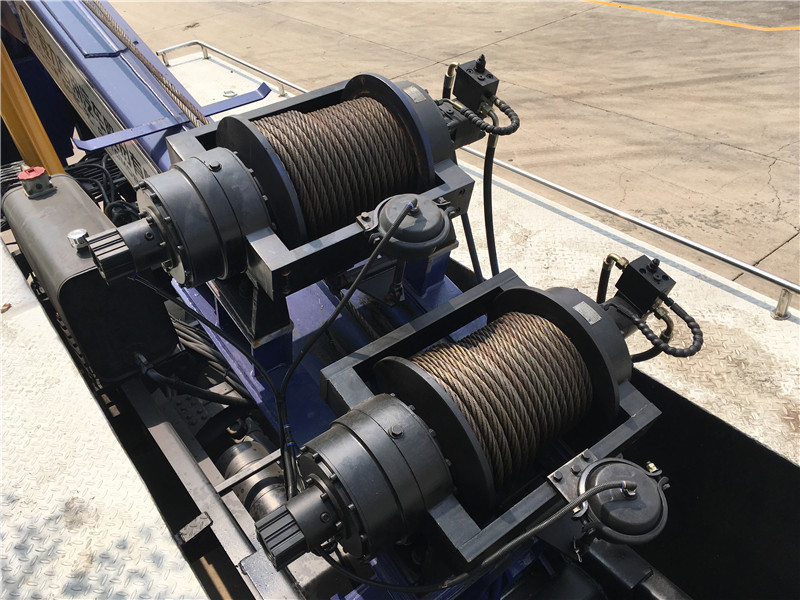

| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 10 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 18 | mm | ||
