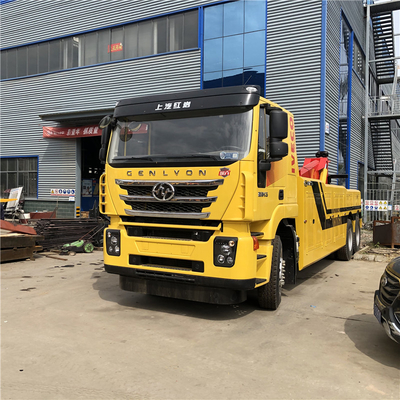

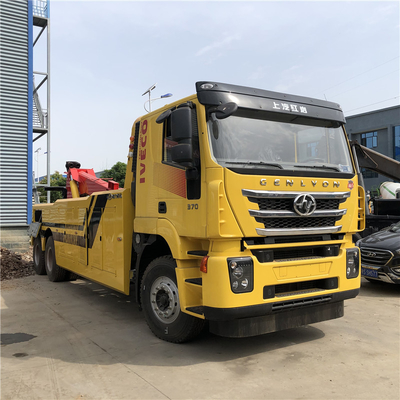

Iveco Heavy Duty 25 Ton Wrecker 50 Ton Tow Truck 6x4 Driving New Condition

  • Iveco Heavy Duty 25 Ton Wrecker 50 Ton Tow Truck 6x4 Driving New Condition
  • Iveco Heavy Duty 25 Ton Wrecker 50 Ton Tow Truck 6x4 Driving New Condition
Place of Origin Hubei, China
Brand Name Iveco
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude, covered with protection film
Delivery Time 85 days
Supply Ability 5 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Condition New
Drive Type 6x4 Driving Main Winch 10 Tons, 2 Pcs
Auxiliary Winch Optional Underlift G70, 3 Sections
Boom G70, 2 Sections Remote Control Wireless
Hydraulic DOT Certified Warranty 3 Year
Highlight

Iveco 25 Ton Wrecker

,

25 Ton Wrecker 6x4 Driving

,

Iveco 50 Ton Tow Truck
Leave a Message
Product Description
6X4 IVECO 25 TONS WRECKER TOWING TRUCK 50 TON TOW RATE HEAVY DUTY WRECKER TOW TRUCK
Product Description

The heavy duty integrated series have different capacities from 20 tons to 50 tons.



BUILT FOR STRENGTH, RELIABILITY AND DURABILITY



The 25 tons integrated wrecker features a 44,500 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.

Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 25 Tons / 55,600 lbs. Underlift Capacity, Tow Rate At Least 50 Tons / 111,100 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers
Truck Specs
6x4 IVECO Wrecker Truck
Overview
Name 6x4 IVECO Wrecker Truck
Dimension (LxWxH) 10730×2550×3120 (mm)
Total Mass 25000Kg
Kerb Weight 21000Kg
Passenger 3
The Parameters of Chassis 　
Manufacture/Model IVECO
Driving Type 6*4 left hand drive
Wheel Base 4400+1350 mm
Gearbox FAST RT-11509C, nine speed forward and one reverse, manual
Tyre 12.00R20
The Number of Tyre 10+1(spare tyre)
Frame 940-865/317/8+8
Alexs Rear 16 tons double
Oil Tank 200L tank
The Parameters of Engine
Manufacturer/Model Cursor/C9 290
Rated Power 290hp
Fuel Type Diesel oil
Displacement/Capacity 8709ml
Emission Standard Euro 3
Cylinder Straight/6/turbo charge
Max. torque 1250N.m
Velocity 2100rpm

Body Specs
25 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 25 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller/ extra winch is optional,

extra USD2,500
3 Under lift Under lift G70 material, 3 stage
4 Boom Boom

G70 material, 2 stage,

hexagon


5 Legs Rear Hydraulic rear supporting legs

Front supporting legs are extra

USD3,500 or front outrigger

extra USD5,000.
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD5,000
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control

Joystick type remote control,

English Display, optional,

extra USD2,000
    Hand Manual Control

On Lift and Right Sides,

English

Indication


10 Hydraulic Parts Hydraulic Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Primer and surface painting

All subframe with boom, under lift

and tool box EP painting optional,

extra USD2,500
    Surface Painting Epoxy Resin
    Indication English Indication and Marks
    Packaging

Boxes and under lift protected

for the painting


Specifications
1 Underlift Retracted Lifting Capacity 25000 kg
    Retracted Length 1746 mm
    Extended Lifting Capacity 7310 kg
    Extended Length 3110 mm
    Undelift Tilt -10 °
    Towing Capacity 50 ton
2 Boom Retracted Lifting Capacity (45°) 20 ton
    Extended Lifting Capacity (45°) 12 ton
    Max. Lifting Tilt 33 °
    Max. Lifting Height 7022 mm
3 Main Winches Quantity 2 pcs
    Pulling Power 10 ton
    Type Planetary
    Steel Wire Length 45 m
    Steel Wire Diameter 18 mm
