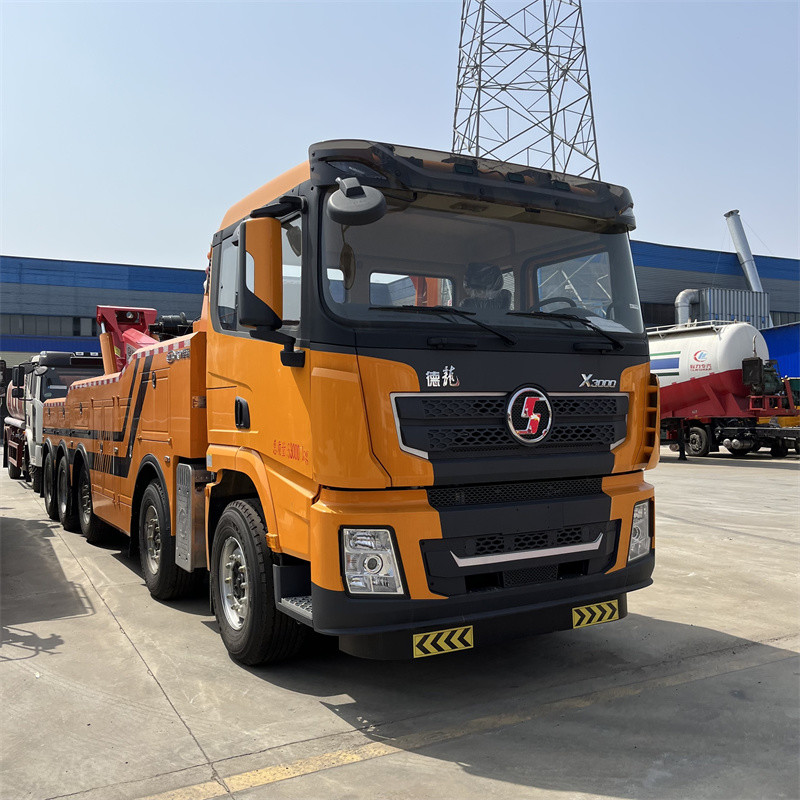

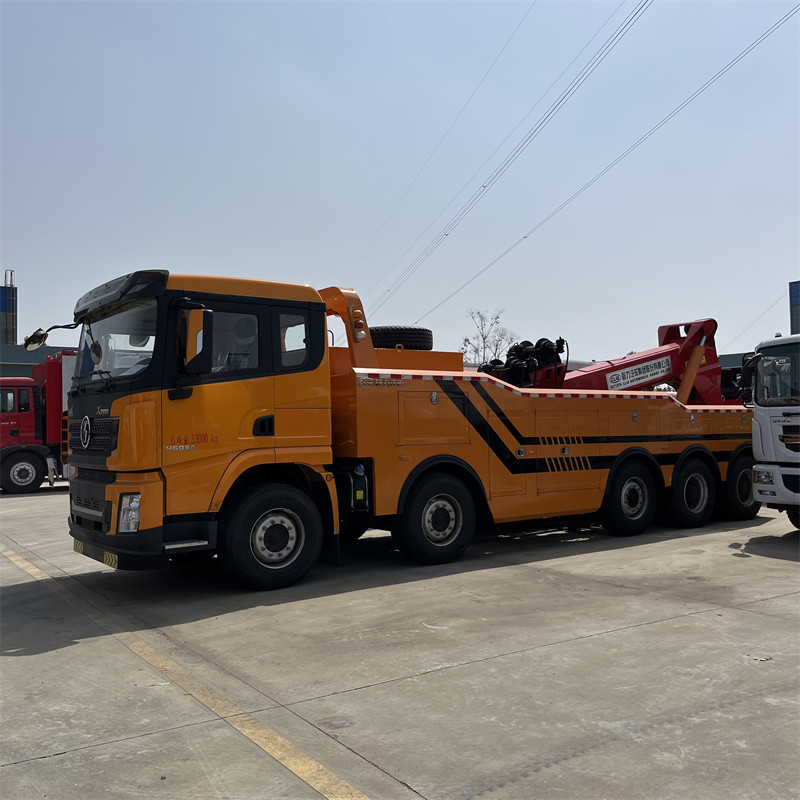

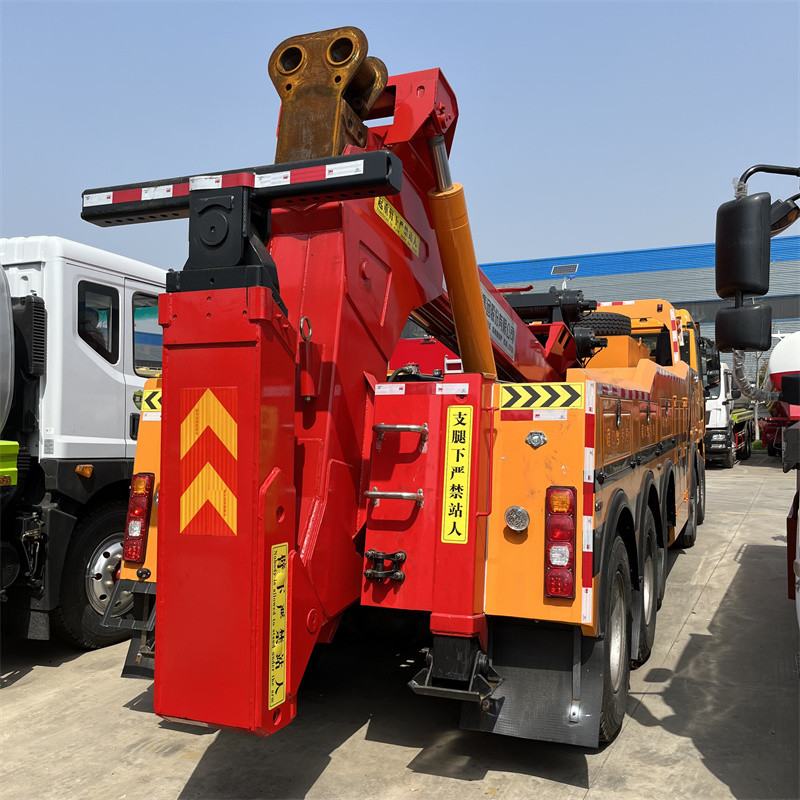

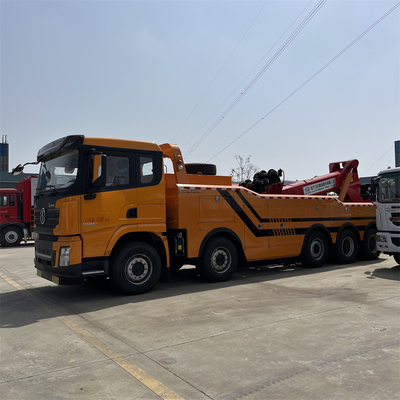

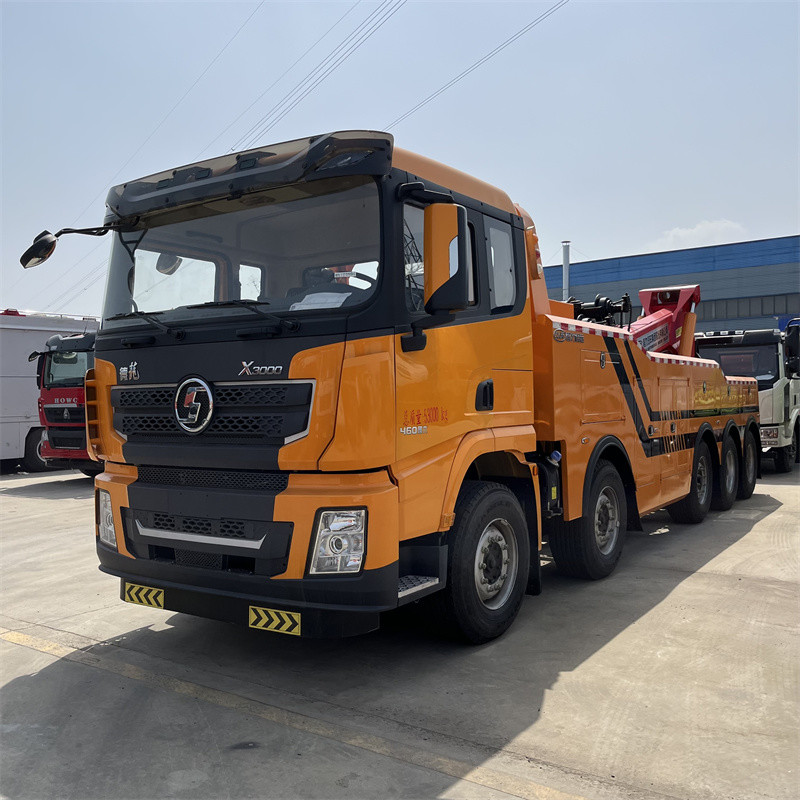

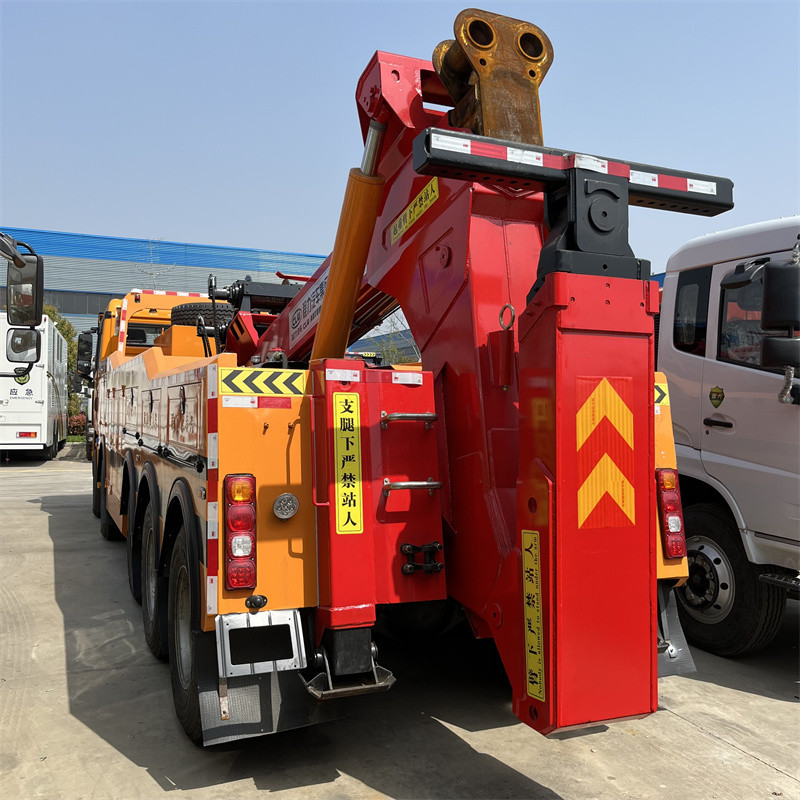

10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped

  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
  • 10x6 Shacman Heavy Duty Wrecker Tow Truck 40 Tons 50 Tons Subframe Equipped
Place of Origin Hubei, China
Brand Name Shacman
Document Product Brochure PDF
Minimum Order Quantity 1
Packaging Details Nude, covered with film protection
Delivery Time 60 days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Integrated Wrecker Truck Transmission Type Manual
Dimensions (L X W X H) (mm) Customs Made Condition New
Subframe Equipped Main Winch 20/25 Tons, 2 Pcs
Underlift 3 Sections, Optional 4 Underlift Tow Rating 25 Ton/50 Tons
Operation Both Sides Manual Remote Control Optional
Warranty 2 Year
Highlight

Shacman Heavy Duty Wrecker Tow Truck

,

10x6 Heavy Duty Wrecker Tow Truck

,

Heavy Duty Wrecker Subframe Equipped
Leave a Message
Product Description
10X6 SHACMAN 40 TONS 50 TONS HEAVY WRECKER HEAVY DUTY INTEGRATED TOWING
Product Description

The heavy duty integrated series have different capacities from 30 tons to 50 tons.



The heavy duty integrated wrecker features a 66,000 lb. - 111,000 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.



The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.


Main Features
1. 15 Tons / 33,200 lbs. - 25 Tons / 55,000 lbs. Planetary Winch, 2 Pcs. Total 30 Tons / 66,600 lbs - 50 Tons / 111,000 lbs.
2. 28 Tons / 62,200 lbs. Underlift Capacity, Tow Rate At Least 56 Tons / 124,000 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers

Truck Specs



10x6 Shacman Wrecker Truck
Overview
Name 10x6 Shacman Wrecker Truck
Dimension (LxWxH) 11950x2550x3950 (mm)
Total Mass 42800Kg
Rated Payload 25000Kg
Kerb Weight 17800Kg
Passenger 3
The Parameters of Chassis 　
Manufacture/Model Shacman
Driving Type 10*6 RHD/LHD
Wheel Base 2100+3175+1400+1400 mm
Gearbox 10JSD180+QH50, ten speed forward and two reverse, manual
Tyre 12.00R20
The Number of Tyre 14+1(spare tyre)
Frame 850x300(8+5+8)
Alexs Front 9.5 tons and rear 16 tons, MAN
Oil Tank 300L aluminum tank
The Parameters of Engine
Manufacturer/Model WeiChai/WP10.380E22
Rated Power 380hp
Fuel Type Diesel oil
Displacement/Capacity 9726ml
Emission Standard Euro 2
Cylinder Straight/6/turbo charge/intercooling/watercooling/direct injection
Max. torque 1600N.m
Velocity 2200rpm

Body Specs
Heavy Duty Integrated Wrecker Body
No. Item Content Details Details Details
1 Name   30 Tons Wrecker Body 40 Tons Wrecker Body 50 Tons Wrecker Body
2 Winches   2×15 Tons Main Winches 2×20 Tons Main Winches 2×25 Tons Main Winches
3 Under lift Under lift G70 material, 3-4 stage
4 Boom Boom G70 material, 2-3 stage, hexagon
5 Legs Rear Hydraulic rear supporting legs
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides Carbon steel Q345R, with stainless steel handles
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control
    Hand Manual Control On Lift and Right Sides, English Indication
10 Hydraulic Parts Hydraulic Pump Double Pump
    Hydraulic Hose
    Hydraulic Connector
    Valves Italy
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Tool Box EP painting, other normal painting
    Surface Painting Epoxy Resin
    Indication English Indication and Marks
    Packaging Boxes and under lift protected for the painting
Specifications
1 Underlift Retracted Lifting Capacity 25000 28000 28000
    Retracted Length 1746 1746 1746
    Extended Lifting Capacity 7310 7310 7310
    Extended Length 3110 3410 3410
    Undelift Tilt -10 -10 -10
    Towing Capacity 50 56 56
2 Boom Retracted Lifting Capacity (45°) 30 40 50
    Extended Lifting Capacity (45°) 8 10 11.5
    Max. Lifting Tilt 33 33 33
    Max. Lifting Height 7022 7022 7022
3 Main Winches Quantity 2 2 2
    Pulling Power 15 20 25
    Type Planetary Planetary Planetary
    Steel Wire Length 45 45 45
    Steel Wire Diameter 18 26 28
