6 Wheels Sinotruck Howo Wrrcker Bed Winch Support Excavator Loading Road Rescue Truck
| Place of Origin | Hubei |
|---|---|
| Brand Name | Sinotruck |
| Certification | ccc |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 |
| Price | 43200 |
| Packaging Details | nude with waxing |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, T/T, Western Union, D/P, D/A |
| Supply Ability | 50 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Wrecker Bed Truck | Dimension | 8500X2500X2800 |
|---|---|---|---|
| Loading Capacity | 10-15 Tons | Total Weight | 18 Tons |
| Tire Model | 12R22.5 | Engine | WD615.62 |
| Winch | 5 Tons | Main Bed | 5 M |
| Fold Bed | 1.5 M | ||
| Highlight | excavator loading road rescue truck,Sinotruck Excavator Loading Road Rescue Truck |
||
Product Description
6 wheels Chinese winch support wrecker bed road rescue truck
The full name of a road clearing vehicle is a road clearing vehicle, also known as a trailer, road rescue vehicle, or towing vehicle. It has multiple functions such as lifting, pulling, and lifting. The clearing vehicle is mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue. Obstacle clearing vehicles are mainly classified into: trailer connected type, trailer separated type, one trailer one type, flat one trailer two type, multifunctional obstacle clearing vehicle, hydraulic automatic clamping type
Main Technical specification
| ITEM | UNIT | PARAMETER | ||
| Vehicle | Sinotruck wrecker bed truck | |||
| Overall dimensions | mm | 8570x2550x2830 | ||
| Flat dimension | mm | 7000×2400 | ||
| Total weight | kg | 18000 | ||
| Curb weight | 10420 | |||
| Wheel base | mm | 4600 | ||
| F/R track base | 1870/1800 | |||
| F/R suspension | 1410/3200 | |||
| Approach/departure angle | ° | 17/10 | ||
| Max speed | km/h | 90 | ||
| Axle Load | kg | 7000/16000 | ||
| Tire specification | 12R22.5 / 7 units | Number of axles | 2 | |
| Engine performance | Manufacturer | WEICHAI | ||
| Model | WD615.62 | |||
| Emission/kw | 9726ml/196Kw, 266Hp | |||
| Type | Diesel, 6 cylinder , direct-line, turbocharge and water cooling | |||
| Rate speed | 2200 r/min | |||
| Max torque/ speed | 1100N.m /1100-1600 r/min | |||
| Transmission | 10 gears | Power steer | Yes | |
| Standard Configuration |
HW76 new front cab; WD615.62 engine; HW15710 gearbox+HW70 flange type power take-off; VGD75 front axle (drum); MCX16ZG single rear
axle (drum); Speed ratio 4.803; Double layered frame (8+5/300); Front and rear standard version with multiple leaf springs (10/9+6); ECO108 steering gear; Standard version exhaust system; Without ABS; High mounted bumper (metal); Ordinary wheels; 12R22.5； TFT instrument (in English); Top configuration: standard 4 tons of lifting, 8 tons of lifting cylinder, mainbed 4.2 m can bear about 15 tons, auxiliary board, 1.5 meters can bear about 4 tons , flip tail 1.65m can bear about 2 tons,
suitable for a variety of road conditions excavator trailer transport and urban road construction machinery transfer
|
|||

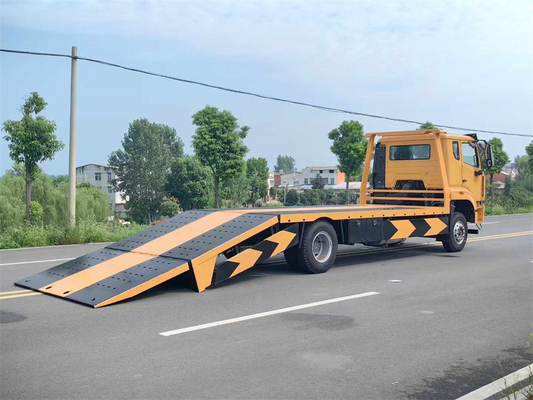

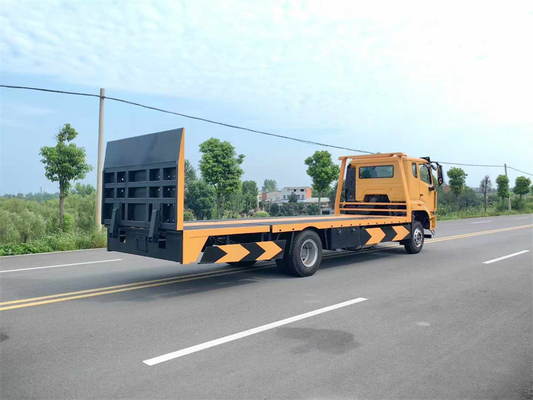

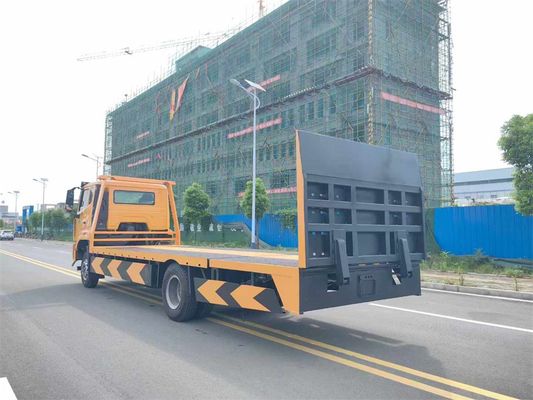

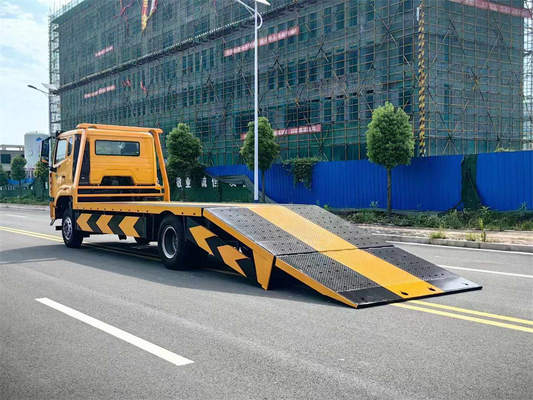

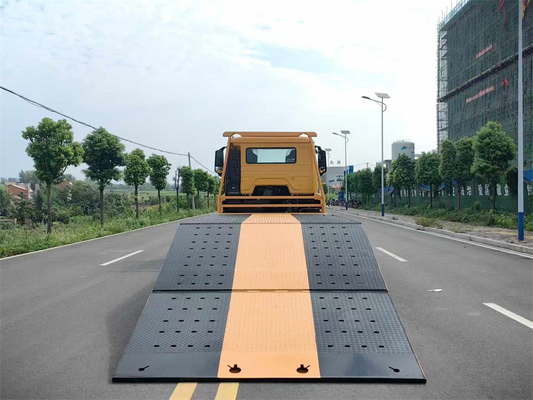

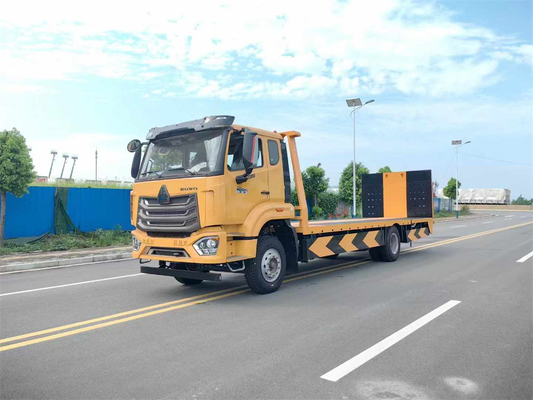

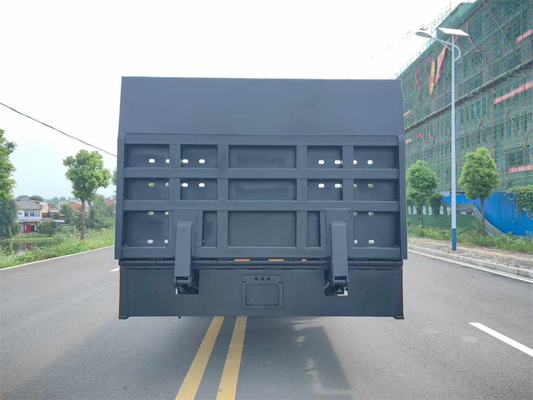

Sinotruck howo wrecker bed truck
